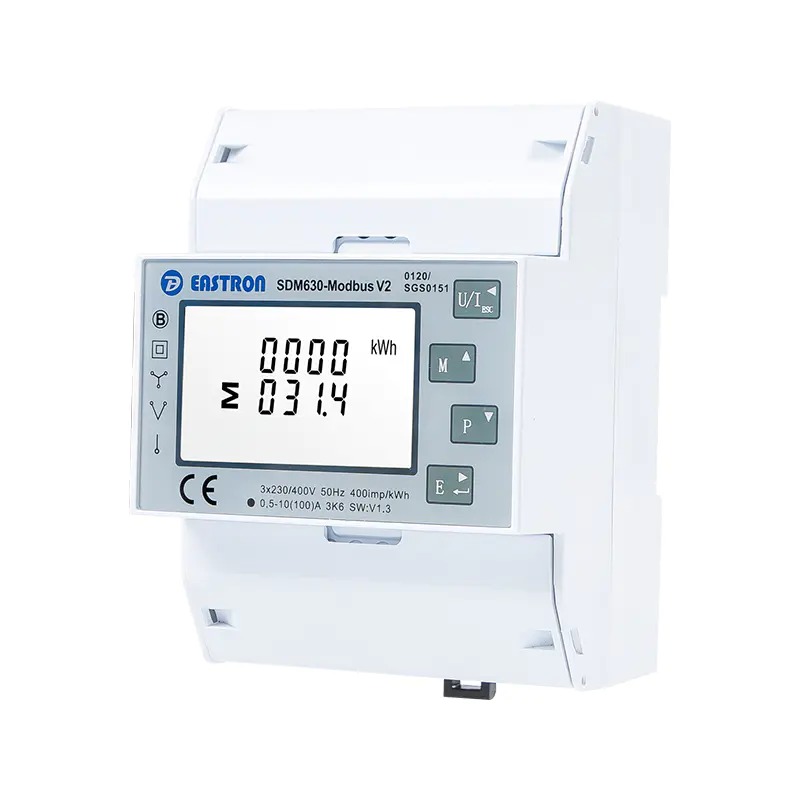

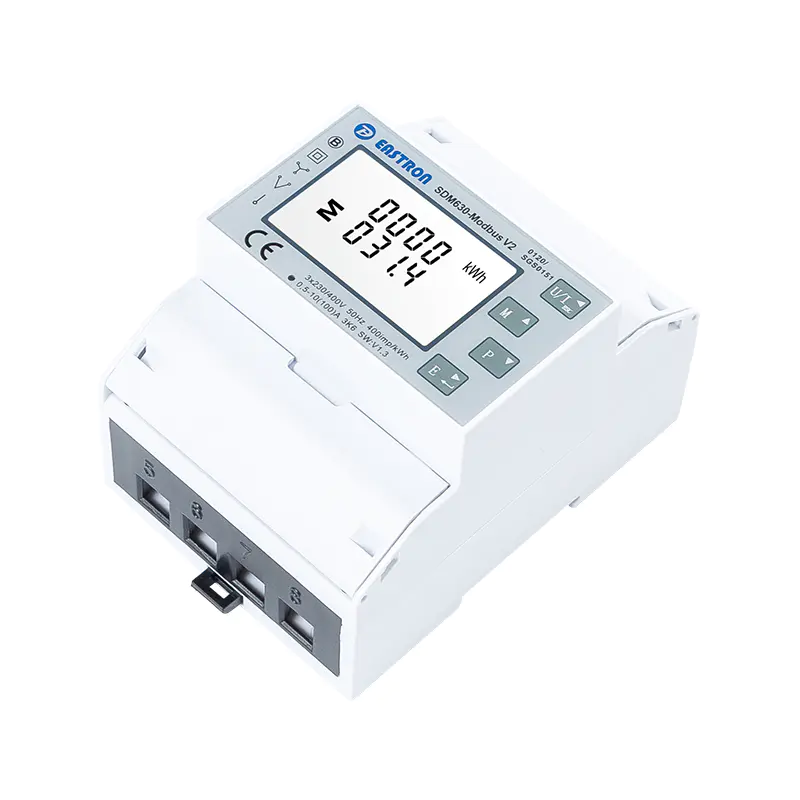

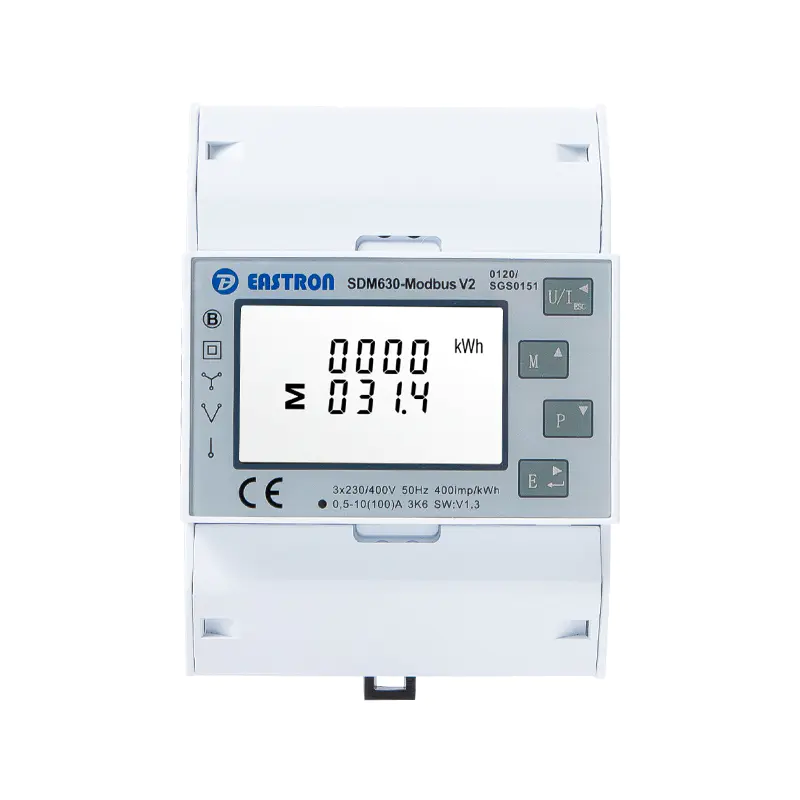

Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter
Roll over image to zoom in
$269.99
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Pre-order item: estimated delivery 2 to 4 weeks. Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter. Supports 1P2W, 3P3W and 3P4W system configurations. RS485 Modbus RTU communication. Two pulse outputs for imported and exported energy. Bi-directional measurement of imported and exported energy. Password-protected configuration through the front-panel controls. Full NZ Manufacturer Warranty. Fast NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter: Genuine Trade Supply
You are viewing the Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter (SKU: SDM630-Modbus V2). This is a 100 percent genuine Meters & Monitoring product from our Solar Accessories range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: SDM630-Modbus V2
Eastron SDM630-Modbus V2 100A is a quality component for building and maintaining a safe, efficient solar power system in New Zealand. The small parts matter: this one is built to spec and built to last. Backed by Eastron, a proven name in solar technology, and supplied with genuine NZ warranty support.

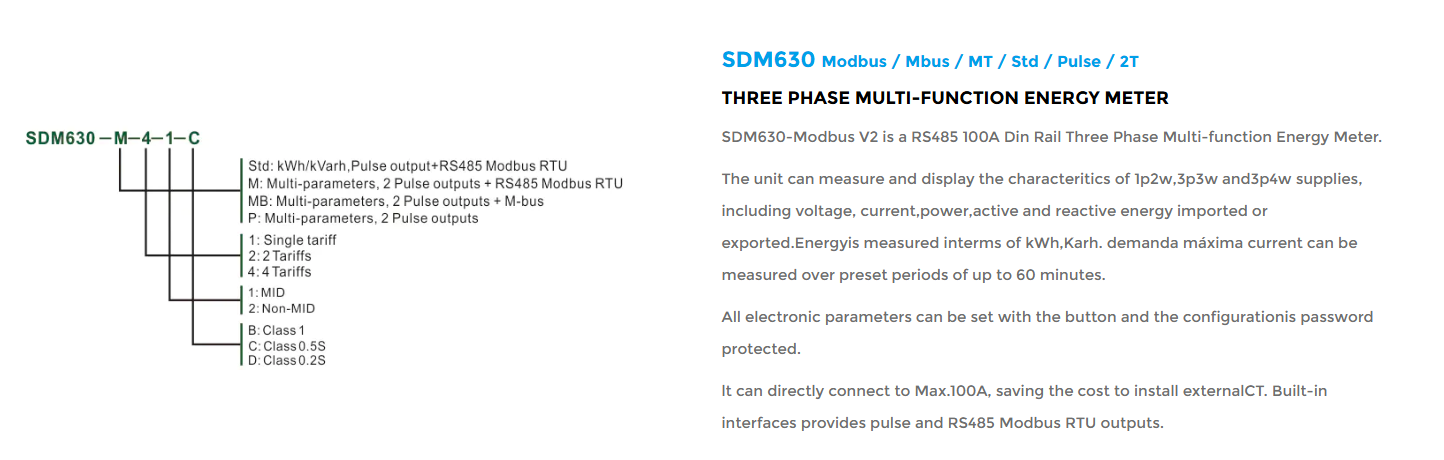

The Eastron SDM630-Modbus V2 is a direct-connected, multifunction DIN-rail energy meter for three-phase electrical systems. It measures and displays key electrical parameters and provides RS485 Modbus RTU communication for monitoring and system integration.
Installation: Installation and configuration should be completed by a suitably qualified electrician in accordance with the applicable wiring rules and system requirements.
Key Features
- ✓ Direct connection up to 100 A, with no external current transformers required
- ✓ Supports 1P2W, 3P3W and 3P4W system configurations
- ✓ RS485 Modbus RTU communication
- ✓ Two pulse outputs for imported and exported energy
- ✓ Bi-directional measurement of imported and exported energy
- ✓ Password-protected configuration through the front-panel controls
- ✓ Four-module, 72 mm DIN-rail format
- ✓ Voltage, current, frequency, power factor, active power, reactive power, apparent power, imported and exported active energy, imported and exported reactive energy, and maximum demand over selectable periods of up to 60 minutes.
Eastron SDM630-Modbus V2 100A: Full Specifications

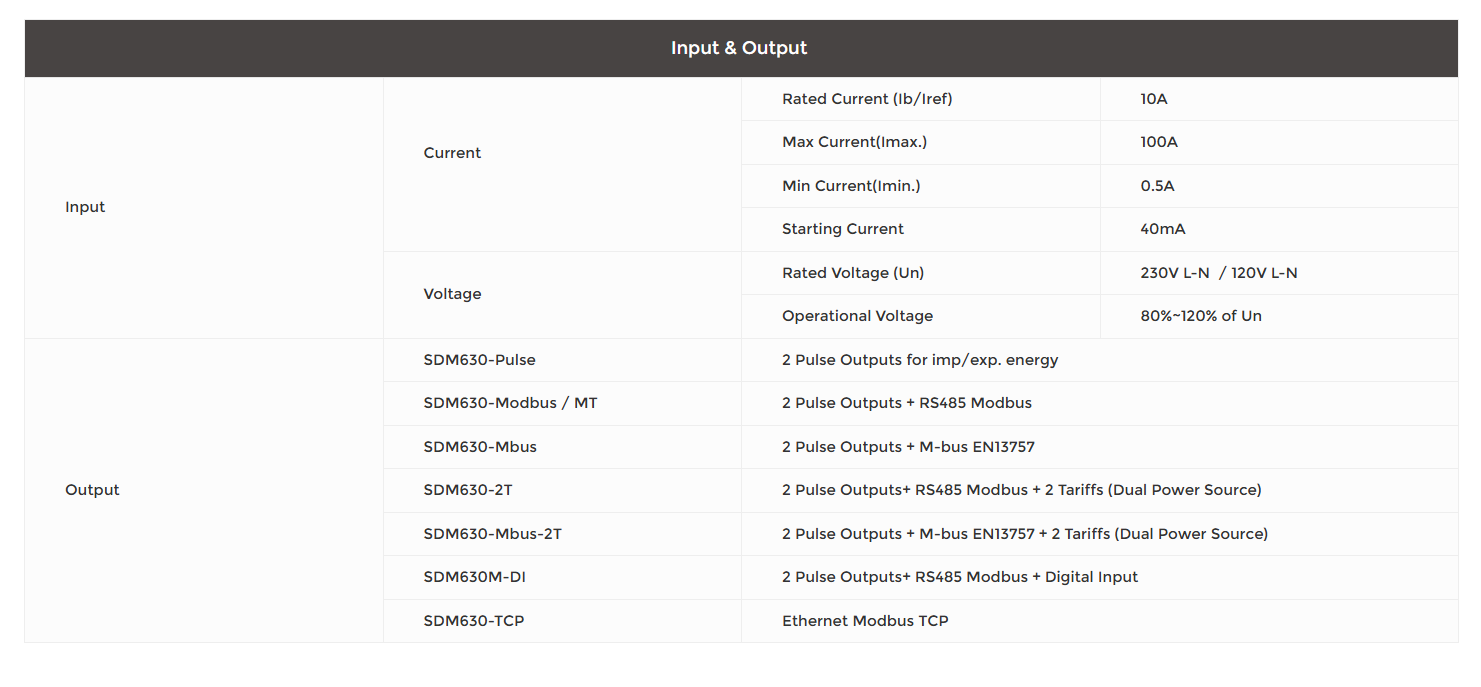

| Specifications | |
| Rated current | 10 A |
| Maximum current | 100 A |
| Minimum current | 0.5 A |
| Starting current | 40 mA |
| Rated voltage and frequency | 3 x 230/400 V AC, 50 Hz |
| Operating voltage range | 80% to 120% of Un |
| Communication | RS485 Modbus RTU |
| Pulse outputs | 2 outputs for imported/exported energy |

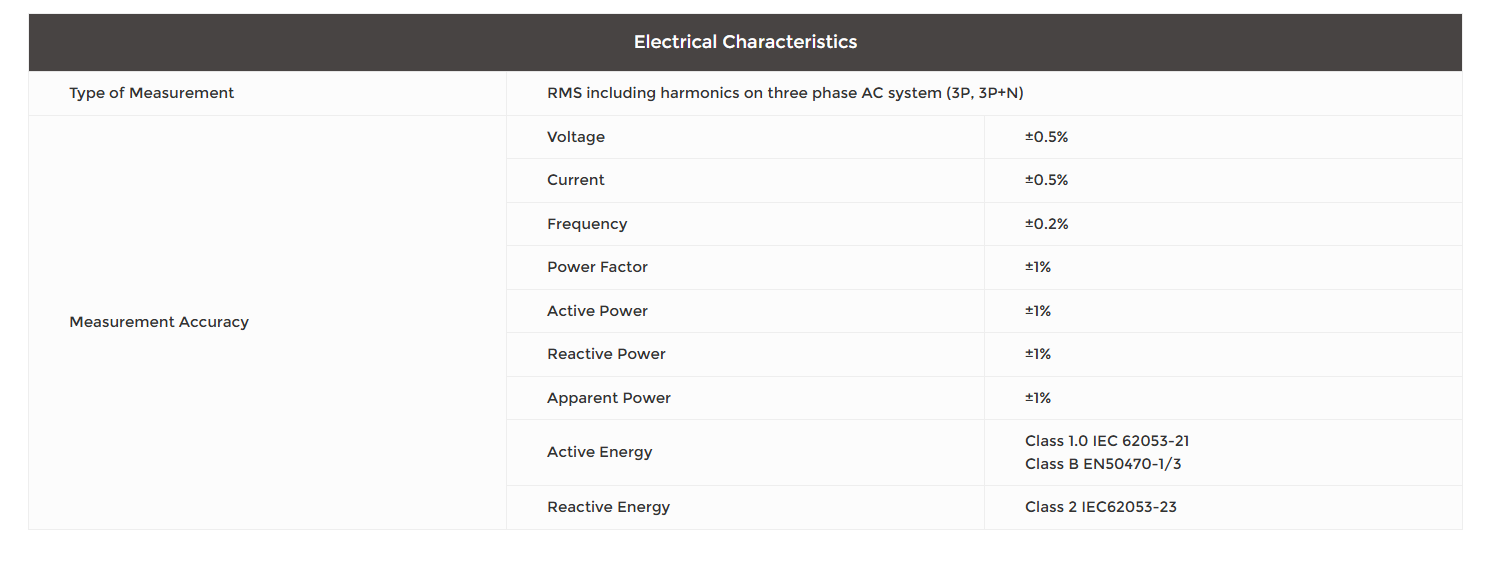

| Voltage | +/-0.5% |
| Current | +/-0.5% |
| Frequency | +/-0.2% |
| Power factor | +/-1% |
| Active, reactive and apparent power | +/-1% |
| Active energy | Class 1.0 (IEC 62053-21); Class B (EN 50470-1/3) |
| Reactive energy | Class 2 (IEC 62053-23) |
⏰ Pre-order item: estimated delivery 2 to 4 weeks. Order now to secure yours and we will keep you updated from purchase to delivery.
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter online today for fast NZ-wide delivery, or get in touch for volume pricing and expert advice on solar accessories and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this SDM630-Modbus V2 matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct import pricing on every unit we sell. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter suitable for New Zealand conditions?
Yes. The SDM630-Modbus V2 is built to handle New Zealand conditions and is fully supported by the NZ Depot team, with genuine manufacturer warranty cover.
Does this unit require professional installation?
Grid-connected solar systems, hybrid inverters and EV chargers must be wired in by a licensed New Zealand electrician. Portable panels, batteries and 12V accessories are plug-and-play, so no installer is needed.
How fast is delivery on the SDM630-Modbus V2?
Orders are dispatched quickly from local stock wherever possible, with delivery to most urban addresses in 2 to 5 working days and rural addresses shortly after. You will receive tracking as soon as it ships.
Looking for the best price on the Eastron SDM630-Modbus V2 100A? NZ Depot supplies the Eastron SDM630-Modbus V2 100A New Zealand wide with fast dispatch, trade pricing and genuine manufacturer warranty support. Compare the Eastron SDM630-Modbus V2 100A Three-Phase DIN Rail Energy Meter with the rest of the Meters & Monitoring range, check the full specifications above, and order the Eastron SDM630-Modbus V2 100A online today or request a trade quote for volume supply.
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 0.5 kg |
|---|---|
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
