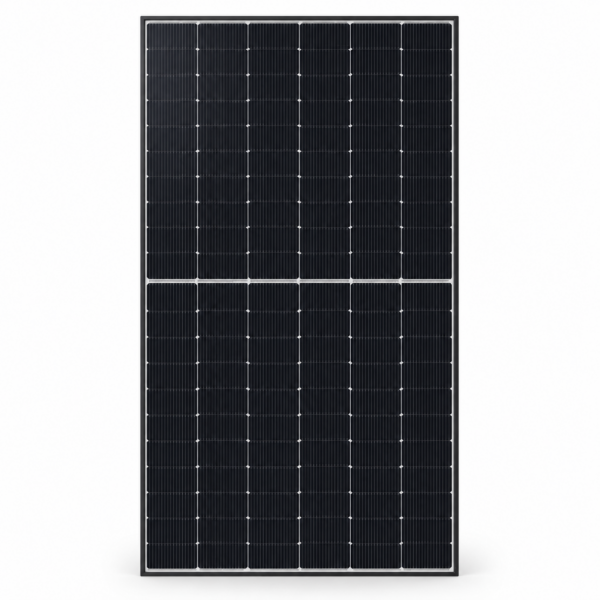

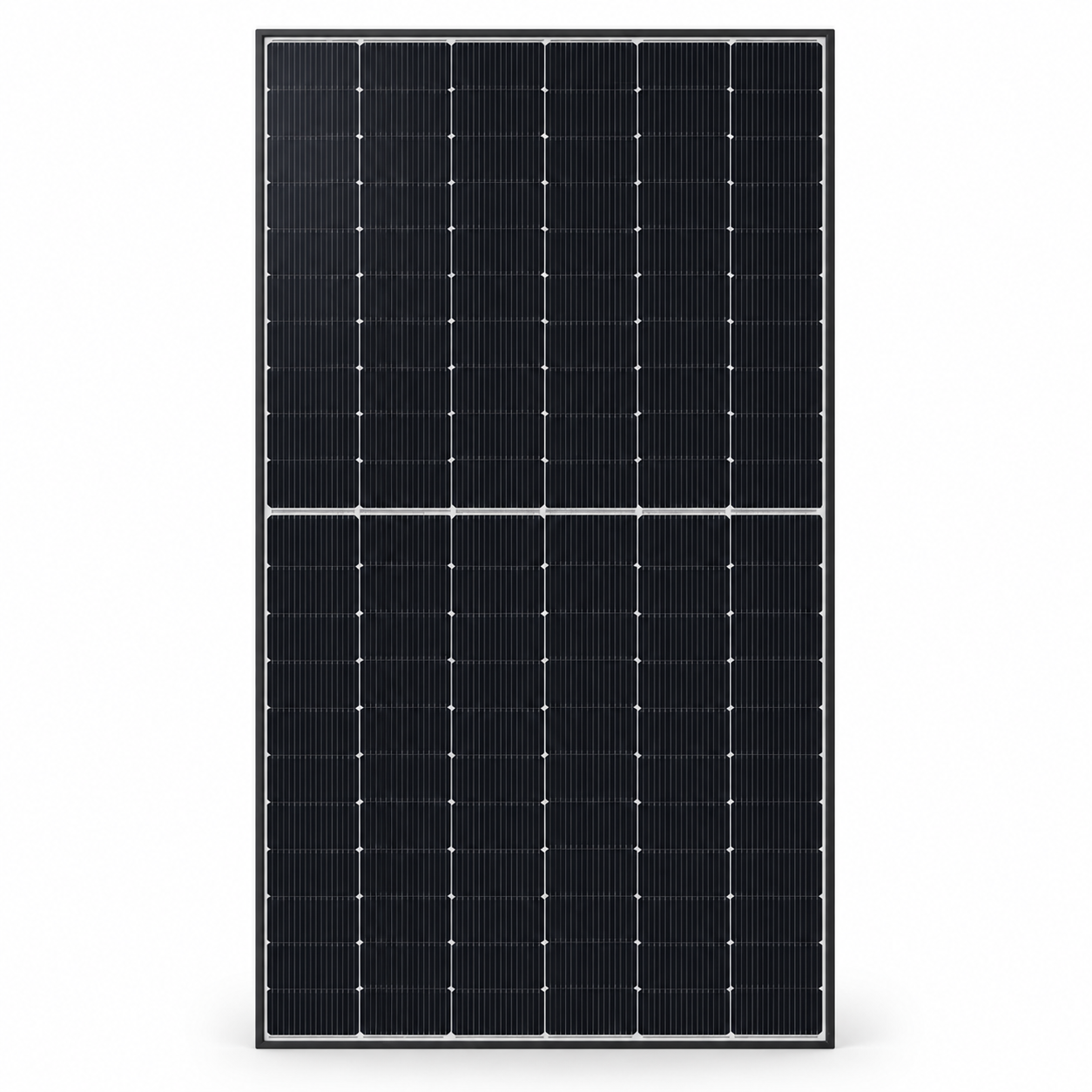

JA Solar JAM54D40-460/LR 460W N-Type Monofacial Black Frame Solar Panel
Roll over image to zoom in
$179.99
Price Match*
Price Match*
JA Solar JAM54D40-460/LR 460W N-Type Monofacial Black Frame Solar Panel. 460W rated maximum power. N-type monocrystalline half-cell technology. Double-glass module construction. Monofacial design. Black frame. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
JA Solar JAM54D40-460/LR 460W N-Type Monofacial Black Frame Solar Panel: Genuine Trade Supply
You are viewing the JA Solar JAM54D40-460/LR 460W N-Type Monofacial Black Frame Solar Panel (SKU: JAM54D40-460/LR). This is a 100 percent genuine Solar Panels product from our Solar Panels range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: JAM54D40-460/LR
JA Solar JAM54D40-460/LR 460W is a high-efficiency solar panel suited to NZ homes, caravans, boats and off-grid systems, offering 460W rated output. Built to handle New Zealand conditions and squeeze the most energy out of every hour of sunshine. Backed by JA Solar, a proven name in solar technology, and supplied with genuine NZ warranty support.
The JA Solar JAM54D40-460/LR is a 460W N-type monocrystalline solar panel with double-glass construction and a black frame. It is designed for high efficiency, strong mechanical durability, and stable long-term output.
Key Features
- ✓ 460W rated maximum power
- ✓ N-type monocrystalline half-cell technology
- ✓ Double-glass module construction
- ✓ Monofacial design
- ✓ Black frame
- ✓ High module efficiency of 23.0%
- ✓ Low degradation and strong long-term performance
- ✓ MC4-EVO2A connector
- ✓ Suitable for residential and commercial solar installations
- ✓ JA Solar linear power output warranty and product warranty apply according to JA Solar regional warranty terms and the applicable installation/system configuration.
- ✓ Download datasheet (PDF)
JA Solar JAM54D40-460/LR 460W: Full Specifications
| Specifications | |
| Model | JAM54D40-460/LR |
| Maximum Power (Pmax) | 460W |
| Open Circuit Voltage (Voc) | 39.70V |
| Maximum Power Voltage (Vmp) | 33.17V |
| Short Circuit Current (Isc) | 14.64A |
| Maximum Power Current (Imp) | 13.87A |
| Module Efficiency | 23.0% |
| Power Tolerance | 0 to +3% |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | 0.250%/°C |
| Temperature Coefficient of Pmax | 0.290%/°C |
| NOCT | 45 ± 2°C |
| Operating Temperature | 40°C to +85°C |
| Cell Type | Mono N-type |
| Cell Arrangement | 108 half-cells (6 × 18) |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.8 kg |
| Front / Back Glass | 2.0 mm / 2.0 mm |
| Junction Box | IP68, 3 diodes |
| Cable | 4 mm² IEC / 12 AWG UL |
| Connector | MC4-EVO2A |
| Packaging | 36 pcs per pallet, 936 pcs per 40HQ container |
| Maximum Static Load, Front | 5400 Pa |
| Maximum Static Load, Rear | 2400 Pa |
| Safety Class | Class II |
| Fire Rating | Class C |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the JA Solar JAM54D40-460/LR 460W N-Type Monofacial Black Frame Solar Panel online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar panels and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this JAM54D40-460/LR matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 24.8 kg |
|---|---|
| Dimensions | 30 × 1762 × 1134 mm |
