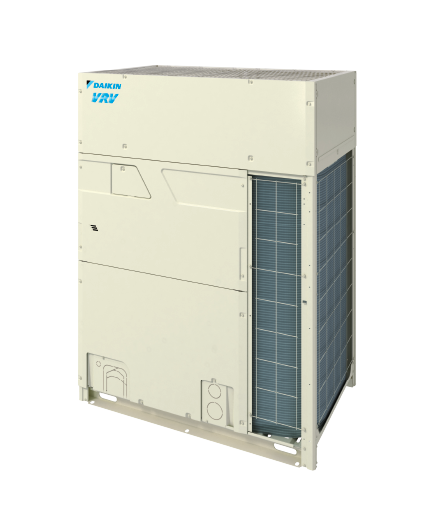

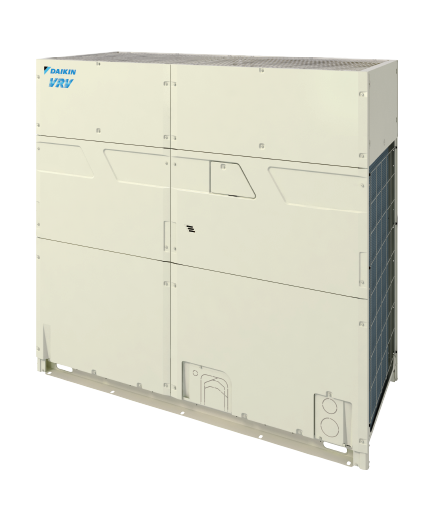

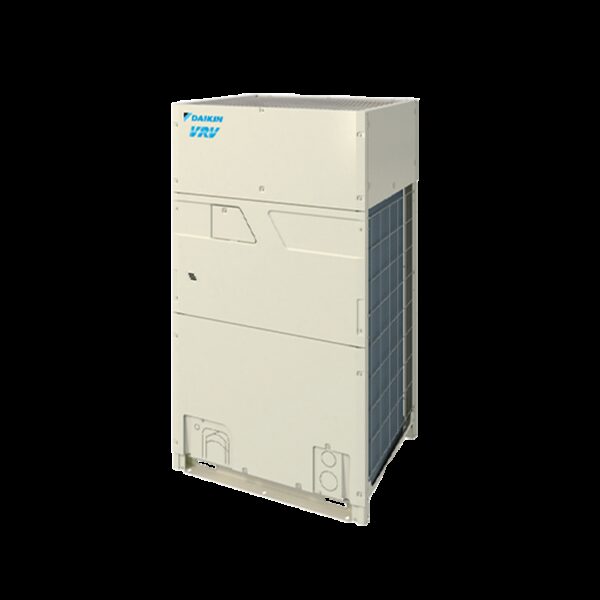

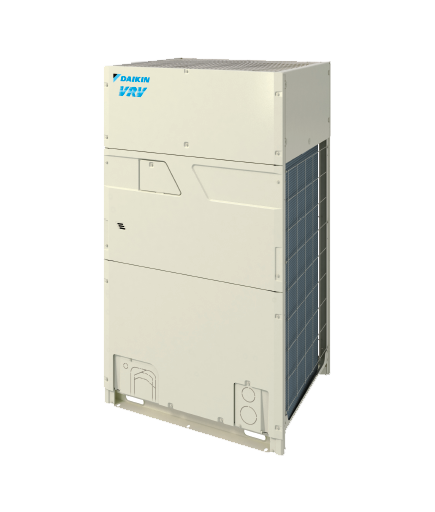

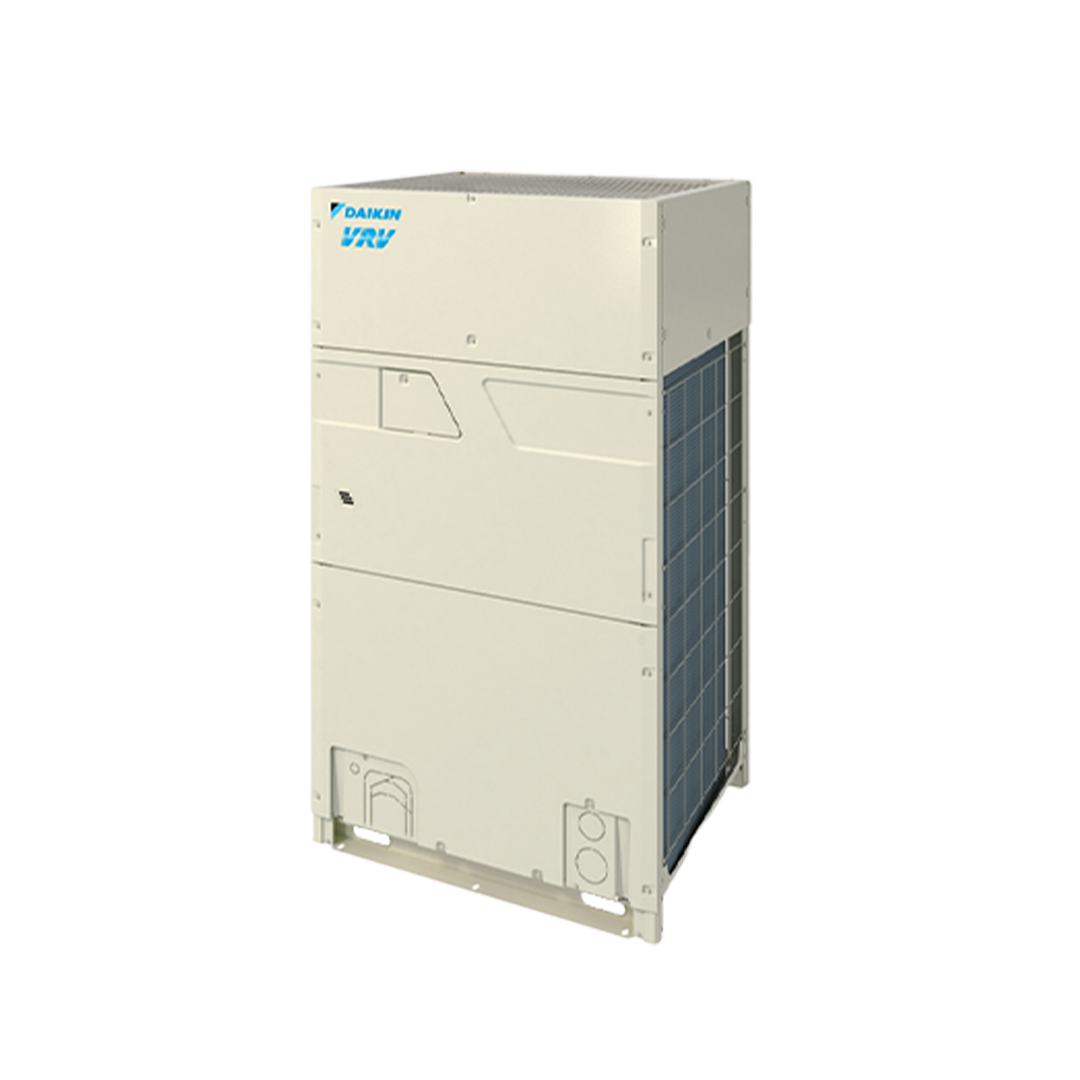

Daikin OUTDOOR-UNIT-RXYQ-BYM Outdoor Heat Pump Unit (Outdoor Unit Only)

Featuring unique functions within a new, large-capacity casing, the 6th generation VRV H – Heat Pump Series enables both cooling and heating operations using a single VRV system. The VRV H series adopts a novel casing design, allowing for a single module of up to 24 class (HP). Furthermore, these new models have achieved significant energy savings through improved technology. The operating performance has been enhanced in all aspects by incorporating innovative ideas, technologies, and a wide range of functions to bolster design flexibility, ease of installation, and reliability. Our advanced VRV technology offers greater benefits to various users within the air conditioning systems domain, including building owners, consultants, installers, and even building management. Elevate your HVAC system to new heights with our cutting-edge VRV technology.

VRV 6 H Heat Pump Series

VRV H Series (RXYQ-BYM) is the newest addition to Daikin’s flagship VRV range offering improvements in design, capacity, ease of installation, reliability, comfort and energy savings.

Controller Features

22 & 24HP model sits at just 1,750mm wide x 765mm deep x 1,660mm tall representing a 4% reduction in total footprint and 4% reduction in weight compared to the 5th generation model.

3 new chassis designs (M, L & XL) with single modules starting at 8HP capacity. Thanks to the XL chassis, 22HP (61.5kW) & 24HP (67.0kW) single modules models are now also available.

Software Technology – VRT Smart II Control – Further improvement of energy savings is achieved due to optimal control of the outdoor airflow rate.

The sealed electrical box boasts an IP55 ingress protection rating, ensuring robust safeguarding against dust and moisture. It features a new service window that offers convenient access to a versatile digital display, simplifying the commissioning and troubleshooting processes. Additionally, its design incorporates separate wiring and piping pathways, facilitating swift and hassle-free installation and servicing.

Refrigerant cooled inverter PCB with three cooling points of contact, allows for operation at a maximum ambient temperature of 52°C*.

Refrigerant piping lengths of up to 165m are possible and the maximum height difference between the indoor unit and the outdoor unit has been extended to 110m which is an improvement of 20m from the 5th generation model.

IP55 Compliant Sealed Electrical Component Box

Prevents the entrance of various debris such as geckos, insects, sand and water, reducing the risk of failure.

Refrigerant Cooled Inverter PCB

Three refrigerant cooling circuits enable stable operation even in high outdoor temperatures by cooling the inverter PCB in the electrical component box.

Electrical Component Service Window

Main PCB 7-segment LED and setting buttons can be accessed without removing the front panel, improving workability for servicing and field settings.

High Efficiency Compressor

New technologies improve part load performance, increase seasonal efficiency and enable a compact design.

VRV6 H Outdoor Unit Technology

1 P-Type Compressor

Optimised for part load performance and delivers a 50% part load EER of up to 7.61

2 VRV II Smart Technology

Variable refrigerant temperature with automatic indoor unit and outdoor unit fan speed regulation.

3 Refrigerant Cooled PCB

Enables max operation limit of up to 52°C ambient conditions.

4 IP55 Electrical Component Box

Blocks the ingress of debris and moisture to prevent unexpected failures.

5 7 Segment Digital Display

Allows for easy commissioning and troubleshooting.

6 Waffle Fin Heat Exchanger

Maximum surface area for greater heat exchange and COP

7 Reinforced Casing Design

Improved frame structure provides better resistance tot eh elements.

8 Outdoor Rotor DC Motor

10 pole DC outer diameter rotor motor for improved torque delivery in a compact form factor.

9 Propeller Fan

Sharp edge fan blade curvature reduces vibration and pressure loss.
