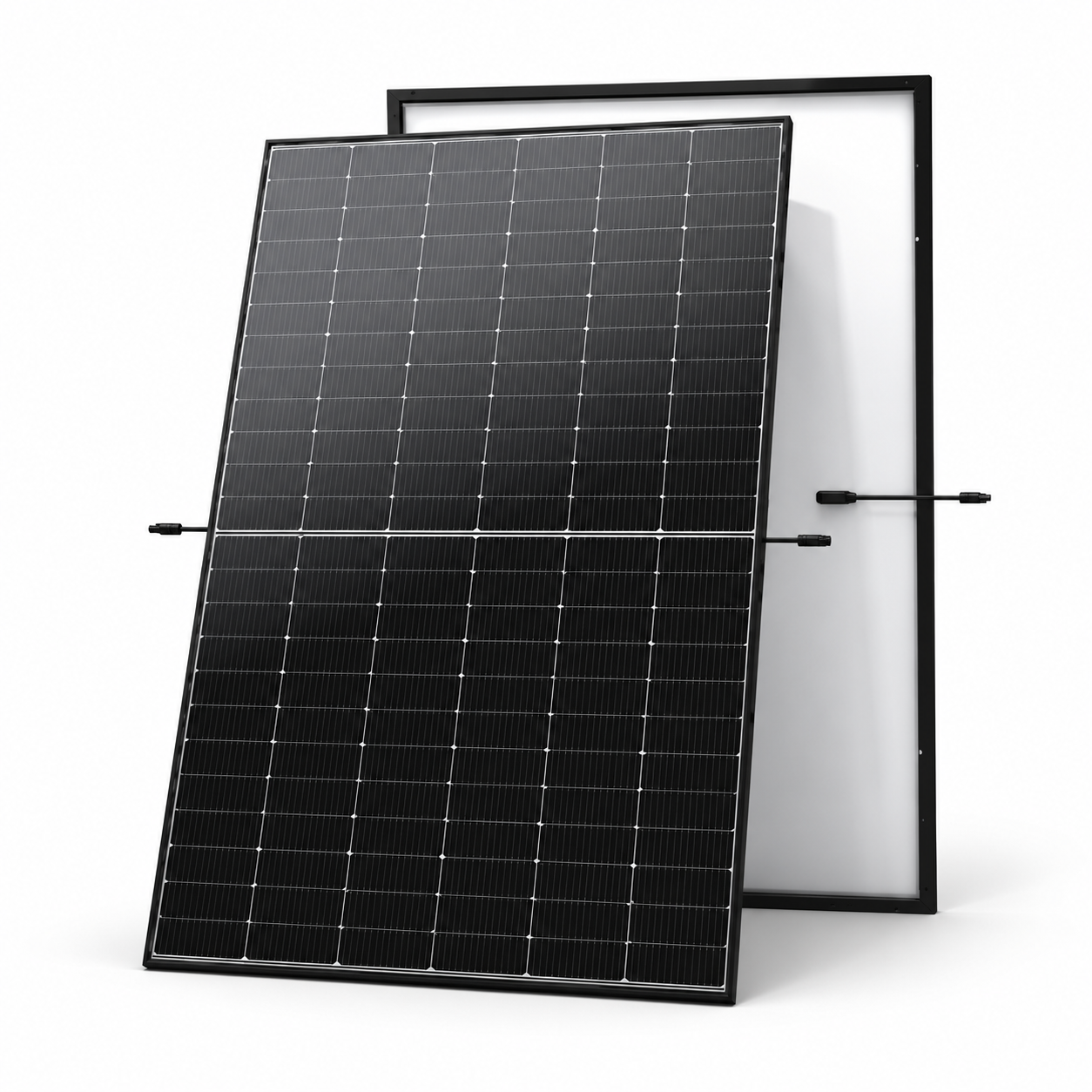

Trina Solar Vertex S+ 470W N-Type Dual Glass Solar Panel TSM-470NEG9R.28
Roll over image to zoom in
$179.99
Price Match*
Price Match*
Trina Solar Vertex S+ 470W N-Type Dual Glass Solar Panel TSM-470NEG9R.28. 470W maximum power with 23.5% module efficiency. Black anodized aluminium frame and IP68 junction box. Mechanical test load up to 5400 Pa front / 4000 Pa rear. Certified resistance to salt mist, sand, dust, ammonia and PID. 144 N-type i-TOPCon monocrystalline cells. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Trina Solar Vertex S+ 470W N-Type Dual Glass Solar Panel TSM-470NEG9R.28: Genuine Trade Supply
You are viewing the Trina Solar Vertex S+ 470W N-Type Dual Glass Solar Panel TSM-470NEG9R.28 (SKU: TSM-470NEG9R.28). This is a 100 percent genuine Solar Panels product from our Solar Panels range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: TSM-470NEG9R.28
Trina Solar Vertex S+ 470W is a high-efficiency solar panel suited to NZ homes, caravans, boats and off-grid systems, offering 470W rated output. Built to handle New Zealand conditions and squeeze the most energy out of every hour of sunshine.
Premium 470W N-type solar panel delivering industry-leading efficiency for residential and commercial rooftops. The Trina Solar Vertex S+ TSM-470NEG9R.28 combines i-TOPCon Ultra cell technology, a durable dual-glass design and a compact black frame for reliable long-term energy generation.
Important: Professional installation by a suitably qualified installer is recommended. Always follow the manufacturer’s safety and installation instructions.
Key Features
- ✓ 470W maximum power with 23.5% module efficiency
- ✓ N-type i-TOPCon monocrystalline technology for excellent low-light performance
- ✓ Lightweight dual-glass construction with high resistance to micro-cracks, scratches and harsh weather
- ✓ Black anodized aluminium frame and IP68 junction box
- ✓ Mechanical test load up to 5400 Pa front / 4000 Pa rear
- ✓ Certified resistance to salt mist, sand, dust, ammonia and PID
- ✓ 144 N-type i-TOPCon monocrystalline cells
Trina Solar Vertex S+ 470W: Full Specifications
| Specifications | |
| Model | TSM-470NEG9R.28 |
| Maximum power (Pmax) | 470W |
| Maximum power voltage (Vmp) | 46.10V |
| Maximum power current (Imp) | 10.20A |
| Open-circuit voltage (Voc) | 54.60V |
| Short-circuit current (Isc) | 10.89A |
| Module efficiency | 23.5% |
| Dimensions | 1762 × 1134 × 30mm |
| Weight | 21.0kg |
| Front and rear glass | 1.6mm heat-strengthened glass |
| Maximum system voltage | 1500V DC |
| Maximum series fuse | 25A |
| Operating temperature | 40°C to +70°C |
| Temperature coefficient of Pmax | 0.29%/°C |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Trina Solar Vertex S+ 470W N-Type Dual Glass Solar Panel TSM-470NEG9R.28 online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar panels and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this TSM-470NEG9R.28 matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.

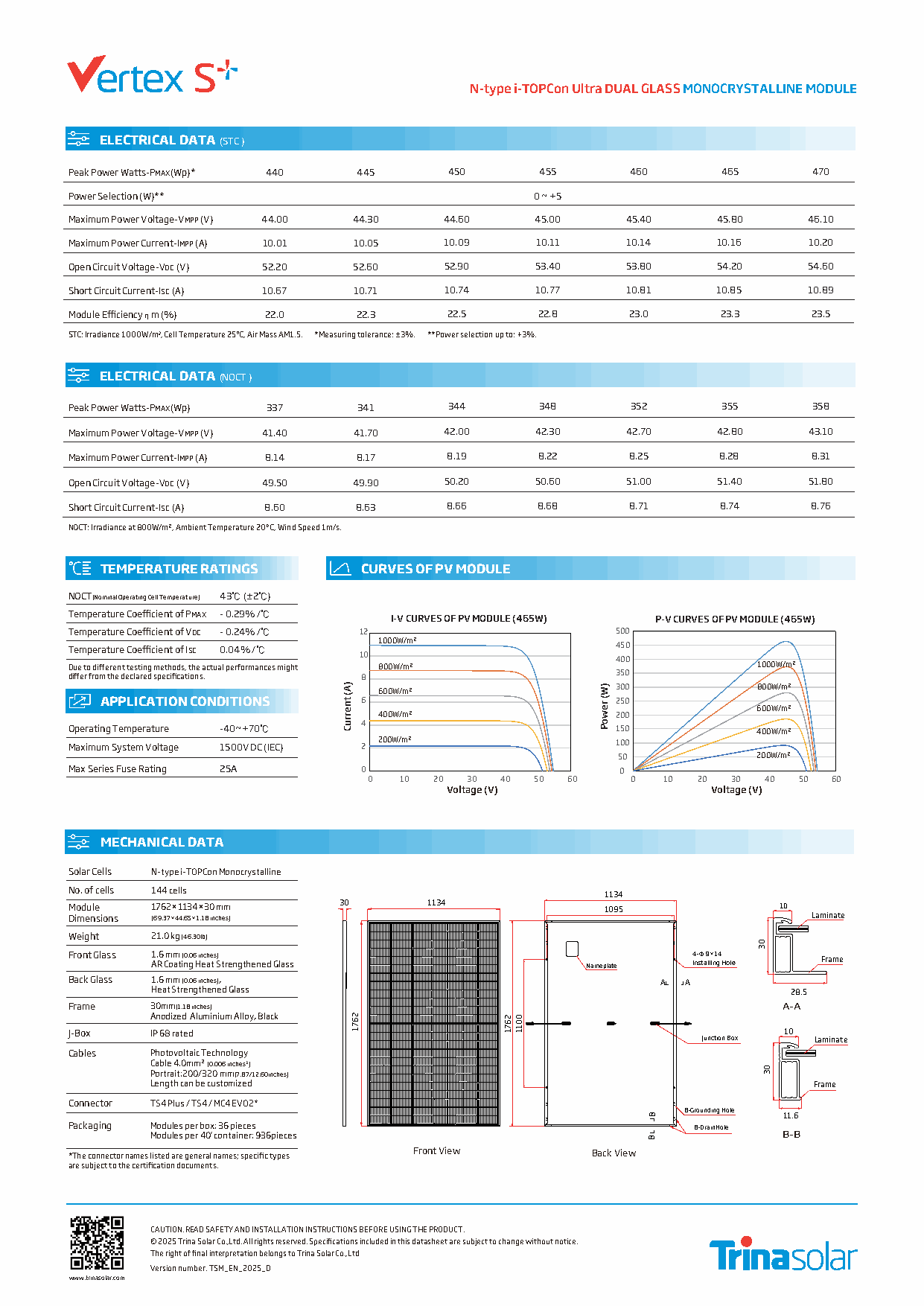

Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
