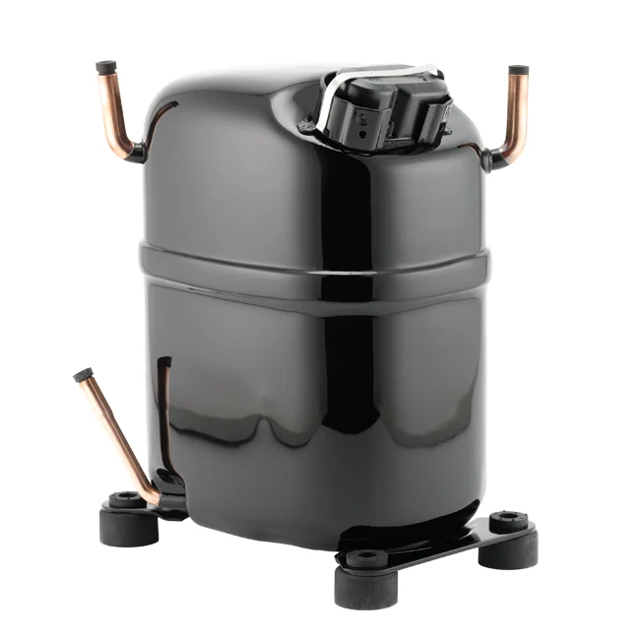

Tecumseh CAJ4461Y Compressor R134A 1PHV/T CSIR
Roll over image to zoom in
$2,115.99$5,151.97 (-59%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Industrial Refrigeration Standard.
The Tecumseh CAJ4461Y Compressor R134A 1PHV/T CSIR (Product Code: C0550) is a precision-engineered Compressors component. Built for the demanding New Zealand commercial environment, this unit ensures reliability in critical cooling and HVAC applications.
Technical Specification
General Additional Info Application Compressor Connections Electrical Measurements Motor Mounting Oil R134A Performances R513A Performances Refrigerant Starting Device Valves Product Group : Hermetic Additional Info : supplied with valve (not mounted) on suction and solder tube on discharge Crankcase Heater Provided : No Suction Valve Provided : Yes Application : MBP Direct Expansion Mode : Capillary/Thermostatic Displacement : 18.3 m³/h Power Supply Compressor : 240/1/50 V/Ph/Hz Connection Type : Tube Discharge Line Connection Size : 1/4 in Discharge Line Connection Type : Tube Suction Line Connection Size : 1/2 in Suction Line Connection Type : Rotolock Max Current : 5.8 A Power Supply : 240/1/50 V/Ph/Hz Height : 249 mm Length : 275 mm Net Weight : 18.4 kg Weight : 18.4 kg Width : 195 mm Motor Type : CSIR Mounting Details : 203.2×122.2 Oil Charge : 0.48 dm³ R134a Capacity -5°C : 0.92 kW R134a Capacity -10°C : 0.7 kW R134a Capacity 0°C : 1.2 kW R134a Cooling Capacity Rated -10°C : 0.70 kW R134a Power Input -10°C : 0.40 kW R513A Capacity -5°C : 0.96 kW R513A Capacity -10°C : 0.74 kW R513A Capacity 0°C : 1.23 kW R513A Power Input -10°C : 0.50 kW Refrigerant : R134a, R513A Starting Device Mode : CSIR Starting Device Provided : Yes Expansion Device : C-V
📂 Engineering Documentation
*Downloads provided directly from the manufacturer database.
The NZ DEPOT Trade Supply Advantage
🏭
Zero Showroom Markup
We supply Compressors parts directly from the warehouse. You pay for the engineering, not the overheads.
🚚
Nationwide Logistics
Our network routes your Tecumseh CAJ4461Y Compressor R134A 1PHV/T CSIR from the nearest hub (Auckland, Wellington, or Christchurch) directly to your site.
🛡️
Trade Warranty
Genuine parts with full manufacturer backing. Support available via our local technical team.
Logistics & Availability FAQ
Is this Compressors in stock?
Our database syncs with the national supply chain daily. If the C0550 is add-to-cart ready, it is available for dispatch.
Do you ship to commercial sites?
Yes. We specialize in Direct-to-Site delivery for trade projects across NZ.
Explore our full range of Components and Compressors solutions.
🌱 Sustainable Supply Chain Initiative
At NZ DEPOT, we are modernizing the New Zealand trade supply chain. Traditional retail involves shipping products from a manufacturer to a central warehouse, then to a retail showroom, and finally to the customer. This “multi-hop” model adds unnecessary carbon emissions and cost.
By utilizing a Direct-to-Site 3PL model, we eliminate the “Showroom Hop.” Your order is routed from the nearest strategic distribution hub (Auckland, Wellington, or Christchurch) directly to your address. This logistical efficiency reduces road miles, lowers our carbon footprint, and allows us to pass significant savings on to you.
🛡️ Warranty & Consumer Protection
Consumer Guarantees Act (CGA)
We are a 100% New Zealand-owned and operated entity. All purchases made through NZ Depot are fully covered by the Consumer Guarantees Act 1993. Whether you are buying for personal use or commercial fit-out, you are protected against manufacturing defects and faults.
Secure Transaction Promise
Your security is paramount. We utilize industry-standard SSL encryption for all data transmission. We do not store credit card details locally; all payments are processed via secure, PCI-compliant gateways to ensure your financial data remains private.
📦 Delivery Protocols & Receipt of Goods
Standard Courier: For smaller items, we utilize overnight or 2-day courier services. Tracking numbers are automatically generated upon dispatch.
Heavy Freight (Palletized): For bulkier items (Appliances, Furniture, HVAC Units), we use specialized freight carriers. These deliveries are “Door-to-Door” or “Curbside.” Please ensure you have assistance available for unloading heavy items if required.
Inspection Policy: Please inspect all packaging for visible damage before signing the carrier’s docket. If you notice significant damage to the box, please sign as “Damaged” or refuse the delivery and contact our support team immediately. This ensures we can process a replacement claim swiftly.
© 2026 NZ DEPOT Limited. All Rights Reserved. | 100% NZ Owned & Operated.
Additional information
| Weight | 18.4 kg |
|---|---|
| Dimensions | 195 × 249 mm |
| Type | |
| Manufacturer Code | |
| MPN | |
| Product Code | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Product Group |
