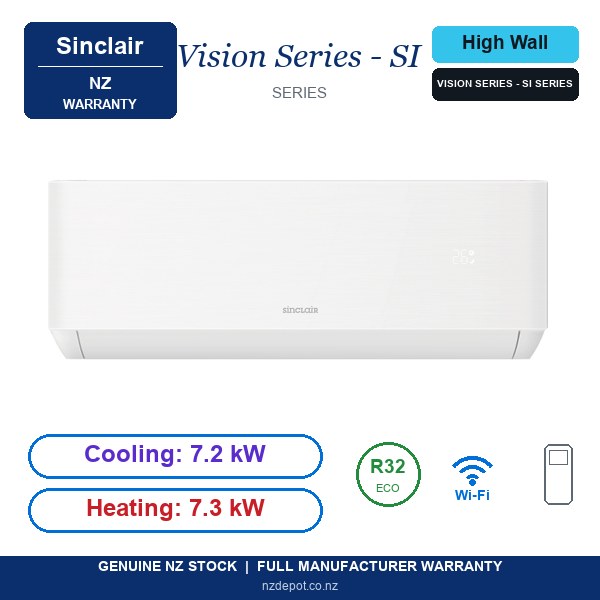

Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor)
$1,629.99
Price Match*
Price Match*
COOLING
7.20 kW
HEATING
7.30 kW
Complete Sinclair Vision Series - SIHA/SOHA-24BV 7.2kW 7.2kW heat pump system (indoor + outdoor set) - models SIHA-10BV / SOHA-10BV. Genuine NZ stock with 6-year manufacturer warranty. Professional installation required.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor): Genuine Sinclair Trade Supply
You are viewing the Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor) (SKU: SINCLAIR-VISION-SERIES-SIHA-SOHA-24BV-7-2KW-7.2KW). This is a 100 percent genuine Sinclair Vision Series - SIHA/SOHA-24BV 7.2kW Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 7.2kW. Heating capacity: 7.3kW.
Product Details: Sinclair SINCLAIR-VISION-SERIES-SIHA-SOHA-24BV-7-2KW-7.2KW
Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW - a genuine Sinclair heat pump set, designed for New Zealand conditions with elegant European styling and a 6-year manufacturer warranty.
With 7.2kW rated cooling and 7.3kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort for Kiwi homes.
At Sinclair NZ, we understand different countries have a range of climates and needs, and we have designed the Vision range with New Zealand homes in mind. Sinclair Vision high wall heat pumps elevate your living spaces with premium air conditioning performance, with elegant and discreet European styling that blends into any setting.

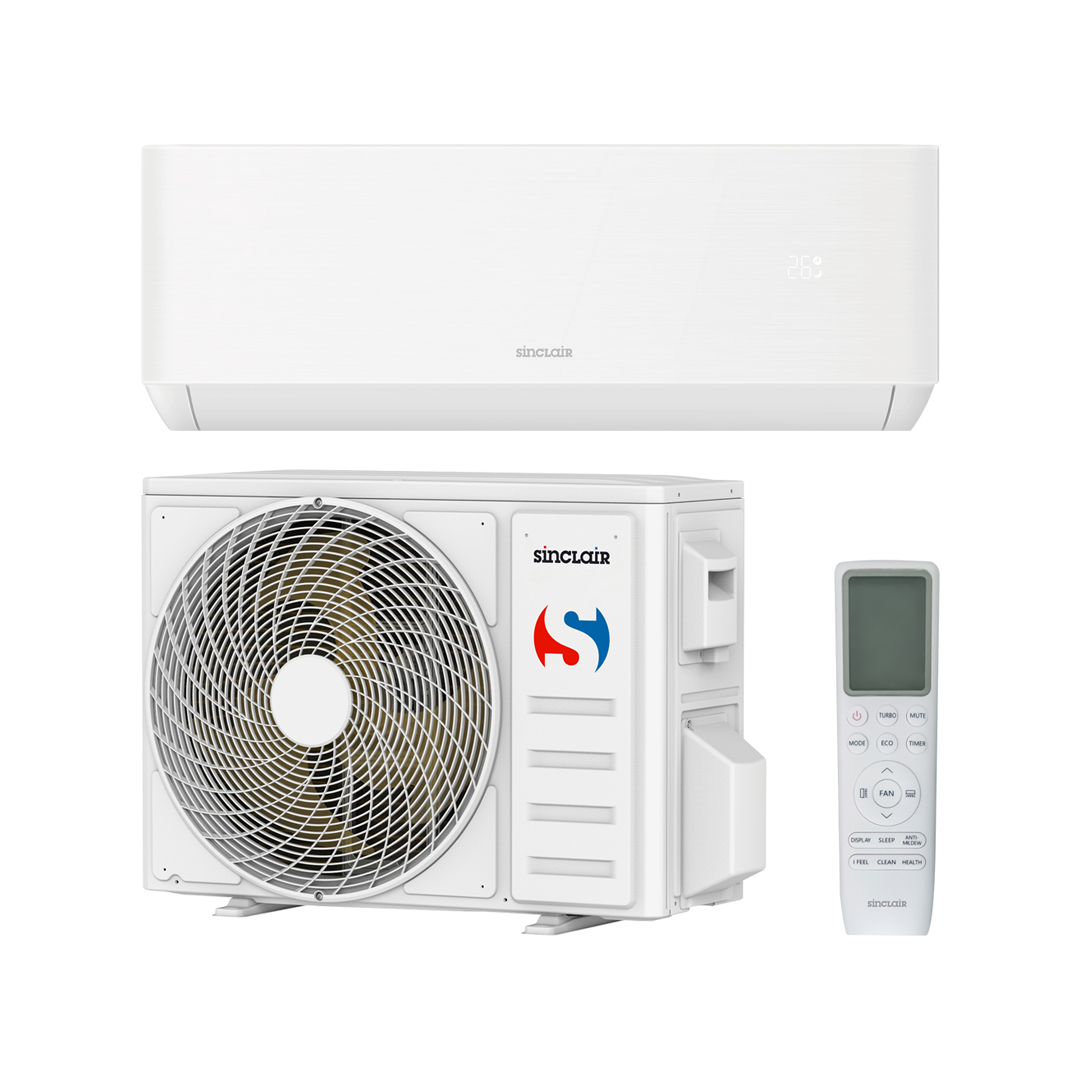

Complete set includes:

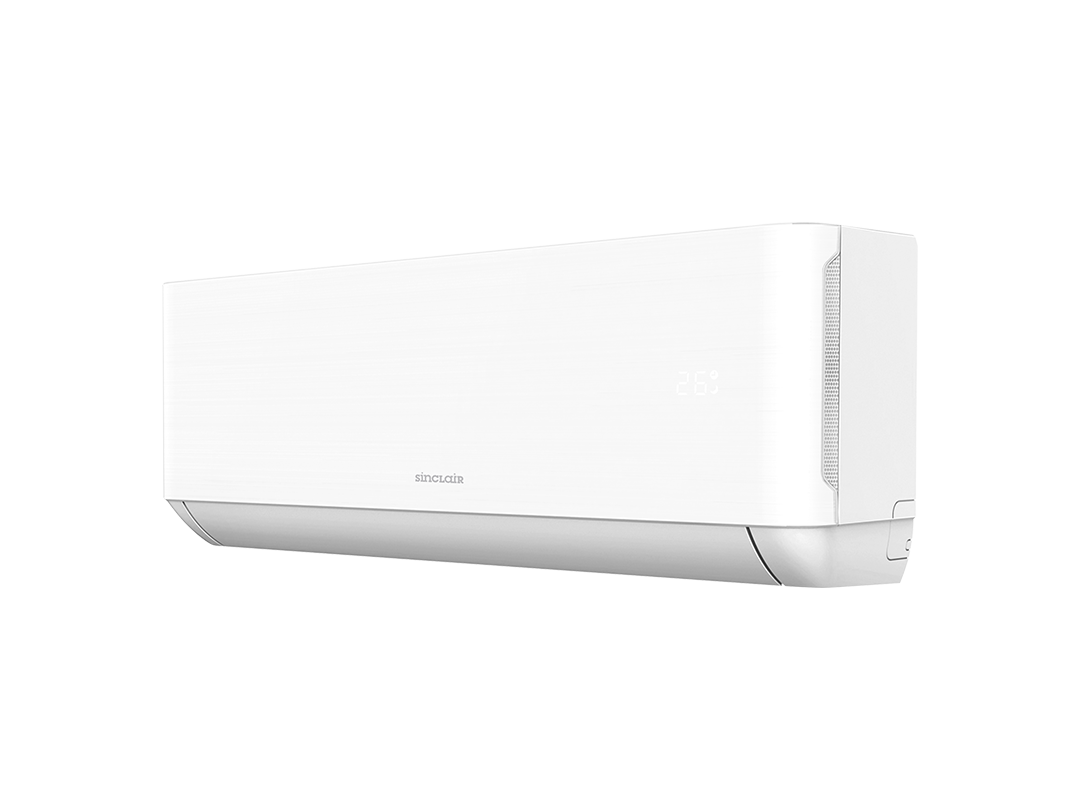

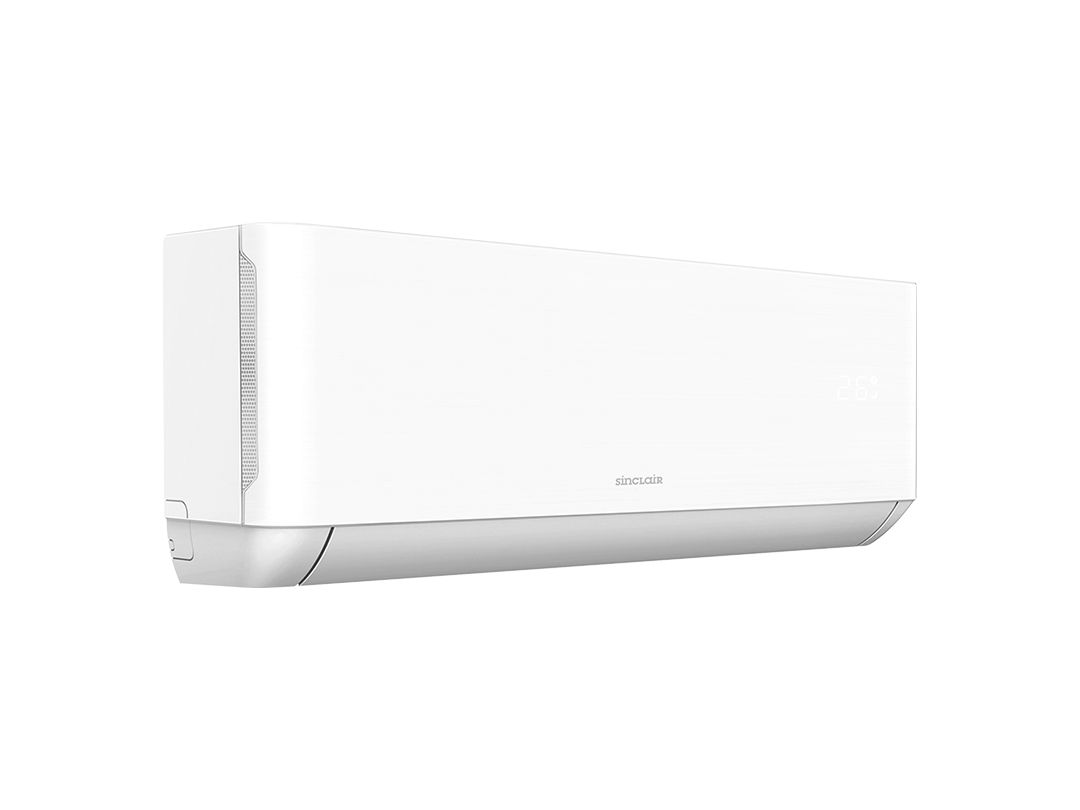

- 1x Indoor Unit: SIHA-10BV

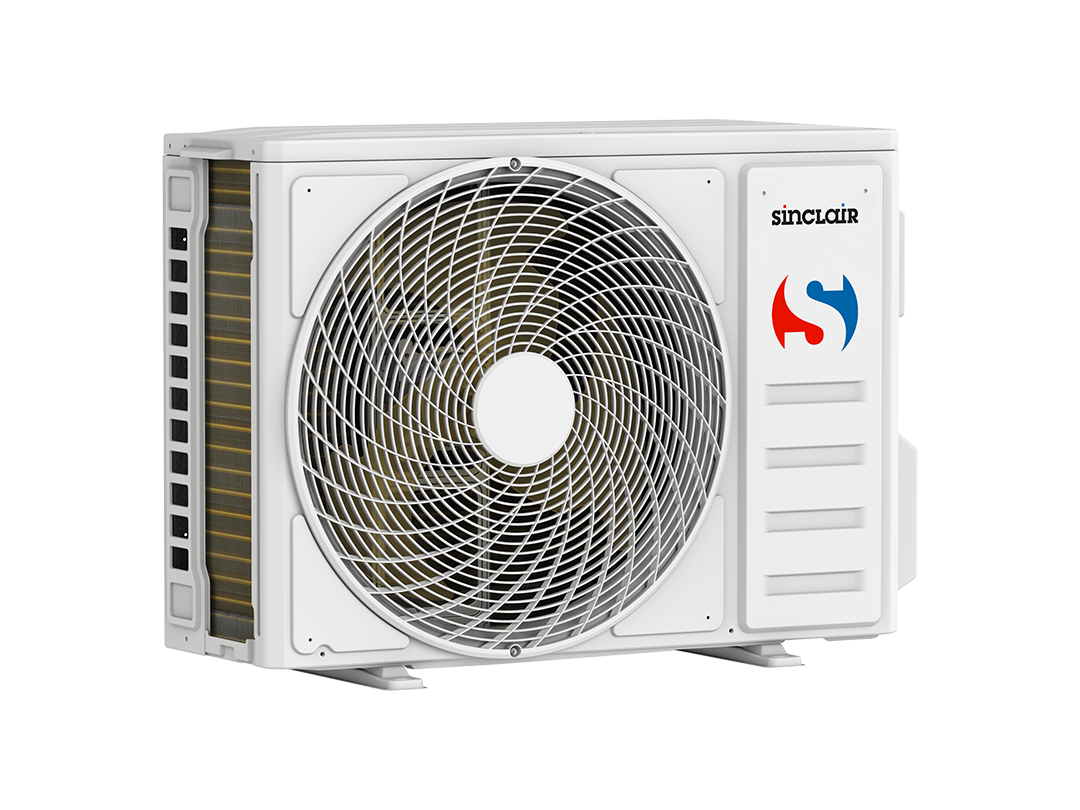

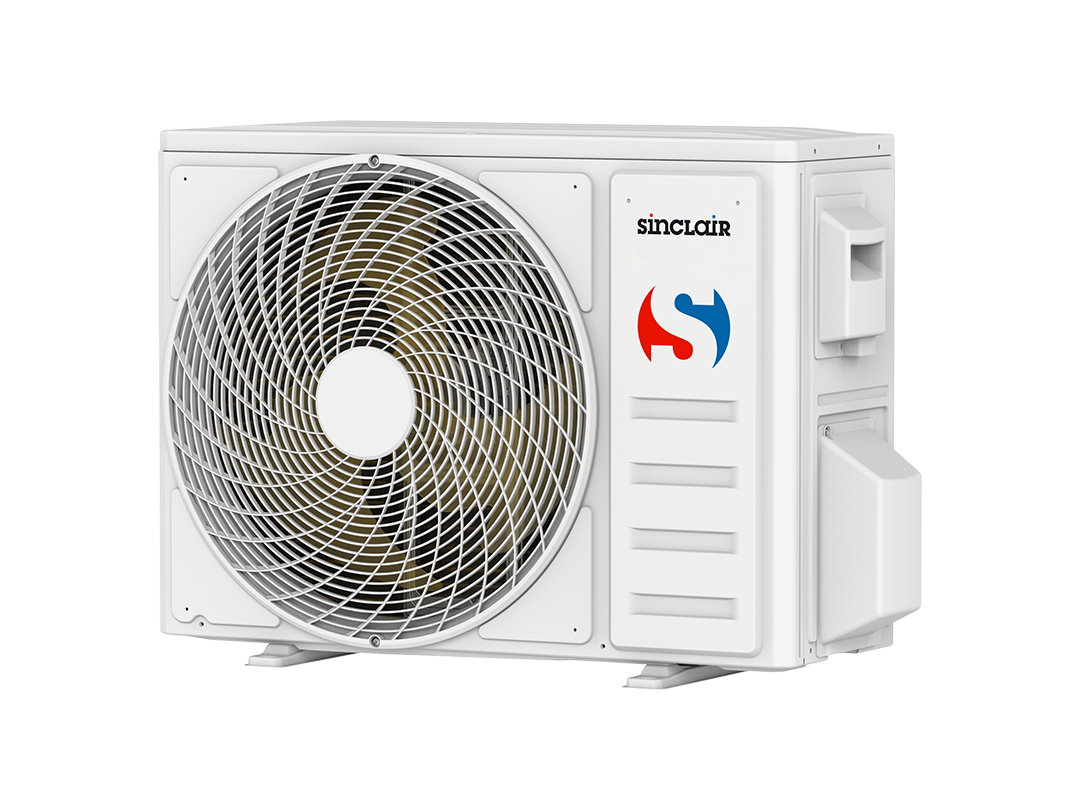

- 1x Outdoor Unit: SOHA-10BV
Key Features
- Anticorrosion treatment - of heat exchange surfaces protects critical components and extends the working life of the unit.
- Inverter technology - ensures stable and accurate temperature control, saving energy consumption by using only the power required to deliver the selected conditions.
- Intelligent auto-defrost - prevents the buildup of frost and ice on the outdoor condenser coils when the unit is operating in very cold conditions.
- WiFi operation - gives you a diverse range of control options, putting the full functionality of your Sinclair heat pump system in the palm of your hand.
- Independent dehumidifying - draws water vapour out of the air, enabling you to manage moisture levels without significantly cooling the surroundings.
- Washable filters - provide a simple, low-maintenance solution for keeping your Vision unit clean and removing small particulates from your environment.
- Self-diagnosis - makes use of smart on-board diagnostic tools for your Vision unit to detect and identify faults and errors in operation, making troubleshooting a simple task.
- Evaporator self-cleaning - mode keeps your Vision in a more hygienic state by preventing buildup of dirt and bacteria on the fins of the indoor unit.
Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW - Specifications (This Model)
| Cooling Capacity | 7.2 kW |
| Heating Capacity | 7.3 kW |
| Indoor Unit Model | SIHA-10BV |
| Outdoor Unit Model | SOHA-10BV |
| Refrigerant (Type / Weight) | R32 / 1.14 kg |
| Pipe Sizes (Gas / Liquid) | 9.52 mm / 6.35 mm |
| Indoor Unit Dimensions (W x D x H) | 820 x 195 x 306 mm |
| Outdoor Unit Dimensions (W x D x H) | 795 x 305 x 549 mm |
| Indoor Unit Weight | 9 kg |
| Outdoor Unit Weight | 23 kg |
| Suitable Area | 27~45 m² |
| Brand | Sinclair |
| Series | Vision Series - SIHA/SOHA-24BV 7.2kW |
| SKU | SINCLAIR-VISION-SERIES-SIHA-SOHA-24BV-7-2KW-7.2KW |
| Warranty | 6 Years |
Full Series Specifications
| Capacity | Cooling / Heating | 7.2/7.3 | kW |
| AEER for Cooling | Cooling / Heating | 3.4 | W |
| ACOP for Heating | Cooling / Heating | 4 | W |
| Power Supply | Into Outdoor Unit | 220-240V~50Hz | V |
| Refrigerant | Type / Weight | R32 / 1.14 | Kg |
| Operation Temp Range | Cooling / Heating | 16°C~31°C | °C |
| Standby Power | - | 4.6 | W |
| Moisture Removal | - | 2.2 | L/H |
| Connecting Wiring | - | 3 Core Plus Earth (4 Cores) | - |
| Suitable Area | Indoor Unit | 27~45 | M2 |
✔ 6-Year Manufacturer Warranty - genuine Sinclair product, with full local warranty support. Warranty registration & claims.
Every Sinclair 7.2kW Vision Series - SIHA/SOHA-24BV 7.2kW sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Sinclair manufacturer warranty. Order online today or contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this SINCLAIR-VISION-SERIES-SIHA-SOHA-24BV-7-2KW-7.2KW matches your installation. Sourced directly from the Sinclair NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Air Conditioners available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 195 × 820 × 306 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype | |
| Related Indoor SKU | |
| Related Outdoor SKU |
Shipping cartons
This item ships in 2 separate cartons.
| Carton 1 | 9 kg · 195 × 820 × 306 mm |
|---|---|
| Carton 2 | 23 kg · 305 × 795 × 549 mm |
| Total | 32 kg across 2 cartons · 0.182 m³ |
