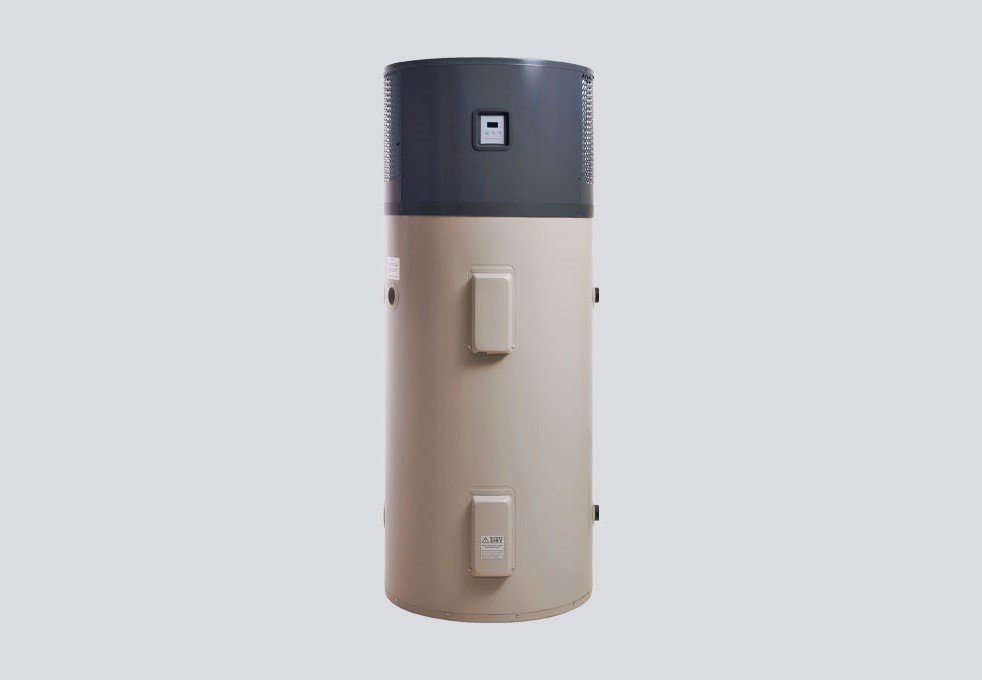

Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L
Roll over image to zoom in
$5,159.99
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Genuine Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L (Rinnai HydraHeat® Integrated Hot Water Heat Pump). Brand new, NZ-wide delivery from NZ Depot.
Discount per Quantity
| Quantity | 1 | 2 - 4 | 5 - 9 | 10 + |
|---|---|---|---|---|
| Discount | 0% | 5% | 8% | 10% |
| Price | $5,159.99 | $4,901.99 | $4,747.19 | $4,643.99 |
Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L: Genuine Rinnai Trade Supply
You are viewing the Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L (SKU: RHPN361A275E20). This is a 100 percent genuine Rinnai Rinnai HydraHeat® Integrated Hot Water Heat Pump Hot Water Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: . Cooling capacity: kW. Heating capacity: kW.
Product Details: Rinnai RHPN361A275E20
Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L, part of the Rinnai HydraHeat® Integrated Hot Water Heat Pump range. Hot water heat pumps designed & made in New Zealand. Rinnai HydraHeat® replaces traditional water cylinders, saving you up to 75% on your hot water costs! Genuine Rinnai New Zealand product, brand new, supplied through Rinnai NZ’s trade channel.
Rinnai RHPN361A275E20 — Specifications
| Product Overview | |
| Product | Hydraheat Hwhp Integrated 275L |
| Rinnai Part Number | RHPN361A275E20 |
| Product Range | Rinnai HydraHeat® Integrated Hot Water Heat Pump |
| Category | Hot Water Systems > Hot Water Heat Pump > Hydraheat |
| Brand | Rinnai |
| Technical Specifications | |
| Model number / order code | 275L – RHPN361A275E20; 340L – RHPN361A340E20 |
| Storage capacity | 275 L & 340 L |
| COP | 4.7 W/W; (inlet water temp 19 ºC, outlet water temp. 55 ºC, ambient temp. 19 ºC) .; Accredited Testing to AS/NZS 5125 by NATA accredited Provider. |
| Rated heat pump input / output | 802 W / 3725 W; In standard, eco 50/55 modes, the heat pump provides 100% of the heating within the operating range. Outside these limits the electric element will operate. |
| Hot water recovery rate | 89 L/h; Recovery rate is calculated at Eco 55 mode, 19 ºC ambient temp., 36 ºC rise. |
| Cylinder element rating | 2 kW |
| Cylinder construction | Enamel |
| Colour | Dune; Bunnings colour match for cylinder; (for touchups):; – Base Dulux Vivid White; – Can size 0.25; – M OY7.75, EE OY8.25, G 0Y2.75 |
| Head unit data label position | Positioned on the divider panel between the fan and compressor—to the right of the control panel. |
| Operating temperature | -10 to 42 ºC |
| Noise level | 45 dB(A); Sound pressure level measured at 1 m distance from the water heater in a free field. Appliance operated in standard mode (60 ºC) at an ambient temperature of 19 ºC. |
| Refrigerant type | R290 / 150 g (nominal charge) |
| Modes of operation | Standard (factory preset) water stored at 60 ºC; Boost, one off electric boost to 70 ºC; Eco 55, water stored at 55 ºC; Eco 50, water stored at 50 ºC; High usage, water stored at 70 ºC (heat pump + electric element); Element only (heat pump turned off, electric element heats water to 70 ºC; Shutdown (in standby, heat pump and electric element are turned off) |
| Dimensions | Assembled: 275L – height 1750 mm, Ø692 mm, 340L – height 1995mm, Ø692 mm; Heat pump header: Height 510 mm |
| Water supply and connections | Mains pressure hot water cylinder; Min. inlet water pressure – 100 kPa; TPR (supplied) – 850 kPa; Cold water expansion valve – 700 kPa; Pressure limiting valve – 500 kPa |
| Weights | Heat pump header – 36.4 kg (net), packaged 45 kg; Full system – 275 L approx. 388 kg, 340 L approx. 465 kg |
| IP rating | IPX4 header and cylinder |
| Market release | 275L Nov 2023; 340L Oct 2024 |
| MasterSpec link | View Work Sections |
Documents & Downloads
- 📄 HydraHeat Integrated Flyer
- 📄 Water Heating Catalogue
- 📄 Hot Water Heat Pump Comparison
- 📄 HydraHeat Integrated operation guide
- 📄 HydraHeat Integrated installation guide
- 📄 HydraHeat Integrated PTS
- 📄 HydraHeat Integrated SDoC 275L
- 📄 HydraHeat Integrated SDoC 340L
- 📄 Certificate of Compliance for NSF/ANSI 372-2022 Standard (Drinking Water System Components Lead Content)
- 📄 HydraHeat Integrated warranty
✔ Full Rinnai NZ Manufacturer Warranty — genuine Rinnai New Zealand product. Warranty & after-sales support.
Every Rinnai product sold by NZ Depot is brand new and dispatched NZ-wide. Order online today or contact NZ Depot for trade pricing and availability.
Need advice or trade pricing? Contact NZ Depot or browse more hot water, heating and HVAC deals at NZ Depot.
Pro Tip: Ensure this RHPN361A275E20 matches your installation. Sourced directly from the Rinnai NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Rinnai unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L suitable for New Zealand conditions?
Yes. The RHPN361A275E20 is engineered for the climate ranges experienced across New Zealand and is sold and supported by Rinnai NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Rinnai equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the RHPN361A275E20 use?
This unit uses refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Rinnai RHPN361A275E20? NZ Depot supplies the Rinnai RHPN361A275E20 New Zealand wide with fast dispatch, trade pricing and genuine Rinnai warranty support. Compare the Rinnai RHPN361A275E20 – Hydraheat Hwhp Integrated 275L with the rest of the Rinnai Rinnai HydraHeat® Integrated Hot Water Heat Pump range, check the full specifications above, and order the Rinnai RHPN361A275E20 online today or request a trade quote for volume supply.
