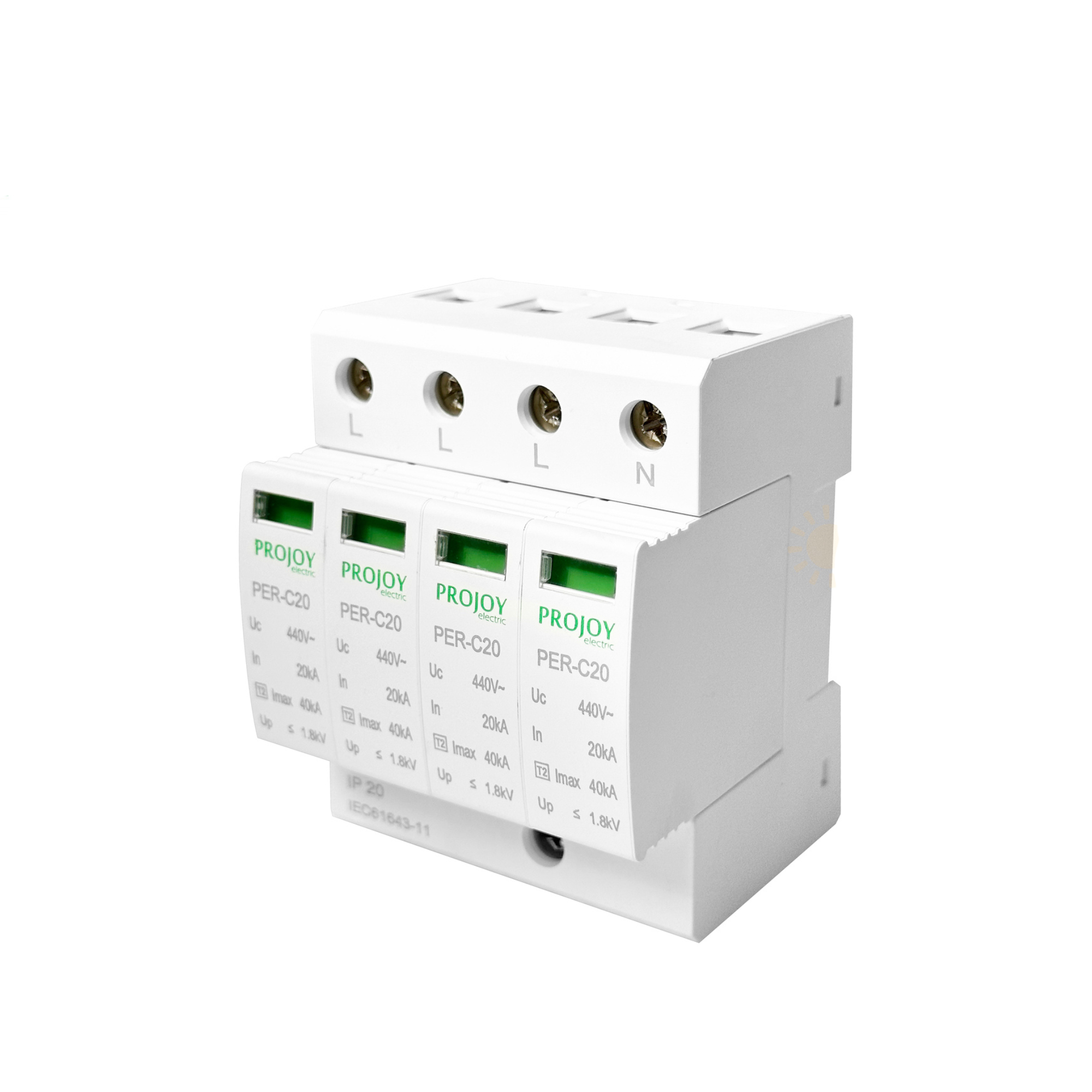

PROJOY PER-C20 440V AC Surge Protector
Roll over image to zoom in
$59.99
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
PROJOY PER-C20 440V AC Surge Protector. Full NZ Manufacturer Warranty. Fast NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
PROJOY PER-C20 440V AC Surge Protector: Genuine Trade Supply
You are viewing the PROJOY PER-C20 440V AC Surge Protector (SKU: SURGE-440AC). This is a 100 percent genuine Breakers & Isolators product from our Solar Accessories range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: SURGE-440AC
PROJOY PER-C20 440V AC is a quality component for building and maintaining a safe, efficient solar power system in New Zealand. The small parts matter: this one is built to spec and built to last. Backed by Projoy, a proven name in solar technology, and supplied with genuine NZ warranty support.
PER-C20 AC surge protector, suitable for AC 50/60 HZ, rated voltage 230/440V three-phase power distribution system, satisfy the SPD, I class and Ⅱ class test. The peak shock current of the stage I protector is 5kA(10/350μs), and the charge is 25As,Ⅱ protector maximum discharge current level can up to 100 kA. It can suppress direct strikes, inductive strikes or other instantaneous overvoltages, discharge inrush energy, thus protects system circuits and load equipment. It has the advantages of I or II protection, large discharge capacity, low residual pressure, no leakage current, integrated module structure, easy installation, high safety factor, long service life and so on.
PER-C20 AC surge protector cooperates with each other to realize the layered protection system, so that the low-voltage distribution system can be more widely and effectively protected.
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating, the fail-safe detach device can automatically detach from the power grid and give an indication signal. When the protector is normal, the display window will show green, and after failure, the display window will show red.

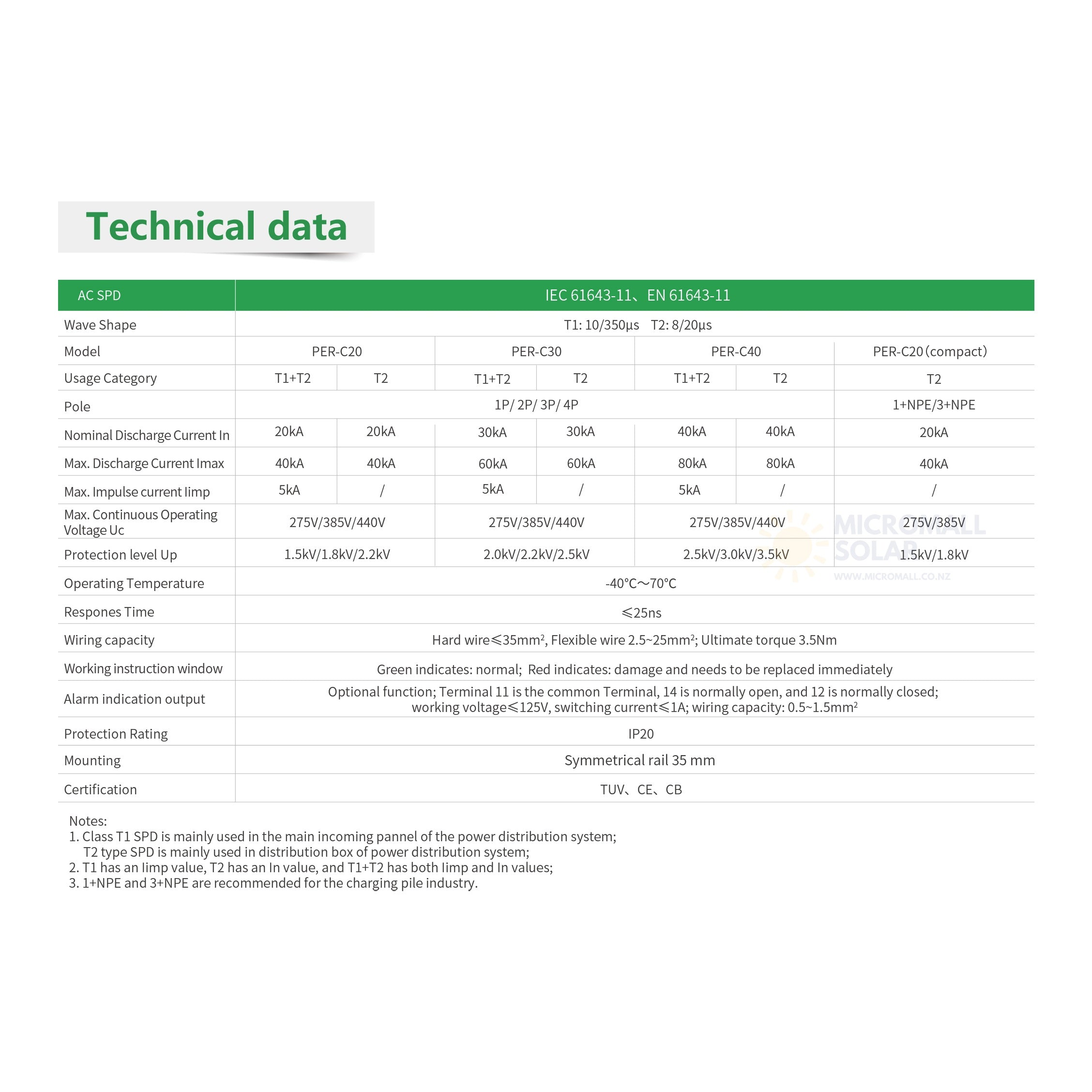

Technical data AC SPD IEC 61643-11、EN 61643-11 Wave Shape: T2: 8/20μs Model: PER-C20 Usage Category: T2 Pole: 4P Nominal Discharge Current In: 20kA Max. Discharge Current Imax: 40kA Max. Continuous Operating Voltage Uc: 440V Protection level Up: 1.8kV
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the PROJOY PER-C20 440V AC Surge Protector online today for fast NZ-wide delivery, or get in touch for volume pricing and expert advice on solar accessories and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this SURGE-440AC matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct import pricing on every unit we sell. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the PROJOY PER-C20 440V AC Surge Protector suitable for New Zealand conditions?
Yes. The SURGE-440AC is built to handle New Zealand conditions and is fully supported by the NZ Depot team, with genuine manufacturer warranty cover.
Does this unit require professional installation?
Grid-connected solar systems, hybrid inverters and EV chargers must be wired in by a licensed New Zealand electrician. Portable panels, batteries and 12V accessories are plug-and-play, so no installer is needed.
How fast is delivery on the SURGE-440AC?
Orders are dispatched quickly from local stock wherever possible, with delivery to most urban addresses in 2 to 5 working days and rural addresses shortly after. You will receive tracking as soon as it ships.
Looking for the best price on the PROJOY PER-C20 440V AC? NZ Depot supplies the PROJOY PER-C20 440V AC New Zealand wide with fast dispatch, trade pricing and genuine manufacturer warranty support. Compare the PROJOY PER-C20 440V AC Surge Protector with the rest of the Breakers & Isolators range, check the full specifications above, and order the PROJOY PER-C20 440V AC online today or request a trade quote for volume supply.
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 0.5 kg |
|---|---|
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
