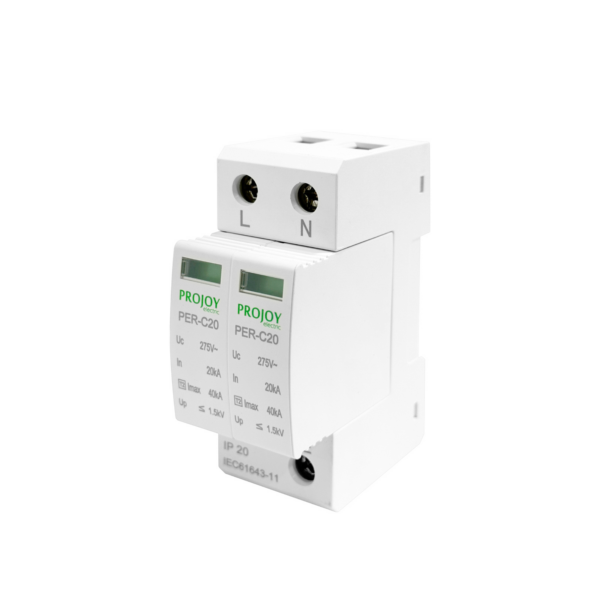

PROJOY PER-C20 275V AC Surge Protector
Roll over image to zoom in
$29.99
Price Match*
Price Match*
PROJOY PER-C20 275V AC Surge Protector. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
PROJOY PER-C20 275V AC Surge Protector: Genuine Trade Supply
You are viewing the PROJOY PER-C20 275V AC Surge Protector (SKU: SURGE-275AC). This is a 100 percent genuine Breakers & Isolators product from our Solar Accessories range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: SURGE-275AC
PROJOY PER-C20 275V AC is a quality component for building and maintaining a safe, efficient solar power system in New Zealand. The small parts matter: this one is built to spec and built to last. Backed by Projoy, a proven name in solar technology, and supplied with genuine NZ warranty support.
PER-C20 AC surge protector, suitable for AC 50/60 HZ, rated voltage 230/440V three-phase power distribution system, satisfy the SPD, I class and Ⅱ class test. The peak shock current of the stage I protector is 5kA(10/350μs), and the charge is 25As,Ⅱ protector maximum discharge current level can up to 100 kA. It can suppress direct strikes, inductive strikes or other instantaneous overvoltages, discharge inrush energy, thus protects system circuits and load equipment. It has the advantages of I or II protection, large discharge capacity, low residual pressure, no leakage current, integrated module structure, easy installation, high safety factor, long service life and so on.
PER-C20 AC surge protector cooperates with each other to realize the layered protection system, so that the low-voltage distribution system can be more widely and effectively protected.
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating, the fail-safe detach device can automatically detach from the power grid and give an indication signal. When the protector is normal, the display window will show green, and after failure, the display window will show red.

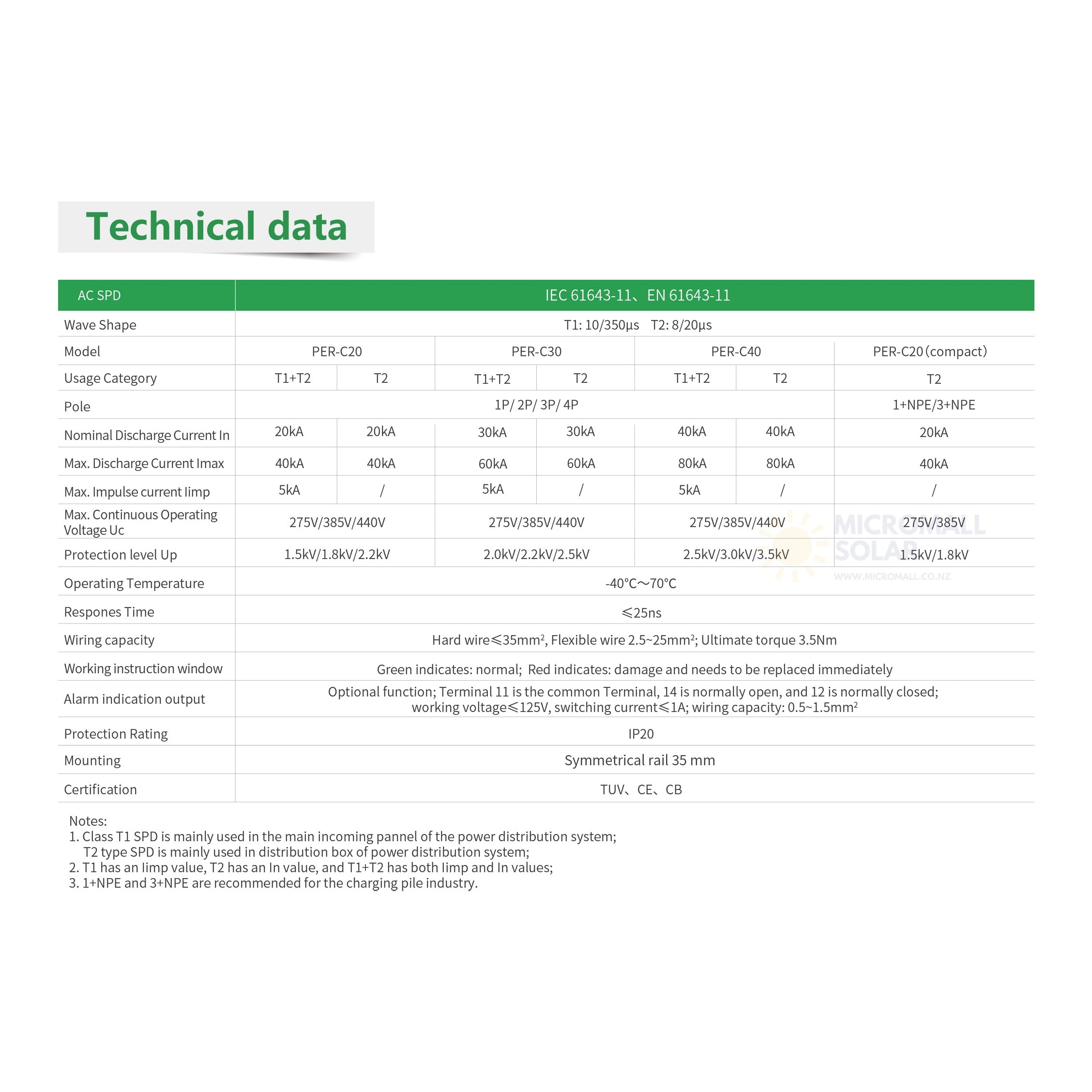

Technical data AC SPD IEC 61643-11、EN 61643-11 Wave Shape: T2: 8/20μs Model: PER-C20 Usage Category: T2 Pole: 2P Nominal Discharge Current In: 20kA Max. Discharge Current Imax: 40kA Max. Continuous Operating Voltage Uc: 275V Protection level Up: 1.5kV
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the PROJOY PER-C20 275V AC Surge Protector online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar accessories and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this SURGE-275AC matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 0.5 kg |
|---|---|
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
