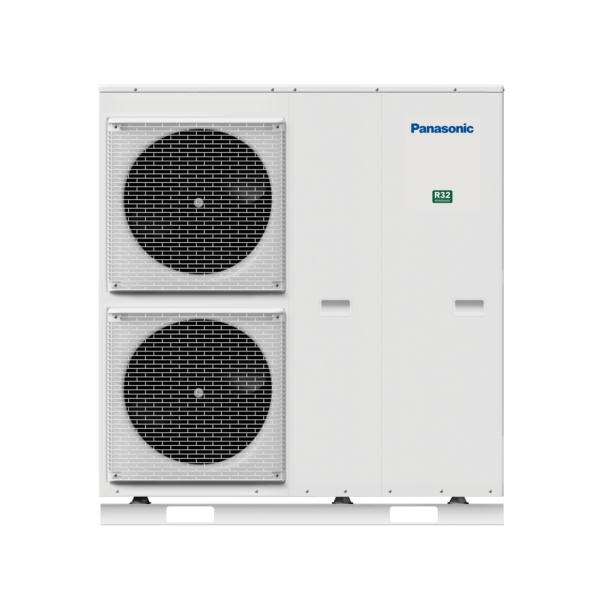

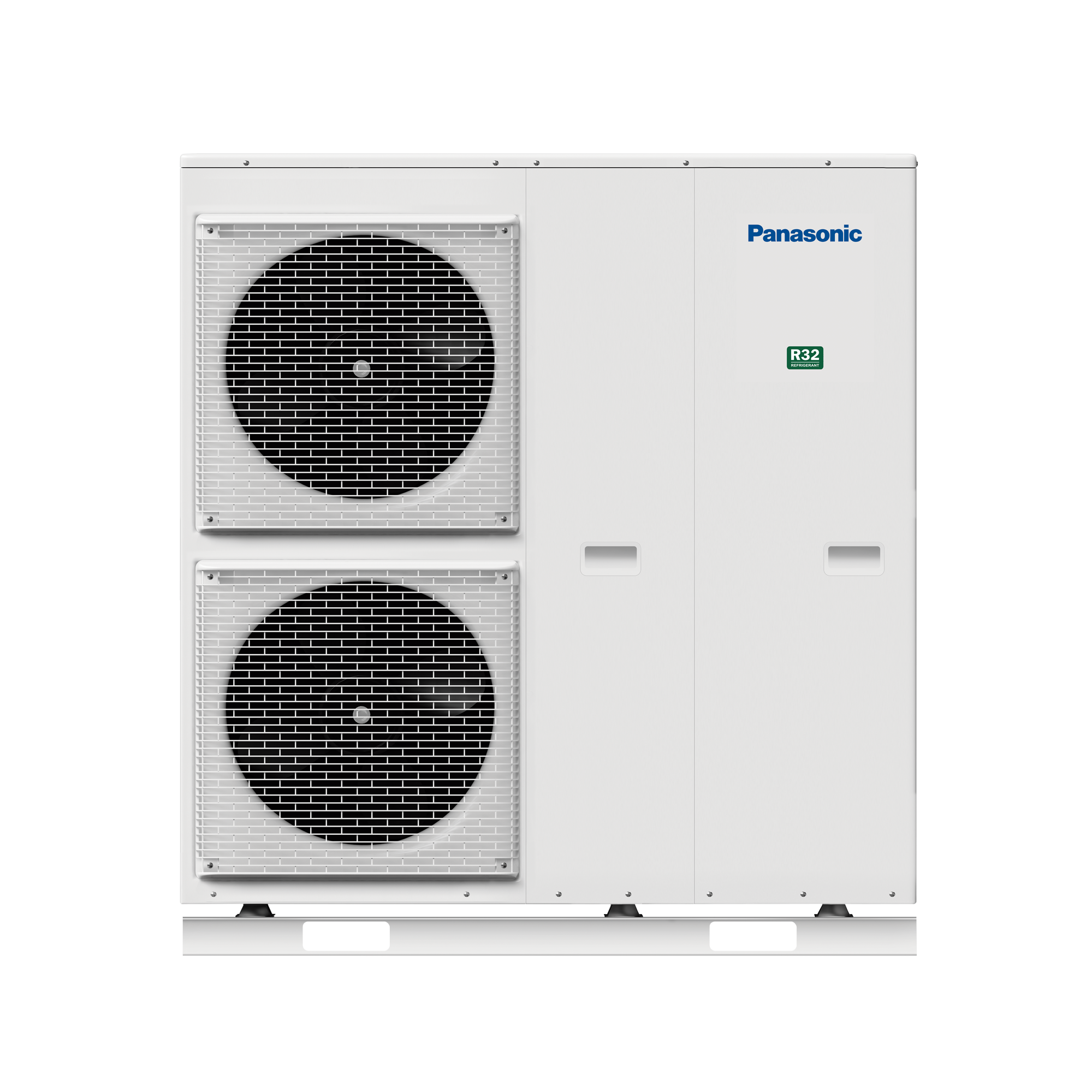

Panasonic WH-MXC16J9E8-1 – Aquarea Monobloc T-CAP 16kW Air to Water (Air to Water Heat Pump)
Roll over image to zoom in
$14,389.99$16,669.99 (-14%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Genuine Panasonic WH-MXC16J9E8-1 Aquarea Monobloc T-CAP air to water unit (16kW). Brand new, 5-year Panasonic warranty, NZ-wide delivery.
Discount per Quantity
| Quantity | 1 | 2 - 4 | 5 - 9 | 10 + |
|---|---|---|---|---|
| Discount | 0% | 5% | 8% | 10% |
| Price | $14,389.99 | $13,670.49 | $13,238.79 | $12,950.99 |
Panasonic WH-MXC16J9E8-1 – Aquarea Monobloc T-CAP 16kW Air to Water (Air to Water Heat Pump): Genuine Panasonic Trade Supply
You are viewing the Panasonic WH-MXC16J9E8-1 – Aquarea Monobloc T-CAP 16kW Air to Water (Air to Water Heat Pump) (SKU: WH-MXC16J9E8-1). This is a 100 percent genuine Panasonic Aquarea Monobloc T-CAP Air to Water Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 16kW. Heating capacity: 16kW.
Product Details: Panasonic WH-MXC16J9E8-1
Panasonic WH-MXC16J9E8-1 – genuine Panasonic Aquarea Monobloc T-CAP air to water unit, brand new with full NZ warranty support.
Aquarea air-to-water monobloc heat pump, controller included, three phase
Panasonic WH-MXC16J9E8-1 — Full Specifications
| Unit Overview | |
| Cooling Capacity | 16 kW |
| Heating Capacity | 16 kW |
| Power Supply | Three Phase |
| Dimensions (H x W x D) | 1410 x 1283 x 320 mm |
| Weight | 150 kg |
| Brand | Panasonic |
| Series | Aquarea Monobloc T-CAP |
| SKU | WH-MXC16J9E8-1 |
| Warranty | 5 Years |
| Capacity & Performance | |
| Heating COP (A 7 ºC, W 35 ºC) | 4.52 |
| SCOP (W 35 / 55 ºC) | 4.46 / 3.31 |
| Cooling Capacity | 14.5 kW |
| Cooling EER (A 35 ºC, W 7 ºC) | 2.84 |
| Sound Levels | |
| Sound Level (Full Load / Part Load) | 72 / 66 dB |
| Dimensions & Weight | |
| Dimension (H x W x D) | 1,410 x 1,283 x 320 mm |
| NET Weight | 150 kg |
| Other Specifications | |
| Model Name | WH-MXC16J9E8-1 |
| Max. Heating Outlet Water Temperature | 65 ºC (20 ºC ≥ 0D ≥ 5 ºC) / 60 ºC (0D ≥ -15 ºC) / 55 ºC (0D ≥ -20 ºC) |
| Min. Outside Temperature | -20 ºC |
✔ 5-Year Panasonic Warranty (residential & commercial) — genuine Panasonic product with full New Zealand warranty support. Warranty details.
Every Panasonic WH-MXC16J9E8-1 sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for trade pricing or a quote.
Need advice or trade pricing? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this WH-MXC16J9E8-1 matches your installation. Sourced directly from the Panasonic NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Panasonic unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Panasonic WH-MXC16J9E8-1 – Aquarea Monobloc T-CAP 16kW Air to Water (Air to Water Heat Pump) suitable for New Zealand conditions?
Yes. The WH-MXC16J9E8-1 is engineered for the climate ranges experienced across New Zealand and is sold and supported by Panasonic NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Panasonic equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the WH-MXC16J9E8-1 use?
This unit uses R32 refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Panasonic WH-MXC16J9E8-1? NZ Depot supplies the Panasonic WH-MXC16J9E8-1 New Zealand wide with fast dispatch, trade pricing and genuine Panasonic warranty support. Compare the Panasonic WH-MXC16J9E8-1 – Aquarea Monobloc T-CAP 16kW Air to Water (Air to Water Heat Pump) with the rest of the Panasonic Aquarea Monobloc T-CAP range, check the full specifications above, and order the Panasonic WH-MXC16J9E8-1 online today or request a trade quote for volume supply.
Browse the full range of Hot Water Systems available for NZ-wide trade and retail supply.
