Panasonic 8kW Developer Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$2,829.99$3,269.99 (-13%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
COOLING
8.00 kW
HEATING
9.00 kW
Complete Panasonic Developer Series 8kW heat pump system (indoor + outdoor set) – models CS-RZ80YKR + CU-RZ80YKR. Genuine NZ stock with 5-year Panasonic warranty. Professional installation required.
Discount per Quantity
| Quantity |
|---|
| Discount |
| Price |
| 1 | 2 - 4 | 5 - 9 | 10 + |
| 0% | 5% | 8% | 10% |
| $2,829.99 | $2,688.49 | $2,603.59 | $2,546.99 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Panasonic 8kW Developer Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor): Genuine Panasonic Trade Supply
You are viewing the Panasonic 8kW Developer Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) (SKU: CS-RZ80YKR-CU-RZ80YKR-SET). This is a 100 percent genuine Panasonic Developer Series Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 8kW. Heating capacity: 9kW.
Product Details: Panasonic CS-RZ80YKR-CU-RZ80YKR-SET
Panasonic 8kW Developer Series – a genuine Panasonic complete heat pump system (indoor + outdoor set) supplied brand new with full New Zealand warranty support.
With 8kW rated cooling and 9kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.
Explore the Panasonic Single Room Air Conditioner. Discover features of Panasonic Developer RZ Series (AKR) Wall-Mounted Split System Air Conditioner, Panasonic Developer RZ Series (AKR) air conditioner features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.

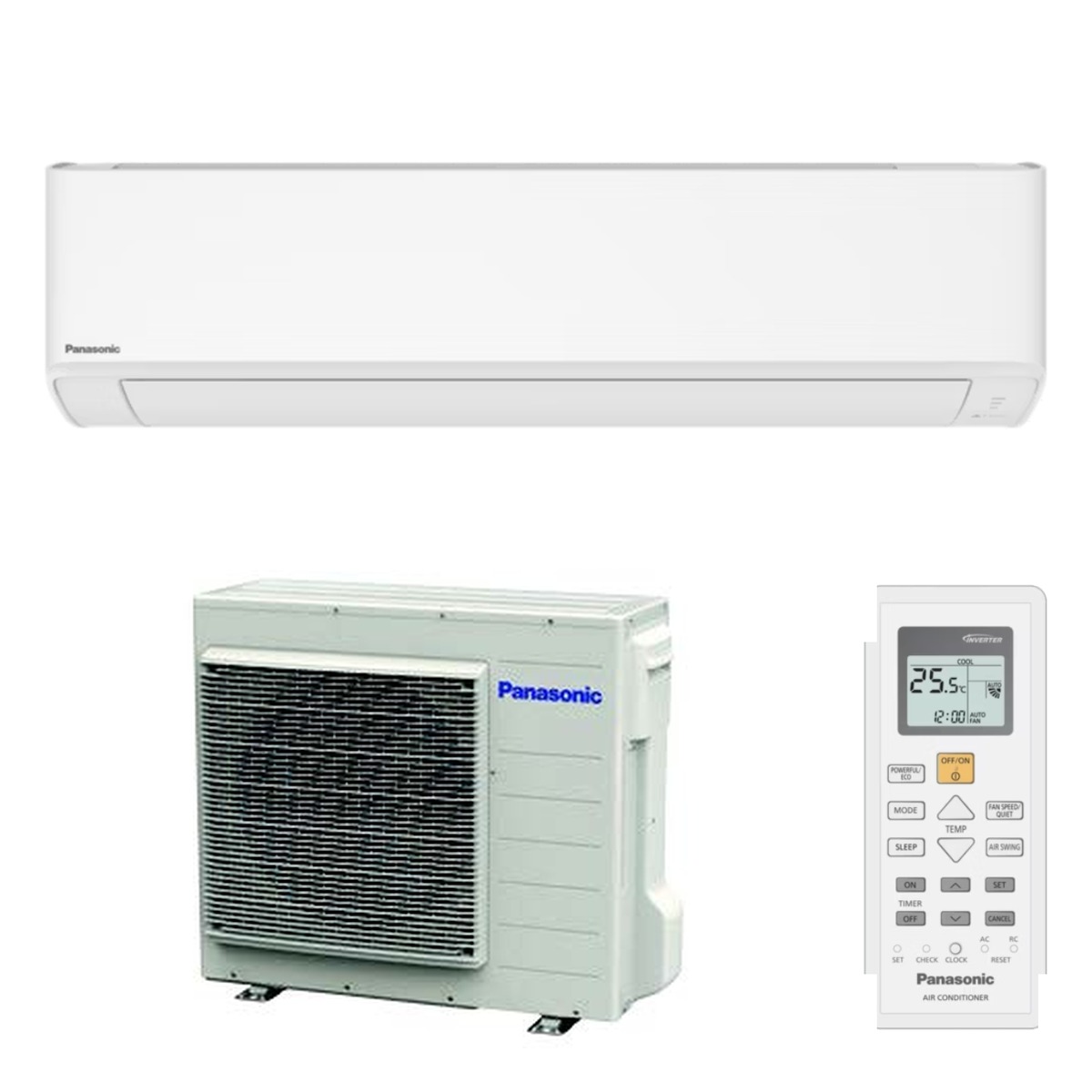

Complete set includes:
- 1x Indoor Unit: CS-RZ80YKR
- 1x Outdoor Unit: CU-RZ80YKR
Key Features
- ✓ POWERFUL Mode
- ✓ ECO Mode with A.I.
- ✓ Inverter Control
- ✓ Sleep Mode
- ✓ Quiet Mode
- ✓ Fan Mode
- ✓ Soft Dry Operation Mode
- ✓ Hot Start Control
- ✓ Auto Changeover (Inverter)
- ✓ Personal Airflow Creation
- ✓ Anti-Bacterial Filter
- ✓ Odour Removing Function
- ✓ Removable Washable Panel
- ✓ 24-Hour Dual ON & OFF Real Setting Timer
- ✓ Demand Response Enabling Device (DRED)
- ✓ LCD Wireless Remote Control
- ✓ Wired Remote Control (Optional)
- ✓ Random Auto Restart (32 Restart Patterns)
- ✓ Blue Fin Condenser
- ✓ Top Panel Maintenance Access
- ✓ Self-Diagnostic Function
Panasonic 8kW Developer Series — Full Specifications
| System Overview | |
| Cooling Capacity | 8 kW |
| Heating Capacity | 9 kW |
| Indoor Unit Model | CS-RZ80YKR |
| Outdoor Unit Model | CU-RZ80YKR |
| Refrigerant | R32 |
| Brand | Panasonic |
| Series | Developer Series |
| SKU | CS-RZ80YKR-CU-RZ80YKR-SET |
| Warranty | 5 Years |
| Capacity & Performance | |
| Cooling Capacity (min-max) (kW) | 8.00 (2.30-9.00) kW |
| Heating Capacity (min-max) (kW) | 9.00 (2.20-11.60) kW |
| Cooling Capacity (min-max) (Btu/h) | 27,300 (7,840-30,700) Btu/h |
| Heating Capacity (min-max) (Btu/h) | 30,700 (7,500-39,600) Btu/h |
| Cooling Indoor Air Flow (L/s) | 367 L/s |
| Heating Indoor Air Flow (L/s) | 377 L/s |
| Dehumid (L/h) | 4.70 L/h |
| Cooling AEER/EER | 3.34 W/W / 3.35 W/W |
| Heating ACOP/COP | 3.83 W/W / 3.85 W/W |
| Star Rating Residential/Commercial – Cooling (Hot Climate) | 3.5/4.5 TCSPF |
| Star Rating Residential/Commercial – Cooling (Average Climate) | 3.5/5.0 TCSPF |
| Star Rating Residential/Commercial – Cooling (Cold Climate) | 3.5/6.0 TCSPF |
| Star Rating Residential/Commercial – Heating (Hot Climate) | 3.5/3.5 HSPF |
| Star Rating Residential/Commercial – Heating (Average Climate) | 2.5/3.0 HSPF |
| Star Rating Residential/Commercial – Heating (Cold Climate) | 2.0/2.5 HSPF |
| Electrical | |
| Cooling Running Current (A) | 10.10 A |
| Heating Running Current (A) | 9.80 A |
| Max Current (A) | 15.00 A |
| Cooling Power Input (min-max) (kW) | 2.39 (0.46-3.03) kW |
| Heating Power Input (min-max) (kW) | 2.34 (0.43-3.42) kW |
| Power Supply | Outdoor |
| Sound Levels | |
| Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo) | 51/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo) | 50/38/35 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo) | 67/54/51 dB(A) |
| Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo) | 66/54/51 dB(A) |
| Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo) | 55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo) | 55/50 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo) | 69/64 dB(A) |
| Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo) | 69/64 dB(A) |
| Dimensions & Weight | |
| Indoor Unit Dimensions (H x W x D) (mm) | 295 mm x 1,040 mm x 244 mm |
| Indoor Unit Net Weight | 13 kg |
| Outdoor Unit Dimensions (H x W x D) | 795 mm x 875 mm x 320 mm |
| Outdoor Unit Net Weight | 51 kg |
| Refrigerant & Piping | |
| Refrigerant Type | R32 |
| Refrigerant Pipe Diameter (Liquid Side) | ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) | ø 15.88 mm (5/8 inch) |
| Pipe Extension Length (min-max) | 3 m ~ 30 m |
| Maximum Elevation Length | 20 m |
| Pipe Length for Additional Refrigerant Gas | 10 m |
| Pipe Extension (Additional Refrigerant Gas*) | 25 g/m |
| Operating Range | |
| Outdoor Unit Operating Range (Cooling) | -10°C ~ +46°C |
| Outdoor Unit Operating Range (Heating) | -15°C ~ +24°C |
| Other Specifications | |
| Wi-Fi | Optional (Network adaptor required) |
| Long Piping (max.) | 30 m |
| Note | Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
Documents & Downloads
✔ 5-Year Panasonic Warranty (residential & commercial) — genuine Panasonic product with full New Zealand warranty support. Warranty details.
Compatible optional controllers & parts: CZ-RD517C (Wired Remote Controller with 7-day Time Clock); CZ-TACG1 (WiFi Adaptor); CZ-MA1PA (Pipe Size Reducer for units marked *1); CZ-MA2PA (Pipe Size Expander for units marked *2); CZ-MA3PA (Pipe Size Expander for units marked *3); CZ-RD517C (Wired Remote Controller with 7-day Time Clock).
Every Panasonic 8kW Developer Series sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Panasonic manufacturer warranty. Order online today or contact NZ Depot for trade pricing.
Need advice or trade pricing? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this CS-RZ80YKR-CU-RZ80YKR-SET matches your installation. Sourced directly from the Panasonic NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Panasonic unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Panasonic 8kW Developer Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) suitable for New Zealand conditions?
Yes. The CS-RZ80YKR-CU-RZ80YKR-SET is engineered for the climate ranges experienced across New Zealand and is sold and supported by Panasonic NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Panasonic equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the CS-RZ80YKR-CU-RZ80YKR-SET use?
This unit uses R32 refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Panasonic 8kW Developer Series? NZ Depot supplies the Panasonic 8kW Developer Series New Zealand wide with fast dispatch, trade pricing and genuine Panasonic warranty support. Compare the Panasonic 8kW Developer Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) with the rest of the Panasonic Developer Series range, check the full specifications above, and order the Panasonic 8kW Developer Series online today or request a trade quote for volume supply.
