Panasonic 4.2kW Aero Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$1,769.99$2,039.99 (-13%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Complete Panasonic Aero Series 4.2kW heat pump system (indoor + outdoor set) – models CS-Z42AKRW + CU-Z42AKR. Genuine NZ stock with 5-year Panasonic warranty. Professional installation required.
Discount per Quantity
| Quantity | 1 | 2 - 4 | 5 - 9 | 10 + |
|---|---|---|---|---|
| Discount | 0% | 5% | 8% | 10% |
| Price | $1,769.99 | $1,681.49 | $1,628.39 | $1,592.99 |
Panasonic 4.2kW Aero Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor): Genuine Panasonic Trade Supply
You are viewing the Panasonic 4.2kW Aero Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) (SKU: CS-Z42AKRW-CU-Z42AKR-SET). This is a 100 percent genuine Panasonic Aero Series Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 4.2kW. Heating capacity: 5.1kW.
Product Details: Panasonic CS-Z42AKRW-CU-Z42AKR-SET
Panasonic 4.2kW Aero Series – a genuine Panasonic complete heat pump system (indoor + outdoor set) supplied brand new with full New Zealand warranty support.
With 4.2kW rated cooling and 5.1kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.
Explore the Panasonic Single Room Air Conditioner. Discover features of Panasonic Aero Z Series (AKR) Wall-Mounted Split System Air Conditioner, Panasonic Aero Z Series (AKR) wall-mounted split system air conditioner delivers energy efficient heating and cooling for your home. Aero series air conditioners feature nanoe™ X air purification technology that can be run independently 24 hours a day. The iAUTO-X function provides faster cooling from start-up while AEROWINGS deliver faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

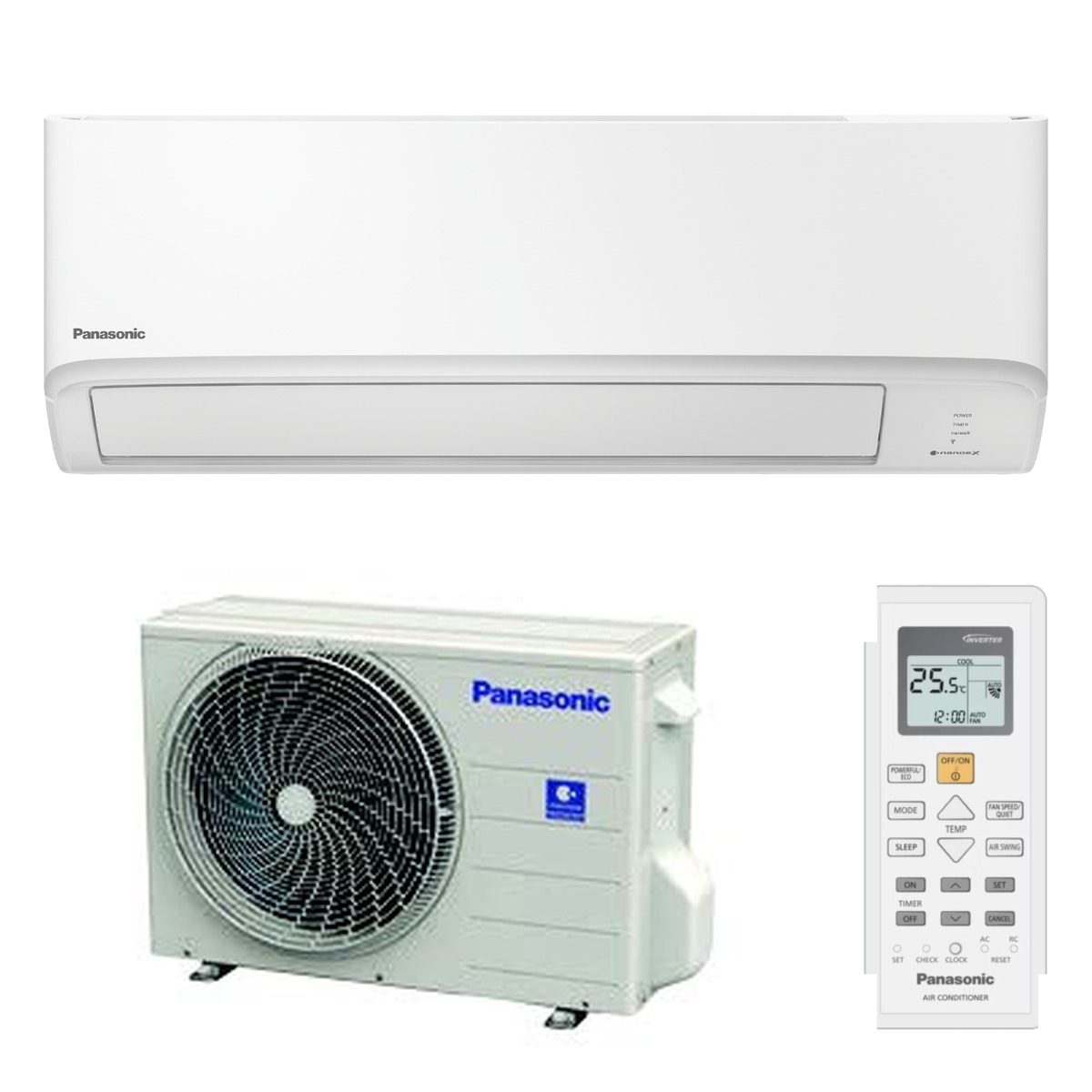

Complete set includes:

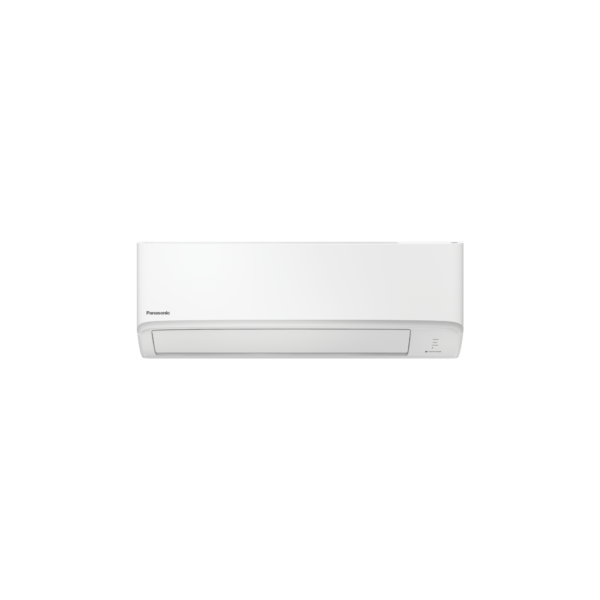

- 1x Indoor Unit: CS-Z42AKRW
- 1x Outdoor Unit: CU-Z42AKR
Key Features
- ✓ iAUTO-X
- ✓ ECO Mode with A.I.
- ✓ Inverter Control
- ✓ Sleep Mode
- ✓ Quiet Mode
- ✓ Fan Mode
- ✓ Soft Dry Operation Mode
- ✓ Hot Start Control
- ✓ Auto Changeover (Inverter)
- ✓ Manual Horizontal Airflow Direction Control
- ✓ Airflow Direction Control (Up & Down)
- ✓ nanoe™ X (Generator Mark 1)
- ✓ Odour Removing Function
- ✓ Removable Washable Panel
- ✓ 24-Hour Dual ON & OFF Real Setting Timer
- ✓ Demand Response Enabling Device (DRED)
- ✓ LCD Wireless Remote Control
- ✓ Wi-Fi (Built-in)
- ✓ Wired Remote Control (Optional)
- ✓ Random Auto Restart (32 Restart Patterns)
- ✓ Blue Fin Condenser
- ✓ Top Panel Maintenance Access
- ✓ Self-Diagnostic Function
Panasonic 4.2kW Aero Series — Full Specifications
| System Overview | |
| Cooling Capacity | 4.2 kW |
| Heating Capacity | 5.1 kW |
| Indoor Unit Model | CS-Z42AKRW |
| Outdoor Unit Model | CU-Z42AKR |
| Refrigerant | R32 |
| Brand | Panasonic |
| Series | Aero Series |
| SKU | CS-Z42AKRW-CU-Z42AKR-SET |
| Warranty | 5 Years |
| Capacity & Performance | |
| Cooling Capacity (min-max) (kW) | 4.20 (1.15-5.10) kW |
| Heating Capacity (min-max) (kW) | 5.00 (0.90-6.80) kW |
| Cooling Capacity (min-max) (Btu/h) | 14,300 (3,920-17,400) Btu/h |
| Heating Capacity (min-max) (Btu/h) | 17,100 (3,070-23,200) Btu/h |
| Cooling Indoor Air Flow (L/s) | 193 L/s |
| Heating Indoor Air Flow (L/s) | 202 L/s |
| Dehumid (L/h) | 2.40 L/h |
| Cooling AEER/EER | 3.53 W/W / 3.56 W/W |
| Heating ACOP/COP | 3.82 W/W / 3.85 W/W |
| Star Rating Residential/Commercial – Cooling (Hot Climate) | 3.5/4.5 TCSPF |
| Star Rating Residential/Commercial – Cooling (Average Climate) | 3.5/5.0 TCSPF |
| Star Rating Residential/Commercial – Cooling (Cold Climate) | 3.5/6.0 TCSPF |
| Star Rating Residential/Commercial – Heating (Hot Climate) | 3.5/3.5 HSPF |
| Star Rating Residential/Commercial – Heating (Average Climate) | 2.5/3.0 HSPF |
| Star Rating Residential/Commercial – Heating (Cold Climate) | 2.0/2.5 HSPF |
| Electrical | |
| Cooling Running Current (A) | 5.00 A |
| Heating Running Current (A) | 5.45 A |
| Max Current (A) | 8.90 A |
| Cooling Power Input (min-max) (kW) | 1.18 (0.22-1.64) kW |
| Heating Power Input (min-max) (kW) | 1.30 (0.20-2.04) kW |
| Power Supply | Outdoor |
| Sound Levels | |
| Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo) | 44/31/28 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo) | 44/32/28 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo) | 60/47/44 dB(A) |
| Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo) | 60/48/44 dB(A) |
| Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo) | 49/44 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo) | 51/46 dB(A) *Sound pressure level specification is measured accroding to JIS C9612. |
| Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo) | 64/59 dB(A) |
| Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo) | 66/61 dB(A) |
| Dimensions & Weight | |
| Indoor Unit Dimensions (H x W x D) | 290 mm x 779 mm x 209 mm |
| Indoor Unit Net Weight | 8 kg |
| Outdoor Unit Dimensions (H x W x D) | 542 mm x 780 mm x 289 mm |
| Outdoor Unit Net Weight | 31 kg |
| Refrigerant & Piping | |
| Refrigerant Type | R32 |
| Refrigerant Pipe Diameter (Liquid Side) | ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) | ø 12.70 mm (1/2 inch) |
| Pipe Extension Length (min-max) | 3 m ~ 20 m |
| Maximum Elevation Length | 15 m |
| Pipe Length for Additional Refrigerant Gas | 7.50 m |
| Additional Gas Amount | 10 g/m |
| Operating Range | |
| Outdoor Unit Operating Range (Cooling) | -10°C ~ +46°C |
| Outdoor Unit Operating Range (Heating) | -15°C ~ +24°C |
| Other Specifications | |
| Long Piping (max.) | 20 m |
| Note | Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
Documents & Downloads
✔ 5-Year Panasonic Warranty (residential & commercial) — genuine Panasonic product with full New Zealand warranty support. Warranty details.
Compatible optional controllers & parts: CZ-RD517C (Wired Remote Controller with 7-day Time Clock).
Every Panasonic 4.2kW Aero Series sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Panasonic manufacturer warranty. Order online today or contact NZ Depot for trade pricing.
Need advice or trade pricing? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this CS-Z42AKRW-CU-Z42AKR-SET matches your installation. Sourced directly from the Panasonic NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Panasonic unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Panasonic 4.2kW Aero Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) suitable for New Zealand conditions?
Yes. The CS-Z42AKRW-CU-Z42AKR-SET is engineered for the climate ranges experienced across New Zealand and is sold and supported by Panasonic NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Panasonic equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the CS-Z42AKRW-CU-Z42AKR-SET use?
This unit uses R32 refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Panasonic 4.2kW Aero Series? NZ Depot supplies the Panasonic 4.2kW Aero Series New Zealand wide with fast dispatch, trade pricing and genuine Panasonic warranty support. Compare the Panasonic 4.2kW Aero Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) with the rest of the Panasonic Aero Series range, check the full specifications above, and order the Panasonic 4.2kW Aero Series online today or request a trade quote for volume supply.
