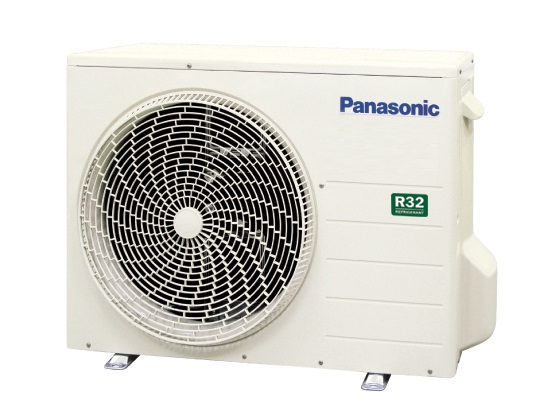

Panasonic 3.5/4.0kW Developer Unit (1/4 / 3/8) - Complete Set (Indoor + Outdoor) - AC9023/I-AC9023/O-SET
Roll over image to zoom in
$1,851.49$4,507.97 (-59%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Industrial Refrigeration Standard.
The Panasonic 3.5/4.0kW Developer Unit (1/4 / 3/8) - Complete Set (Indoor + Outdoor) - AC9023/I-AC9023/O-SET (Product Code: AC9023/I-AC9023/O-SET) is a precision-engineered Heat Pump component. Built for the demanding New Zealand commercial environment, this unit ensures reliability in critical cooling and HVAC applications.
Technical Specification
COMPLETE SET INCLUDES: 1x Indoor Unit: 3.5/4.0kW Developer Indoor Unit (1/4 / 3/8) [INDOOR UNIT ONLY] 1x Outdoor Unit: 3.5 kW RZ Series OD R32 Developer [OUTDOOR UNIT ONLY] INDOOR SPECS: General Additional Info Air Volume/Air Flow Connections Connectivity Cooling Capacity Electrical Energy Efficiency/Performance General Information Heating Capacity Indoor Unit Attributes Pipes Refrigerant Product Group : Panasonic High Walls Family : Developer Indoor/ Outdoor/ Other : Indoor Indoor Units Connectable (Quantity) : 1 Single Split / Multi Split : Single Air Flow : 202 L/s Pipe Diameter Gas Side : 3/8 in Pipe Diameter Liquid Side : 1/4 in Pre-Equipped Wifi : Optional Cooling Capacity : 3.50 kW Cooling Capacity (Min/Max) : 0.90/4.20 kW Current (Cooling) : 3.6 A Current (Heating) : 3.85 A Max Current : 7.2 A Phase : 1 ph Power Supply : 220-240/1/50 V/Ph/Hz COP : 4.60 EER : 4.22 Remote Control Provided : Yes Heating Capacity : 4.00 kW Heating Capacity (Min/Rated/Max) : 0.9/4.0/5.70 kW Depth (IU) : 209 mm Height (IU) : 290 mm Weight (IU) : 8 kg Width (IU) : 779 mm Max Height Difference : 15 m Max Pipe Length Without Additional Refrigerant : 7.5 m Max Pipe Run : 20 m Additional Charge : 10 g/m Refrigerant : R32 Refrigerant precharged up to : 7.5 m OUTDOOR SPECS: General Additional Info Cooling Capacity Electrical Energy Efficiency/Performance Fan Heating Capacity Outdoor Unit Attributes Pipes Refrigerant Temperature Product Group : Panasonic High Walls Family : Developer Indoor/ Outdoor/ Other : Outdoor Indoor Units Connectable (Quantity) : 1 Single Split / Multi Split : Single Cooling Capacity : 3.5 kW Max Current : 7.20 A Power Supply : 240/1/50 V/Ph/Hz COP : 4.6 EER : 4.27 Number Of Fans : 1 Heating Capacity : 4.0 kW Depth (OU) : 289 mm Height (OU) : 542 mm Weight (OU) : 31 kg Width (OU) : 780 mm Chargeless Piping Length : 7.5 m Max Height Difference : 15 m Max Pipe Run : 20 m Additional Charge : 10 g/m Refrigerant : R32 Refrigerant Pipe Size : 1/4 - 3/8 in Temperature Range Cooling : -10°C ~ 46 °C Temperature Range Heating : -15°C ~ 24 °C
Explore our full range of Air Conditioners and Heat Pump solutions.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 209 × 779 × 290 mm |
| Type | |
| Product Code | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Product Group |
Shipping cartons
This item ships in 2 separate cartons.
| Carton 1 | 8 kg · 209 × 779 × 290 mm |
|---|---|
| Carton 2 | 31 kg · 289 × 780 × 542 mm |
| Total | 39 kg across 2 cartons · 0.169 m³ |
