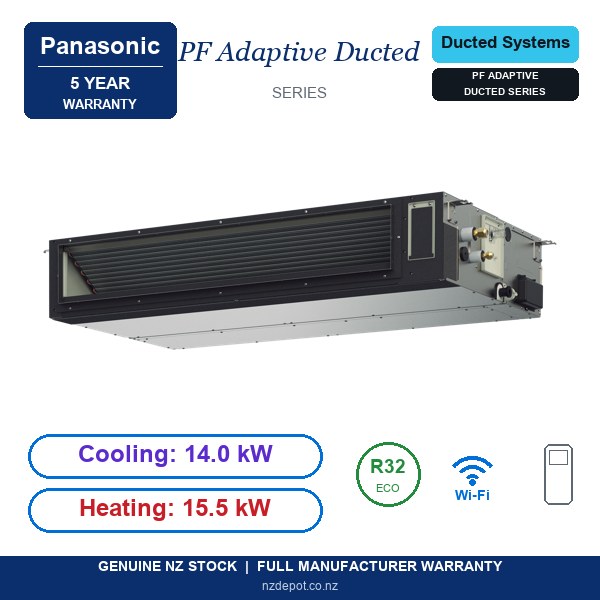

Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$5,579.99$6,459.99 (-14%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Complete Panasonic PF Adaptive Ducted 14kW heat pump system (indoor + outdoor set) – models S-1014PF3E + U-140PZH3R8. Genuine NZ stock with 5-year Panasonic warranty. Professional installation required.
Discount per Quantity
| Quantity | 1 | 2 - 4 | 5 - 9 | 10 + |
|---|---|---|---|---|
| Discount | 0% | 5% | 8% | 10% |
| Price | $5,579.99 | $5,300.99 | $5,133.59 | $5,021.99 |
Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor): Genuine Panasonic Trade Supply
You are viewing the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) (SKU: S-1014PF3E-U-140PZH3R8-SET). This is a 100 percent genuine Panasonic PF Adaptive Ducted Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 14kW. Heating capacity: 15.5kW.
Product Details: Panasonic S-1014PF3E-U-140PZH3R8-SET
Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase – a genuine Panasonic complete heat pump system (indoor + outdoor set) supplied brand new with full New Zealand warranty support.
With 14kW rated cooling and 15.5kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.
Explore the Panasonic Ducted. Discover features of Panasonic R32 Inverter NX Series Adaptive Ducted PF3, R32 Inverter NX Series Adaptive Ducted units offer more efficient air protection with nanoe X Generator Mark2. These units have the extra convenience of a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.

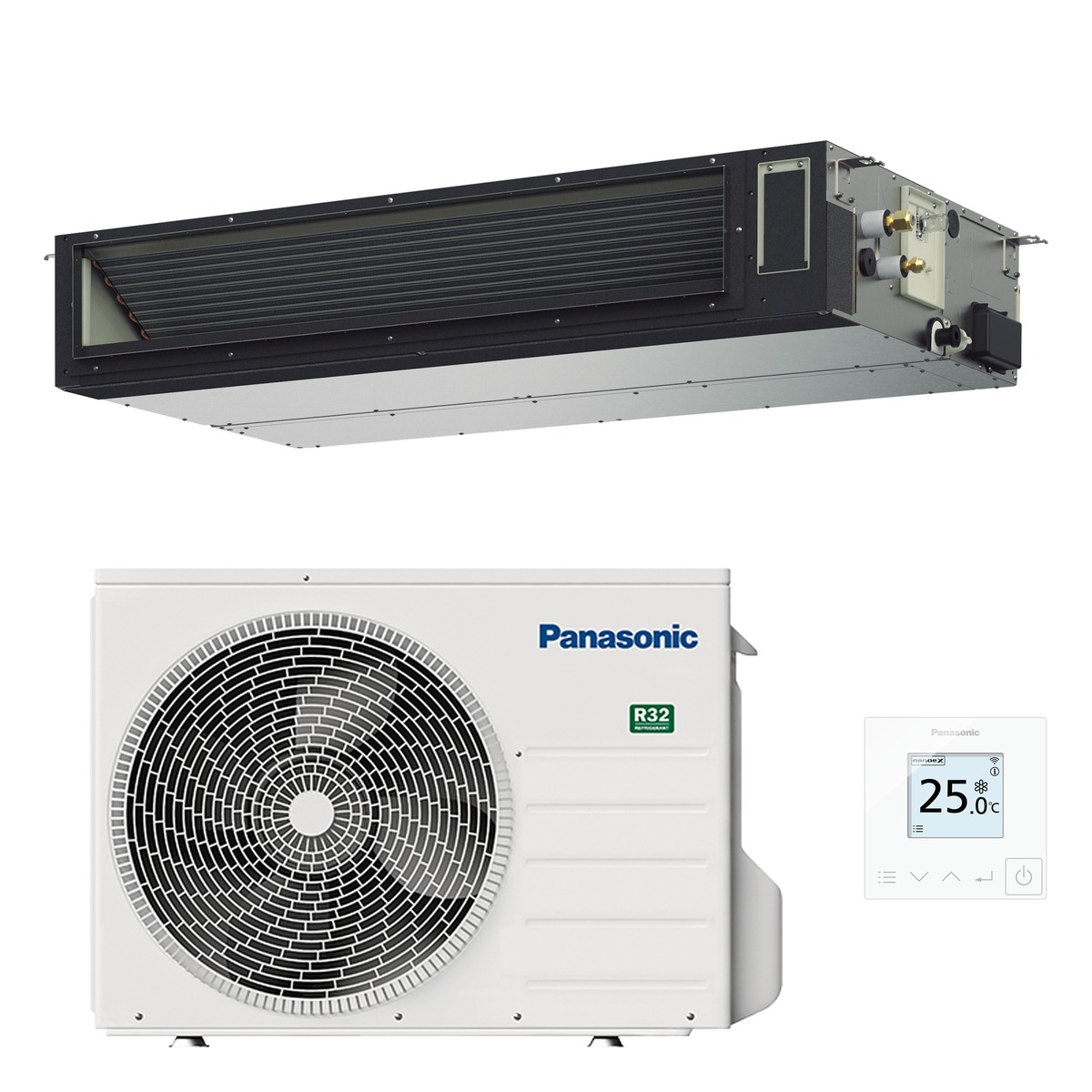

Complete set includes:
- 1x Indoor Unit: S-1014PF3E
- 1x Outdoor Unit: U-140PZH3R8
Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase — Full Specifications
| System Overview | |
| Cooling Capacity | 14 kW |
| Heating Capacity | 15.5 kW |
| Indoor Unit Model | S-1014PF3E |
| Outdoor Unit Model | U-140PZH3R8 |
| Refrigerant | R32 |
| Power Supply | Three Phase (380-415V) |
| Brand | Panasonic |
| Series | PF Adaptive Ducted |
| SKU | S-1014PF3E-U-140PZH3R8-SET |
| Warranty | 5 Years |
| Sound Levels | |
| 3.4 kW: Sound Pressure Level (Cooling) (H/M/L) | – |
| 3.4 kW: Sound Pressure Level (Heating) (H/M/L) | – |
| 3.4 kW: Sound Power Level (Cooling) (H/M/L) | – |
| 3.4 kW: Sound Power Level (Heating) (H/M/L) | – |
| 4.6 kW: Sound Pressure Level (Cooling) (H/M/L) | – |
| 4.6 kW: Sound Pressure Level (Heating) (H/M/L) | – |
| 4.6 kW: Sound Power Level (Cooling) (H/M/L) | – |
| 4.6 kW: Sound Power Level (Heating) (H/M/L) | – |
| 5.7/6.8 kW: Sound Pressure Level (Cooling) (H/M/L) | – |
| 5.7/6.8 kW: Sound Pressure Level (Heating) (H/M/L) | – |
| 5.7/6.8 kW: Sound Power Level (Cooling) (H/M/L) | – |
| 5.7/6.8 kW: Sound Power Level (Heating) (H/M/L) | – |
| 9.5 kW: Sound Pressure Level (Cooling) (H/M/L) | 33/29/25 dB(A) |
| 9.5 kW: Sound Pressure Level (Heating) (H/M/L) | 33/29/25 dB(A) |
| 9.5 kW: Sound Power Level (Cooling) (H/M/L) | 56/52/48 dB |
| 9.5 kW: Sound Power Level (Heating) (H/M/L) | 56/52/48 dB |
| 12.1 kW: Sound Pressure Level (Cooling) (H/M/L) | 35/31/27 dB(A) |
| 12.1 kW: Sound Pressure Level (Heating) (H/M/L) | 35/31/27 dB(A) |
| 12.1 kW: Sound Power Level (Cooling) (H/M/L) | 58/54/50 dB |
| 12.1 kW: Sound Power Level (Heating) (H/M/L) | 58/54/50 dB |
| 13.4 kW: Sound Pressure Level (Cooling) (H/M/L) | 39/35/29 dB(A) |
| 13.4 kW: Sound Pressure Level (Heating) (H/M/L) | 39/35/29 dB(A) |
| 13.4 kW: Sound Power Level (Cooling) (H/M/L) | 62/58/52 dB |
| 13.4 kW: Sound Power Level (Heating) (H/M/L) | 62/58/52 dB |
| Dimensions & Weight | |
| Dimension | H250 x W1,400 x D730 mm |
| Net Weight | 39 kg |
| Other Specifications | |
| Number of Fan Speeds | 5 |
| Drain Piping | VP-20 mm |
| 3.4 kW: Air Volume (Cooling) (H/M/L) | – |
| 3.4 kW: Air Volume (Heating) (H/M/L) | – |
| 3.4 kW: External Static Pressure | – |
| 4.6 kW: Air Volume (Cooling) (H/M/L) | – |
| 4.6 kW: Air Volume (Heating) (H/M/L) | – |
| 4.6 kW: External Static Pressure | – |
| 5.7/6.8 kW: Air Volume (Cooling) (H/M/L) | – |
| 5.7/6.8 kW: Air Volume (Heating) (H/M/L) | – |
| 5.7/6.8 kW: External Static Pressure | – |
| 9.5 kW: Air Volume (Cooling) (H/M/L) | 534/434/350 L/s |
| 9.5 kW: Air Volume (Heating) (H/M/L) | 534/434/350 L/s |
| 9.5 kW: External Static Pressure | 40 (10-150) Pa |
| 12.1 kW: Air Volume (Cooling) (H/M/L) | 567/484/384 L/s |
| 12.1 kW: Air Volume (Heating) (H/M/L) | 567/484/384 L/s |
| 12.1 kW: External Static Pressure | 50 (10-150) Pa |
| 13.4 kW: Air Volume (Cooling) (H/M/L) | 601/534/417 L/s |
| 13.4 kW: Air Volume (Heating) (H/M/L) | 601/534/417 L/s |
| 13.4 kW: External Static Pressure | 50 (10-150) Pa |
Documents & Downloads
- 📄 R32 Residential & Light Commercial Air Conditioning
- 📄 NX Series Inverter Adaptive Ducted R32 Spec AU
- 📄 NX Series Inverter Adaptive Ducted R32 Dimension AU
✔ 5-Year Panasonic Warranty (residential & commercial) — genuine Panasonic product with full New Zealand warranty support. Warranty details.
Compatible optional controllers & parts: CZ-140DRS1 (Outdoor Drain Kit); CZ-RTC6W (Simple Wall Controller); CZ-RTC6WBL (Simple Wall Controller with Bluetooth); CZ-RTC6BLW/CZ-RTC6WBLW2 (Simple Wall Controller with Bluetooth & WiFi); CZ-RTC6Z (Wired Zone Control with WiFi); CZ-CAPZ1M (Zone Control Box – Multiple Settings); CZ-CSRC3 (Optional Wall Temperature Sensor); CZ-FLUSH (Flush Box for Mounting of CZ-RTC6 Controllers); CZ-RTC5B (Deluxe Wall Controller); CZ-RWS3 (Infrared Remote Controller).
Every Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Panasonic manufacturer warranty. Order online today or contact NZ Depot for trade pricing.
Need advice or trade pricing? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this S-1014PF3E-U-140PZH3R8-SET matches your installation. Sourced directly from the Panasonic NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Panasonic unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) suitable for New Zealand conditions?
Yes. The S-1014PF3E-U-140PZH3R8-SET is engineered for the climate ranges experienced across New Zealand and is sold and supported by Panasonic NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Panasonic equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the S-1014PF3E-U-140PZH3R8-SET use?
This unit uses R32 refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase? NZ Depot supplies the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase New Zealand wide with fast dispatch, trade pricing and genuine Panasonic warranty support. Compare the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) with the rest of the Panasonic PF Adaptive Ducted range, check the full specifications above, and order the Panasonic 14kW PF Adaptive Ducted Deluxe Three Phase online today or request a trade quote for volume supply.
Browse the full range of Air Conditioners available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Authorised Panasonic Trade Supplier.
Additional information
| Weight | 39 kg |
|---|---|
| Dimensions | 730 × 1400 × 250 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype | |
| Related Indoor SKU | |
| Related Outdoor SKU |
