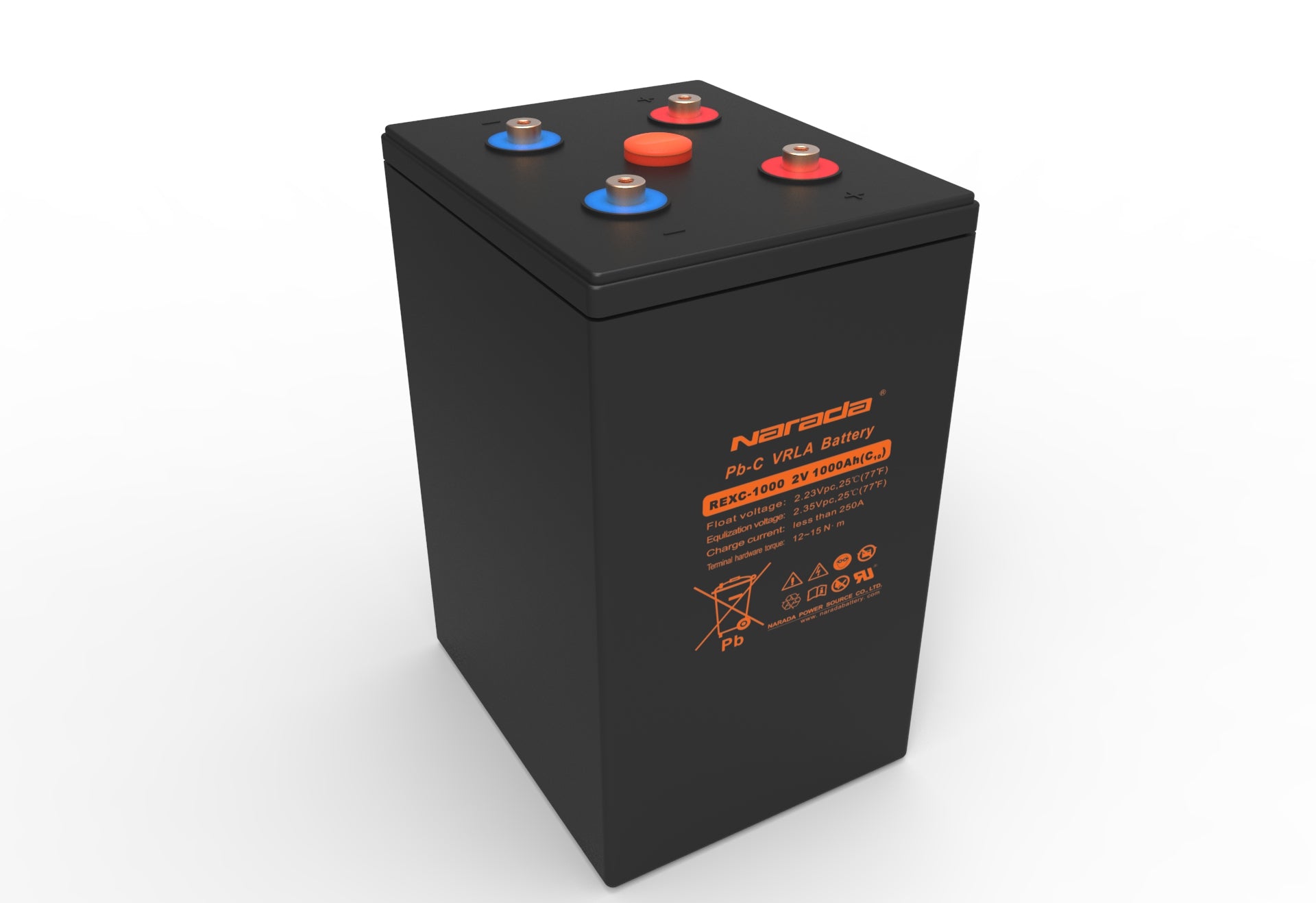

Narada REXC-1000 2V 1000Ah / 1200Ah C100 Four-Terminal Lead Carbon Deep Cycle Battery
Roll over image to zoom in
$819.99
Price Match*
Price Match*
Narada REXC-1000 2V 1000Ah / 1200Ah C100 Four-Terminal Lead Carbon Deep Cycle Battery. 1000Ah capacity. Four-terminal configuration. High-power rapid charge and discharge capability. Excellent recharge acceptance and reduced negative-plate sulfation. Suitable for frequent Partial State of Charge (PSOC) operation. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Narada REXC-1000 2V 1000Ah / 1200Ah C100 Four-Terminal Lead Carbon Deep Cycle Battery: Genuine Trade Supply
You are viewing the Narada REXC-1000 2V 1000Ah / 1200Ah C100 Four-Terminal Lead Carbon Deep Cycle Battery (SKU: BTN-2V1000-P). This is a 100 percent genuine Carbon Batteries product from our Solar Batteries range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: BTN-2V1000-P
Narada REXC-1000 2V 1000Ah is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 1000Ah capacity. Designed for thousands of charge cycles, it delivers dependable power day after day. Backed by Narada, a proven name in solar technology, and supplied with genuine NZ warranty support.
The Narada REXC-1000 is a high-capacity 2V four-terminal lead carbon deep-cycle battery designed for solar energy storage, off-grid systems, hybrid power systems and other demanding energy storage applications.
This listing is for ONE 2V battery cell only.
The four-terminal design uses four M8 embedded copper terminals, providing flexible connection options when building higher-voltage battery banks.
For best performance, batteries connected in the same bank should be of the same model, capacity, age and condition. Please contact us if you require assistance designing a complete battery bank.
Key Features
- ✓ Four-terminal configuration
- ✓ High-power rapid charge and discharge capability
- ✓ Excellent recharge acceptance and reduced negative-plate sulfation
- ✓ Suitable for frequent Partial State of Charge (PSOC) operation
- ✓ Waterproof, anti-salt-treatment and shock-resistant module design
- ✓ Long service life for renewable-energy storage
- ✓ These batteries can be connected in series to build higher-voltage systems
- ✓ Do not mix new and old batteries in the same battery bank.
Narada REXC-1000 2V 1000Ah: Full Specifications
| Specifications | |
| Model | REXC-1000 |
| SKU | BTN-2V1000-P |
| Battery Type | Lead Carbon VRLA Deep Cycle Battery |
| Nominal Voltage | 2V |
| Capacity | 1000Ah (10hr to 1.80V/cell at 25°C); 1200Ah (120hr to 1.85V/cell at 25°C) |
| Typical Weight | 76kg |
| Internal Resistance | Approx. 0.15mΩ |
| Short-Circuit Current | 12,835A |
| Maximum Charging Current | 250A |
| Float Charge Voltage | 2.23V at 25°C |
| Equalising / Cycle Charge Voltage | 2.30V at 25°C |
| Self-Discharge | More than 90% residual capacity after 90 days at 25°C |
| Recommended Operating Temperature | 15°C to 25°C |
| Maximum Operating Temperature Range | 40°C to 50°C |
| Terminals | Four M8 embedded copper terminals |
| Terminal Hardware Torque | 12-15N·m |

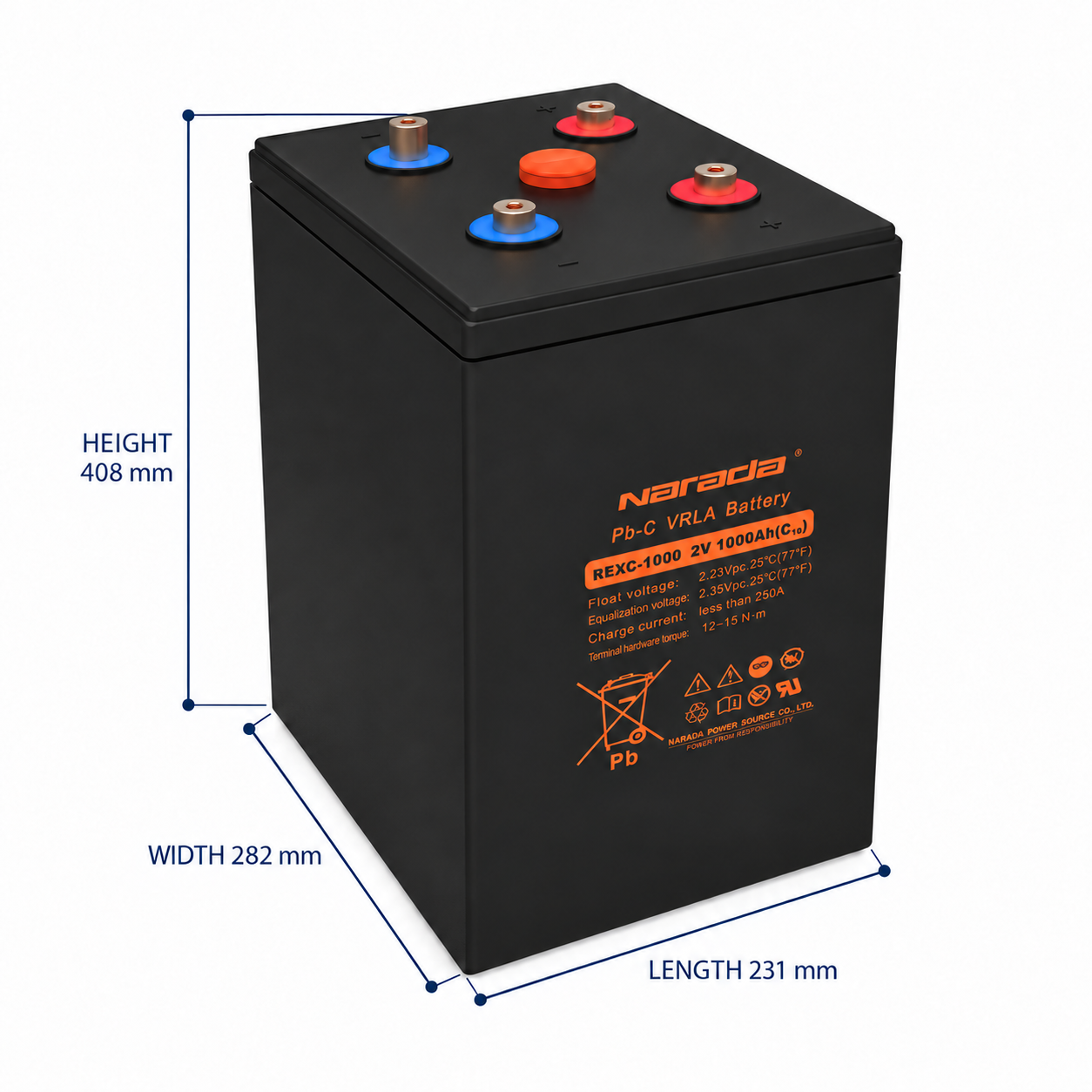

| Dimensions (L × W × H) | 231 × 282 × 408 mm overall (396 mm body height) |
| Design Life | Up to 20 years under specified conditions |
| Standards | IEC 60896 and IEC 61427 |
| 12V System | 6 × 2V batteries |
| 24V System | 12 × 2V batteries |
| 48V System | 24 × 2V batteries |
Perfect For
- Off-grid solar systems
- Residential and commercial energy storage
- Smart grids and microgrids
- Hybrid solar and wind energy systems
- Home energy storage and backup power
- Emergency lighting and generator-battery hybrid systems
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Narada REXC-1000 2V 1000Ah / 1200Ah C100 Four-Terminal Lead Carbon Deep Cycle Battery online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this BTN-2V1000-P matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
