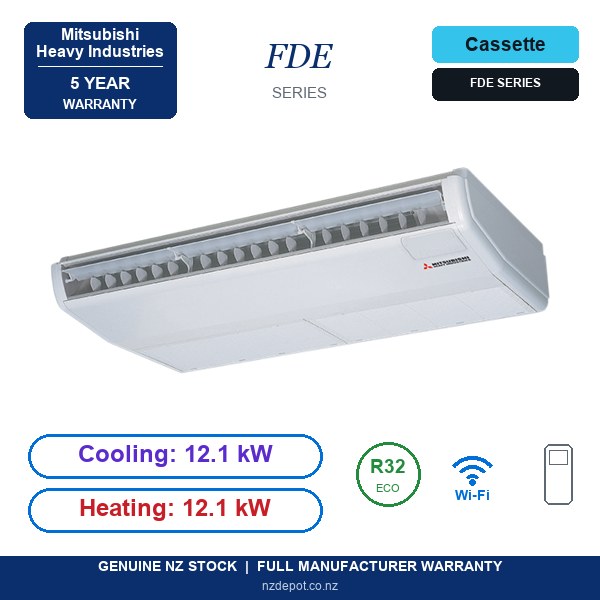

Mitsubishi Heavy Industries 12.1kW FDE Series Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$5,479.99$6,299.99 (-13%)
Price Match*
Price Match*
COOLING
12.10 kW
HEATING
12.10 kW
Complete Mitsubishi Heavy Industries FDE Series 12.1kW heat pump system (indoor + outdoor set) - models FDE125VH + FDCA125VNP-W. Genuine NZ stock with 5-year MHI warranty.
Need it installed? We arrange installation in Auckland, Hamilton, Tauranga, Rotorua, Wellington, Christchurch and Invercargill. Get a free installation quote
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Mitsubishi Heavy Industries 12.1kW FDE Series Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor): Genuine Mitsubishi Heavy Industries Trade Supply
You are viewing the Mitsubishi Heavy Industries 12.1kW FDE Series Air Conditioner Heat Pump - Complete Set (Indoor + Outdoor) (SKU: FDE125AVNPWVH). This is a 100 percent genuine Mitsubishi Heavy Industries FDE Series Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 12.1kW. Heating capacity: 12.1kW.
Product Details: Mitsubishi Heavy Industries FDE125AVNPWVH
MHI 12.1kW FDE Series - a genuine Mitsubishi Heavy Industries complete heat pump system (indoor + outdoor set) supplied brand new with full New Zealand warranty support.
With 12.1kW rated cooling and 12.1kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.

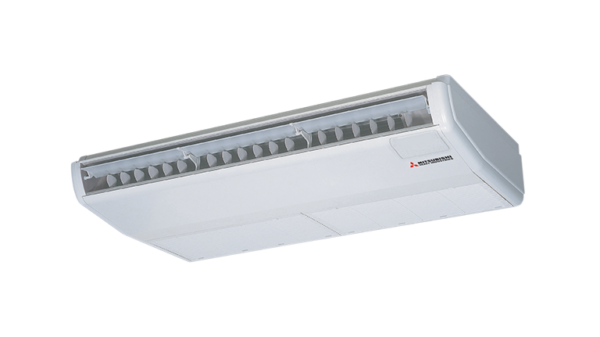

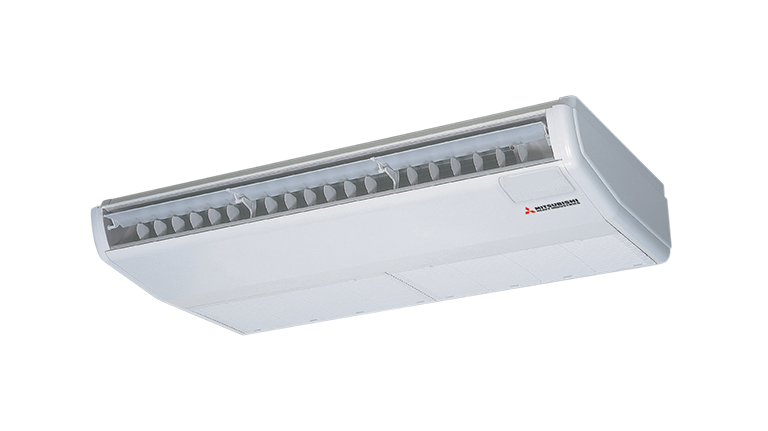

The FDE series of ceiling suspended systems offer a solution for commercial spaces with such as restaurants, cafes and retail spaces.
Complete set includes:
- 1x Indoor Unit: FDE125VH
- 1x Outdoor Unit: FDCA125VNP-W
- 1x Wired Controller (as per MHI set specification)
MHI 12.1kW FDE Series - Full Specifications
| System Overview | |
| Cooling Capacity | 12.1 kW |
| Heating Capacity | 12.1 kW |
| Indoor Unit Model | FDE125VH |
| Outdoor Unit Model | FDCA125VNP-W |
| Refrigerant | R32 |
| Brand | Mitsubishi Heavy Industries |
| Series | FDE Series |
| MHI Order Code | FDE125AVNPWVH |
| Warranty | 5 Years |
| Capacity & Performance | |
| Nominal Capacity (Range) - Cooling T1 | 12.1 (5.0-12.1) |
| Nominal Capacity (Range) - Heating H1 | 12.1 (4.0-13.3) |
| Nominal Capacity (Range) - Heating H2 | 7.9 |
| EER - Cooling T1 | 3.12 |
| COP - Heating H1 | 3.67 |
| Airflow - Indoor (Cooling) | P-Hi:533 Hi:483 Me: 383 Lo: 283 |
| Electrical | |
| Power consumption - Cooling T1 | 3.88 |
| Power consumption - Heating H1 | 3.3 |
| Maximum power consumption | 4.75 |
| Running current - Cooling T1 | 16.3 |
| Running current - Heating H1 | 13.9 |
| Inrush current, maximum current | 5, 18 |
| Demand response (AS4755) | No |
| Sound Levels | |
| Sound power level (JIS C9612) - Outdoor | 73 |
| Sound pressure level (JIS C9612) - Indoor - dB (A) | P-Hi: 48 Hi: 45 Me: 40 Lo: 35 |
| Sound pressure level (JIS C9612) - Outdoor | 57 |
| Dimensions & Weight | |
| External dimensions (HxWxD) - Indoor | 250x1620x690 |
| External dimensions (HxWxD) - Outdoor | 845x970x370 |
| Net weight - Indoor | 43 |
| Net weight - Outdoor | 73 |
| Refrigerant & Piping | |
| Refrigerant (R32) - Quantity | 2.25 |
| Pre charged to pipe length | 15 |
| Installation data - Refrigerant piping - Liquid line | Ø9.52 |
| Installation data - Gas line | Ø15.88 |
| Maximum pipe (one way) length | 30 |
| Max vertical height diff. between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) |
| Other Specifications | |
| Set | FDE125VNPWVH |
| Outdoor air temperature (upper, lower limits) - Cooling - C | -15 to 46 |
| Outdoor air temperature (upper, lower limits) - Heating - C | -15 to 20 |
| Control Options | |
| Available Controllers / Options | Note: |
Documents & Downloads
- 📄 Download Manual
- 📄 Download Manual
- 📄 Download Manual
- 📄 Download Manual
- 📄 Ceiling Systems Brochure
- 📄 Wi Fi Control Mh Rc Wifi 1 Ducted Ceiling Cassette Ceiling Suspended User Manual
- 📄 Download Service Support Handbook
✔ 5-Year MHI Parts & Labour Warranty - genuine Mitsubishi Heavy Industries product with full New Zealand warranty support. Warranty details.
Every MHI 12.1kW FDE Series sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the MHI manufacturer warranty. Order online today or contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this FDE125AVNPWVH matches your installation. Sourced directly from the Mitsubishi Heavy Industries NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Air Conditioners available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 43 kg |
|---|---|
| Dimensions | 690 × 1620 × 250 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype | |
| Related Indoor SKU | |
| Related Outdoor SKU |
Shipping cartons
This item ships in 2 separate cartons.
| Carton 1 | 43 kg · 690 × 1620 × 250 mm |
|---|---|
| Carton 2 | 73 kg · 370 × 970 × 845 mm |
| Total | 116 kg across 2 cartons · 0.583 m³ |
