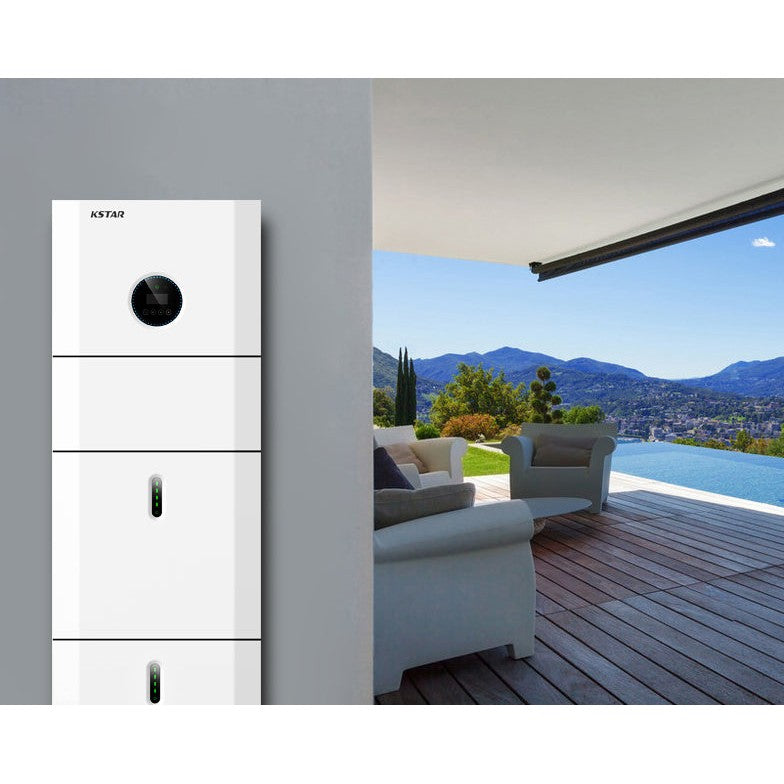

KSTAR All-In-One Solar Energy Storage System 29kWh Includes 10.24kWh Battery

KSTAR All-In-One Solar Energy Storage is a complete, ready-to-install solar power package for New Zealand homes, baches and off-grid projects. Every major component is matched and included, so you get dependable solar generation and storage from day one, offering 29kWh of storage. Backed by Kstar, a proven name in solar technology, and supplied with genuine NZ warranty support.

The KSTAR BluE Series represents a premium choice in hybrid energy storage solutions. It integrates CATL’s advanced battery technology with KSTAR’s innovative inverter solution. This all-in-one single-phase system prioritizes safety, reliability, and superior energy yields. Manufactured under the joint venture of CATL-KSTAR, it embodies a fusion of leading-edge technology and industry expertise.

Key Features: All-In-One Design High Efficiency IP65 Protection String Monitoring Easy Installation Digital Controller DC/AC Surge Protection Reactive Power Controller

Battery Model: BluE-PACK5.1 Battery type: LiFePO4 Weight: 54KG Dimensions W x H x D: 540x490x240mm IP Protection: IP65 Energy Capacity: 5.12kwh Usable Capacity: 4.6kwh Depth of Discharge (DoD): 90% Nominal Voltage: 51.2V DC Circuit Breaker: 125A Operating Voltage Range: 44.8-56.5V Cycle Life: 10000cycle

Hybrid Inverter Model: BluE-S 5000D PV String Input Max. DC Voltage: 580V Nominal Voltage: 400V MPPT Voltage Range: 80V-560V Start Voltage: 130V Number of MPPT Tracker: 2 Strings Per MPPT Tracker: 1 Max. Input Current Per MPPT: 15A Max. Short-circuit Current Per MPPT: 18A AC Output (Grid) Nominal AC Output Power: 5000W Max. AC Output Power: 5000W Nominal AC Voltage: 230Vac Battery Input Battery Type: LFP (LiFePO4) Nominal Battery Voltage: 48V Charging Voltage Range: 40-60V Max. Charging Current: 100A Max. Discharging Current: 100A Dimensions W x H x D: 540x590x240mm Weight: 32kg

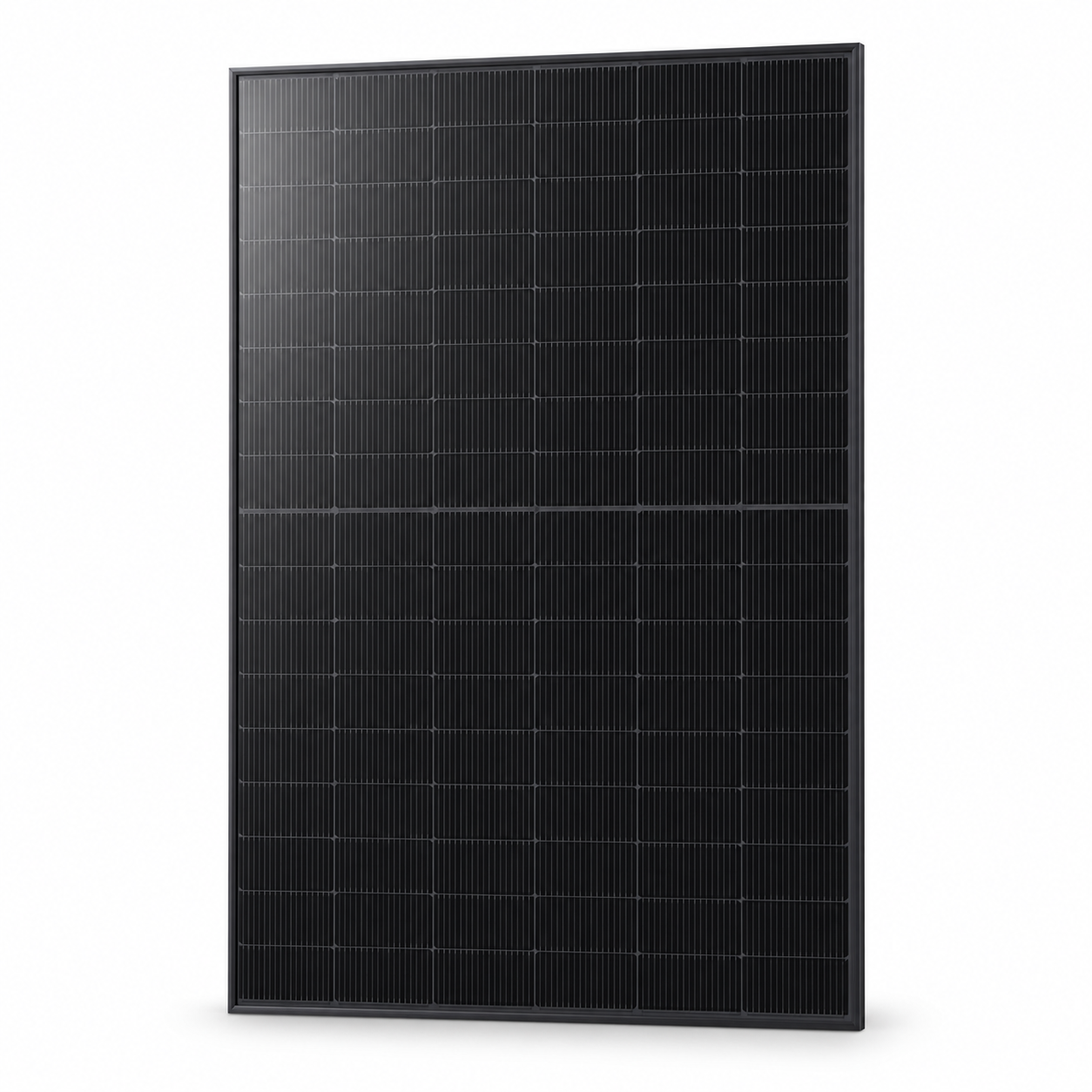

Package included: 2 X Kstar BluE-PACK5.1 Lifepo4 Battery 5.12KWh 1 X Kstar BluE-S 5000D 5000W Hybrid Inverter 12 X JA Solar 460W Solar Panel 12 X Adjustable Solar Panel Mounting Bracket Tilt Mount

Ideal Use: This system is especially suited for residential or small commercial setups requiring a reliable, high-performance single-phase energy storage solution.
