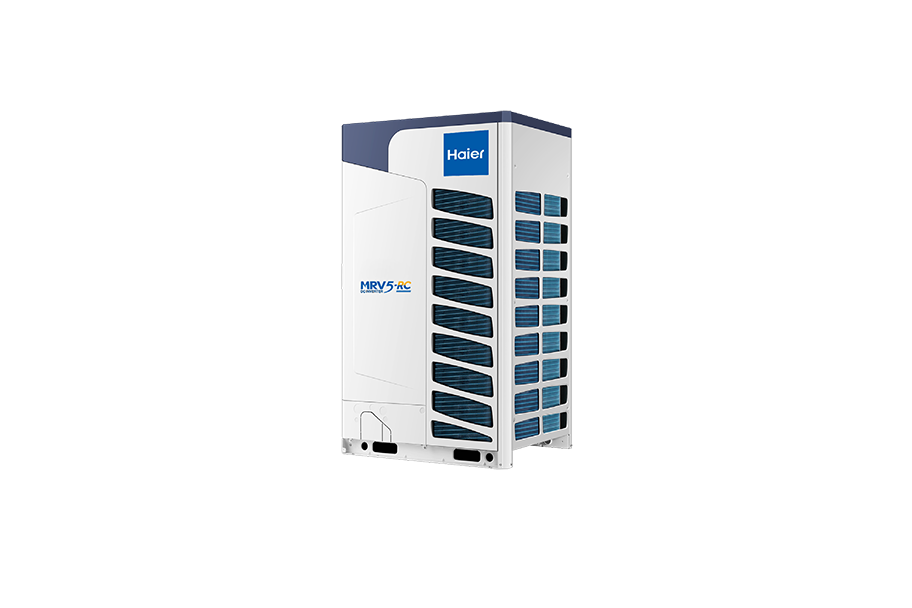

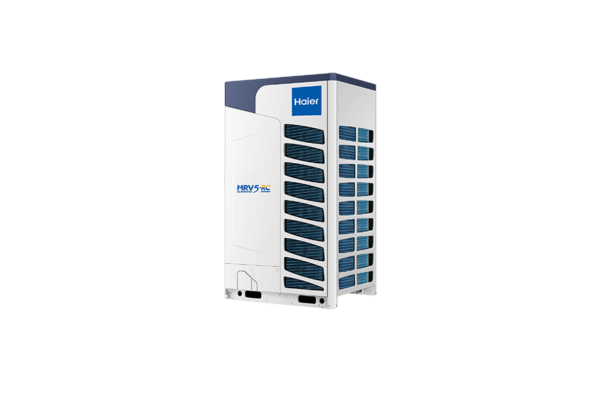

Haier AV08IMAURA - MRV 25.0kW MRV 5-RC Heat Recovery (Outdoor) (Outdoor Unit Only)
Image is for illustration only. Please go by the model number (SKU: AV08IMAURA).
Roll over image to zoom in
Price Match*
Price Match*
💬
Custom Quote Required
Direct checkout is temporarily disabled for this item. Please use the Request Quote / Enquiry button below to get accurate pricing and availability.
PRICE ON APPLICATION - the price shown is NOT the final price. Please click the Request a Quote button and our team will reply with a written price.
⚠️ This is the OUTDOOR UNIT ONLY. It is not a complete heat pump and will not work on its own. It needs the matching indoor unit.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier AV08IMAURA - MRV 25.0kW MRV 5-RC Heat Recovery (Outdoor) (Outdoor Unit Only): Genuine Haier Trade Supply
You are viewing the Haier AV08IMAURA - MRV 25.0kW MRV 5-RC Heat Recovery (Outdoor) (Outdoor Unit Only) (SKU: AV08IMAURA). This is a 100 percent genuine Haier MRV-S MRV-S Outdoor Units component, engineered for New Zealand homes and commercial sites. Refrigerant: R410A. Cooling capacity: 25kW.
Product Details: Haier AV08IMAURA
Haier AV08IMAURA - MRV 25.0kW MRV 5-RC Heat Recovery (Outdoor). Genuine Haier product, brand new with full NZ warranty support.
This listing is the OUTDOOR UNIT ONLY - pair with compatible Haier indoor unit(s).
Key Features
- ✓ Blue fin coils
- ✓ DRED (Demand Response) ready
- ✓ Electronic expansion device
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Self diagnostics
- ✓ DC inverter
- ✓ R410a refrigerant
Haier AV08IMAURA - Full Specifications
| Unit Overview | |
| Cooling Capacity | 25 kW |
| Refrigerant | R410A |
| Brand | Haier |
| Series | MRV-S |
| SKU | AV08IMAURA |
| Warranty | 5 Years |
| Accessories (included) | |
| Central controller | Optional |
| SmartHQ WiFi control | Optional |
| Capacity | |
| Cooling capacity (kW) | 22.4kW |
| Heating capacity (kW) | 25kW |
| Consumption | |
| COP | 4.33 |
| EER | 3.96 |
| HSPF-RES (Hot/Average/Cold) | 3.858/3.573/3.105 |
| HSPFCOM (Hot/Average/Cold) | 3.84/3.651/3.292 |
| Star-Cool (Hot/Average/Cold) | 2.5/2.0/2.0 |
| Star-Heat (Hot/Average/Cold) | 2.0/2.0/1.5 |
| TCSPF-COM (Hot/Average/Cold) | 4.521/4.433/4.465 |
| TCSPF-RES (Hot/Average/Cold) | 4.222/3.733/3.725 |
| Features | |
| Compressor quantity | 1 |
| Compressor type | DC INV. SCROLL |
| Motor type | DC motor |
| Refrigerant factory charge | 11.5kg |
| Installation | |
| Connectible indoor unit ratio | 50-130% |
| Maximum number indoor units | 15 |
| Pipe size gas | 19.1mm |
| Pipe size liquid | 9.5mm |
| Performance | |
| Outdoor sound power SWL | 83dBA |
| Working temperature cooling | -5°C ~ +50°C |
| Working temperature heating | -23°C ~ +21°C |
| Power requirements | |
| Power phase | Three phase |
| Supply frequency | 50Hz |
| Supply voltage | 400V |
| Product dimensions | |
| Depth | 750mm |
| Height | 1690mm |
| Net weight | 267kg |
| Width | 980mm |
| Warranty | |
| Parts and labour | 2 years |
✔ 5-Year Haier Parts & Labour Warranty - genuine Haier product, with full local warranty support. Warranty details.
Every Haier AV08IMAURA sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this AV08IMAURA matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Haier Outdoor Units available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 160 kg |
|---|---|
| Dimensions | 413 × 1050 × 1636 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type |
