Haier AS85PFGHRA – 8.5kW Wall Mounted IDU (2.2~8.8) (2.6~10.5) (Indoor Unit Only)
Roll over image to zoom in
Price Match*
Price Match*
💬
Custom Quote Required
Direct checkout is temporarily disabled for this item. Please use the Request Quote / Enquiry button below to get accurate pricing and availability.
PRICE ON APPLICATION – the price shown is NOT the final price. Please click the Request a Quote button and our team will reply with a written price.
⚠️ This is the INDOOR UNIT ONLY. It is not a complete heat pump and will not work on its own. It needs the matching outdoor unit.

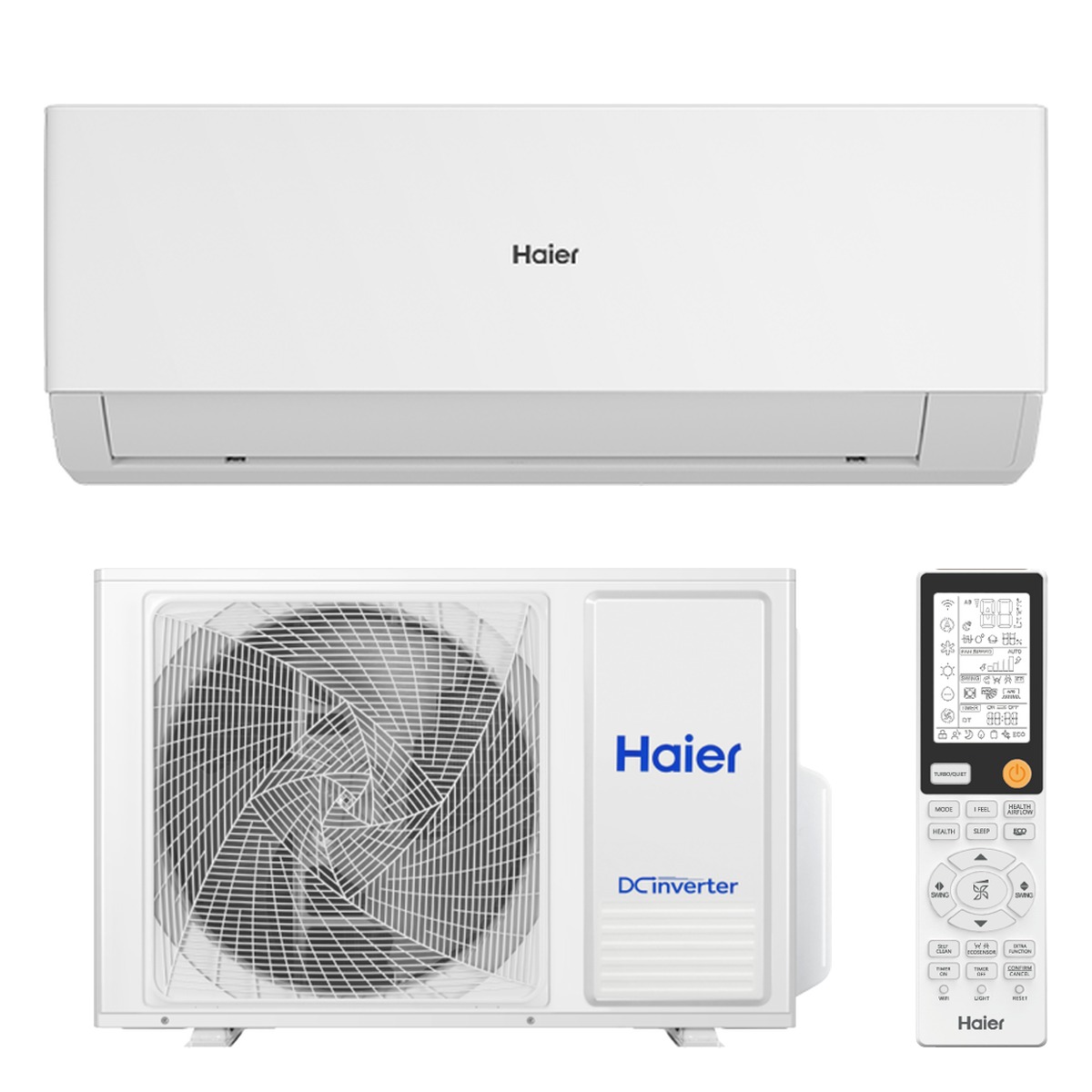

View the complete system: Haier 8.5kW Quartz Plus 600 Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) →
View the complete system: Haier 8.5kW Quartz Plus 600 Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) →
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier AS85PFGHRA – 8.5kW Wall Mounted IDU (2.2~8.8) (2.6~10.5) (Indoor Unit Only): Genuine Haier Trade Supply
You are viewing the Haier AS85PFGHRA – 8.5kW Wall Mounted IDU (2.2~8.8) (2.6~10.5) (Indoor Unit Only) (SKU: AS85PFGHRA). This is a 100 percent genuine Haier Quartz Plus Quartz Plus Indoor Units component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 8.5kW.
Product Details: Haier AS85PFGHRA
Haier AS85PFGHRA – 8.5kW Wall Mounted IDU (2.2~8.8) (2.6~10.5). Genuine Haier product, brand new with full NZ warranty support.
This listing is the INDOOR UNIT ONLY – it requires a compatible Haier outdoor unit to operate. See the complete set listing for the full system.
Key Features
- ✓ IR Controller
- ✓ SmartHQ WiFi control
- ✓ 24 Hour timer
- ✓ Anti-bacterial silver ion coating
- ✓ Auto swing-up and down
- ✓ Blue fin coils
- ✓ Built-in Wi-Fi smart control
- ✓ Concealed LED display
- ✓ Dry mode
- ✓ Electronic expansion device
- ✓ Google Home
- ✓ Heat pump
- ✓ Infrared remote control
- ✓ Intelligent air
- ✓ Internal and external heat exchanger self-cleaning
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Power mode
- ✓ Self diagnostics
- ✓ Sleep mode
- ✓ UV Protect
- ✓ VEU approved
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ Wi-Fi controller compatible
Haier AS85PFGHRA — Full Specifications
| Unit Overview | |
| Cooling Capacity | 8.5 kW |
| Refrigerant | R32 |
| Brand | Haier |
| Series | Quartz Plus |
| SKU | AS85PFGHRA |
| Warranty | 5 Years |
| Accessories (included) | |
| Central controller | Optional |
| Standard controller | YR-HJ |
| Capacity | |
| Cooling capacity (kW) | 8.5kW |
| Heating capacity (kW) | 9.5kW |
| Consumption | |
| COP | 3.83 |
| EER | 3.6 |
| HSPF-RES (Hot/Average/Cold) | 5.207 / 4.497 / 3.883 |
| HSPFCOM (Hot/Average/Cold) | 5.227 / 4.801 / 4.255 |
| Star-Cool (Hot/Average/Cold) | 3.5 / 3.0 / 3.5 |
| Star-Heat (Hot/Average/Cold) | 3.0 / 2.5 / 2.0 |
| TCSPF-COM (Hot/Average/Cold) | 5.564 / 5.743 / 6.185 |
| TCSPF-RES (Hot/Average/Cold) | 5.179 / 4.881 / 5.138 |
| Features | |
| Compressor type | Inverter twin rotary |
| Motor type | DC motor |
| Refrigerant factory charge | 1.7kg |
| Installation | |
| Indoor unit model | AS85PFGHRA |
| Indoor unit weight | 22kg |
| Outdoor unit model | 1U85XAGFRA |
| Outdoor unit weight | 52kg |
| Pipe length maximum | 50m |
| Pipe size gas | 15.88mm |
| Pipe size liquid | 6.35mm |
| Performance | |
| Airflow | 410/354/298 |
| Indoor sound pressure SPL | 49/45/41/37dBA |
| Outdoor sound power SWL | 68dBA |
| Outdoor sound pressure SPL | 52dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
| Power requirements | |
| Power phase | Single phase |
| Power supply | 1/220-240/50 |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Indoor unit depth | 285mm |
| Indoor unit height | 370mm |
| Indoor unit width | 1310mm |
| Outdoor unit depth | 370mm |
| Outdoor unit height | 815mm |
| Outdoor unit width | 950mm |
| Warranty | |
| Parts and labour | 5 years |
Documents & Downloads
- 📄 HAIER 2D DWG en AS85PFGHRA SET HVAC HHV 90005606A NZ AU
- 📄 HAIER 2D DXF en AS85PFGHRA SET HVAC HHV 90005607A NZ AU
✔ 5-Year Haier Parts & Labour Warranty — genuine Haier product, with full local warranty support. Warranty details.
Every Haier AS85PFGHRA sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this AS85PFGHRA matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Haier Indoor Units available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 22 kg |
|---|---|
| Dimensions | 285 × 1310 × 370 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype |
