Haier 2.5kW Pinnacle Series Air Conditioner High Wall


In stock

Cooling capacity:ย  2.50 kW
Heating capacity:ย  3.00 kW

Log In To View Price & Purchase (Click here)

Maintain the perfect temperature with clean, fresh air, and even more control of your air conditioner thanks to Wi-Fi and voice control.

Cooling capacity:ย  2.50 kW
Heating capacity:ย  3.00 kW


Pinnacle Air Conditioner, 2.6 kW

  • UV Protect in Health mode kills airborne hazards, with anti-bacterial and anti-virus rates above 91%*
  • Self-cleaning function for continued clean, fresh air
  • Wi-Fi enabled, for use with the SmartHQโ„ข app and smart home voice control
  • With Coanda Plus technology for far-reaching, even airflow around the room

Features & Benefits

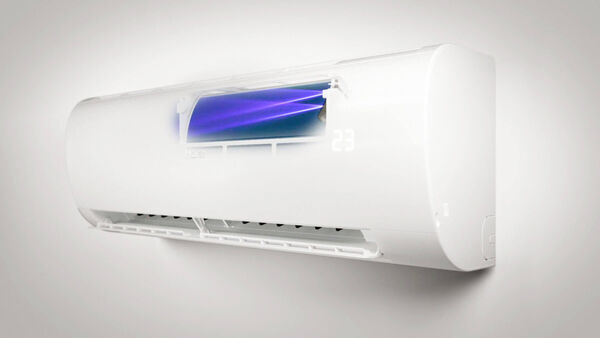

UV Protect sterilisation

UV Protect sterilisation

UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*

Voice and remote control

Voice and remote control

Use the SmartHQโ„ข app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled air conditioner with Google Home or Amazon Alexa voice control.

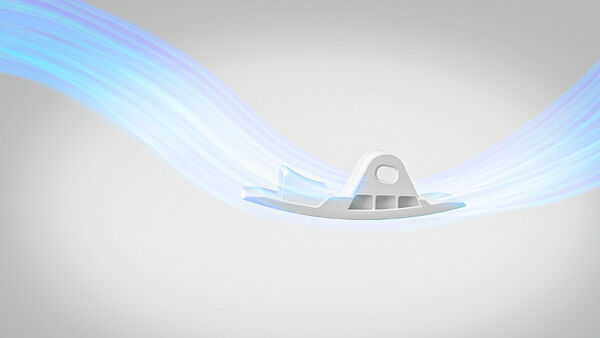

Coanda Plus airflow

Coanda Plus airflow

Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout room.

Sleep mode

Sleep mode

Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night to ensure maximum comfort.

Turbo mode

Turbo mode

With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.

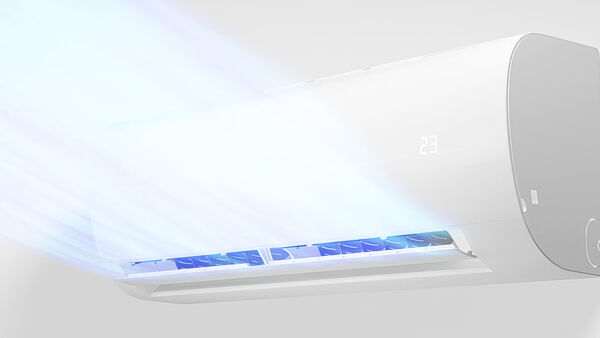

Healthier air

Healthier air

Your air conditioner will continue working efficiently to produce clean air with innovations such as a carbon filter and anti-bacterial silver ion coating that help to filter and kill bacteria.

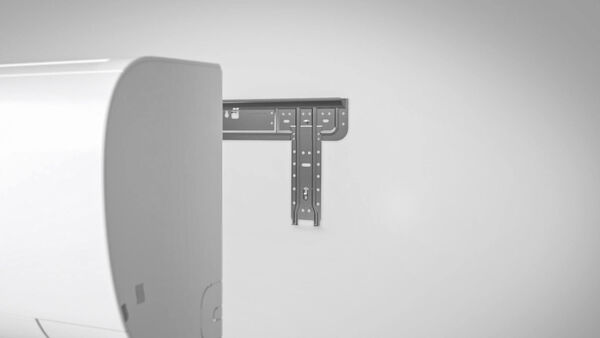

Easy installation and maintenance


Cooling capacity (kW)2.5kW
Heating capacity (kW)3kW


HSPF-RES (Hot/Average/Cold)5.457 / 4.505 / 3.788
HSPFCOM (Hot/Average/Cold)5.493 / 4.917 / 4.263
Star-Cool (Hot/Average/Cold)4.5 / 4.0 / 4.0
Star-Heat (Hot/Average/Cold)3.5 / 3.0 / 2.0
TCSPF-COM (Hot/Average/Cold)6.538 / 6.614 / 7.046
TCSPF-RES (Hot/Average/Cold)6.068 / 5.519 / 5.674


24 Hour timerย
56ยฐC Steri-cleanย
Anti-bacterial silver ion coatingย
Auto restartย
Auto swing-up and downย
Blue fin coilsย
Built-in Wi-Fi smart controlย
Concealed LED displayย
DRED (Demand Response) readyย
Dry modeย
Intelligent airย
Internal and external heat exchanger self-cleaningย
Long distance air supply12
MEPS approvedย
Refrigerant factory charge0.8kg
Self diagnosticsย
Standard controllerwireless
UV ProtectUVC sterilisation
Voice control via Google Home or Amazon Alexaย


Indoor unit modelAS26PBDHRA
Indoor unit weight8.7kg
Liquid linePipe size 6.35mm
Maximum pipe run15m
Outdoor unit model1U26MADFRA
Outdoor unit weight29.7kg
Suction linePipe size 9.52mm


DC inverterย
R32 Refrigerantย
Sound power SWL (outdoor)59dBA
Sound pressure SPL (indoor)40 / 36 / 32 / 21dBA
Sound pressure SPL (outdoor)51dBA

Power requirements

Power phase1.0
Supply frequency50Hz
Supply voltage230V

Product dimensions

Indoor unit depth200mm
Indoor unit height292mm
Indoor unit width805mm
Outdoor unit depth275mm
Outdoor unit height553mm
Outdoor unit width800mm
Parts and labour5 years

Manufacturers 60 Months

Quick Reference guide
Service & Warranty Bookle

Haier Brand Story Worldโ€™s largest home appliance manufacturer

For 10 years, Haier has been the number one brand of major appliances in the world in volume sales*
Founded in 1984, 2019 marked our 35th year
Over 80,000 employees across 30 countries
Recently Purchased GE Appliances
Distributed by Fisher & Paykel, a wholly-owned Haier subsidiary

Customer Care | Haier Appliances The fastest-growing localised AC service team in the country Visit the website for technical data Australia: https://www.haier.com.au/air-conditioning/ New Zealand: https://www.haier.co.nz/air-conditioning/ 24/7 customer support and service booking Australia: 1300 729 948 New Zealand: 0800 424 372


Installation & Warranty Claims Note:

Installation must be undertaken by a professional licensed Aircon technician or/and Electrician.

Additional information

Weight 8.70 kg
Dimensions 292 ร— 200 ร— 805 mm

Cooling Capacity (kWs)

Heating Capacity (kWs)
