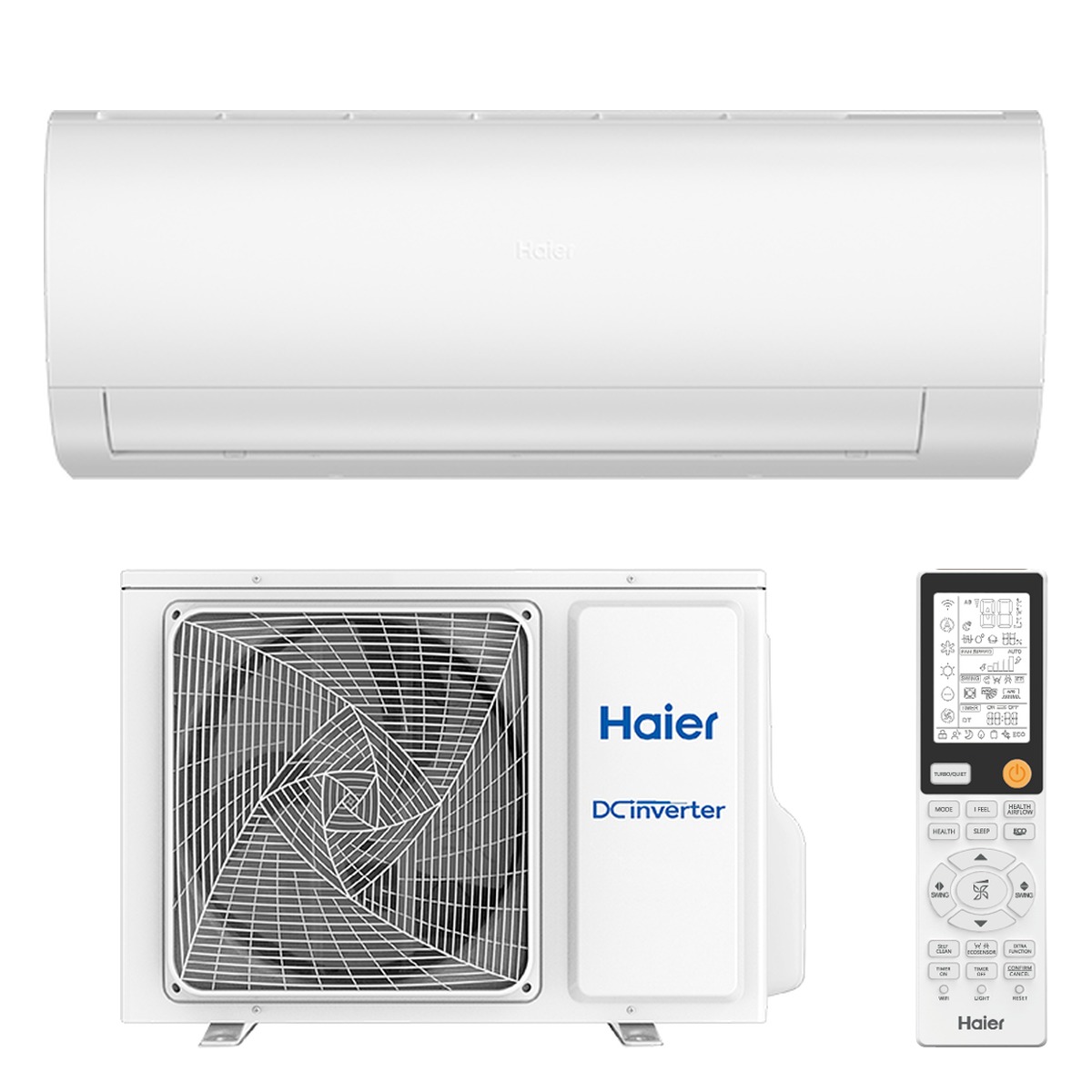

Haier 2.5kW 500 Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$1,019.99$1,259.99 (-19%)
Price Match*
Price Match*
COOLING
2.50 kW
HEATING
3.20 kW
Complete Haier 500 Series 2.5kW heat pump system (indoor + outdoor set) – models AS25PFHRA + 1U25PFHRA. Genuine NZ stock with 5-year Haier warranty.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier 2.5kW 500 Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor): Genuine Haier Trade Supply
You are viewing the Haier 2.5kW 500 Series Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) (SKU: AS25PFHRA-SET). This is a 100 percent genuine Haier 500 Series Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 2.5kW. Heating capacity: 3.2kW.
Product Details: Haier AS25PFHRA-SET
Haier 2.5kW 500 Series – a genuine Haier complete heat pump system (indoor + outdoor set), supplied brand new with full NZ warranty support.
With 2.5kW rated cooling and 3.2kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.
Haier Home 500 Series wall mounted air conditioner includes self clean technology and smart remote control function. Ranges from 2.5kw, 3.5kw, 5kw to 7.1kw
Complete set includes:
- 1x Indoor Unit: AS25PFHRA
- 1x Outdoor Unit: 1U25PFHRA
Key Features
- ✓ IR Controller
- ✓ SmartHQ WiFi control
- ✓ 24 Hour timer
- ✓ Anti-bacterial silver ion coating
- ✓ Auto swing-up and down
- ✓ Blue fin coils
- ✓ Concealed LED display
- ✓ Dry mode
- ✓ Electronic expansion device
- ✓ Google Home
- ✓ Heat pump
- ✓ Intelligent air
- ✓ Internal and external heat exchanger self-cleaning
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Power mode
- ✓ Self diagnostics
- ✓ Sleep mode
- ✓ VEU approved
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ Wi-Fi controller compatible
- ✓ DC inverter
- ✓ R32 Refrigerant
- ✓ Self cleaning evaporator
Haier 2.5kW 500 Series — Full Specifications
| System Overview | |
| Cooling Capacity | 2.5 kW (range 0.8~3.0) |
| Heating Capacity | 3.2 kW (range 0.9~3.4) |
| Indoor Unit Model | AS25PFHRA |
| Outdoor Unit Model | 1U25PFHRA |
| Refrigerant | R32 |
| Brand | Haier |
| Series | 500 Series |
| SKU | AS25PFHRA-SET |
| Warranty | 5 Years |
| Accessories (included) | |
| Central controller | Optional |
| Standard controller | wireless |
| Capacity | |
| Cooling capacity (kW) | 2.5kW |
| Heating capacity (kW) | 3.2kW |
| Consumption | |
| COP | 4.32 |
| EER | 4.72 |
| HSPF-RES (Hot/Average/Cold) | 4.987 / 4.584 / 4.222 |
| HSPFCOM (Hot/Average/Cold) | 4.984 / 4.739 / 4.419 |
| Star-Cool (Hot/Average/Cold) | 5.5 / 5.0 / 5.0 |
| Star-Heat (Hot/Average/Cold) | 3.0 / 3.0 / 2.5 |
| TCSPF-COM (Hot/Average/Cold) | 9.951 / 11.253 / 17.573 |
| TCSPF-RES (Hot/Average/Cold) | 7.496 / 6.650 / 6.894 |
| Features | |
| Compressor type | Inverter twin rotary |
| Motor type | DC motor |
| Refrigerant factory charge | 0.78kg |
| Installation | |
| Indoor unit model | AS25PFHRA |
| Indoor unit weight | 8.5kg |
| Outdoor unit model | 1U25PFHRA |
| Outdoor unit weight | 25kg |
| Pipe length maximum | 15m |
| Pipe size gas | Pipe size 9.52mm |
| Pipe size liquid | Pipe size 6.35mm |
| Performance | |
| Airflow | 195/175/150 |
| Indoor sound pressure SPL | 38 / 34 / 30 / 24dBA |
| Outdoor sound power SWL | 60dBA |
| Outdoor sound pressure SPL | 48dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15℃ ~ 24℃ |
| Power requirements | |
| Power phase | Single phase |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Indoor unit depth | 200mm |
| Indoor unit height | 292mm |
| Indoor unit width | 805mm |
| Outdoor unit depth | 275mm |
| Outdoor unit height | 549mm |
| Outdoor unit width | 753mm |
| Warranty | |
| Parts and labour | 5 years |
Documents & Downloads
- 📄 HAIER 2D DWG en AS25PFHRA 1U25PFHRA HVAC HHV 90006086A NZ
- 📄 HAIER 2D DXF en AS25PFHRA 1U25PFHRA HVAC HHV 90006086A NZ
✔ 5-Year Haier Parts & Labour Warranty — genuine Haier product, with full local warranty support. Warranty details.
Every Haier 2.5kW 500 Series sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Haier manufacturer warranty. Order online today or contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this AS25PFHRA-SET matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Air Conditioners available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 8.5 kg |
|---|---|
| Dimensions | 200 × 805 × 292 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype | |
| Related Indoor SKU | |
| Related Outdoor SKU |
Shipping cartons
This item ships in 2 separate cartons.
| Carton 1 | 8.5 kg · 200 × 805 × 292 mm |
|---|---|
| Carton 2 | 25 kg · 275 × 753 × 549 mm |
| Total | 33.5 kg across 2 cartons · 0.161 m³ |
