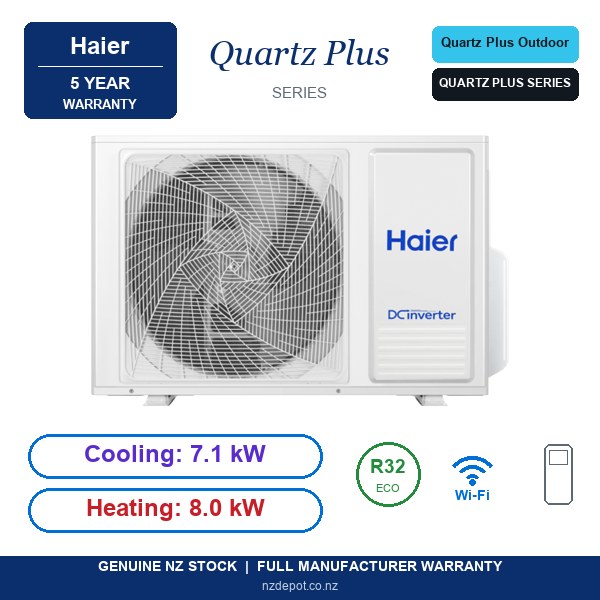

Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU (Outdoor Unit Only)
Roll over image to zoom in
$1,489.99$1,829.99 (-19%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
💬
Custom Quote Required
Direct checkout is temporarily disabled for this item. Please use the Request Quote / Enquiry button below to get accurate pricing and availability.
Genuine Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU. Brand new, 5-year Haier warranty, NZ-wide delivery from NZ Depot.
Discount per Quantity
| Quantity | 1 | 2 - 4 | 5 - 9 | 10 + |
|---|---|---|---|---|
| Discount | 0% | 5% | 8% | 10% |
| Price | $1,489.99 | $1,415.49 | $1,370.79 | $1,340.99 |
Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU (Outdoor Unit Only): Genuine Haier Trade Supply
You are viewing the Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU (Outdoor Unit Only) (SKU: 1U71WAFFRA). This is a 100 percent genuine Haier Quartz Plus Quartz Plus Outdoor Units component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 7.1kW. Heating capacity: 8kW.
Product Details: Haier 1U71WAFFRA
Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU. Genuine Haier product, distributed in New Zealand by Fisher & Paykel Appliances, brand new with full NZ warranty support.
This listing is the OUTDOOR UNIT ONLY – pair with compatible Haier indoor unit(s).
Key Features
- ✓ IR Controller
- ✓ SmartHQ WiFi control
- ✓ 24 Hour timer
- ✓ Anti-bacterial silver ion coating
- ✓ Auto swing-up and down
- ✓ Blue fin coils
- ✓ Built-in Wi-Fi smart control
- ✓ Concealed LED display
- ✓ Dry mode
- ✓ Electronic expansion device
- ✓ Google Home
- ✓ Heat pump
- ✓ Infrared remote control
- ✓ Intelligent air
- ✓ Internal and external heat exchanger self-cleaning
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Power mode
- ✓ Self diagnostics
- ✓ Sleep mode
- ✓ UV Protect
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ Wi-Fi controller compatible
- ✓ DC inverter
Haier 1U71WAFFRA — Full Specifications
| Unit Overview | |
| Cooling Capacity | 7.1 kW |
| Heating Capacity | 8 kW |
| Refrigerant | R32 |
| F&P Order SKU | 51785 |
| Brand | Haier |
| Series | Quartz Plus |
| SKU | 1U71WAFFRA |
| Warranty | 5 Years |
| Accessories (included) | |
| Central controller | Optional |
| Standard controller | YR-HJ |
| Capacity | |
| Cooling capacity (kW) | 7.1kW |
| Heating capacity (kW) | 8kW |
| Consumption | |
| COP | 3.72 |
| EER | 3.70 |
| HSPF-RES (Hot/Average/Cold) | 4.832/4.240/3.723 |
| HSPFCOM (Hot/Average/Cold) | 4.848/4.492/4.037 |
| Star-Cool (Hot/Average/Cold) | 4.5/4.0/4.0 |
| Star-Heat (Hot/Average/Cold) | 3.0/2.5/2.0 |
| TCSPF-COM (Hot/Average/Cold) | 7.548/8.531/11.614 |
| TCSPF-RES (Hot/Average/Cold) | 6.065/5.553/5.878 |
| Features | |
| Compressor type | Inverter twin rotary |
| DRED (Demand Response) ready | Optional HPRT-DRA001 |
| Motor type | DC motor |
| Refrigerant factory charge | 1.42kg |
| Installation | |
| Indoor unit model | AS71QEFHRA |
| Indoor unit weight | 15.5kg |
| Outdoor unit model | 1U71WAFFRA |
| Outdoor unit weight | 44kg |
| Pipe length maximum | 25m |
| Pipe size gas | 12.70mm |
| Pipe size liquid | 6.35mm |
| Performance | |
| Airflow | 310L/S |
| Indoor sound pressure SPL | 46-27dBA |
| Outdoor sound power SWL | 69dBA |
| Outdoor sound pressure SPL | 54dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
| Power requirements | |
| Power phase | Single phase |
| Power supply | 1/220-240/50 |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Indoor unit depth | 240mm |
| Indoor unit height | 345mm |
| Indoor unit width | 1106mm |
| Outdoor unit depth | 340mm |
| Outdoor unit height | 705mm |
| Outdoor unit width | 890mm |
| Warranty | |
| Parts and labour | 5 years |
Documents & Downloads
- 📄 HAIER DWG en AS71QEFHRA SET HVAC HHV 90003990A NZ AU
- 📄 HAIER 2D DXF en AS71QEFHRA SET HVAC HHV 90003991A NZ AU
✔ 5-Year Haier Parts & Labour Warranty — genuine Haier product, distributed in New Zealand by Fisher & Paykel Appliances, with full local warranty support. Warranty details.
Every Haier 1U71WAFFRA sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for trade pricing or a quote.
Need advice or trade pricing? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this 1U71WAFFRA matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct trade pricing on every Haier unit. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU (Outdoor Unit Only) suitable for New Zealand conditions?
Yes. The 1U71WAFFRA is engineered for the climate ranges experienced across New Zealand and is sold and supported by Haier NZ.
Does this unit require professional installation?
Yes. To preserve your manufacturer warranty, all refrigerant-based Haier equipment must be installed by a licensed New Zealand HVAC technician.
What refrigerant does the 1U71WAFFRA use?
This unit uses R32 refrigerant, which is the modern, low-GWP standard for residential and light commercial heat pumps in New Zealand.
Looking for the best price on the Haier 1U71WAFFRA? NZ Depot supplies the Haier 1U71WAFFRA New Zealand wide with fast dispatch, trade pricing and genuine Haier warranty support. Compare the Haier 1U71WAFFRA – Quartz Plus 7.1kW Wall Mounted ODU (Outdoor Unit Only) with the rest of the Haier Quartz Plus range, check the full specifications above, and order the Haier 1U71WAFFRA online today or request a trade quote for volume supply.
Browse the full range of Haier Outdoor Units available for NZ-wide trade and retail supply.
