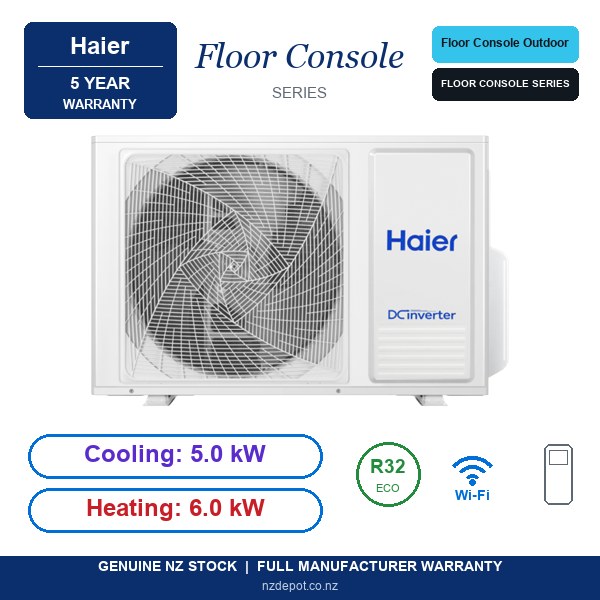

Haier 1U50WA1FRA - Floor Console 5.0kW Floor Mounted ODU (Outdoor Unit Only)
Image is for illustration only. Please go by the model number (SKU: 1U50WA1FRA).
-19%Roll over image to zoom in
$1,499.99$1,849.99 (-19%)
Price Match*
Price Match*
💬
Custom Quote Required
Direct checkout is temporarily disabled for this item. Please use the Request Quote / Enquiry button below to get accurate pricing and availability.
COOLING
5.00 kW
HEATING
6.00 kW
Genuine Haier 1U50WA1FRA - Floor Console 5.0kW Floor Mounted ODU. Brand new, 5-year Haier warranty, NZ-wide delivery from NZ Depot.
⚠️ This is the OUTDOOR UNIT ONLY. It is not a complete heat pump and will not work on its own. It needs the matching indoor unit.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier 1U50WA1FRA - Floor Console 5.0kW Floor Mounted ODU (Outdoor Unit Only): Genuine Haier Trade Supply
You are viewing the Haier 1U50WA1FRA - Floor Console 5.0kW Floor Mounted ODU (Outdoor Unit Only) (SKU: 1U50WA1FRA). This is a 100 percent genuine Haier Floor Console Floor Console Outdoor Units component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 5kW. Heating capacity: 6kW.
Product Details: Haier 1U50WA1FRA
Haier 1U50WA1FRA - Floor Console 5.0kW Floor Mounted ODU. Genuine Haier product, brand new with full NZ warranty support.
This listing is the OUTDOOR UNIT ONLY - pair with compatible Haier indoor unit(s).
Key Features
- ✓ IR Controller
- ✓ SmartHQ WiFi control
- ✓ 24 Hour timer
- ✓ Anti-bacterial silver ion coating
- ✓ Auto swing-up and down
- ✓ Blue fin coils
- ✓ Built-in Wi-Fi smart control
- ✓ Concealed LED display
- ✓ Dry mode
- ✓ Electronic expansion device
- ✓ Google Home
- ✓ Heat pump
- ✓ Infrared remote control
- ✓ Intelligent air
- ✓ Internal and external heat exchanger self-cleaning
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Power mode
- ✓ Self diagnostics
- ✓ Sleep mode
- ✓ Smart Appliance
- ✓ UV Protect
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ Wi-Fi controller compatible
Haier 1U50WA1FRA - Full Specifications
| Unit Overview | |
| Cooling Capacity | 5 kW |
| Heating Capacity | 6 kW |
| Refrigerant | R32 |
| Brand | Haier |
| Series | Floor Console |
| SKU | 1U50WA1FRA |
| Warranty | 5 Years |
| Accessories (included) | |
| Central controller | Optional |
| Standard controller | 6178AH-1 |
| Capacity | |
| Cooling capacity (kW) | 5kW |
| Heating capacity (kW) | 6kW |
| Consumption | |
| COP | 3.797 |
| EER | 3.876 |
| Energy rating (cooling) | 5 |
| Energy rating (heating) | 6 |
| HSPF-RES (Hot/Average/Cold) | 4.915/4.331/3.828 |
| HSPFCOM (Hot/Average/Cold) | 4.929/4.579/4.135 |
| Star-Cool (Hot/Average/Cold) | 3.5/3.5/3.5 |
| Star-Heat (Hot/Average/Cold) | 3.0/2.5/2.0 |
| TCSPF-COM (Hot/Average/Cold) | 5.819/5.979/6.414 |
| TCSPF-RES (Hot/Average/Cold) | 5.424/5.087/5.313 |
| Features | |
| Compressor type | Inverter twin rotary |
| DRED (Demand Response) ready | Optional HPRT-DRA001 |
| Motor type | DC motor |
| Refrigerant factory charge | 1.1kg |
| Installation | |
| Indoor unit model | AF50DBAHRA |
| Indoor unit weight | 14kg |
| Outdoor unit model | 1U50WA1FRA |
| Outdoor unit weight | 42kg |
| Pipe length maximum | 25m |
| Pipe size gas | 12.7mm |
| Pipe size liquid | 6.35mm |
| Performance | |
| Airflow | 225L/S |
| Indoor sound pressure SPL | 44/38/33dBA |
| Outdoor sound power SWL | 64dBA |
| Outdoor sound pressure SPL | 52dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
| Power requirements | |
| Power phase | Single phase |
| Power supply | 1/220-240/50 |
| Supply frequency | 50HzHz |
| Supply voltage | 220-240VV |
| Product dimensions | |
| Indoor unit depth | 220mm |
| Indoor unit height | 600mm |
| Indoor unit width | 750mm |
| Net weight | 14kg |
| Outdoor unit depth | 340mm |
| Outdoor unit height | 705mm |
| Outdoor unit width | 890mm |
| Warranty | |
| Parts and labour | 5 years |
Documents & Downloads
- 📄 HAIER 2D DWG en AF50DBAHRA SET HVAC HHV 90005644A AU NZ
- 📄 HAIER 2D DXF en AF50DBAHRA SET HVAC HHV 90005645A AU NZ
- 📄 Haier SpecificationGuide en AF50DBAHRA SET FloorConsole 0 90005652B NZ
✔ 5-Year Haier Parts & Labour Warranty - genuine Haier product, with full local warranty support. Warranty details.
Every Haier 1U50WA1FRA sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this 1U50WA1FRA matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Haier Outdoor Units available for NZ-wide trade and retail supply.
