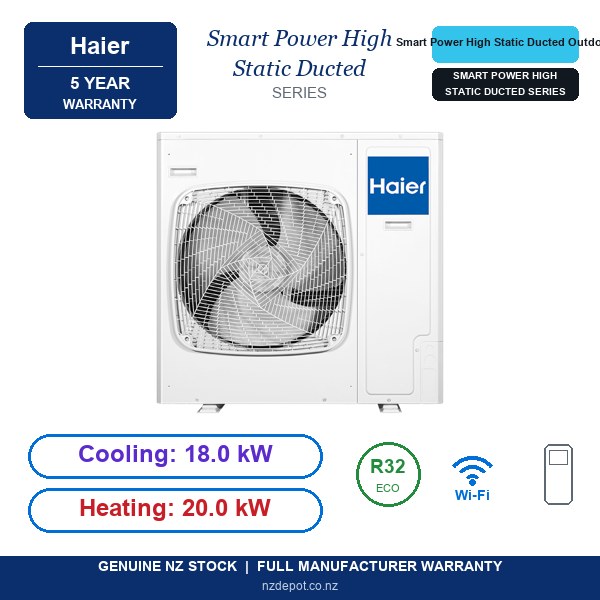

Haier 1U180S2SP5FA - Outdoor 1Phase (Outdoor Unit Only)
Image is for illustration only. Please go by the model number (SKU: 1U180S2SP5FA).
-19%Roll over image to zoom in
$3,339.99$4,139.99 (-19%)
Price Match*
Price Match*
💬
Custom Quote Required
Direct checkout is temporarily disabled for this item. Please use the Request Quote / Enquiry button below to get accurate pricing and availability.
COOLING
18.00 kW
HEATING
20.00 kW
Genuine Haier 1U180S2SP5FA - Outdoor 1Phase. Brand new, 5-year Haier warranty, NZ-wide delivery from NZ Depot.
⚠️ This is the OUTDOOR UNIT ONLY. It is not a complete heat pump and will not work on its own. It needs the matching indoor unit.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier 1U180S2SP5FA - Outdoor 1Phase (Outdoor Unit Only): Genuine Haier Trade Supply
You are viewing the Haier 1U180S2SP5FA - Outdoor 1Phase (Outdoor Unit Only) (SKU: 1U180S2SP5FA). This is a 100 percent genuine Haier Smart Power High Static Ducted Smart Power High Static Ducted Outdoor Units component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 18kW. Heating capacity: 20kW.
Product Details: Haier 1U180S2SP5FA
Haier 1U180S2SP5FA - Outdoor 1Phase. Genuine Haier product, brand new with full NZ warranty support.
This listing is the OUTDOOR UNIT ONLY - pair with compatible Haier indoor unit(s).
Key Features
- ✓ 24 Hour timer
- ✓ Auto restart
- ✓ Blue fin coils
- ✓ Electronic expansion device
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Self diagnostics
- ✓ Sleep mode
- ✓ Smart Appliance
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ Wi-Fi controller compatible
- ✓ DC inverter
- ✓ R32 Refrigerant
Haier 1U180S2SP5FA - Full Specifications
| Unit Overview | |
| Cooling Capacity | 18 kW |
| Heating Capacity | 20 kW |
| Refrigerant | R32 |
| Brand | Haier |
| Series | Smart Power High Static Ducted |
| SKU | 1U180S2SP5FA |
| Warranty | 5 Years |
| Accessories (included) | |
| SmartHQ WiFi control | HI-WB101DEI |
| Standard controller | YR-E17A or YR-E16B |
| Capacity | |
| Cooling capacity (kW) | 18kW |
| Heating capacity (kW) | 20kW |
| Consumption | |
| COP | 3.75 |
| EER | 3.20 |
| HSPF-RES (Hot/Average/Cold) | 3.703 / 3.080 / 2.676 |
| HSPFCOM (Hot/Average/Cold) | 3.686 / 3.165 / 2.868 |
| TCSPF-COM (Hot/Average/Cold) | 4.449 / 4.505 / 4.792 |
| TCSPF-RES (Hot/Average/Cold) | 4.173 / 3.900 / 4.022 |
| Features | |
| Compressor type | Inverter twin rotary |
| Motor type | DC motor |
| Refrigerant factory charge | 3.1kg |
| Installation | |
| Indoor unit model | AD180S2SH5FA |
| Indoor unit weight | 94kg |
| Outdoor unit model | 1U180S2SP5FA |
| Outdoor unit weight | 104kg |
| Pipe length maximum | 75m |
| Pipe size gas | Pipe size 19.05mm |
| Pipe size liquid | Pipe size 9.52mm |
| Performance | |
| Airflow | 1200 / 1050 / 890 / 725 L/S |
| Indoor sound pressure SPL | 54 / 50 / 45dBA |
| Outdoor sound power SWL | 73dBA |
| Outdoor sound pressure SPL | 56dBA |
| Working temperature cooling | -15°C to +50°C |
| Working temperature heating | -20°C to +24°C |
| Power requirements | |
| Minimum circuit amps | 32MCA |
| Power phase | Single phase |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Indoor unit depth | 895mm |
| Indoor unit height | 500mm |
| Indoor unit width | 1330mm |
| Outdoor unit depth | 370mm |
| Outdoor unit height | 1350mm |
| Outdoor unit width | 950mm |
| Warranty | |
| Parts and labour | 5 years |
✔ 5-Year Haier Parts & Labour Warranty - genuine Haier product, with full local warranty support. Warranty details.
Every Haier 1U180S2SP5FA sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this 1U180S2SP5FA matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Haier Outdoor Units available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 104 kg |
|---|---|
| Dimensions | 370 × 950 × 1350 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type |
