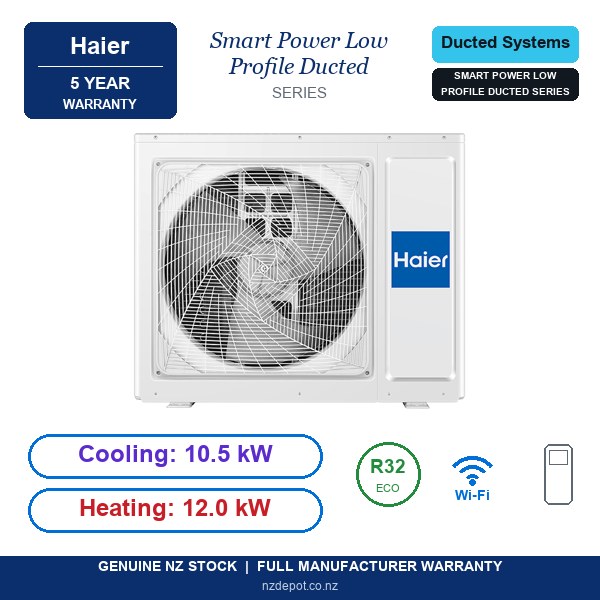

Haier 10.5kW Smart Power Low Profile Ducted Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor)
Roll over image to zoom in
$3,339.99$4,139.99 (-19%)
Price Match*
Price Match*
COOLING
10.50 kW
HEATING
12.00 kW
Complete Haier Smart Power Low Profile Ducted 10.5kW heat pump system (indoor + outdoor set) – models AD105S2SM7FA + 1U105S5SN5FA. Genuine NZ stock with 5-year Haier warranty.
Need it installed? We arrange installation in Auckland, Hamilton, Tauranga, Rotorua, Wellington, Christchurch and Invercargill. Get a free installation quote
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Haier 10.5kW Smart Power Low Profile Ducted Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor): Genuine Haier Trade Supply
You are viewing the Haier 10.5kW Smart Power Low Profile Ducted Air Conditioner Heat Pump – Complete Set (Indoor + Outdoor) (SKU: AD105MN5FA-SET). This is a 100 percent genuine Haier Smart Power Low Profile Ducted Heat Pump component, engineered for New Zealand homes and commercial sites. Refrigerant: R32. Cooling capacity: 10.5kW. Heating capacity: 12kW.
Product Details: Haier AD105MN5FA-SET
Haier 10.5kW Smart Power Low Profile Ducted – a genuine Haier complete heat pump system (indoor + outdoor set), supplied brand new with full NZ warranty support.
With 10.5kW rated cooling and 12kW heating capacity on R32 refrigerant, it delivers dependable year-round comfort.
Haier Home low-profile ducted air conditioning system uses a next-gen R32 refrigerant providing an effective whole-of-home heating and cooling solution.

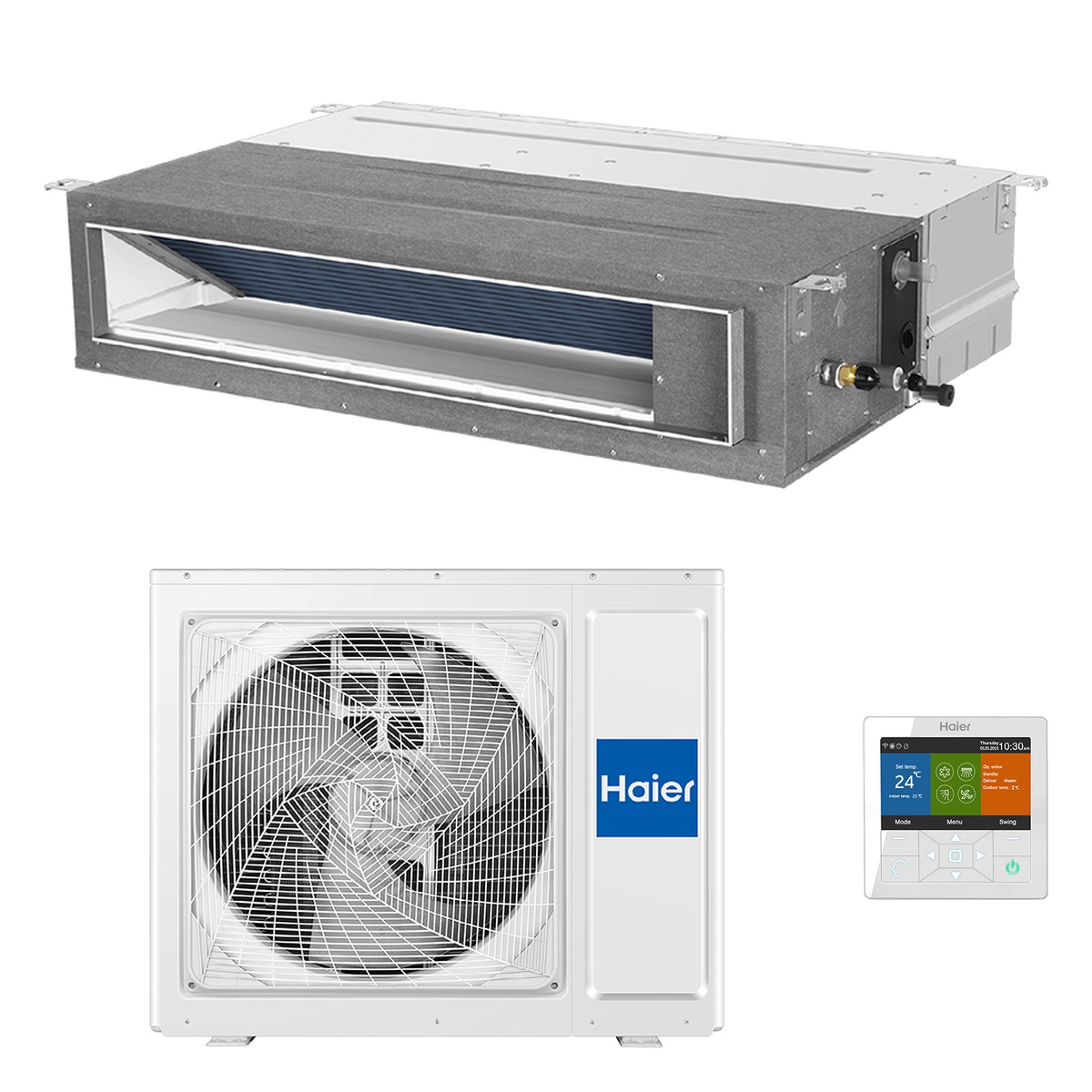

Complete set includes:
- 1x Indoor Unit: AD105S2SM7FA
- 1x Outdoor Unit: 1U105S5SN5FA
Key Features
- ✓ 24 Hour timer
- ✓ Auto restart
- ✓ Blue fin coils
- ✓ Condensate pump
- ✓ DRED (Demand Response) ready
- ✓ Dry mode
- ✓ Inverter controlled compressor
- ✓ MEPS approved
- ✓ Self diagnostics
- ✓ Smart Appliance
- ✓ Voice control via Google Home or Amazon Alexa
- ✓ DC inverter
- ✓ R32 Refrigerant
Haier 10.5kW Smart Power Low Profile Ducted — Full Specifications
| System Overview | |
| Cooling Capacity | 10.5 kW (range 2.5~11.0) |
| Heating Capacity | 12 kW (range 2.5~12.0) |
| Indoor Unit Model | AD105S2SM7FA |
| Outdoor Unit Model | 1U105S5SN5FA |
| Refrigerant | R32 |
| Brand | Haier |
| Series | Smart Power Low Profile Ducted |
| SKU | AD105MN5FA-SET |
| Warranty | 5 Years |
| Accessories (included) | |
| Standard controller | Optional |
| Capacity | |
| Cooling capacity (kW) | 10.5kW |
| Heating capacity (kW) | 12kW |
| Consumption | |
| COP | 3.50 |
| EER | 3.20 |
| HSPF-RES (Hot/Average/Cold) | 3.945/3.488/3.017 |
| HSPFCOM (Hot/Average/Cold) | 3.94/3.672/3.176 |
| TCSPF-COM (Hot/Average/Cold) | 4.401/4.435/4.707 |
| TCSPF-RES (Hot/Average/Cold) | 4.124/3.82/3.918 |
| Features | |
| Refrigerant factory charge | 2.3kg |
| Installation | |
| Indoor unit model | AD105S2SM7FA |
| Indoor unit weight | 52kg |
| Outdoor unit model | 1U105S5SN5FA |
| Outdoor unit weight | 74kg |
| Pipe length maximum | 50m |
| Pipe size gas | 15.88 (⅝) |
| Pipe size liquid | 9.52 (⅜) |
| Performance | |
| Airflow | 560/485/385/360 |
| Indoor sound pressure SPL | 44/40/37/34dBA |
| Outdoor sound power SWL | 68dBA |
| Outdoor sound pressure SPL | 52dBA |
| Working temperature cooling | -20℃ to +24℃ |
| Working temperature heating | -15℃ to +50℃ |
| Power requirements | |
| Minimum circuit amps | 23MCA |
| Power phase | Single phase |
| Power supply | 1/220~240/50 |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Indoor unit depth | 870mm |
| Indoor unit height | 248mm |
| Indoor unit width | 1500mm |
| Outdoor unit depth | 370mm |
| Outdoor unit height | 965mm |
| Outdoor unit width | 950mm |
| Warranty | |
| Parts and labour | 5 years |
Documents & Downloads
- 📄 Haier SpecificationGuide en SMARTPOWER AC HHB 0 90005828C NZ
- 📄 QRG NZ 51802
- 📄 Haier ServiceWarranty en 00 HVAC HHB 20171011 NZ AU
- 📄 Haier UserInstall en LOWPROFILEDUCTED HHB V2 NZ AU
- 📄 Haier UserGuide en LOWPROFILEDUCTED HVAC HHB YR E17A NZ AU
- 📄 Haier UserGuide en YRE16B HVAC HHB WiredController v1 NZ AU
- 📄 Haier ProductBrochure en HIGHSTATICDUCTED LOWPROFILEDUCTED HVAC HHB V6 NZ
- 📄 Haier UserGuide en SmartzoneControlle HVAC HHB V2 NZ AU
✔ 5-Year Haier Parts & Labour Warranty — genuine Haier product, with full local warranty support. Warranty details.
Compatible optional controllers & parts: HW-SA201ABK ((YR-E17A) Wired Controller, Touchscreen, 15m cable); HW-PA201ABK ((YR-E16B) Wired Controller, 7 Day Timeclock , 15m cable); HW-ZA101DBT (Haier 8 Zone system, Controller and relay module); HI-WB101DEI (SmartHQ WIFI module (USB type)); RE-02 (Wireless Remote Control Receiver); YR-HRS01 (Wireless Controller); YCJ-A002 (Central Controller Interface Card); HC-SA164DBT (Central Controller Touchscreen 1-64 units); 819332 (Wired Controller Signal extension cable 10m).
Every Haier 10.5kW Smart Power Low Profile Ducted sold by NZ Depot is brand new in original packaging and dispatched NZ-wide. Professional installation by a licensed HVAC technician is required to validate the Haier manufacturer warranty. Order online today or contact NZ Depot for a quote.
Need advice or a quote? Contact NZ Depot or browse more heat pump and HVAC deals at NZ Depot.
Pro Tip: Ensure this AD105MN5FA-SET matches your installation. Sourced directly from the Haier NZ supply chain for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Air Conditioners available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated.
Additional information
| Weight | 52 kg |
|---|---|
| Dimensions | 870 × 1500 × 248 mm |
| MPN | |
| Brand | |
| Cooling Capacity (kWs) | |
| Heating Capacity (kWs) | |
| Copper Pipe (mm) | |
| Refrigerant | |
| Series | |
| Unit Type | |
| Indoor Subtype | |
| Related Indoor SKU | |
| Related Outdoor SKU |
Shipping cartons
This item ships in 2 separate cartons.
| Carton 1 | 52 kg · 870 × 1500 × 248 mm |
|---|---|
| Carton 2 | 74 kg · 370 × 950 × 965 mm |
| Total | 126 kg across 2 cartons · 0.663 m³ |
