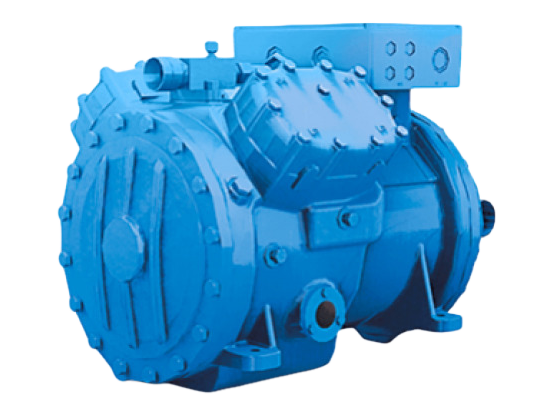

Frascold S7-33Y Compressor 7.5HP
Roll over image to zoom in
$10,453.49$25,451.97 (-59%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Industrial Refrigeration Standard.
The Frascold S7-33Y Compressor 7.5HP (Product Code: C5124) is a precision-engineered Compressors component. Built for the demanding New Zealand commercial environment, this unit ensures reliability in critical cooling and HVAC applications.
Technical Specification
General Additional Info Compressor Connections Electrical General Information Measurements Oil Performance R134A Performances R404A Performances R448A/R449A Performances Product Group : Semi Hermetic Crankcase Heater Provided : No Discharge Valve Provided : Yes Family : S Fitted With An Oil Sight Glass : Yes Suction Valve Provided : Yes Displacement : 32.8 m³/h Displacement at 50Hz : 32.8 m³/h Number Of Phases (Compressor) : 3 Power Supply Compressor : 400/3/50 V/Ph/Hz Discharge Connection Pipe Size : 1-1/8 in Suction Connection Diameter : 35 mm LRA : 47 A Max Operating Current : 20.4 A Max Power Input : 5.2 kW Number Of Cylinders : 4 Height : 405 mm Length : 550 mm Weight : 117 kg Width : 405 m Oil : RL32 POE Oil Charge : 2.9 L Horsepower : 7.5 HP R134a Capacity -5°C : 11.91 kW R404A Capacity -5°C : 19.78 kW R404A Capacity -25°C : 8.24 kW R448A/449A Capacity -5°C : 19.98 kW
Explore our full range of Components and Compressors solutions.
Additional information
| Weight | 117 kg |
|---|---|
| Dimensions | 405000 × 405 mm |
| Type | |
| Manufacturer Code | |
| MPN | |
| Product Code | |
| Copper Pipe (mm) | |
| Product Group |
