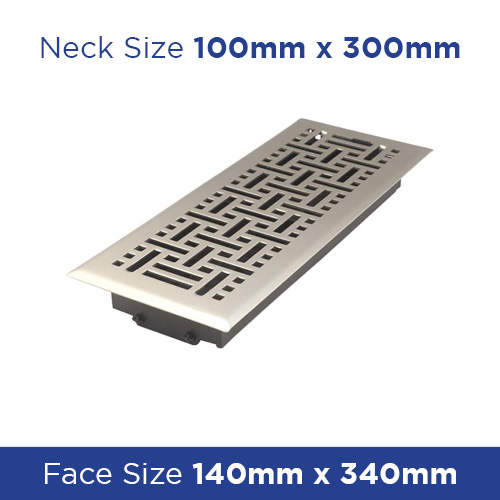

Floor Register - Satin Nickel Wicker 100x300mm - Floor Grilles - FRSNB412
Roll over image to zoom in
$123.98$189.98 (-35%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $123.98 | |
| 5 - 9 | 8% | $114.06 | |
| 10 - 19 | 12% | $109.10 | |
| 20 + | 18% | $101.66 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: Floor Register - Satin Nickel Wicker 100x300mm
You are viewing the Floor Register - Satin Nickel Wicker 100x300mm (SKU: FRSNB412). A professional-grade component from the Floor Grilles series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this FRSNB412 model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Floor Grilles
Type: Floor Grilles 100×300
Product Specifications
The FRSNB412 Metal Series Floor Vent is crafted from plated steel. It offers modern or traditional Victorian design options, combining strength, style, and a rust and rattle-proof damper box for quiet performance. Hidden, recessed levers maintain clean lines and an elegant appearance.
Application
Suitable for residential and light commercial HVAC systems for heating and cooling. Recommended for floor installation and compatible with standard duct connections.
Features / Benefits
- Plated steel construction
- Available in modern or traditional Victorian designs
- Hidden, recessed levers for a clean appearance
- Rust and rattle-proof damper box for quiet operation
| FR Floor Register | ||||||||
| Face Velocity (m/s) | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Pressure Loss (Pa) | 1 | 2 | 4 | 6 | 7 | 10 | 13 | 15 |
| Size: 100 x 300 mm - FR…412 - Ak 0.019m squared (65% Free Area) | ||||||||
| L/s | 28 | 38 | 47 | 57 | 66 | 75 | 85 | 94 |
| Spread (m) | 1.8 | 2.1 | 2.7 | 3.3 | 3.6 | 4.2 | 4.5 | 5.1 |
| Throw (m) | 1.5 | 1.8 | 2.4 | 2.7 | 3 | 3.3 | 3.9 | 4.2 |
Notes:
Floor Boots: Pressure Loss approx 15 Pa @ maximum velocity
Face velocity: The averaged measured velocity of air passing between the fins
Pressure Loss: Indicates how much total pressure is required to move air through a register
Ak: Effective Area (m squared)
Spread: The maximum width of the total air stream at the point of terminal velocity
Throw (blow): The horizontal distance from a diffuser to the point of terminal velocity
Products specifications
| Attribute name | Attribute value |
|---|---|
| Grille Specifications | |
| Installation location | Floor |
| Application | Commercial & Domestic |
| Shape | Rectangle |
| Material | Plated Steel |
| Colour | Satin Nickel |
| Face Size (mm) | 140 x 340 |
| Neck Size (mm) | 100 x 300 |
Professional HVAC Supply: Floor Register - Satin Nickel Wicker 100x300mm
You are viewing the Floor Register - Satin Nickel Wicker 100x300mm (SKU: FRSNB412). A critical component within our Floor Grilles range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this FRSNB412 model matches your engineer’s specifications before ordering.
Technical Specifications & Features
The FRSNB412 Metal Series Floor Vent is crafted from plated steel. It offers modern or traditional Victorian design options, combining strength, style, and a rust and rattle-proof damper box for quiet performance. Hidden, recessed levers maintain clean lines and an elegant appearance.
Application
Suitable for residential and light commercial HVAC systems for heating and cooling. Recommended for floor installation and compatible with standard duct connections.
Features / Benefits
- Plated steel construction
- Available in modern or traditional Victorian designs
- Hidden, recessed levers for a clean appearance
- Rust and rattle-proof damper box for quiet operation
| FR Floor Register | ||||||||
| Face Velocity (m/s) | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Pressure Loss (Pa) | 1 | 2 | 4 | 6 | 7 | 10 | 13 | 15 |
| Size: 100 x 300 mm - FR…412 - Ak 0.019m squared (65% Free Area) | ||||||||
| L/s | 28 | 38 | 47 | 57 | 66 | 75 | 85 | 94 |
| Spread (m) | 1.8 | 2.1 | 2.7 | 3.3 | 3.6 | 4.2 | 4.5 | 5.1 |
| Throw (m) | 1.5 | 1.8 | 2.4 | 2.7 | 3 | 3.3 | 3.9 | 4.2 |
Notes:
Floor Boots: Pressure Loss approx 15 Pa @ maximum velocity
Face velocity: The averaged measured velocity of air passing between the fins
Pressure Loss: Indicates how much total pressure is required to move air through a register
Ak: Effective Area (m squared)
Spread: The maximum width of the total air stream at the point of terminal velocity
Throw (blow): The horizontal distance from a diffuser to the point of terminal velocity
Products specifications
| Attribute name | Attribute value |
|---|---|
| Grille Specifications | |
| Installation location | Floor |
| Application | Commercial & Domestic |
| Shape | Rectangle |
| Material | Plated Steel |
| Colour | Satin Nickel |
| Face Size (mm) | 140 x 340 |
| Neck Size (mm) | 100 x 300 |
About the Floor Grilles 100×300 Series
Available in a range of styles and finishes.
Louvre Series: All steel construction floor vent with durable epoxy powder coat finish. Twin blades for maximum airflow. Wide range of colours. Rust proof damper boxes. Hidden and recessed levers for clean lines.
Metal Series: (Victorian and Wicker) Solid brass or other plated metals. Modern or traditional Victorian designs. Hidden and recessed levers for clean lines. Rust and rattle-proof damper box.
Marquis Series: Classic cast iron or heavy gauge steel. Ideal for either traditional or contemporary look. Hidden and recessed levers for clean lines. Rust and rattle-proof damper box.
Wood Series: Made exclusively from North American red oak. Pre-stained with durable clear finish or unfinished for exact colour matching. Hidden and recessed levers for clean lines. Compliments wood flooring. Rust and rattle-proof damper box.
Additional information
| MPN | |
|---|---|
| Application | |
| Material | |
| Shape | |
| Colour |
