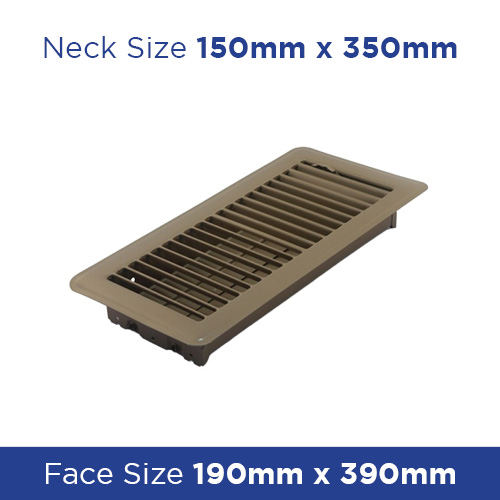

Floor Register – Brown Metal Louvered 150x350mm – Floor Grilles – FRBR614
Roll over image to zoom in
$108.48$189.98 (-43%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $108.48 | |
| 5 - 9 | 8% | $99.80 | |
| 10 - 19 | 12% | $95.46 | |
| 20 + | 18% | $88.95 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: Floor Register – Brown Metal Louvered 150x350mm
You are viewing the Floor Register – Brown Metal Louvered 150x350mm (SKU: FRBR614). A professional-grade component from the Floor Grilles series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this FRBR614 model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Floor Grilles
Type: Floor Grilles 150×350
Product Specifications
The FRBR614 Louvre Series Floor Vent is an all-steel construction grille with a durable epoxy powder coat finish. Designed for maximum airflow, it features twin blades and hidden, recessed levers for a clean, modern appearance. Available in a wide range of colours to complement any interior.
Application
Suitable for residential and light commercial HVAC systems for heating and cooling. Recommended for floor installation and compatible with standard duct connections.
Features / Benefits
- All-steel construction with durable epoxy powder coat finish
- Twin blades for maximum airflow
- Available in a wide range of colours
- Rust-proof damper box for longevity
- Hidden and recessed levers for clean lines
| FR Floor Register | ||||||||
| Face Velocity (m/s) | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Pressure Loss (Pa) | 1 | 2 | 4 | 6 | 7 | 10 | 13 | 15 |
| Size: 150 x 350 – FR…614 – Ak 0.031m squared (60% Free Area) | ||||||||
| L/s | 48 | 63 | 79 | 95 | 111 | 126 | 142 | 158 |
| Spread (m) | 2.4 | 2.7 | 3.3 | 3.9 | 4.8 | 5.4 | 6 | 6.7 |
| Throw (m) | 1.8 | 2.4 | 3 | 3.6 | 3.9 | 4.5 | 5.1 | 5.4 |
Notes:
Floor Boots: Pressure Loss approx 15 Pa @ maximum velocity
Face velocity: The averaged measured velocity of air passing between the fins
Pressure Loss: Indicates how much total pressure is required to move air through a register
Ak: Effective Area (m squared)
Spread: The maximum width of the total air stream at the point of terminal velocity
Throw (blow): The horizontal distance from a diffuser to the point of terminal velocity
Products specifications
| Attribute name | Attribute value |
|---|---|
| Grille Specifications | |
| Installation location | Floor |
| Application | Commercial & Domestic |
| Shape | Rectangle |
| Material | Steel |
| Colour | Brown |
| Face Size (mm) | 190 x 390 |
| Neck Size (mm) | 150 x 350 |
Professional HVAC Supply: Floor Register – Brown Metal Louvered 150x350mm
You are viewing the Floor Register – Brown Metal Louvered 150x350mm (SKU: FRBR614). A critical component within our Floor Grilles range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this FRBR614 model matches your engineer’s specifications before ordering.
Technical Specifications & Features
The FRBR614 Louvre Series Floor Vent is an all-steel construction grille with a durable epoxy powder coat finish. Designed for maximum airflow, it features twin blades and hidden, recessed levers for a clean, modern appearance. Available in a wide range of colours to complement any interior.
Application
Suitable for residential and light commercial HVAC systems for heating and cooling. Recommended for floor installation and compatible with standard duct connections.
Features / Benefits
- All-steel construction with durable epoxy powder coat finish
- Twin blades for maximum airflow
- Available in a wide range of colours
- Rust-proof damper box for longevity
- Hidden and recessed levers for clean lines
| FR Floor Register | ||||||||
| Face Velocity (m/s) | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Pressure Loss (Pa) | 1 | 2 | 4 | 6 | 7 | 10 | 13 | 15 |
| Size: 150 x 350 – FR…614 – Ak 0.031m squared (60% Free Area) | ||||||||
| L/s | 48 | 63 | 79 | 95 | 111 | 126 | 142 | 158 |
| Spread (m) | 2.4 | 2.7 | 3.3 | 3.9 | 4.8 | 5.4 | 6 | 6.7 |
| Throw (m) | 1.8 | 2.4 | 3 | 3.6 | 3.9 | 4.5 | 5.1 | 5.4 |
Notes:
Floor Boots: Pressure Loss approx 15 Pa @ maximum velocity
Face velocity: The averaged measured velocity of air passing between the fins
Pressure Loss: Indicates how much total pressure is required to move air through a register
Ak: Effective Area (m squared)
Spread: The maximum width of the total air stream at the point of terminal velocity
Throw (blow): The horizontal distance from a diffuser to the point of terminal velocity
Products specifications
| Attribute name | Attribute value |
|---|---|
| Grille Specifications | |
| Installation location | Floor |
| Application | Commercial & Domestic |
| Shape | Rectangle |
| Material | Steel |
| Colour | Brown |
| Face Size (mm) | 190 x 390 |
| Neck Size (mm) | 150 x 350 |
About the Floor Grilles 150×350 Series
Available in a range of styles and finishes.
Louvre Series: All steel construction floor vent with durable epoxy powder coat finish. Twin blades for maximum airflow. Wide range of colours. Rust proof damper boxes. Hidden and recessed levers for clean lines.
Metal Series: (Victorian and Wicker) Solid brass or other plated metals. Modern or traditional Victorian designs. Hidden and recessed levers for clean lines. Rust and rattle-proof damper box.
Marquis Series: Classic cast iron or heavy gauge steel. Ideal for either traditional or contemporary look. Hidden and recessed levers for clean lines. Rust and rattle-proof damper box.
Wood Series: Made exclusively from North American red oak. Pre-stained with durable clear finish or unfinished for exact colour matching. Hidden and recessed levers for clean lines. Compliments wood flooring. Rust and rattle-proof damper box.
