FLAGSUN FSM120W-36M 120W Monocrystalline Solar Panel – 1200 × 540 × 30mm
Roll over image to zoom in
$129.99
Price Match*
Price Match*
FLAGSUN FSM120W-36M 120W Monocrystalline Solar Panel – 1200 × 540 × 30mm. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
FLAGSUN FSM120W-36M 120W Monocrystalline Solar Panel – 1200 × 540 × 30mm: Genuine Trade Supply
You are viewing the FLAGSUN FSM120W-36M 120W Monocrystalline Solar Panel – 1200 × 540 × 30mm (SKU: FSM120W-36M). This is a 100 percent genuine Solar Panels product from our Solar Panels range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: FSM120W-36M
FLAGSUN FSM120W-36M 120W Monocrystalline is a high-efficiency solar panel suited to NZ homes, caravans, boats and off-grid systems, offering 120W rated output. Built to handle New Zealand conditions and squeeze the most energy out of every hour of sunshine. Backed by Flagsun, a proven name in solar technology, and supplied with genuine NZ warranty support.
FLAGSUN 120W monocrystalline solar panel with a compact 1200 × 540 mm footprint. Designed for off-grid, caravan, marine, shed and auxiliary solar power applications, with an IP67 junction box and MC4-compatible leads.

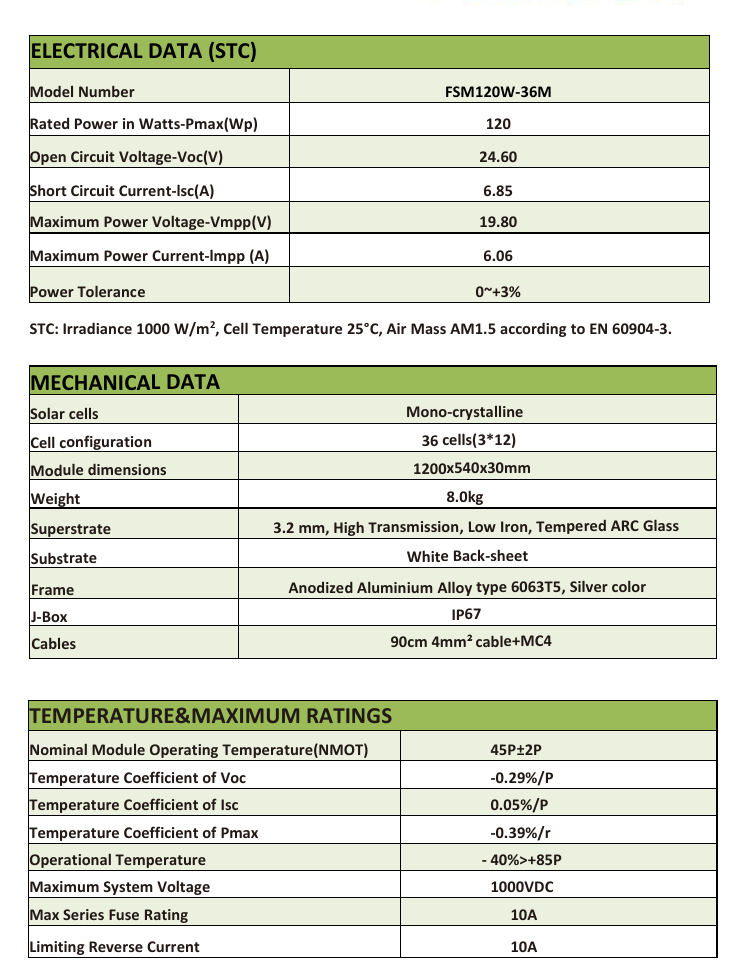

FLAGSUN FSM120W-36M 120W Monocrystalline: Full Specifications
| Specifications | |
| Model | FSM120W-36M |
| Rated maximum power | 120W |
| Power tolerance | 0 to +3% |
| Maximum power voltage (Vmp) | 19.80V |
| Maximum power current (Imp) | 6.06A |
| Open-circuit voltage (Voc) | 24.60V |
| Short-circuit current (Isc) | 6.85A |
| Maximum system voltage | 1000V DC |
| Maximum series fuse rating | 10A |
| Limiting reverse current | 10A |
| Temperature coefficient of Voc | 0.29%/°C |
| Temperature coefficient of Isc | +0.05%/°C |
| Temperature coefficient of Pmax | 0.39%/°C |
| Nominal module operating temperature (NMOT) | 45 ± 2°C |
| Operating temperature range | 40°C to +85°C |
| Cell type | monocrystalline |
| Cell configuration | 36 cells (3 × 12) |
| Module dimensions | 1200 × 540 × 30 mm |
| Weight | 8.0 kg |
| Front glass | 3.2 mm high-transmission, low-iron tempered ARC glass |
| Backsheet | white |
| Frame | silver anodized aluminium alloy 6063-T5 |
| Junction box | IP67 |
| Cables | 90 cm, 4 mm² with MC4-compatible connectors |
| STC | irradiance 1000 W/m², cell temperature 25°C and air mass AM1.5. |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the FLAGSUN FSM120W-36M 120W Monocrystalline Solar Panel – 1200 × 540 × 30mm online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar panels and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this FSM120W-36M matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 30 × 1200 × 540 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
