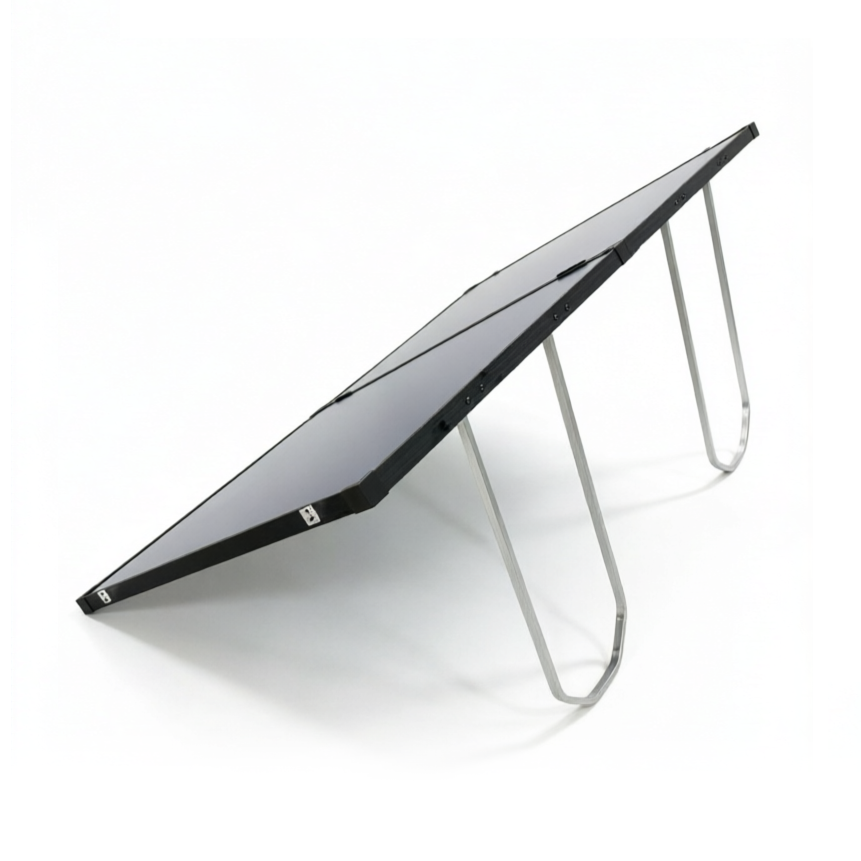

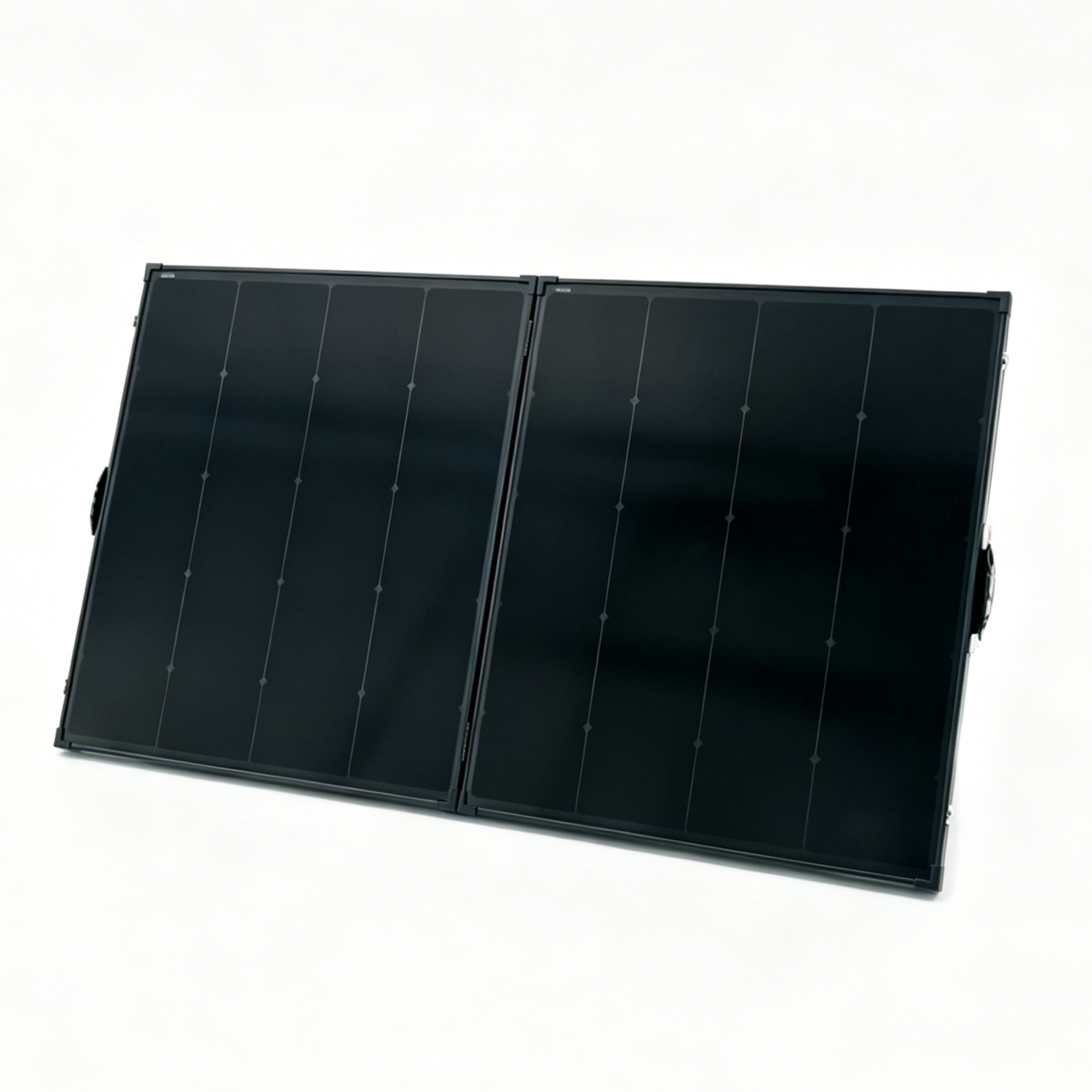

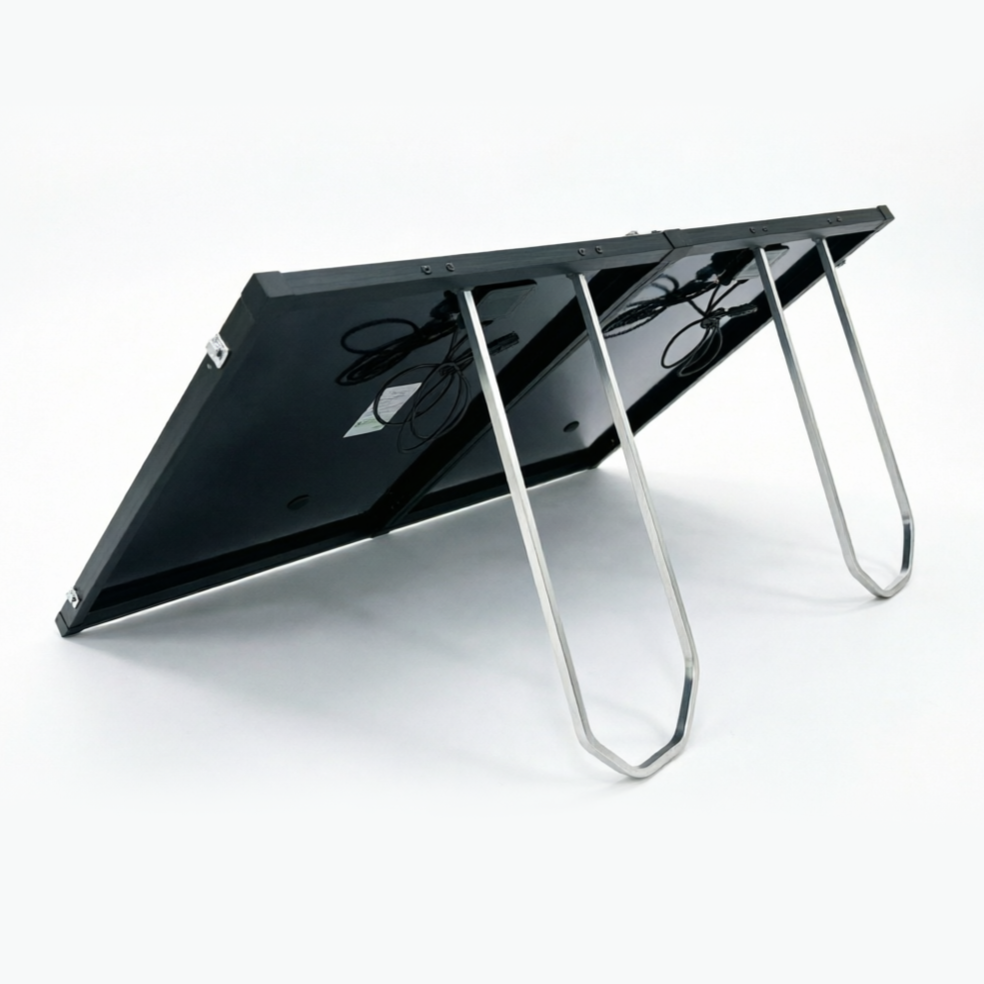

FLAGSUN FSM-Folding 300W Full Black HPBC Folding Solar Panel
Roll over image to zoom in
$429.99
Price Match*
Price Match*
FLAGSUN FSM-Folding 300W Full Black HPBC Folding Solar Panel. 300W rated output. HPBC back-contact solar cell technology. Foldable design for easier transport and storage. 3.2mm tempered glass. Anodized aluminium alloy frame. Full NZ Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
FLAGSUN FSM-Folding 300W Full Black HPBC Folding Solar Panel: Genuine Trade Supply
You are viewing the FLAGSUN FSM-Folding 300W Full Black HPBC Folding Solar Panel (SKU: FSM-Folding 300W). This is a 100 percent genuine Solar Panels product from our Solar Panels range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: FSM-Folding 300W
FLAGSUN FSM-Folding 300W Full is a high-efficiency solar panel suited to NZ homes, caravans, boats and off-grid systems, offering 300W rated output. Built to handle New Zealand conditions and squeeze the most energy out of every hour of sunshine. Backed by Flagsun, a proven name in solar technology, and supplied with genuine NZ warranty support.
Key Features
- ✓ 300W rated output
- ✓ HPBC back-contact solar cell technology
- ✓ Foldable design for easier transport and storage
- ✓ 3.2mm tempered glass
- ✓ Anodized aluminium alloy frame
- ✓ IP65 junction box
- ✓ Wide operating temperature range of -40°C to +85°C
- ✓ Positive power tolerance of 0 ~ +3%

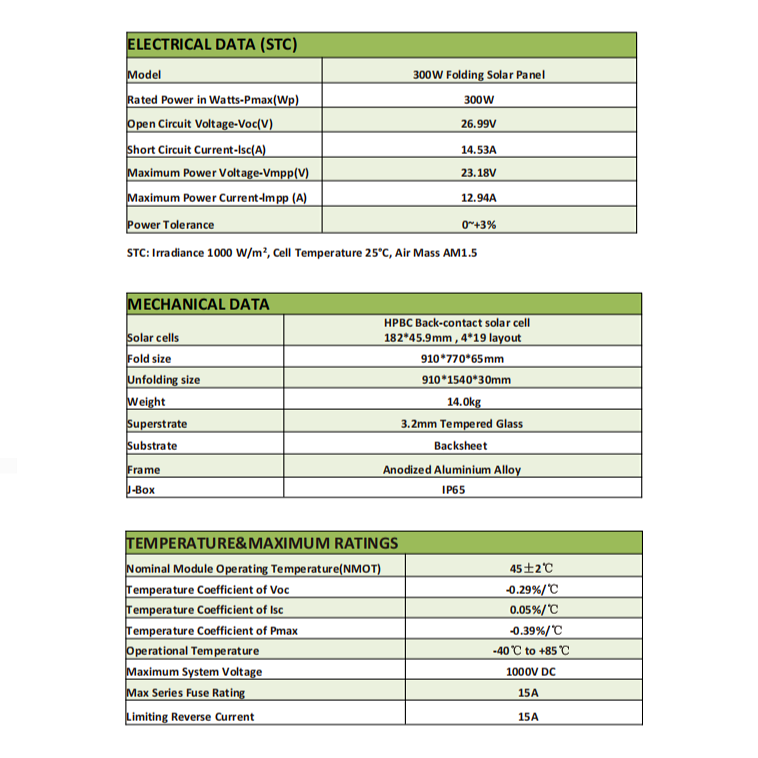

FLAGSUN FSM-Folding 300W Full: Full Specifications
| Specifications | |
| Specification | Value |
| Model | 300W Folding Solar Panel |
| Rated Power (Pmax) | 300W |
| Open Circuit Voltage (Voc) | 26.99V |
| Short Circuit Current (Isc) | 14.53A |
| Maximum Power Voltage (Vmpp) | 23.18V |
| Maximum Power Current (Impp) | 12.94A |
| Power Tolerance | 0 ~ +3% |
| STC Conditions | Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5. |
| Solar Cells | HPBC Back-Contact Solar Cells |
| Cell Size | 182 × 45.9mm |
| Cell Layout | 4 × 19 |
| Folded Size | 910 × 770 × 65mm |
| Unfolded Size | 910 × 1540 × 30mm |
| Weight | 14kg |
| Superstrate | 3.2mm Tempered Glass |
| Substrate | Backsheet |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP65 |
| NMOT | 45 ± 2°C |
| Temperature Coefficient of Voc | 0.29%/°C |
| Temperature Coefficient of Isc | +0.05%/°C |
| Temperature Coefficient of Pmax | 0.39%/°C |
| Operating Temperature | 40°C to +85°C |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 15A |
| Limiting Reverse Current | 15A |
✔ Full NZ Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the FLAGSUN FSM-Folding 300W Full Black HPBC Folding Solar Panel online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar panels and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this FSM-Folding 300W matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
