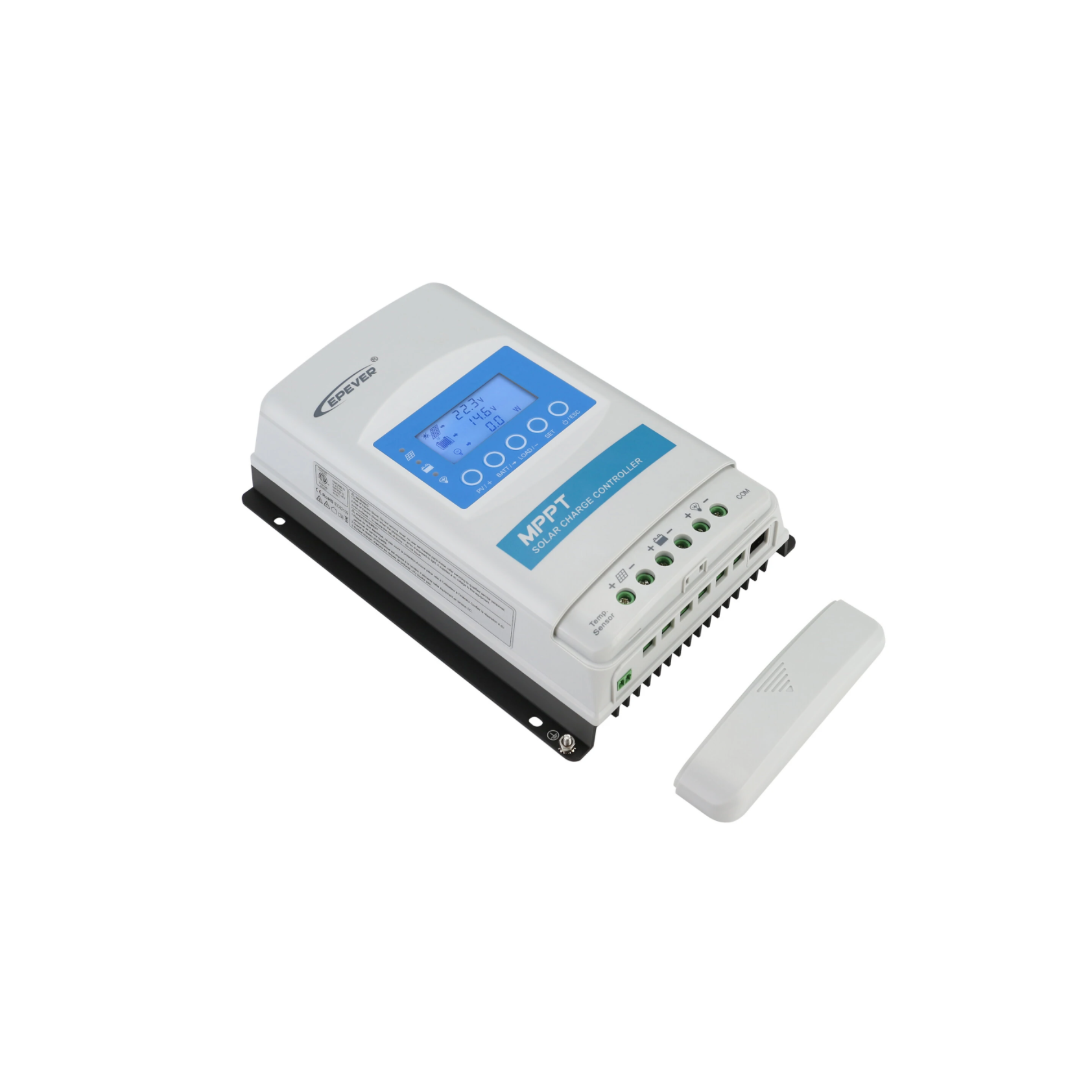

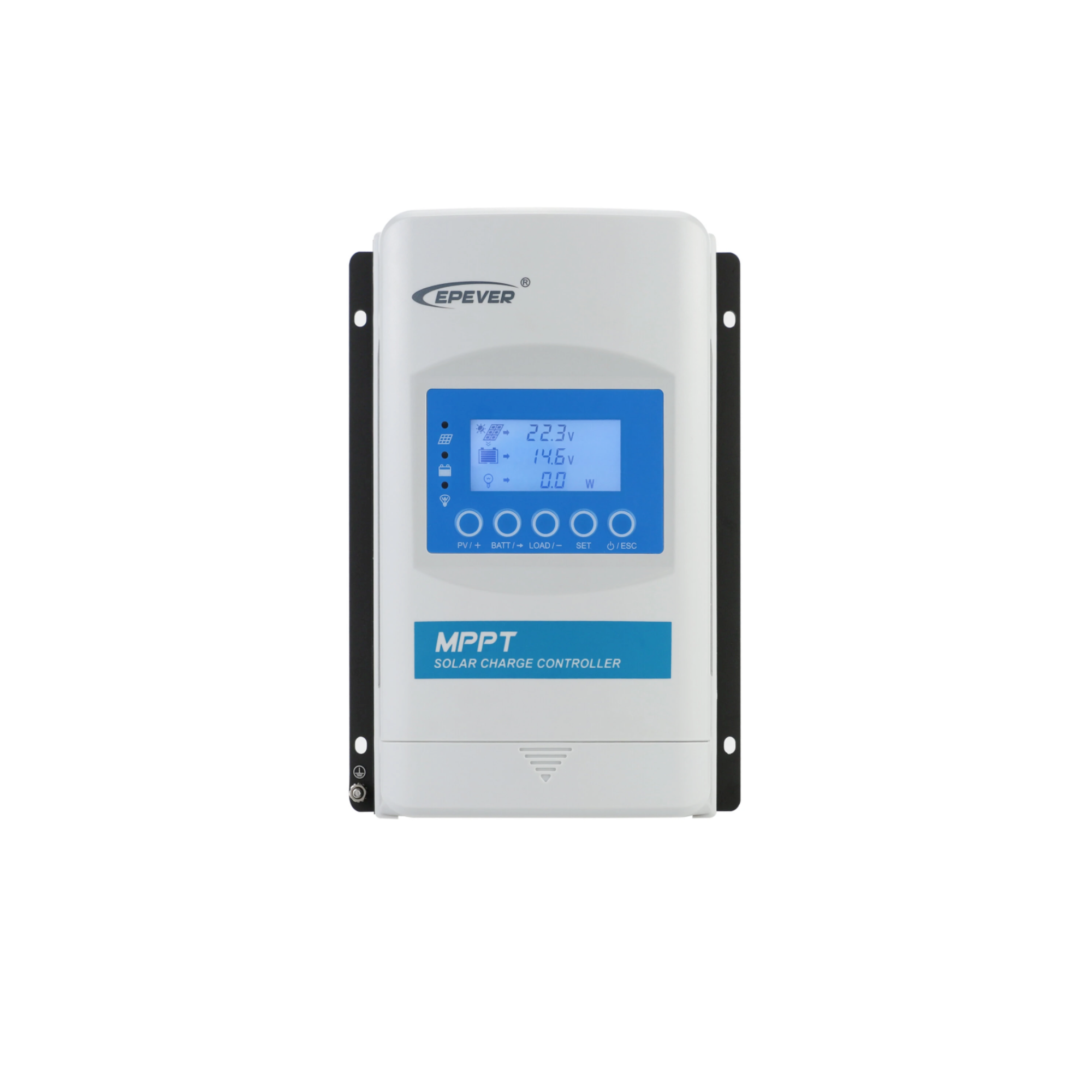

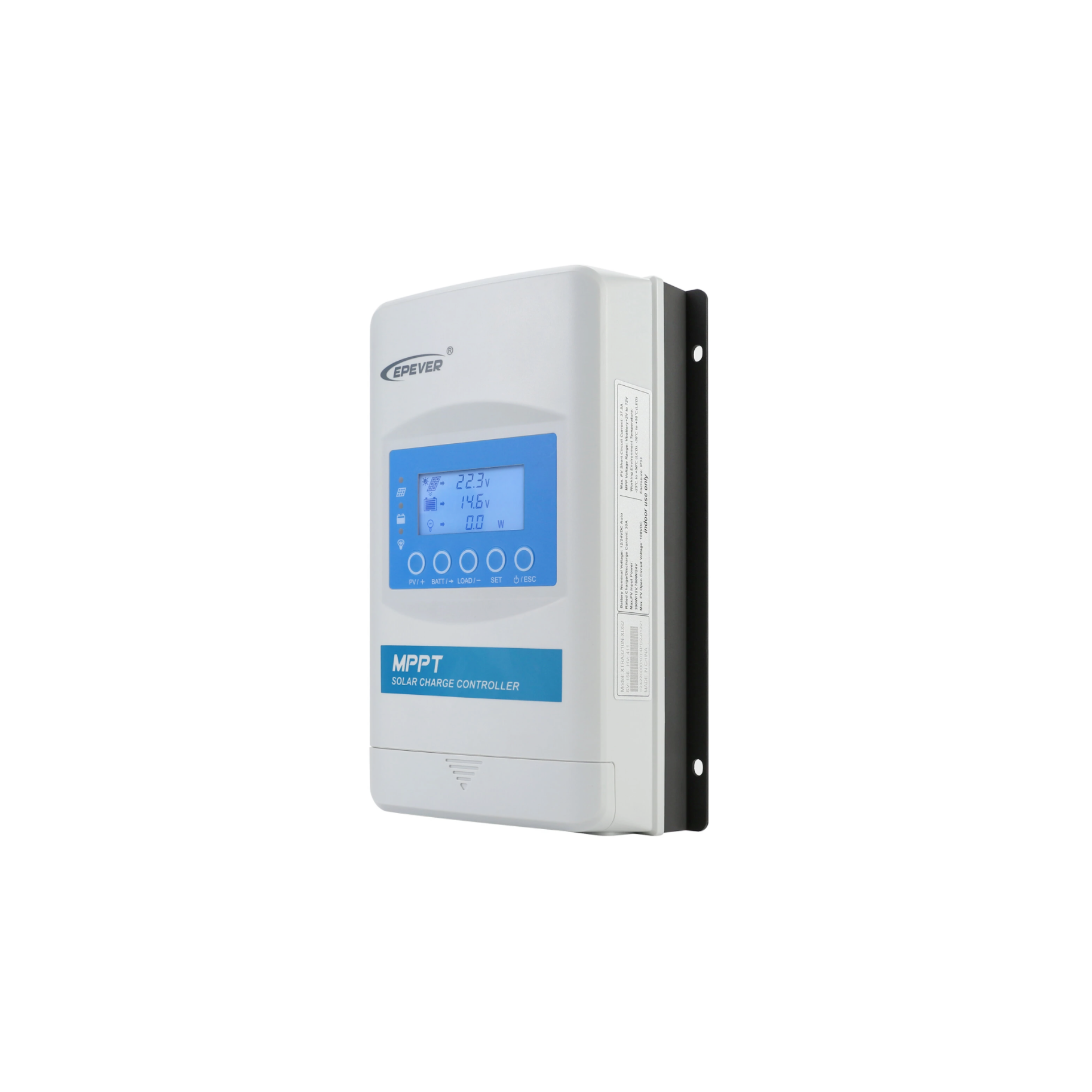

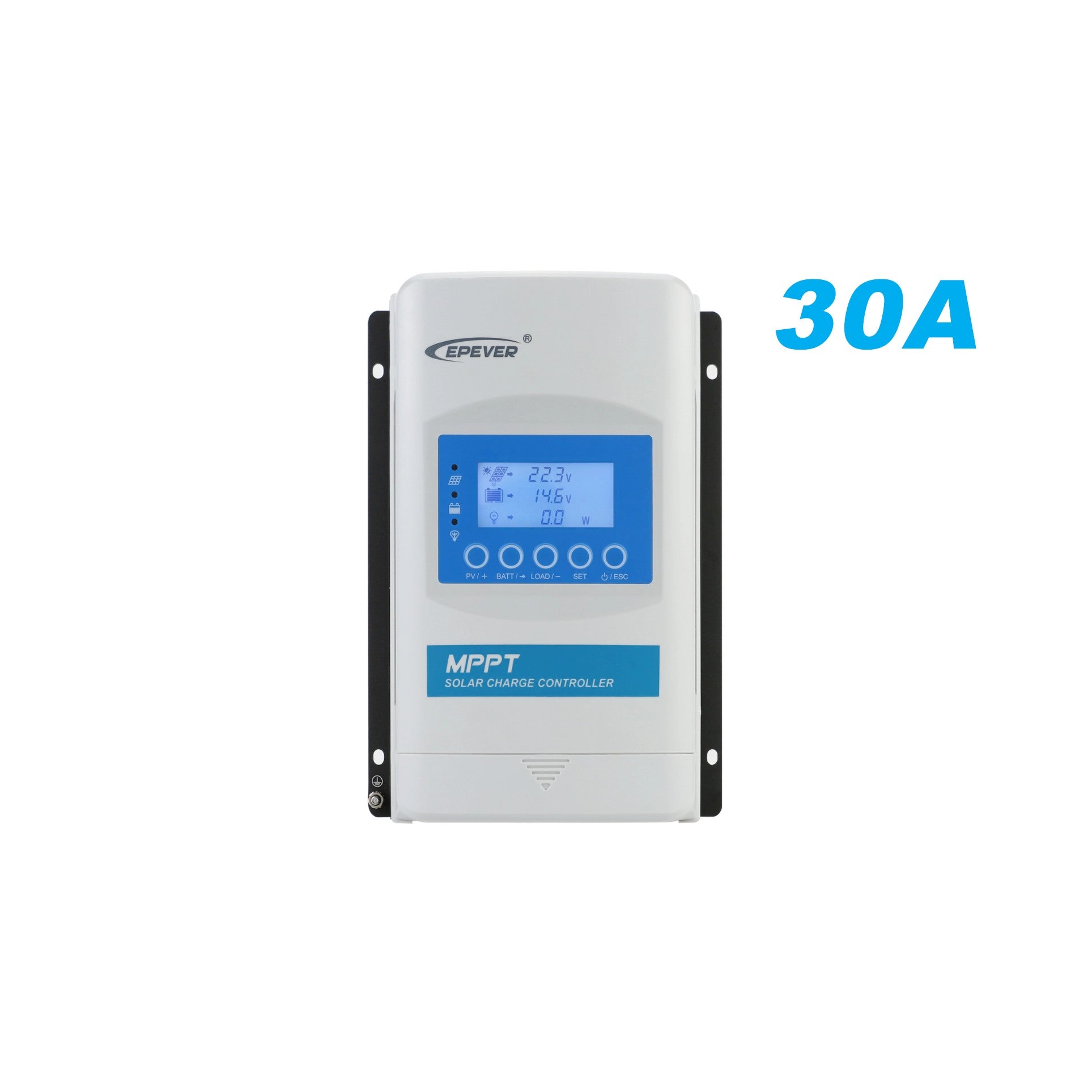

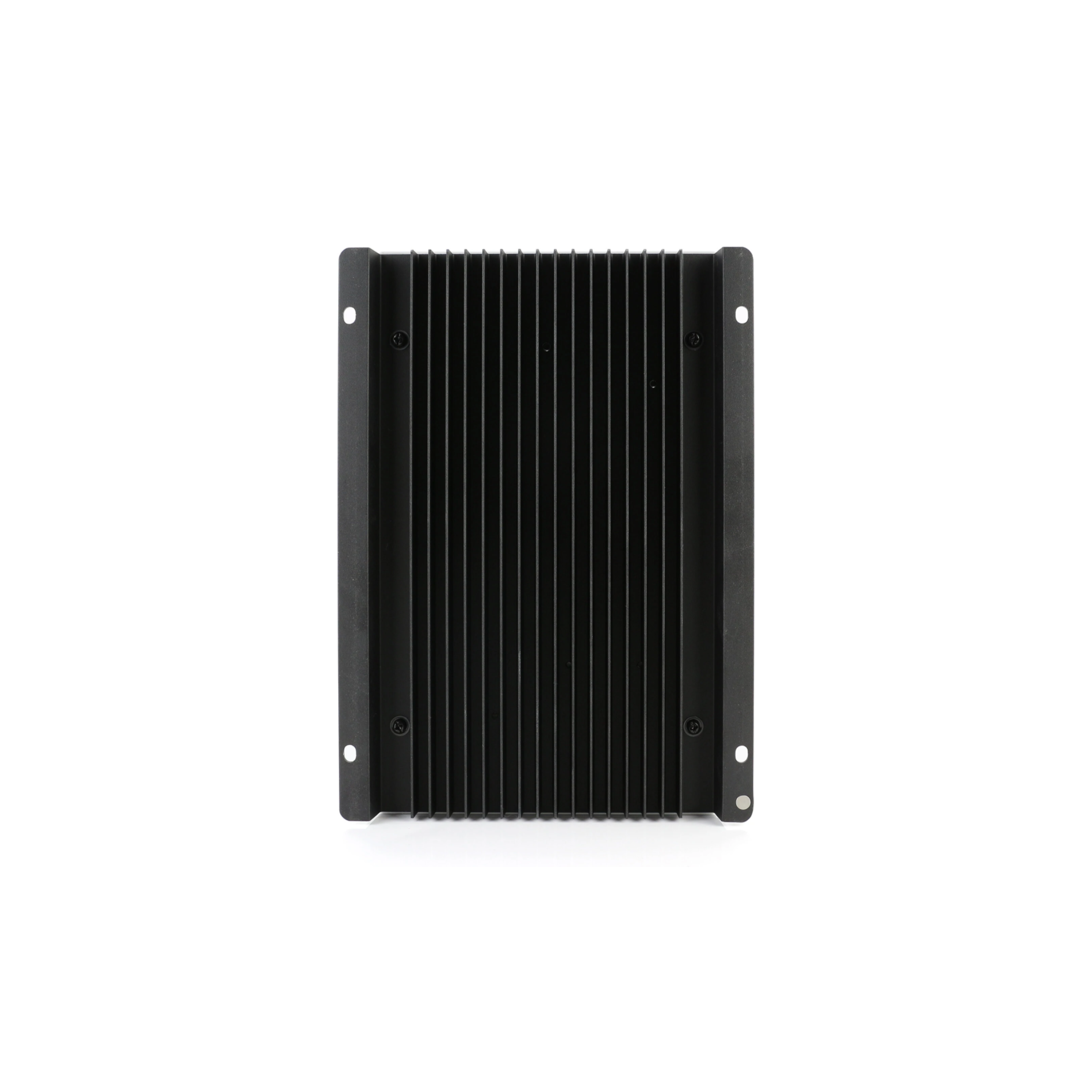

EPEVER XTRA3210N MPPT Solar Charge Controller 30A 30 amp 12V 24V

EPEVER XTRA3210N MPPT Solar is a precision solar charge controller that protects your batteries and maximises harvest from your panels. An essential part of any well-built solar system. Backed by EPEVER, a proven name in solar technology, and supplied with genuine NZ warranty support.

XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3) – 100% charging and discharging in working environment temperature range – Optional LCD display units (XDB1/XDS1/XDS2) – High quality and low failure rate components of ST or IR to ensure service life – Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5% – Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3% – Advanced MPPT control algorithm to minimize the MPP lost rate and lost time – Accurate recognizing and tracking of multi-peaks maximum power p0oint – Wide MPP operating voltage range – Support the lead-acid and lithium batteries, programmable temperature compensation – Limit charging power & current overrated value – Real-time energy statistics function – Power reduction automatically over-temperature value – Multiple load work modes – Comprehensive electronic protection – Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol – Support monitoring and setting the parameters via APP or PC software

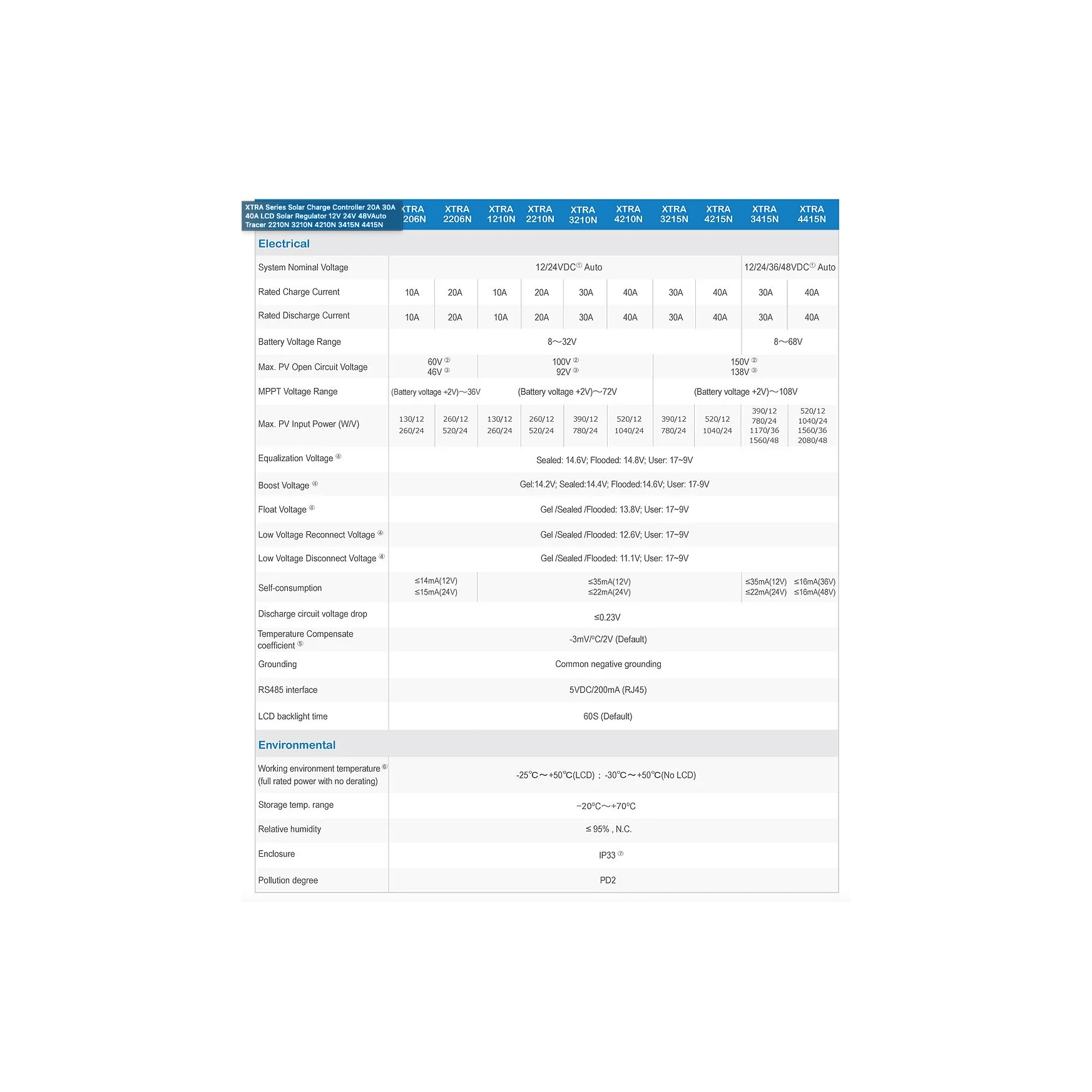

Model: XTRA3210N Rated charge current: 30A Rated charge power: 390W/12V 780W/24V Max.PV Array Power: 580W/12V 1170W/24V Max.PV open circuit voltage: 92V(25℃) 100V (minimum operating temperature)

Order the EPEVER XTRA3210N MPPT Solar Charge Controller 30A 30 amp 12V 24V online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar charge controllers and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.

Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
