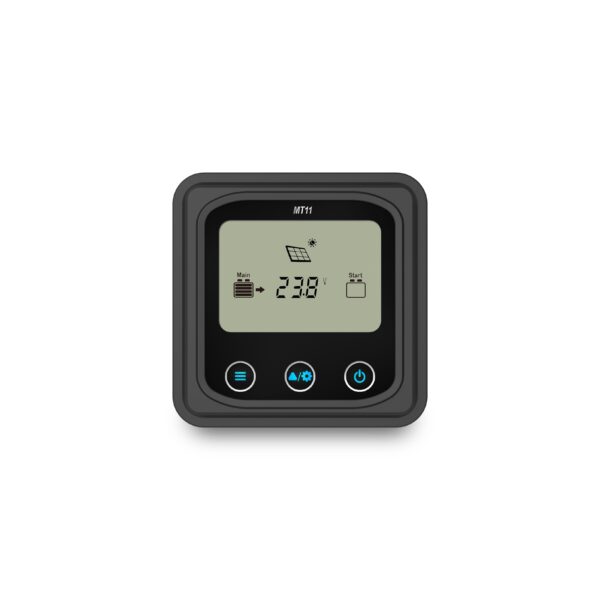

EPEVER MT11 Remote Meter for DuoRacer

EPEVER MT11 Remote Meter is a precision solar charge controller that protects your batteries and maximises harvest from your panels. An essential part of any well-built solar system. Backed by EPEVER, a proven name in solar technology, and supplied with genuine NZ warranty support.

DESCRIPTION Epever’s MT11 remote meter is an accessory which is compatible with the DuoRacer series controller. The running data and working status of the controller can be monitored via the MT11 remote meter. The MT11 can browse the controller’s parameters, set the battery type and temperature unit and clean the generated energy. It is suitable for RV, Camper, Boat, and other small applications.

FEATURES Automatically identify and display the type, model and relevant parameter data of controllers. Real-time display the operational data and working status of the connected devices indigital, graphics and textural forms by a large-screen multifunction LCD Three touch buttons are easy and quick to operate No need for external power supply. Charge controller supply the power for MT11 It can browse the controller’s parameters, set the battery type and temperature unit, and clean the generated energy Real-time display of failure information of the connected devices. Longer communication distance based on RS485 TECHNICAL SPECIFICATIONS Apply to model: DuoRacer series Self-consumption(Power on): 13mA/5Vdc Self-consumption(Power off): 4mA Communication way: RS485 Communication port: 3.81-4P RS485 cable: CC-RS485-RS485-3.81-4P-150(1.5m) CC-RS485-RS485-3.81-4P-500(5m) CC-RS485-RS485-3.81-4P-1000(10m) Dimension: 98.4×98.4mm Base cover dimension: 114×114mm Enclosure: IP20 Environment temperature: -20～ +70 degrees Centigrade Storage temperature range: -20 ～ +70 degrees Centigrade Weight: 0.11kg

Order the EPEVER MT11 Remote Meter for DuoRacer online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar charge controllers and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.

Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
