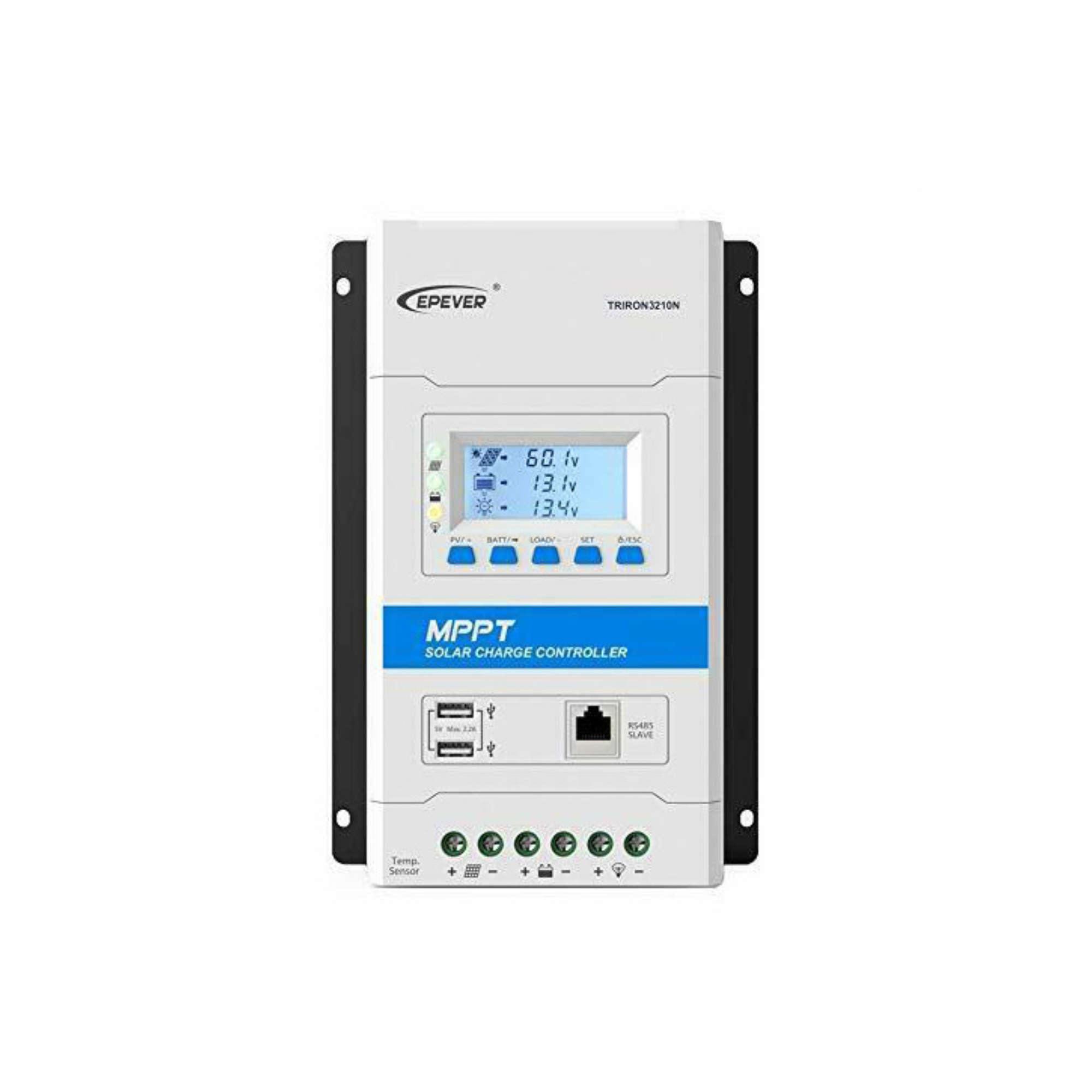

EPEVER MPPT 30A Solar Charge Controller 12v 24v Triron 3210n Intelligent

EPEVER MPPT 30A Solar is a precision solar charge controller that protects your batteries and maximises harvest from your panels. An essential part of any well-built solar system. Backed by EPEVER, a proven name in solar technology, and supplied with genuine NZ warranty support.

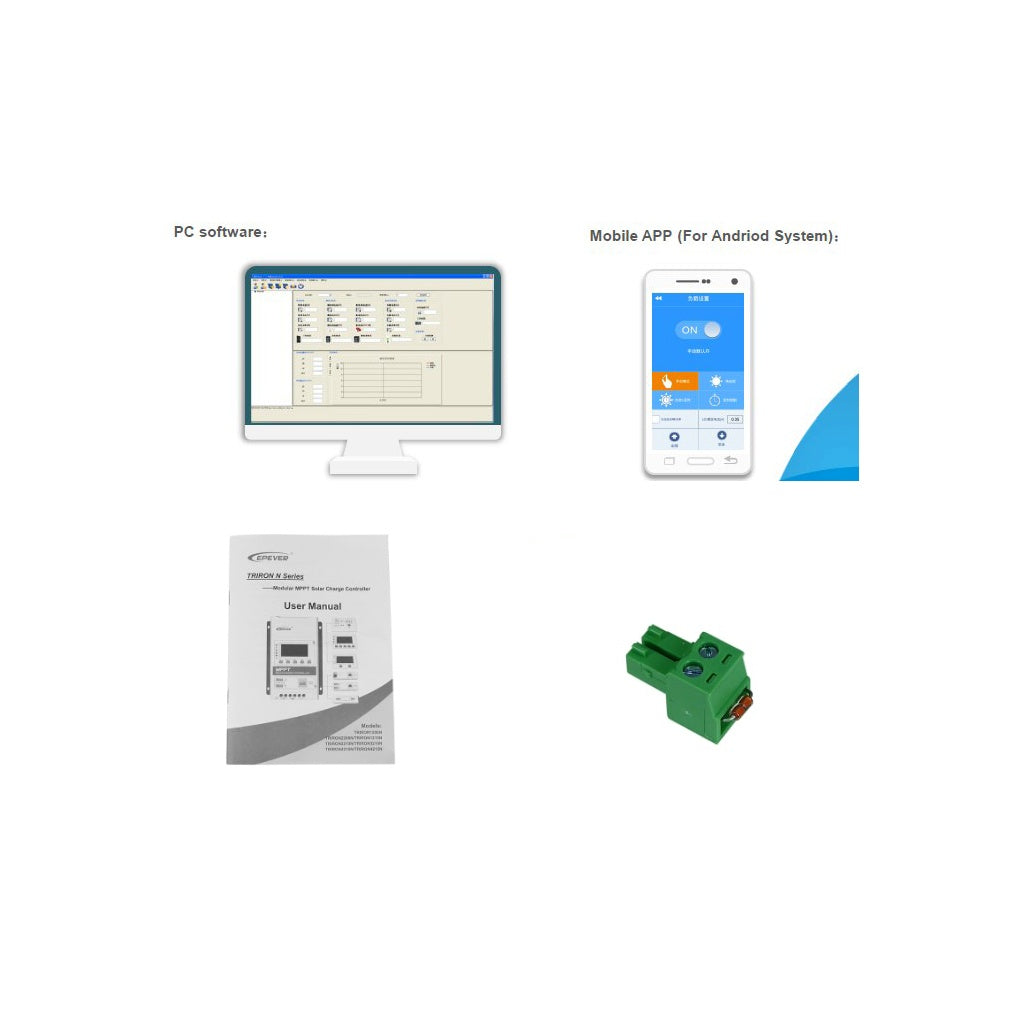

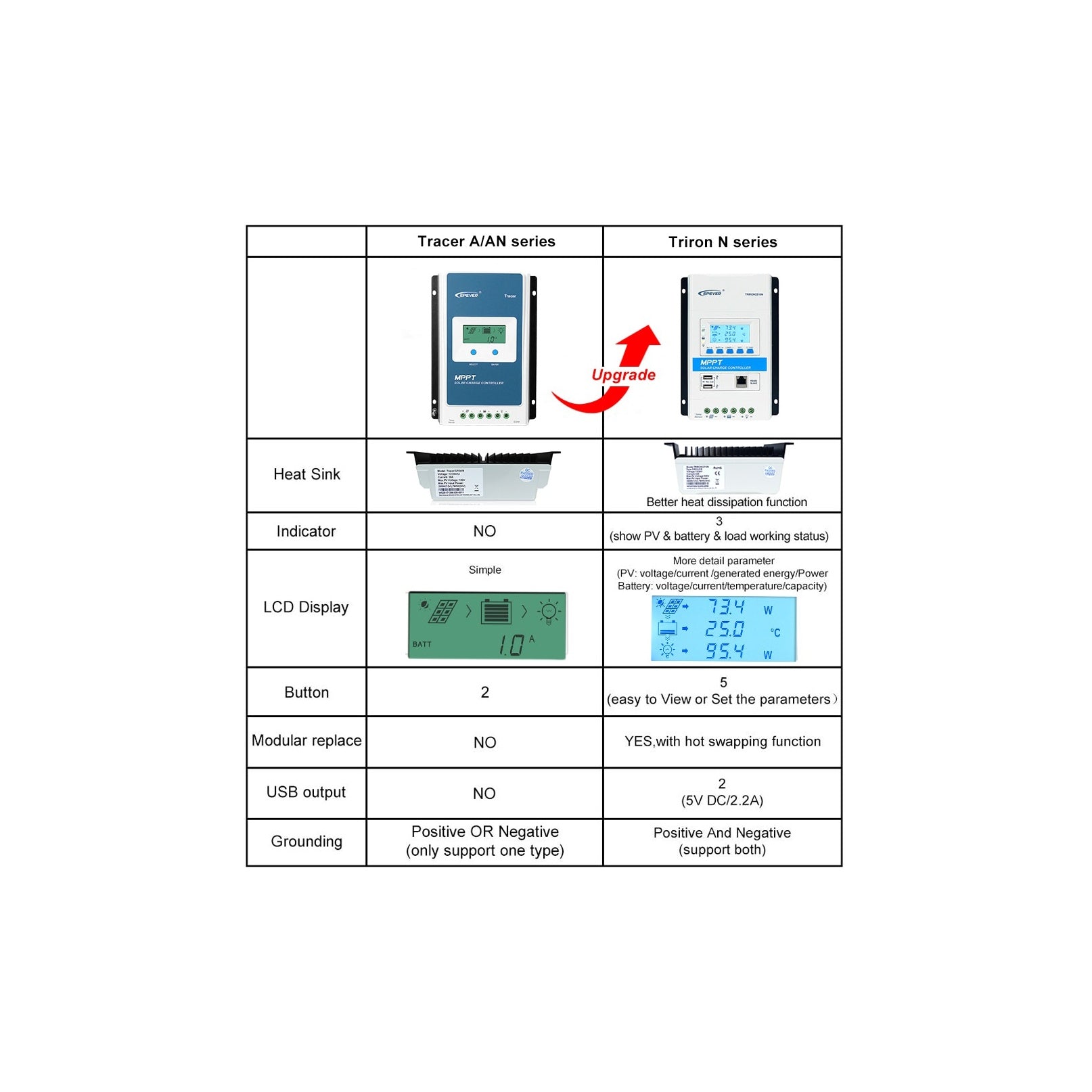

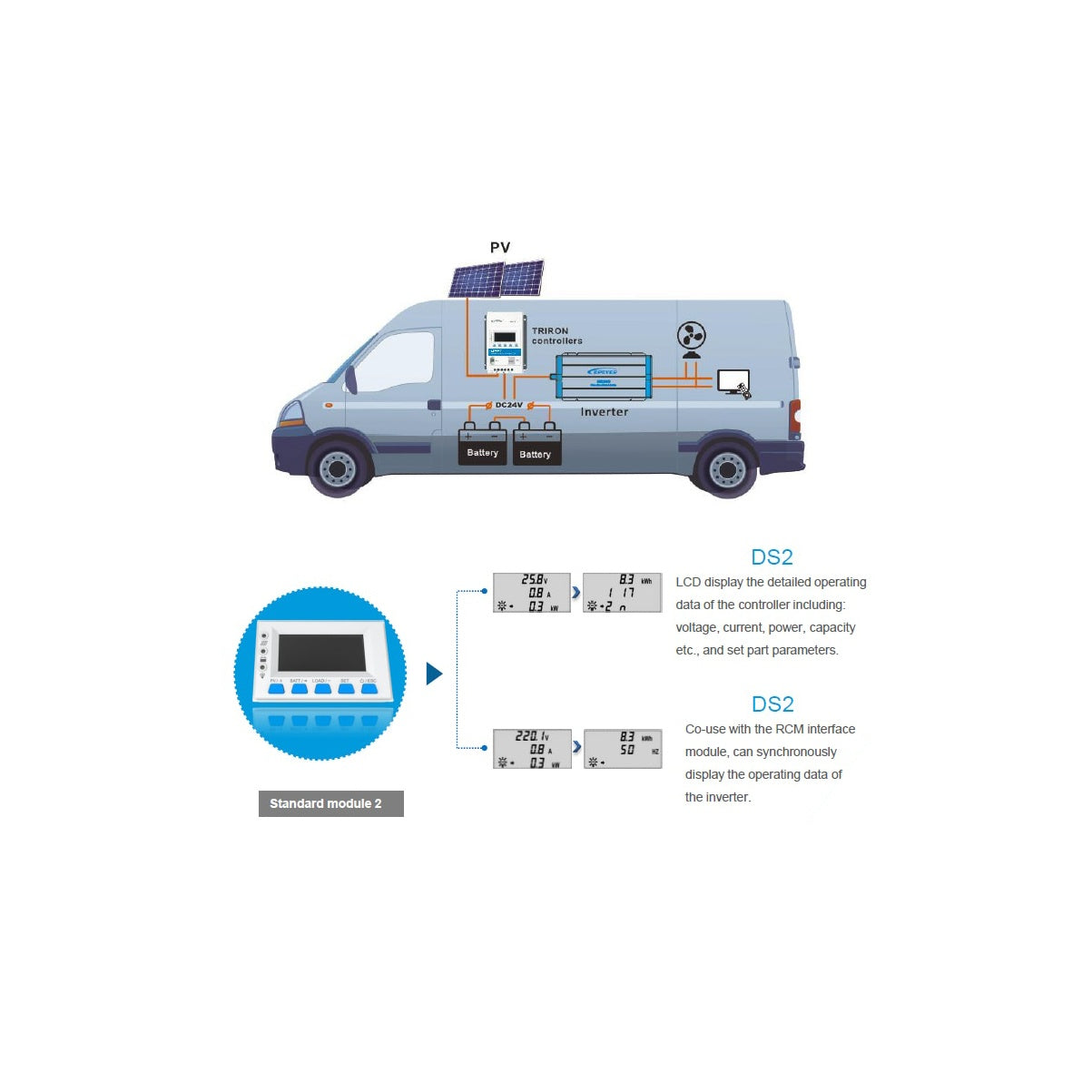

This is an updated series of Tracer A/AN Series controller, can be integrated with different display and interface modules to meet a variety of functional requirements. Can automatically identify and load the drivers of various modules. Negative groud designed of this 30a modual mppt controller can be widely used for different applications, e.g., communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc. 7 battery selection Sealed(AGM), Gel, Flooded, Lead-acid User, LiFePO4 Lithium, Li(NiCoMn)O2 Lithium, Lithium User(9~34V). Dual 5V DC USB output interface of this mppt controller can charge your electronic devices directly. Real-Time energy statistic function, View/modify working parameters via APP or PC software via RS485 interface.(optional).

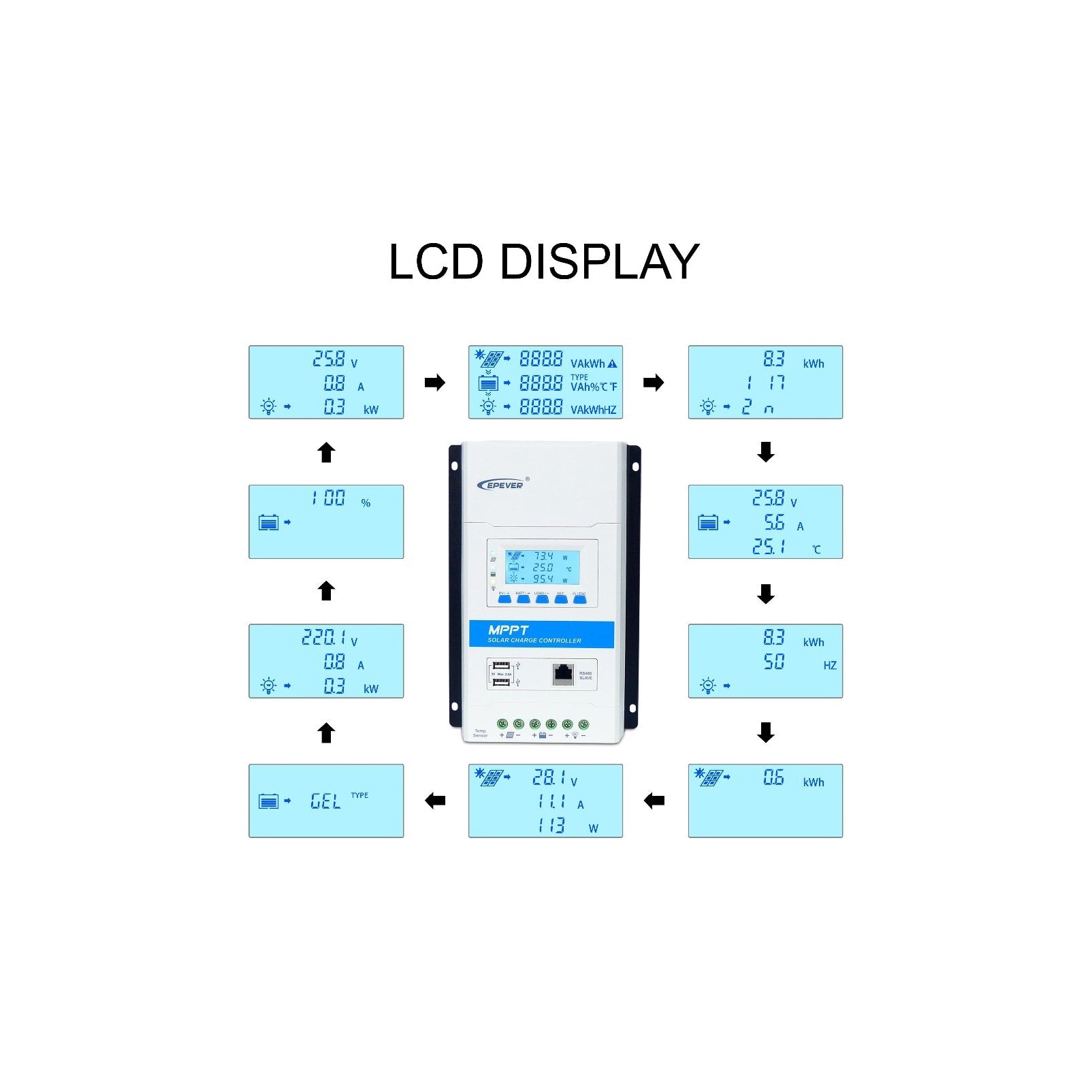

Specification Model: TRIRON3210N System voltage: 12/24VDC auto work Rated charge current: 30A Battery input voltage range:8-32V Max. PV open circuit voltage:100Vat Min operating environment temp; 92Vat 25 environment temp MPP voltage range: (Vbat+2V)72V Max. PV Array Power: 390W/12V; 780W/24V Working environment temperature:-25℃～+55℃（with LCD）/-30℃～+55℃（without LCD） Lithium battery: LiFePO4（4S;8S）/Li-NiCoMn（3S; 6S） Self-consumption: ≤14mA(12V)；≤15mA(24V) Temp. compensation: -3mV/℃/2V Grounding: Common Negative Terminals/Wire Size: 8AWG(10mm²) Indicators: PV & battery & load working status Buttons: View or set the parameters LCD: PV display voltage/current /generated energy/Power Battery display voltage/current/temperature/capacity USB interface module: Dual USB 5V 2.2A USB output for electronic equipment, NOTE: USB interface is output when the load is ON. PC software & mobile APP (For Andriod System) can remotely monitor the controller status through this port.

Package Including 1x EPEVER TRIRON3210N Controller 1x Temputer sensor 1x Display DS2 module 1x Interface UCS module

EPEVER MPPT 30A Solar: Full Specifications
