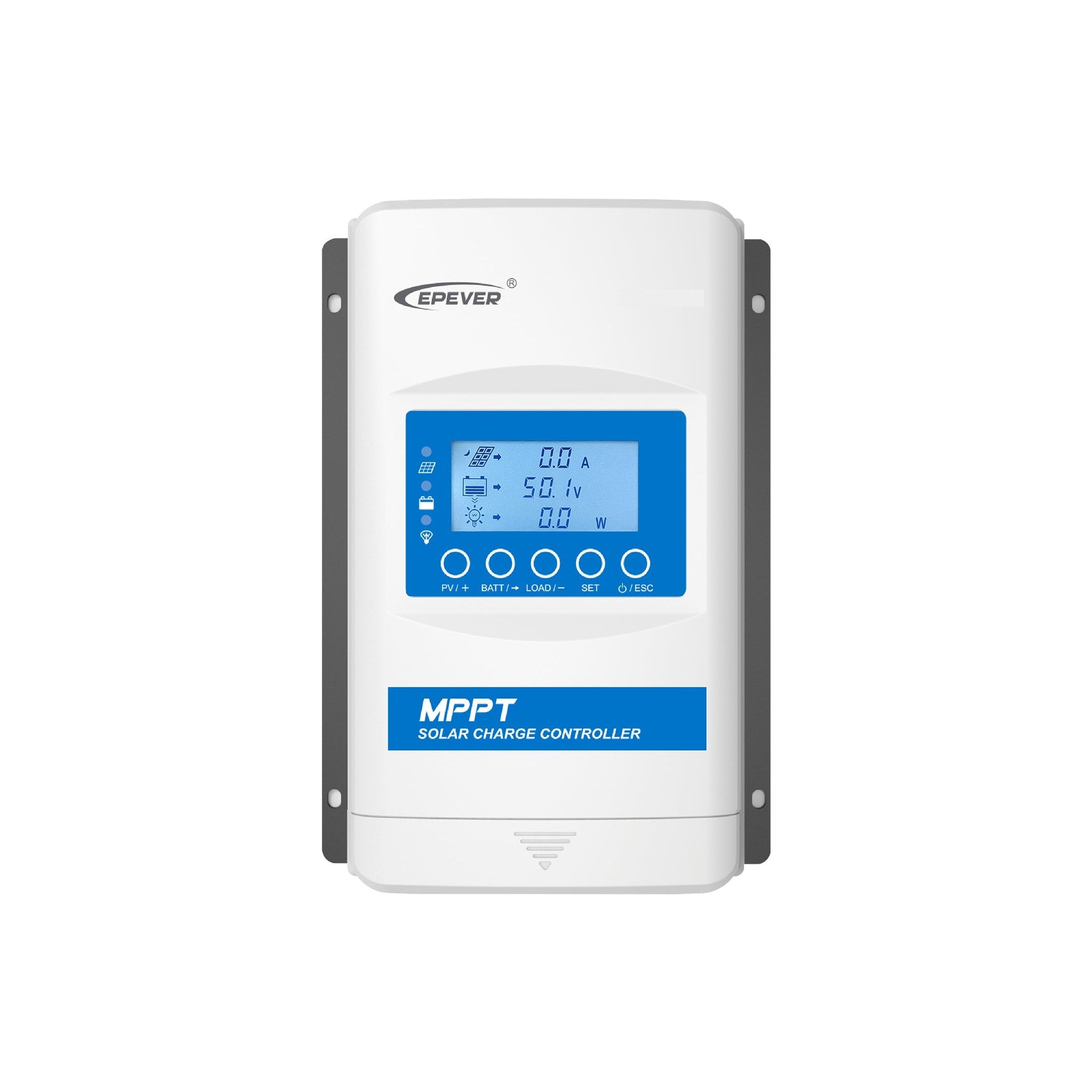

Epever 20A MPPT Charge Controller XTRA2210N G3 BLE – NEW Bluetooth Module

Epever 20A MPPT Charge Controller is a precision solar charge controller that protects your batteries and maximises harvest from your panels. An essential part of any well-built solar system. Backed by EPEVER, a proven name in solar technology, and supplied with genuine NZ warranty support.

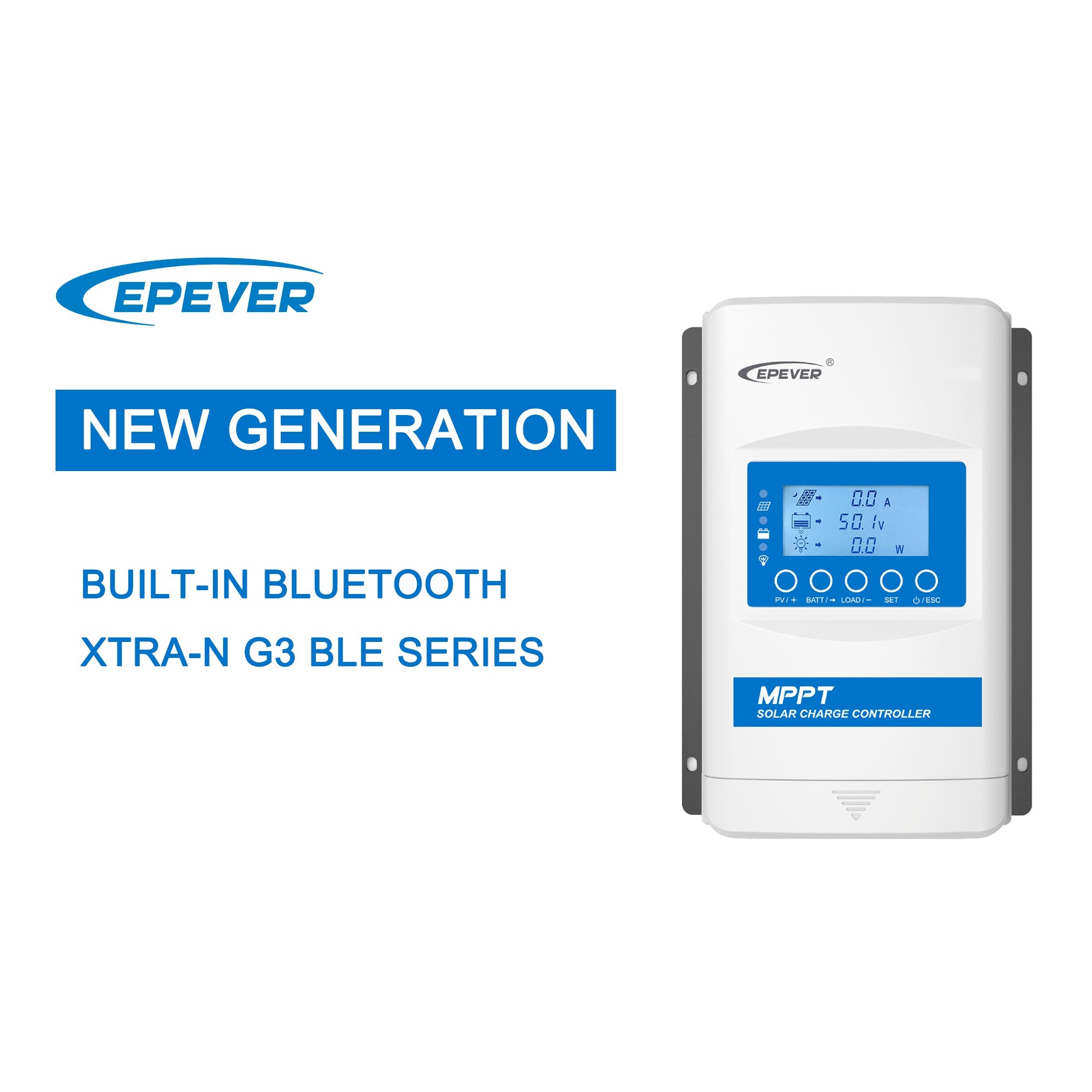

The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system’s applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.

Constant voltage output Rated Charging Power & Current Limitation Support Bluetooth for parameter reading and modification via app Operates at full load within the working temperature range Innovative MPPT technology & ultra-fast tracking speed Tracking efficiency is no less than 99.5% Compatible with various types of batteries: lithium, gel, sealed, etc Wide MPPT voltage range, maximizes the utilization of PV modules Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring Low self-consumption, lower than 10mA IP33 enclosure

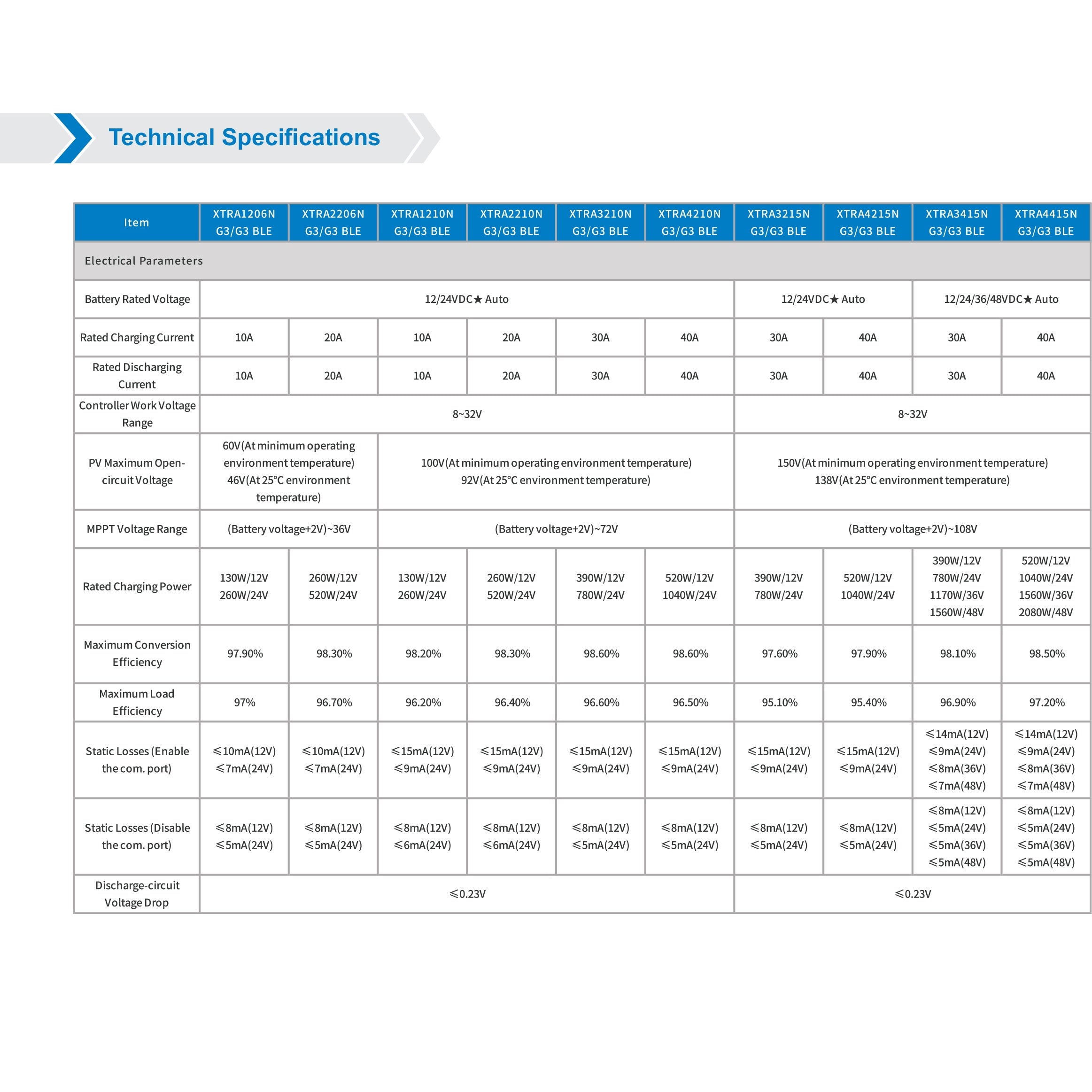

Model: XTRA2210N G3 BLE Battery Rated Voltage: 12/24VDC Auto Rated Charging Current: 20A Rated Discharging Current: 20A Controller Work Voltage Range: 8-32V PV Maximum Open-circuit Voltage: 100V Rated Charging Power: 260W/12V 520W/24V Maximum Conversion Efficiency: 98.30% Maximum Load Efficiency: 96.40% Dimension(LxWxH): 217x158x56.5mm Net Weight: 0.97kg

Order the Epever 20A MPPT Charge Controller XTRA2210N G3 BLE – NEW Bluetooth Module online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar charge controllers and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.

Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
