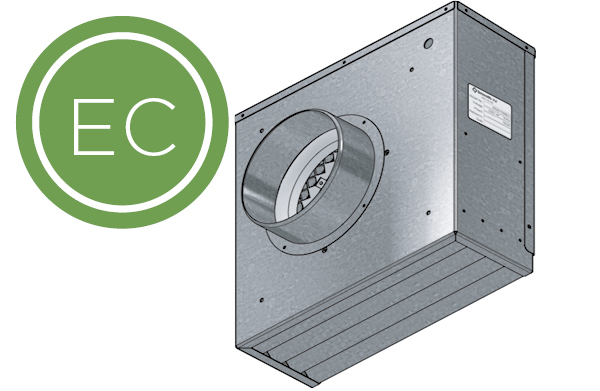

EC Monica Wall Extract Fan 250dia - Fan Units - MON250BEC
Image is for illustration only. Please go by the model number (SKU: MON250BEC).
-39%Roll over image to zoom in
$945.48$1,538.98 (-39%)
Price Match*
Price Match*
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 4 | 0% | $945.48 | |
| 5 - 9 | 8% | $869.84 | |
| 10 - 19 | 12% | $832.02 | |
| 20 + | 18% | $775.29 |
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Professional HVAC Component: EC Monica Wall Extract Fan 250dia
You are viewing the EC Monica Wall Extract Fan 250dia (SKU: MON250BEC). A professional-grade component from the Fan Units series, engineered for New Zealand’s residential and commercial ventilation systems. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Technical Verification Required
Ventilation components require precise sizing. Please verify that this MON250BEC model matches your system’s diameter and connection type (e.g., Big End vs Small End) before ordering.
Key Specs:
Category: Fan Units
Type: Monica Wall Extract Units EC
Product Specifications
| MON250BEC | |
| Voltage (V) | Single Phase (230V) |
| Frequency (Hz) | 50 |
| Power (W) | 170 |
| Current (A) | 1.2 |
| Speed (rpm) | 2900 |
| Sound pressure level dB(A) @ 3m (Inlet Side) | 54 |
| Sound pressure level dB(A) @ 3m (Outlet Side) | 56 |
| Minimum Air Temperature (Degrees Celsius) | -20 |
| Maximum Air Temperature (Degrees Celsius) | +60 |
Professional HVAC Supply: EC Monica Wall Extract Fan 250dia
You are viewing the EC Monica Wall Extract Fan 250dia (SKU: MON250BEC). A critical component within our Fan Units range, designed specifically for New Zealand’s residential and commercial ventilation requirements. Sourced directly from our trade supply chain for NZ Depot.
⚠️
Important: Measurement Verification
HVAC components require precise sizing. Please confirm this MON250BEC model matches your engineer’s specifications before ordering.
Technical Specifications & Features
| MON250BEC | |
| Voltage (V) | Single Phase (230V) |
| Frequency (Hz) | 50 |
| Power (W) | 170 |
| Current (A) | 1.2 |
| Speed (rpm) | 2900 |
| Sound pressure level dB(A) @ 3m (Inlet Side) | 54 |
| Sound pressure level dB(A) @ 3m (Outlet Side) | 56 |
| Minimum Air Temperature (Degrees Celsius) | -20 |
| Maximum Air Temperature (Degrees Celsius) | +60 |
About the Monica Wall Extract Units EC Series
Compact wall-mounted centrifugal extract units with energy-efficient EC motors.
The Monica Wall Extract Units EC combine a compact wall-mounted design with high-efficiency EC motor technology. Backward-curved centrifugal EC motors provide strong airflow performance against system resistance while maintaining low energy consumption, with the fan positioned within the external cowl to help reduce transmitted noise into occupied spaces.
Designed for commercial and residential exhaust ventilation, the range is suitable for kitchens, bathrooms, laundries and other humid environments. The galvanised steel housing provides strength and durability, while the compact external cowl minimises visual impact and allows straightforward access for servicing. A 0-10 V DC potentiometer is included for speed control, with compatibility for demand-based control and BMS integration.
