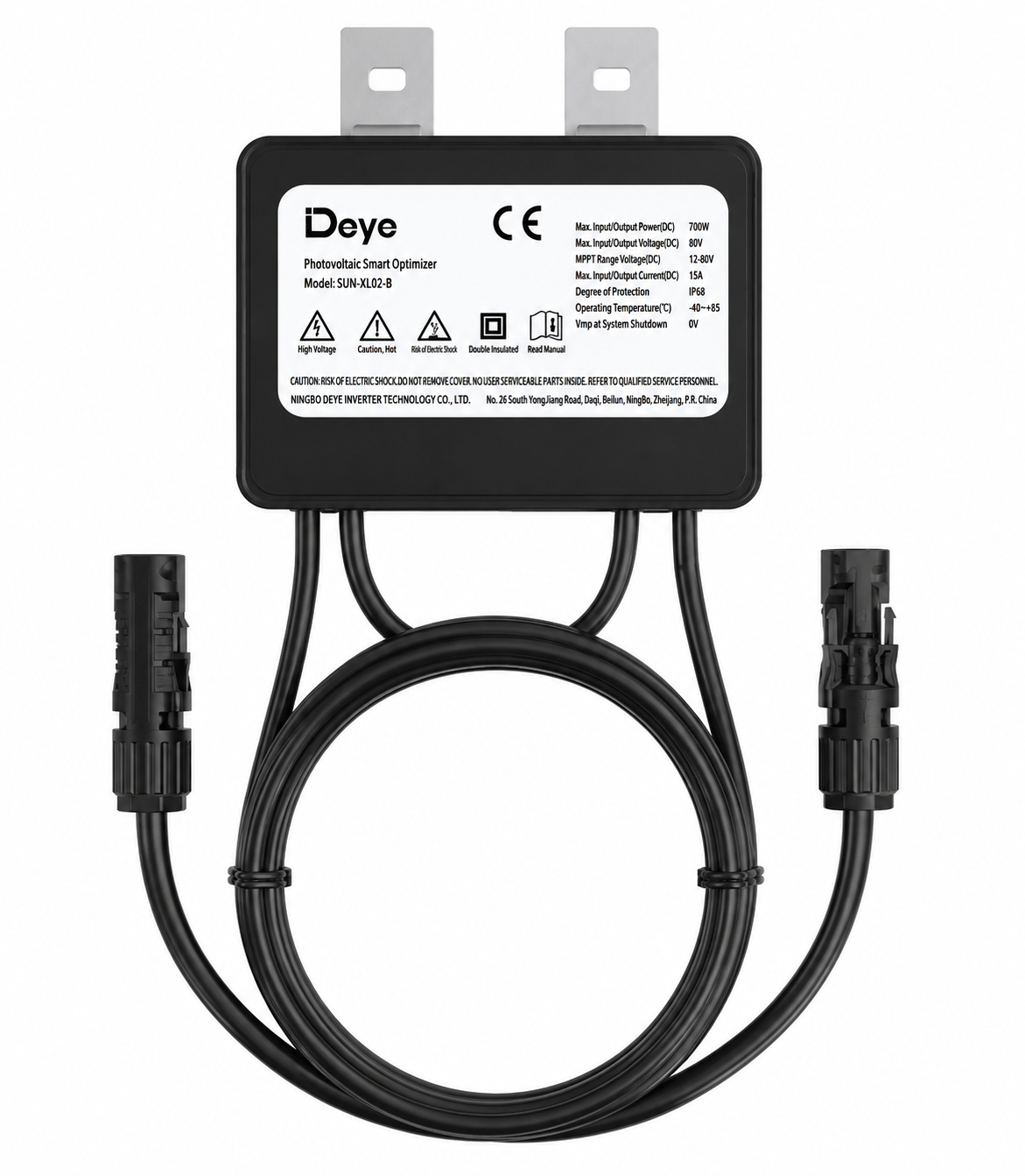

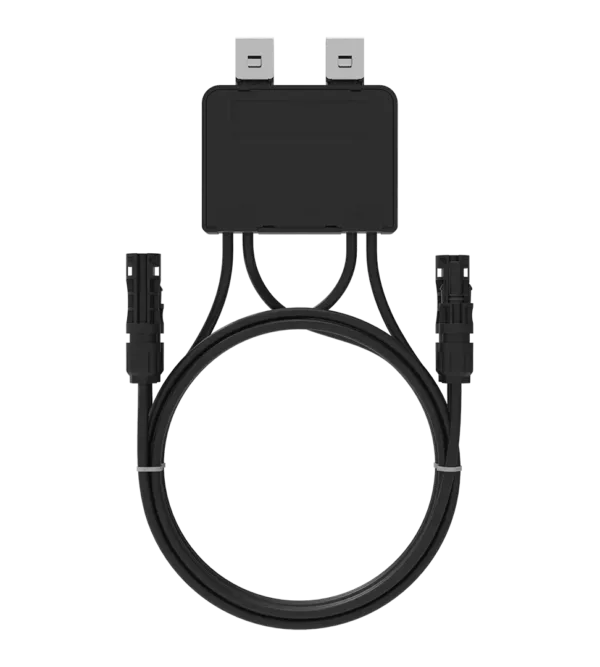

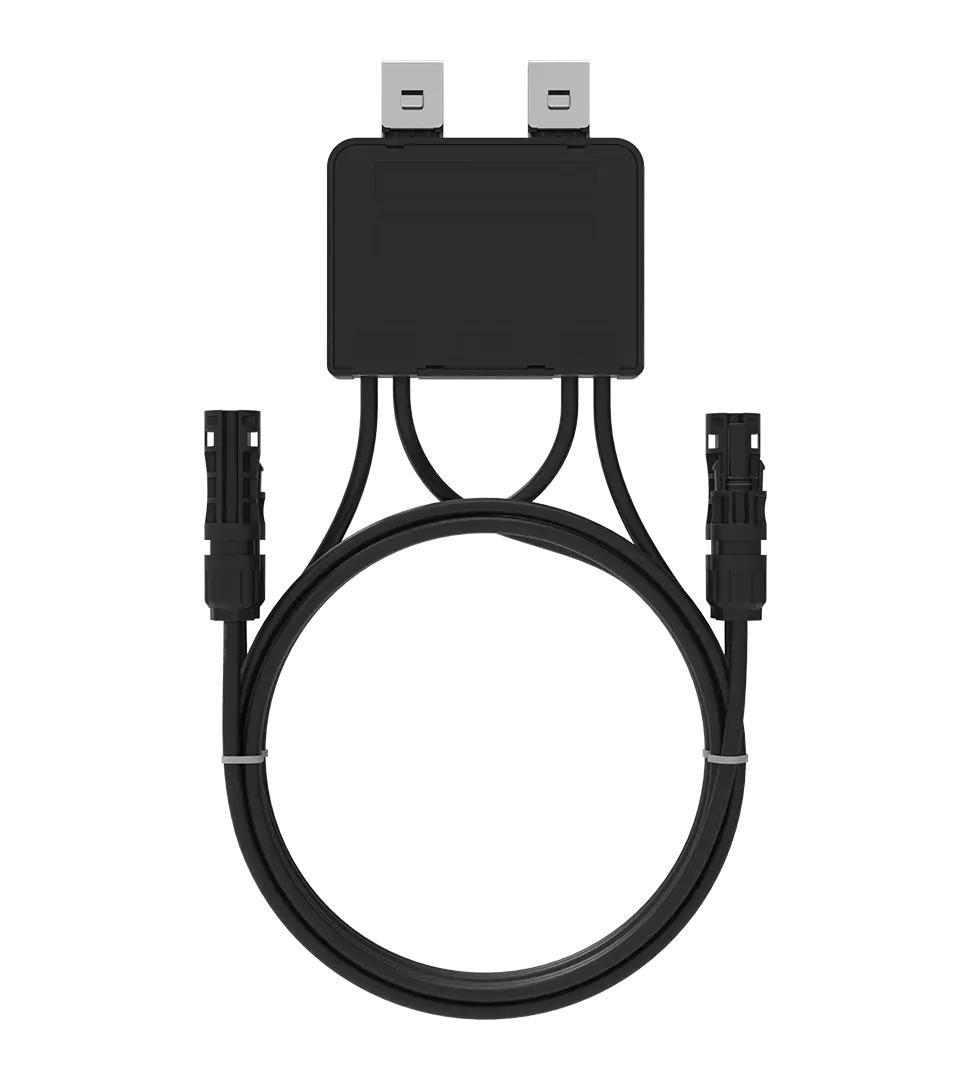

Deye SUN-XL02-B 700W PV Module Optimizer
Roll over image to zoom in
$99.99
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Deye SUN-XL02-B 700W PV Module Optimizer. Module-level MPPT optimisation. Supports PV modules up to 700W. Up to 99.5% peak conversion efficiency. Real-time module-level monitoring*. PLC communication through existing PV cables*. 10-Year Manufacturer Warranty. Fast NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Deye SUN-XL02-B 700W PV Module Optimizer: Genuine Trade Supply
You are viewing the Deye SUN-XL02-B 700W PV Module Optimizer (SKU: SUN-XL02-B-OP). This is a 100 percent genuine Solar Accessories product from our Solar Accessories range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: SUN-XL02-B-OP
Deye SUN-XL02-B 700W PV is a quality component for building and maintaining a safe, efficient solar power system in New Zealand. The small parts matter: this one is built to spec and built to last. Backed by Deye, a proven name in solar technology, and supplied with genuine NZ warranty support.

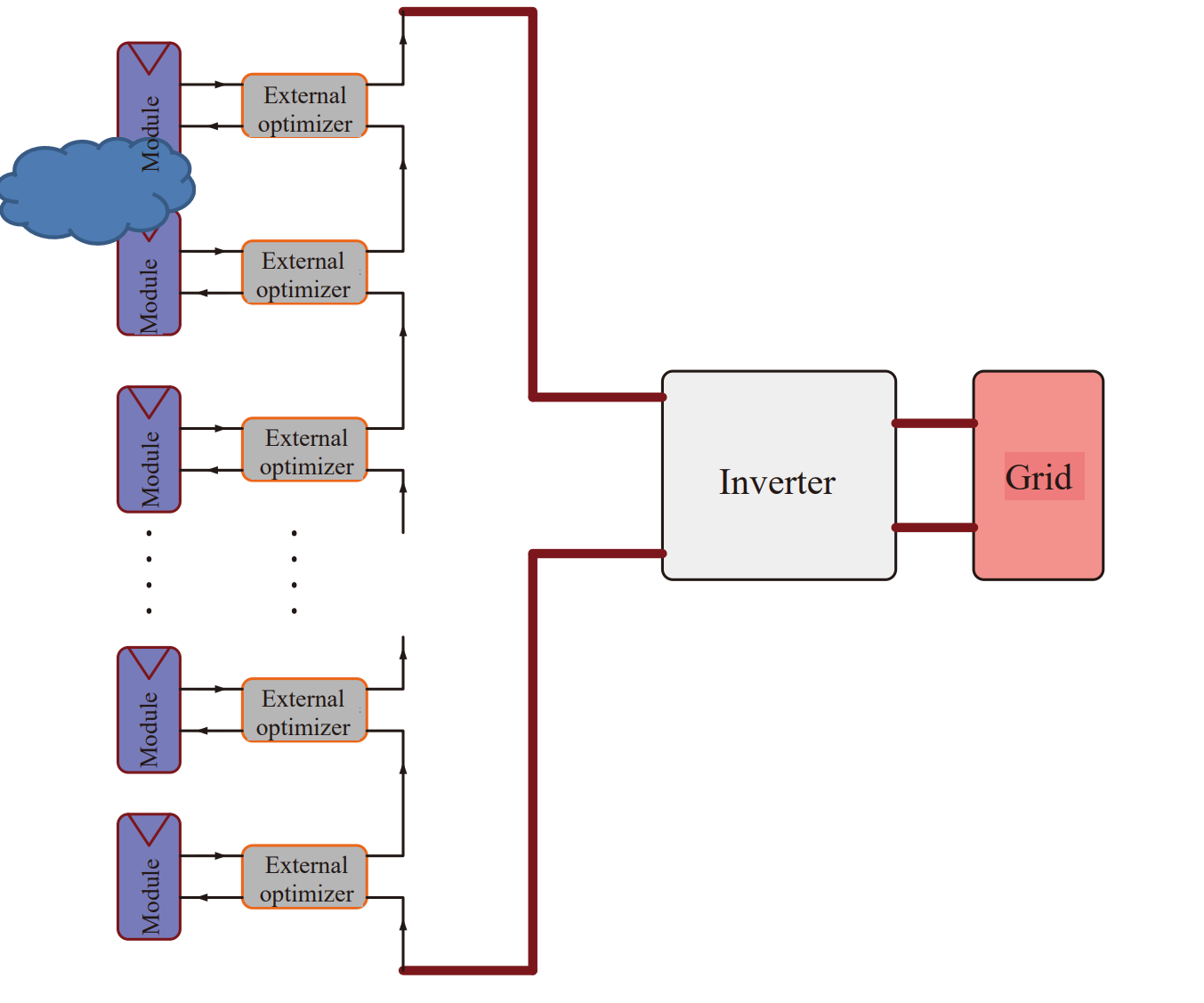

Featuring module-level Maximum Power Point Tracking (MPPT) , the SUN-XL02-B allows each solar panel to operate closer to its individual maximum power point, helping reduce the impact of shading, module mismatch and varying installation conditions.
With support for PV modules up to 700W , a maximum input voltage of 80V , maximum current of 15A , and peak conversion efficiency of 99.5% , it is suitable for modern high-power solar modules.
Key Features
- ✓ Module-level MPPT optimisation
- ✓ Supports PV modules up to 700W
- ✓ Up to 99.5% peak conversion efficiency
- ✓ Real-time module-level monitoring*
- ✓ PLC communication through existing PV cables*
- ✓ Rapid shutdown capability*
- ✓ IP68 protection for outdoor installation
- ✓ MC4 or MC4-compatible connectors
- ✓ Wide operating temperature range from -40°C to +85°C
- ✓ *Module-level platform monitoring and rapid shutdown functions require use with a compatible Deye Optimizer Concentrator, such as the SUN-XL20-B.
- ✓ Meta Description: Deye SUN-XL02-B 700W PV Module Optimizer with module-level MPPT, 99.5% peak efficiency, 80V DC input, 15A current rating, PLC communication and IP68 protection.
- ✓ The Deye SUN-XL02-B is a smart PV module optimizer designed to improve the performance, monitoring and safety of solar PV systems.

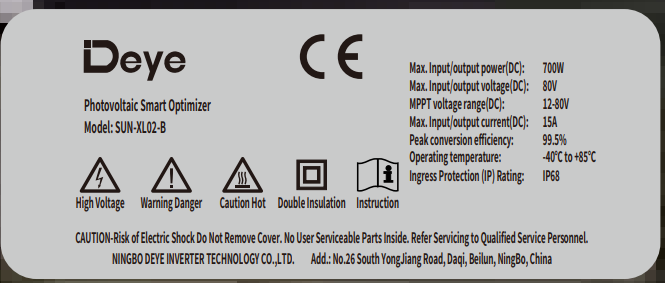

Deye SUN-XL02-B 700W PV: Full Specifications
| Specifications | |
| Brand | Deye Model: SUN-XL02-B Product Type: PV Optimizer / Solar Optimizer |
| Specification | SUN-XL02-B |
| Maximum Input / Output Power | 700W DC |
| Maximum Input / Output Voltage | 80V DC |
| MPPT Voltage Range | 12-80V DC |
| Maximum Input / Output Current | 15A DC |
| Peak Conversion Efficiency | 99.5% |
| Communication | PLC |
| Connector | MC4 / MC4 Compatible |
| Cable | 4.0mm² |
| Input Cable Length | 700mm |
| Output Cable Length | 1000mm |
| Dimensions | 105 × 105 × 22mm |
| Weight | 660g |
| Operating Temperature | 40°C to +85°C |
| Protection Rating | IP68 |
| Certification | CE |
✔ 10-Year Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Deye SUN-XL02-B 700W PV Module Optimizer online today for fast NZ-wide delivery, or get in touch for volume pricing and expert advice on solar accessories and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this SUN-XL02-B-OP matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
The NZ Depot Trade Supply Advantage
🏭
No Showroom Markup
Direct import pricing on every unit we sell. You pay for the product, not the overheads.
🚚
Nationwide Dispatch
From Cape Reinga to Bluff. Routed from the nearest distribution hub for fastest delivery.
Downloads and Documents
Trade and Installation FAQ
Is the Deye SUN-XL02-B 700W PV Module Optimizer suitable for New Zealand conditions?
Yes. The SUN-XL02-B-OP is built to handle New Zealand conditions and is fully supported by the NZ Depot team, with genuine manufacturer warranty cover.
Does this unit require professional installation?
Grid-connected solar systems, hybrid inverters and EV chargers must be wired in by a licensed New Zealand electrician. Portable panels, batteries and 12V accessories are plug-and-play, so no installer is needed.
How fast is delivery on the SUN-XL02-B-OP?
Orders are dispatched quickly from local stock wherever possible, with delivery to most urban addresses in 2 to 5 working days and rural addresses shortly after. You will receive tracking as soon as it ships.
Looking for the best price on the Deye SUN-XL02-B 700W PV? NZ Depot supplies the Deye SUN-XL02-B 700W PV New Zealand wide with fast dispatch, trade pricing and genuine manufacturer warranty support. Compare the Deye SUN-XL02-B 700W PV Module Optimizer with the rest of the Solar Accessories range, check the full specifications above, and order the Deye SUN-XL02-B 700W PV online today or request a trade quote for volume supply.
