Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase Hybrid Inverter
Roll over image to zoom in
$9,329.99$9,999.00 (-7%)
🏆 Best Price Guaranteed*
🏆 Best Price Guaranteed*
Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase Hybrid Inverter. 30kW output. High-voltage battery design for higher system efficiency. AC coupling for retrofitting an existing solar system. Up to 10 inverters in parallel for on-grid and off-grid operation. Supports multiple batteries in parallel. 10-Year Manufacturer Warranty. Fast NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase Hybrid Inverter: Genuine Trade Supply
You are viewing the Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase Hybrid Inverter (SKU: SUN-30K-SG01HP3-AU-BM3). This is a 100 percent genuine Hybrid Inverters product from our Solar Inverters range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: SUN-30K-SG01HP3-AU-BM3
Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase is a reliable solar inverter engineered for New Zealand installations, offering 30kW of output. It converts stored and generated energy into clean, stable power for your appliances, with strong protection features built in. Backed by Deye, a proven name in solar technology, and supplied with genuine NZ warranty support.
The Deye SUN-30K-SG01HP3-AU-BM3 is a 30kW three-phase hybrid inverter for high-voltage lithium-ion battery systems. It provides three MPPT trackers, dual battery inputs and support for on-grid and off-grid operation.
Key Features
- ✓ High-voltage battery design for higher system efficiency
- ✓ AC coupling for retrofitting an existing solar system
- ✓ Up to 10 inverters in parallel for on-grid and off-grid operation
- ✓ Supports multiple batteries in parallel
- ✓ Six configurable battery charging and discharging time periods
- ✓ Maximum combined charging/discharging current: 100A (50A + 50A)
- ✓ Supports energy storage from a diesel generator
- ✓ Installation and grid connection must follow the manufacturer’s instructions and applicable local requirements.

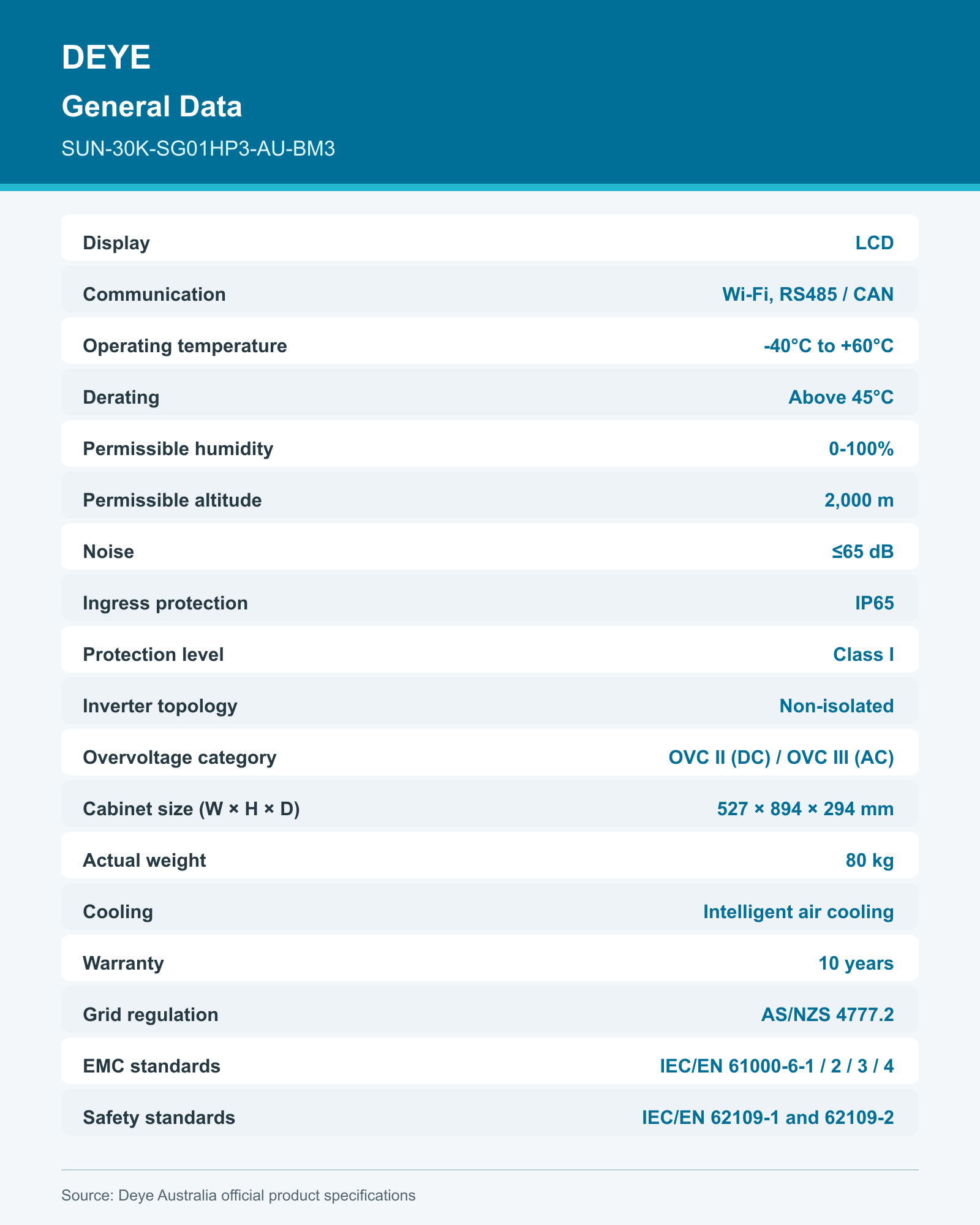

Deye SUN-30K-SG01HP3-AU-BM3 30kW Three-Phase: Full Specifications
| Specifications | |
| Model | SUN-30K-SG01HP3-AU-BM3 |

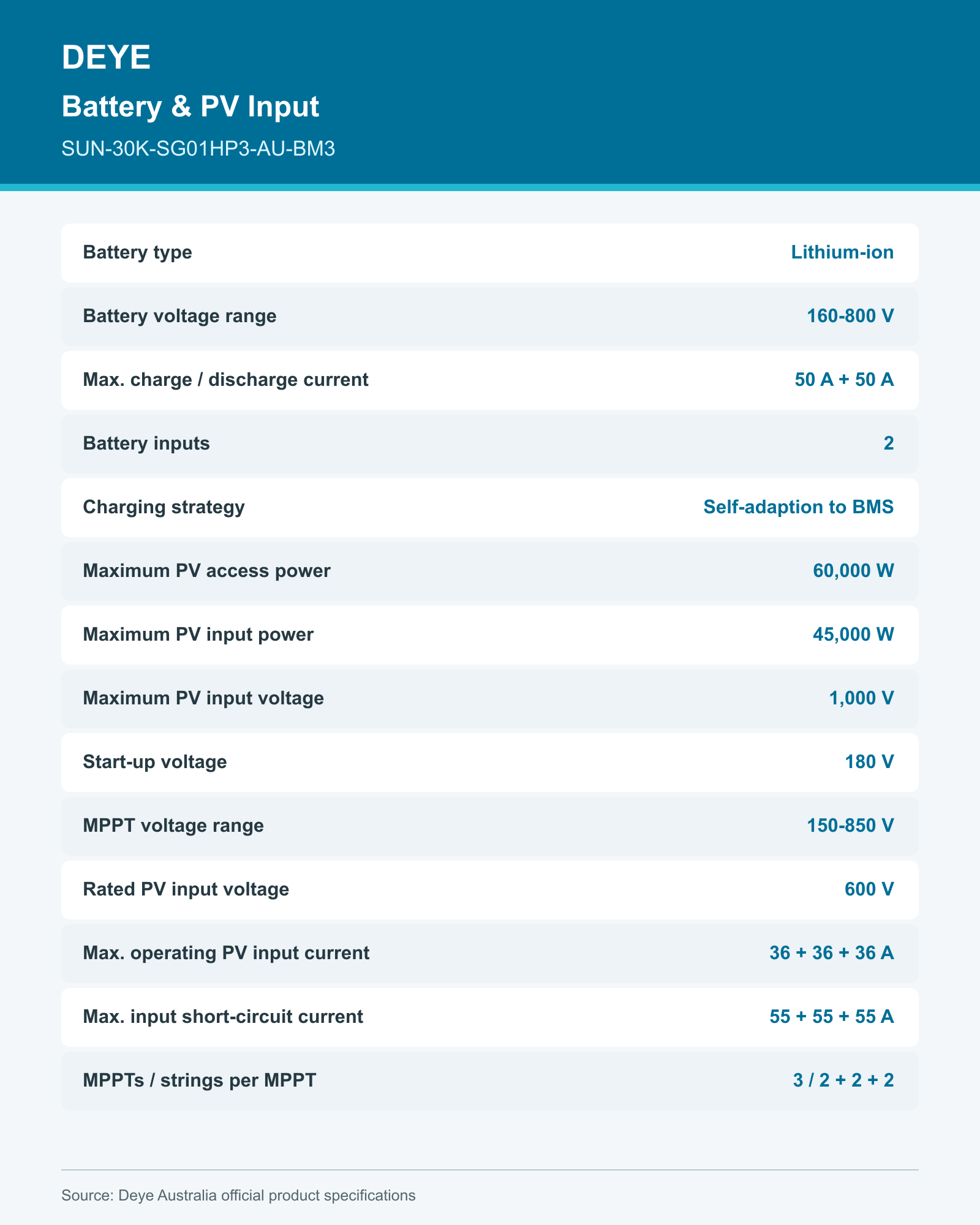

| Battery type | Lithium-ion |
| Battery voltage range | 160-800V |
| Maximum charging/discharging current | 50A + 50A |
| Battery inputs | 2 |
| Charging strategy | Self-adaption to BMS |
| Maximum PV access power | 60,000W |
| Maximum PV input power | 45,000W |
| Maximum PV input voltage | 1,000V |
| Start-up voltage | 180V |
| MPPT voltage range | 150-850V |
| Rated PV input voltage | 600V |
| Maximum operating PV input current | 36A + 36A + 36A |
| Maximum input short-circuit current | 55A + 55A + 55A |
| MPPT trackers / strings per tracker | 3 / 2 + 2 + 2 |

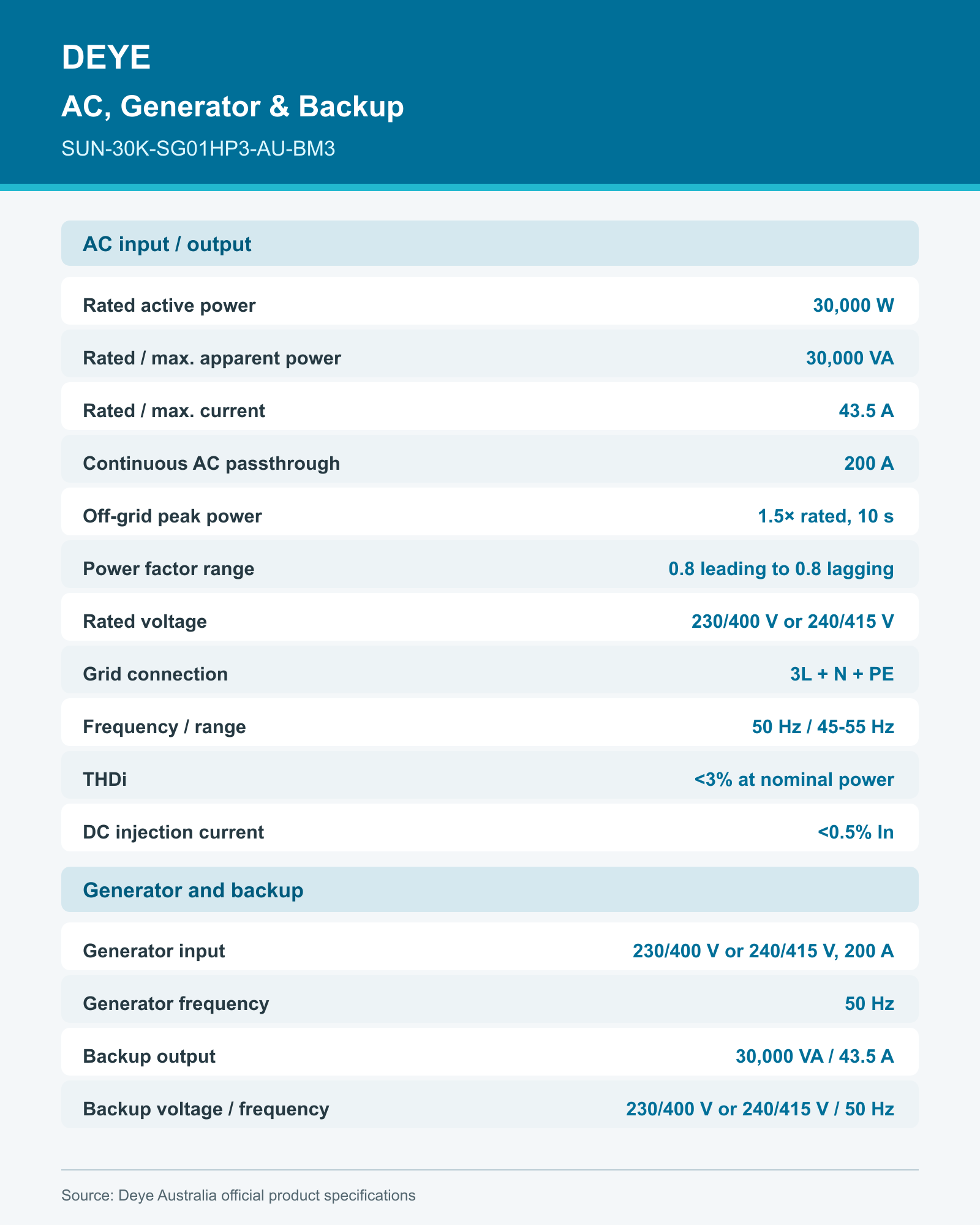

| Rated active power | 30,000W |
| Rated/maximum apparent power | 30,000VA |
| Rated/maximum current | 43.5A |
| Maximum continuous AC passthrough (grid to load) | 200A |
| Off-grid peak power | 1.5 times rated power for 10 seconds |
| Rated voltage | 230/400V or 240/415V, 3L + N + PE |
| Rated frequency/range | 50Hz / 45-55Hz |
| Power factor adjustment | 0.8 leading to 0.8 lagging |
| Total current harmonic distortion | <3% at nominal power |

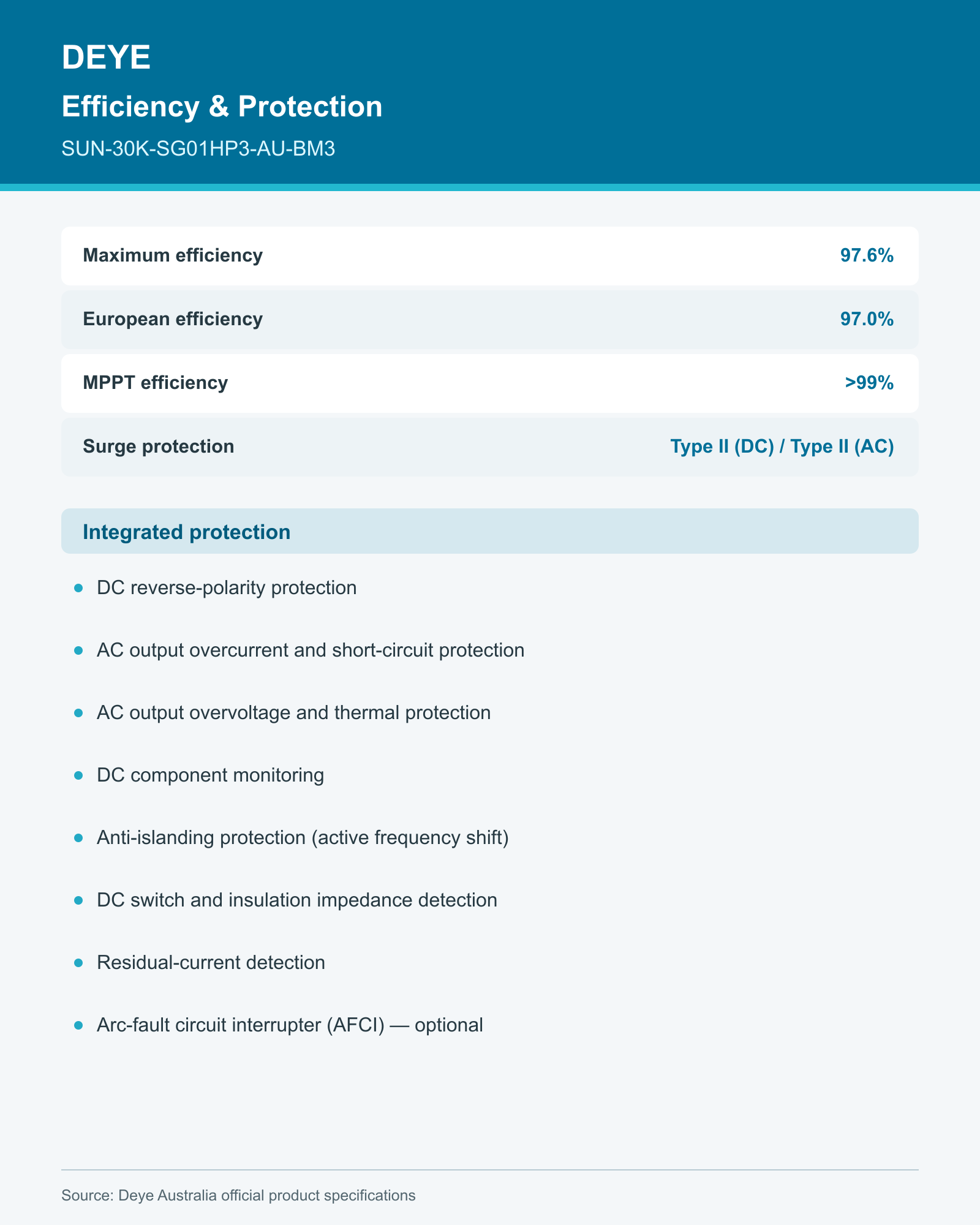

| Maximum efficiency | 97.6% |
| European efficiency | 97.0% |
| MPPT efficiency | >99% |
| Ingress protection | IP65 |
| Dimensions (W × H × D) | 527 × 894 × 294mm, excluding connectors and brackets |
| Actual weight | 80 kg |
| Operating temperature | 40°C to +60°C, derating above 45°C |
| Permissible humidity | 0-100% |
| Permissible altitude | 2,000m |
| Noise | ≤65dB |
| Cooling | Intelligent air cooling |
| Display and communications | LCD; Wi-Fi, RS485 and CAN |
| Surge protection | Type II (DC), Type II (AC) |
| Grid regulation | AS/NZS 4777.2 |
✔ 10-Year Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
