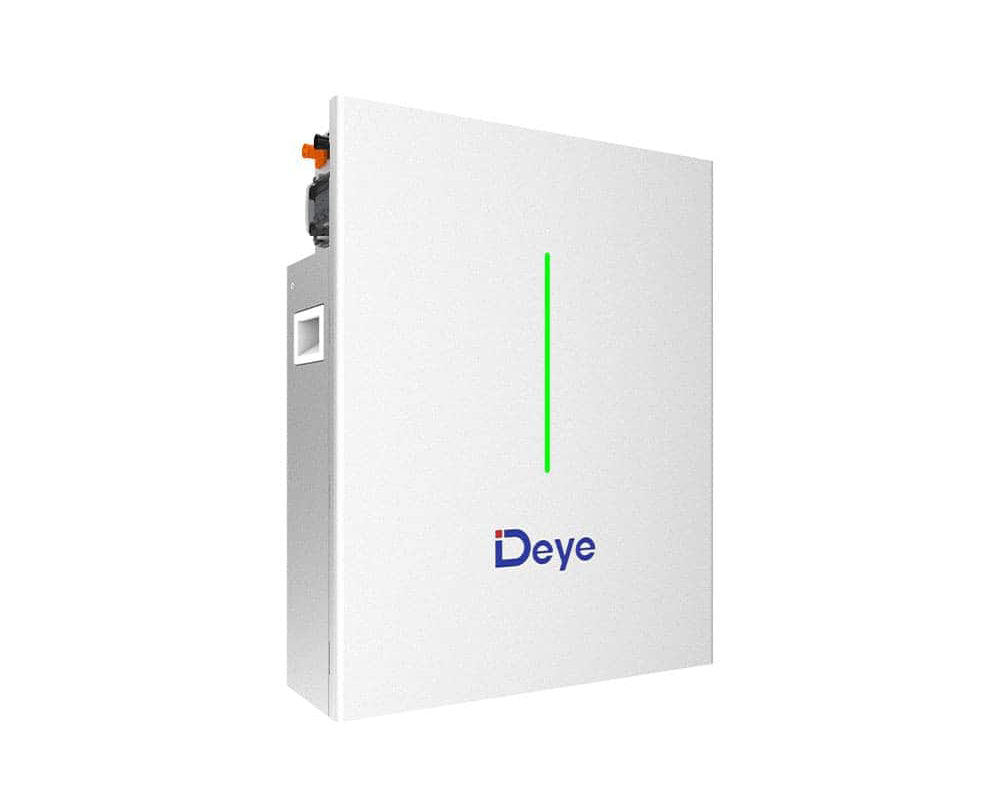

Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage
Roll over image to zoom in
$6,339.99
Price Match*
Price Match*
Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage. 16kWh storage. High-Capacity LiFePO4 Energy Storage. Safe and Reliable Battery Design. Flexible Expansion. High Charge and Discharge Performance. 10-Year Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage: Genuine Trade Supply
You are viewing the Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage (SKU: RW-F16). This is a 100 percent genuine Lithium LiFePO4 Batteries product from our Solar Batteries range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: RW-F16
Deye RW-F16 LiFePO4 Battery is a heavy-duty deep cycle battery built for solar storage, RV, marine and off-grid use across New Zealand, offering 16kWh of storage. Designed for thousands of charge cycles, it delivers dependable power day after day. Backed by Deye, a proven name in solar technology, and supplied with genuine NZ warranty support.
The Deye RW-F16 is a 51.2V, 16kWh LiFePO4 energy-storage battery built for reliable residential and commercial solar systems. It combines a long-life lithium iron phosphate chemistry with an integrated BMS and a wide operating-voltage range for dependable daily cycling.

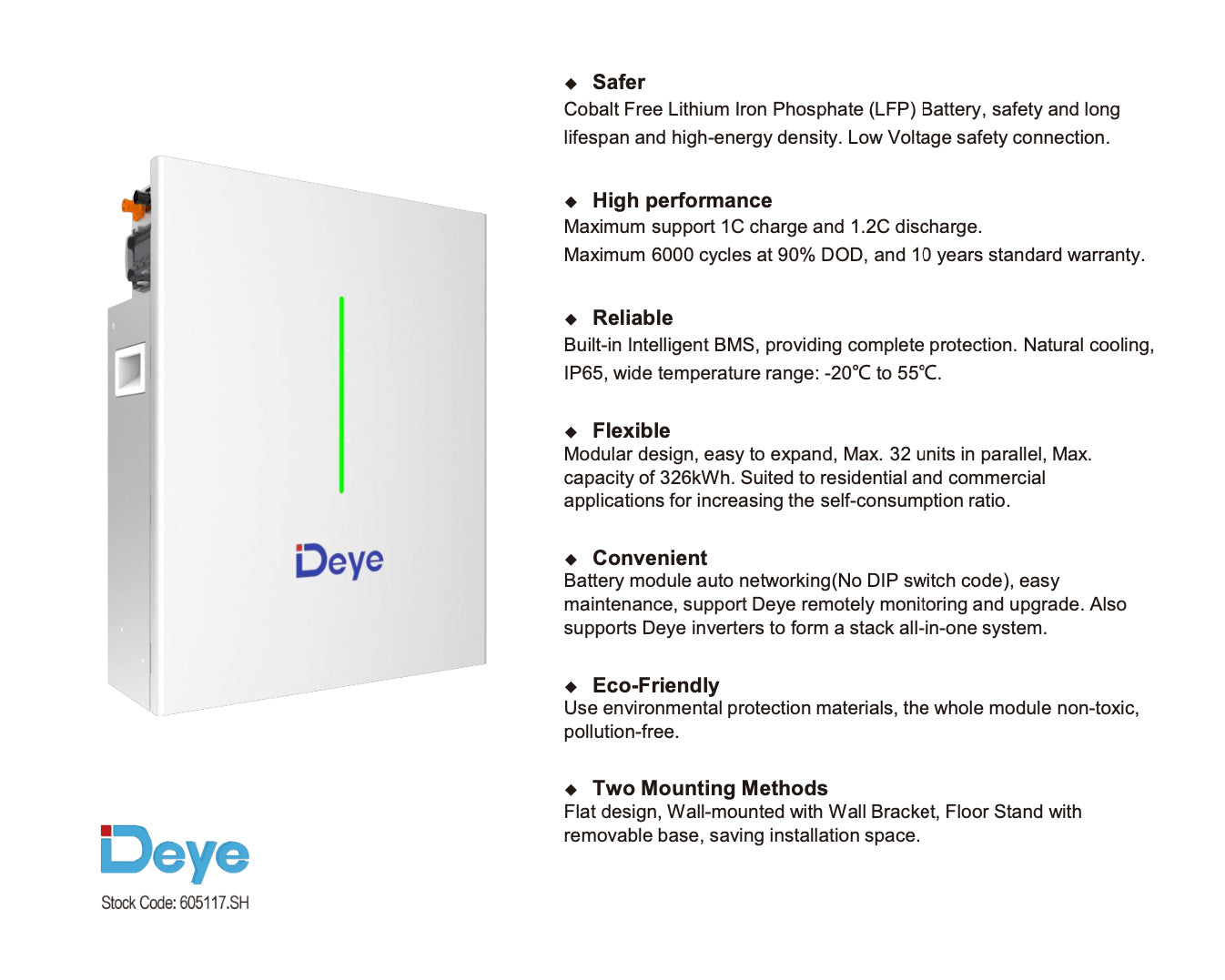

Key Features
- ✓ High-Capacity LiFePO4 Energy Storage
- ✓ Deye RW-F16 uses safe Lithium Iron Phosphate (LiFePO4) chemistry with a nominal energy of 16kWh and 14.4kWh usable energy at 90% DOD.
- ✓ Safe and Reliable Battery Design
- ✓ Built-in 125A 2P 60Vdc circuit breaker and intelligent battery system design. Low-voltage 51.2V battery platform for residential energy storage applications.
- ✓ Flexible Expansion

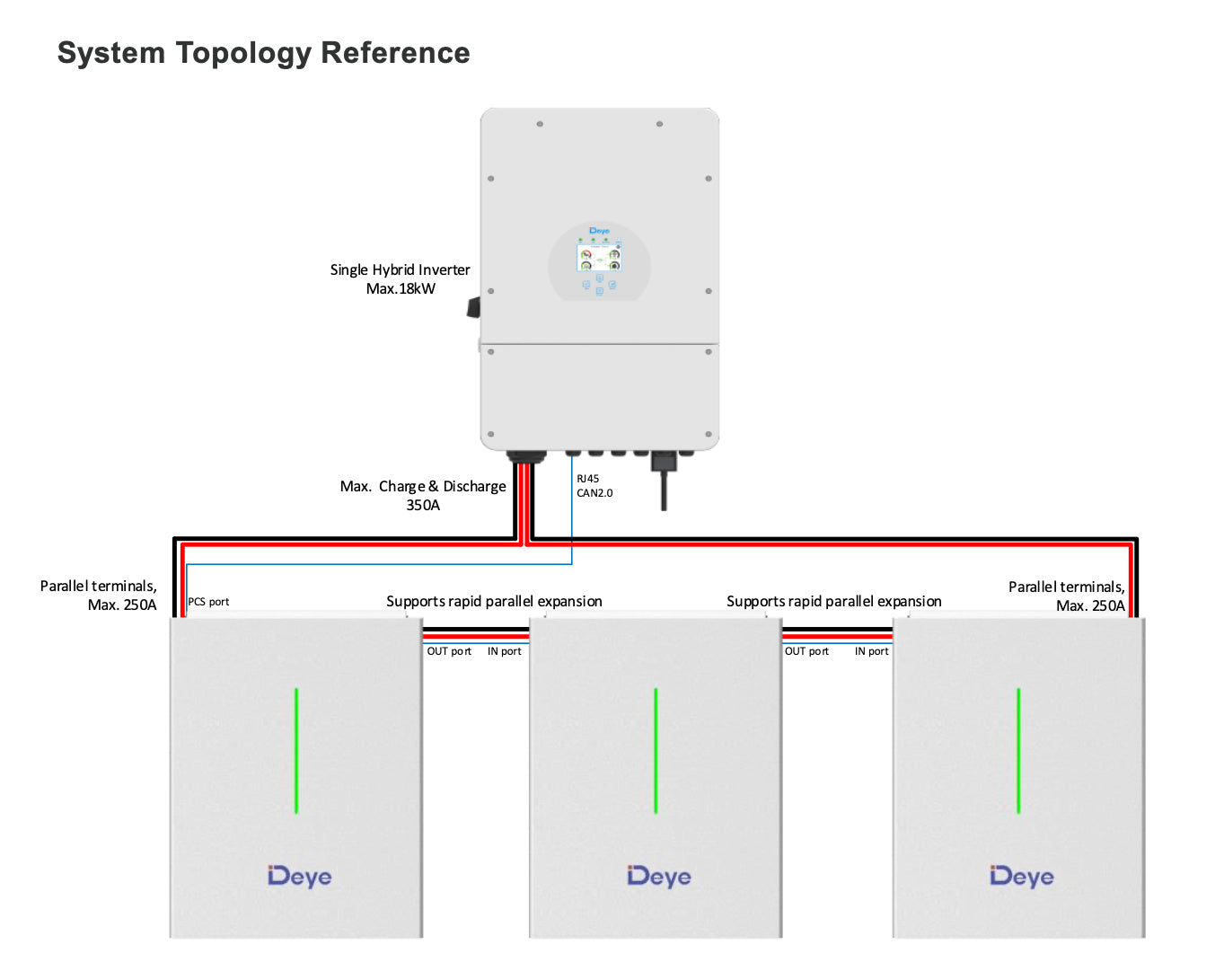

- ✓ Supports up to 32 battery packs in parallel, providing a maximum system capacity of up to 512kWh.
- ✓ High Charge and Discharge Performance
- ✓ Supports 160A continuous charge/discharge current and 300A peak charge/discharge current for 10 seconds.
- ✓ Easy Installation and Monitoring

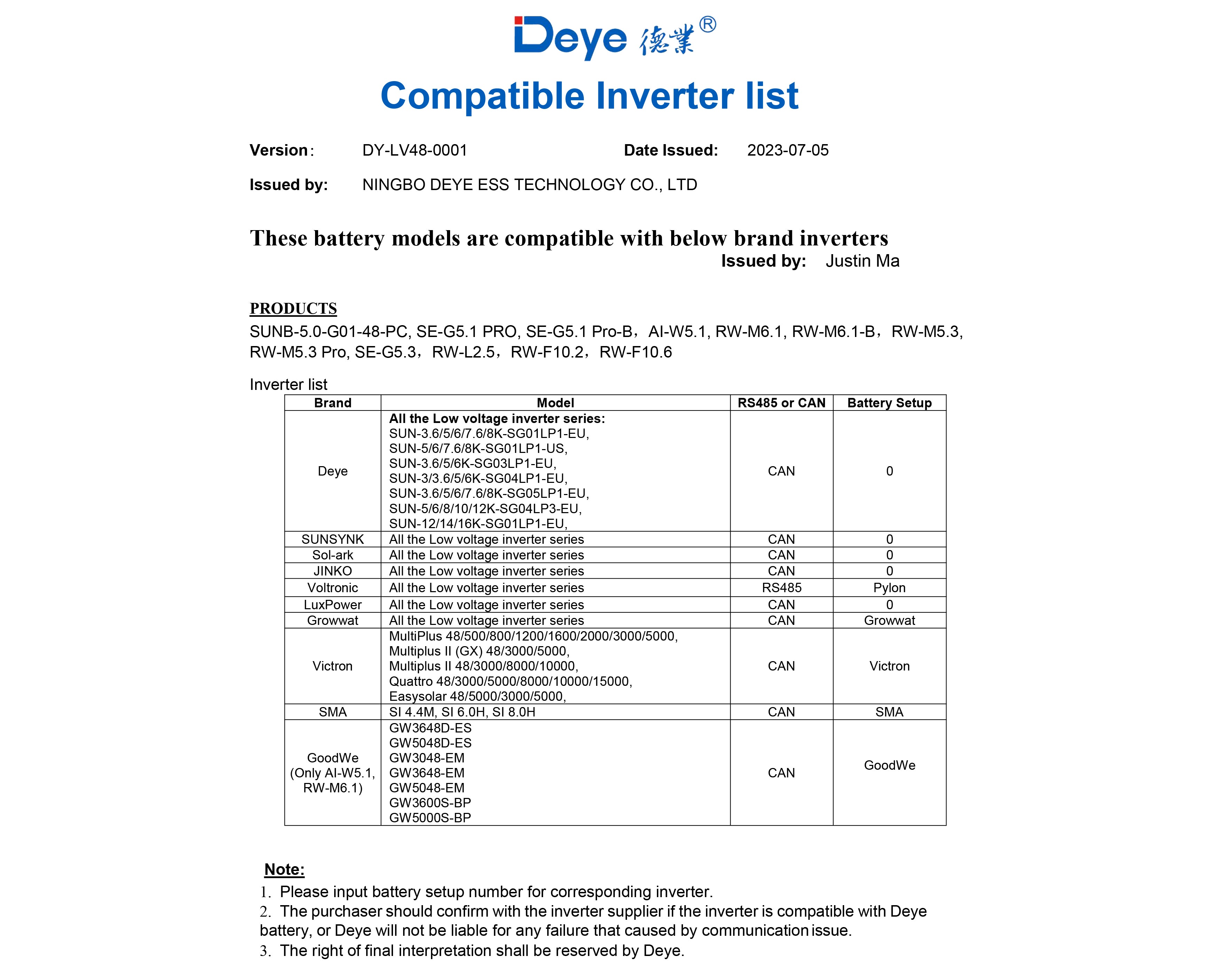

- ✓ Wall-mounted or floor-mounted installation. LED indicator shows SOC and working status. Communication ports include CAN2.0 and RS485 for compatible inverter systems.

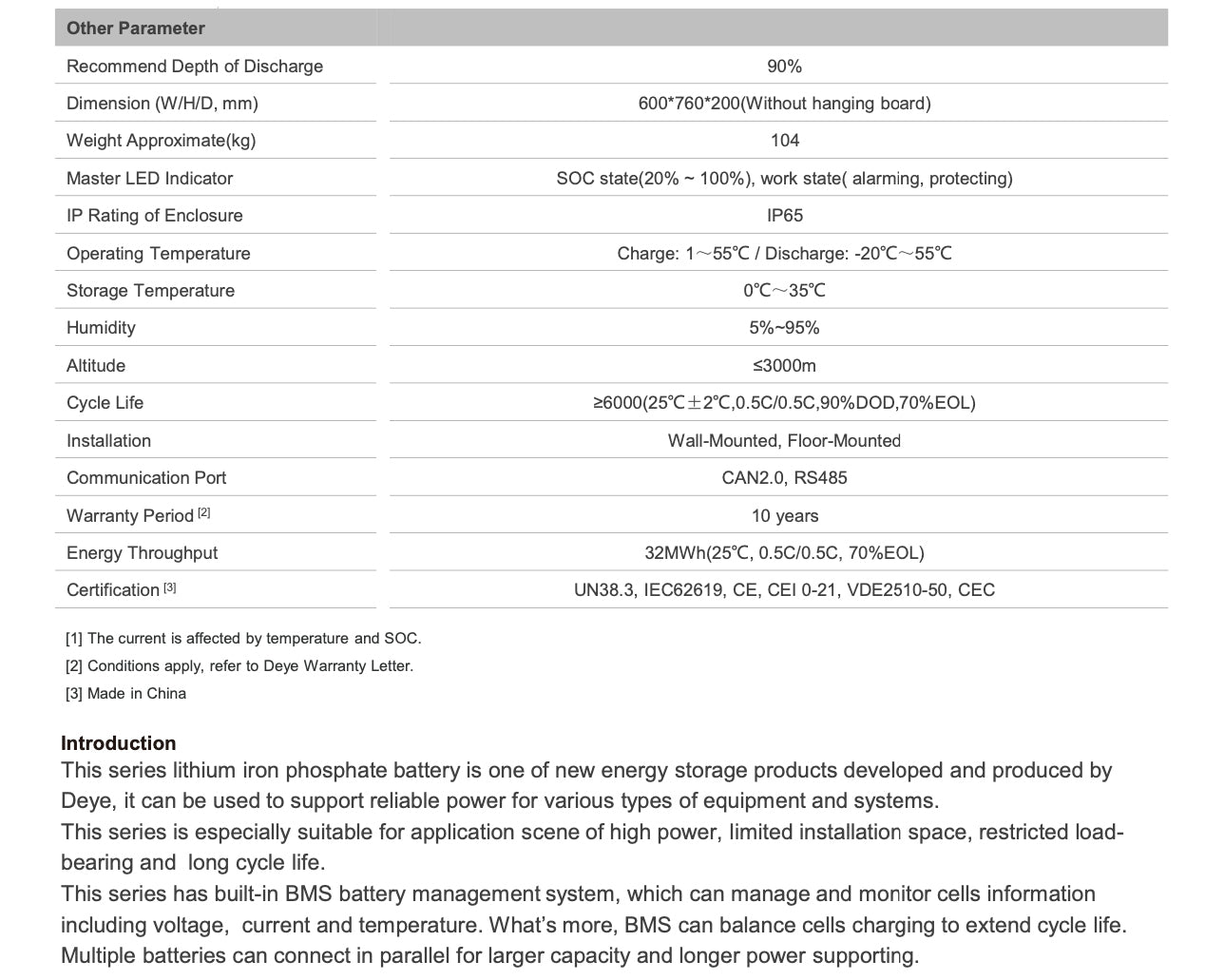

Deye RW-F16 LiFePO4 Battery: Full Specifications
| Specifications | |
| Model | RW-F16 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8V ~ 57.6V |
| Capacity | 314Ah |
| Nominal Energy | 16kWh |
| Usable Energy | 14.4kWh @ 90% DOD |
| Scalability | Up to 32 packs in parallel, max. 512kWh |
| Charge/Discharge Current | 160A continuous; 300A peak for 10 sec |
| Recommended Depth of Discharge | 90% |

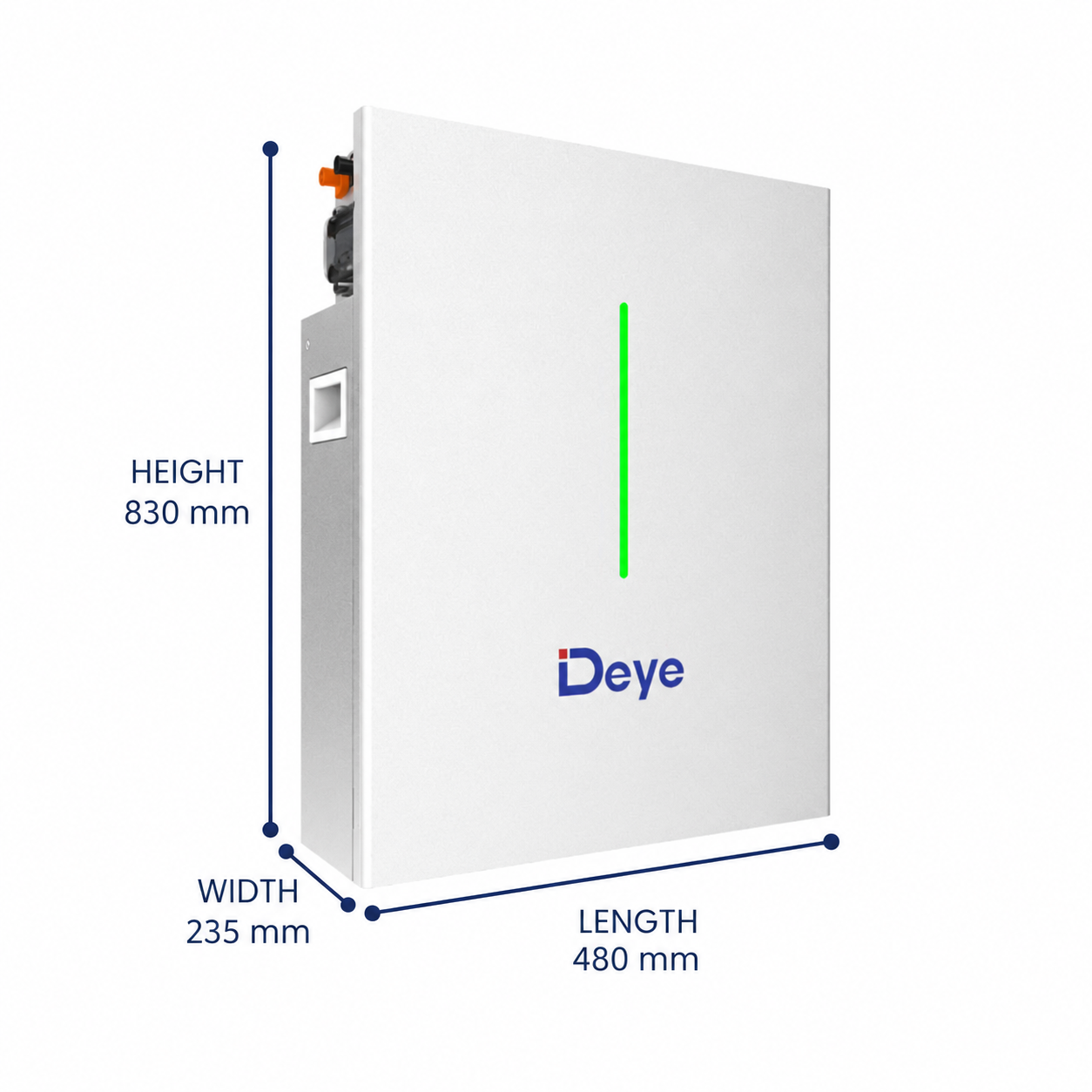

| Dimensions | 480mm (W) x 830mm (H) x 235mm (D), without hanging board and base |
| Weight | Approx. 122kg |
| IP Rating | IP20 |
| Operating Temperature | Charge 0°C ~ 55°C; Discharge -20°C ~ 55°C |
| Recommended Operating Temperature | 15°C ~ 35°C |
| Storage Temperature | 0°C ~ 35°C |
| Relative Humidity | 95% |
| Altitude | ≤2000m |
| Cycle Life | ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90% DOD, 70% EOL |
| Installation | Wall-mounted or floor-mounted |
| Communication Port | CAN2.0, RS485 |
| Energy Throughput | 26.25 / 52.5MWh |
| Certification | UN38.3, MSDS |
✔ 10-Year Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar batteries and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this RW-F16 matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
