Deye DL1000B-ETH Ethernet Data Logger for Remote Inverter Monitoring
$78.90$99.00 (-20%)
Price Match*
Price Match*
Deye DL1000B-ETH Ethernet Data Logger for Remote Inverter Monitoring. Ethernet data logger for Deye inverter monitoring through Deye Cloud. 10/100 Mbps Ethernet with up to 100 m direct communication range. Plug-and-play connection to the inverter communication interface. One-minute default data refresh interval. Bluetooth BLE local mode for on-site data access and setup. 1-Year Manufacturer Warranty. NZ-wide delivery from NZ Depot.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Deye DL1000B-ETH Ethernet Data Logger for Remote Inverter Monitoring: Genuine Trade Supply
You are viewing the Deye DL1000B-ETH Ethernet Data Logger for Remote Inverter Monitoring (SKU: DL1000B-ETH). This is a 100 percent genuine Solar Inverters product from our Solar Inverters range, chosen for New Zealand homes, baches, vehicles and off-grid sites. Every unit carries a full New Zealand warranty and is backed by NZ Depot support.
Product Details: DL1000B-ETH
Deye DL1000B-ETH Ethernet Data is a reliable solar inverter engineered for New Zealand installations. It converts stored and generated energy into clean, stable power for your appliances, with strong protection features built in. Backed by Deye, a proven name in solar technology, and supplied with genuine NZ warranty support.

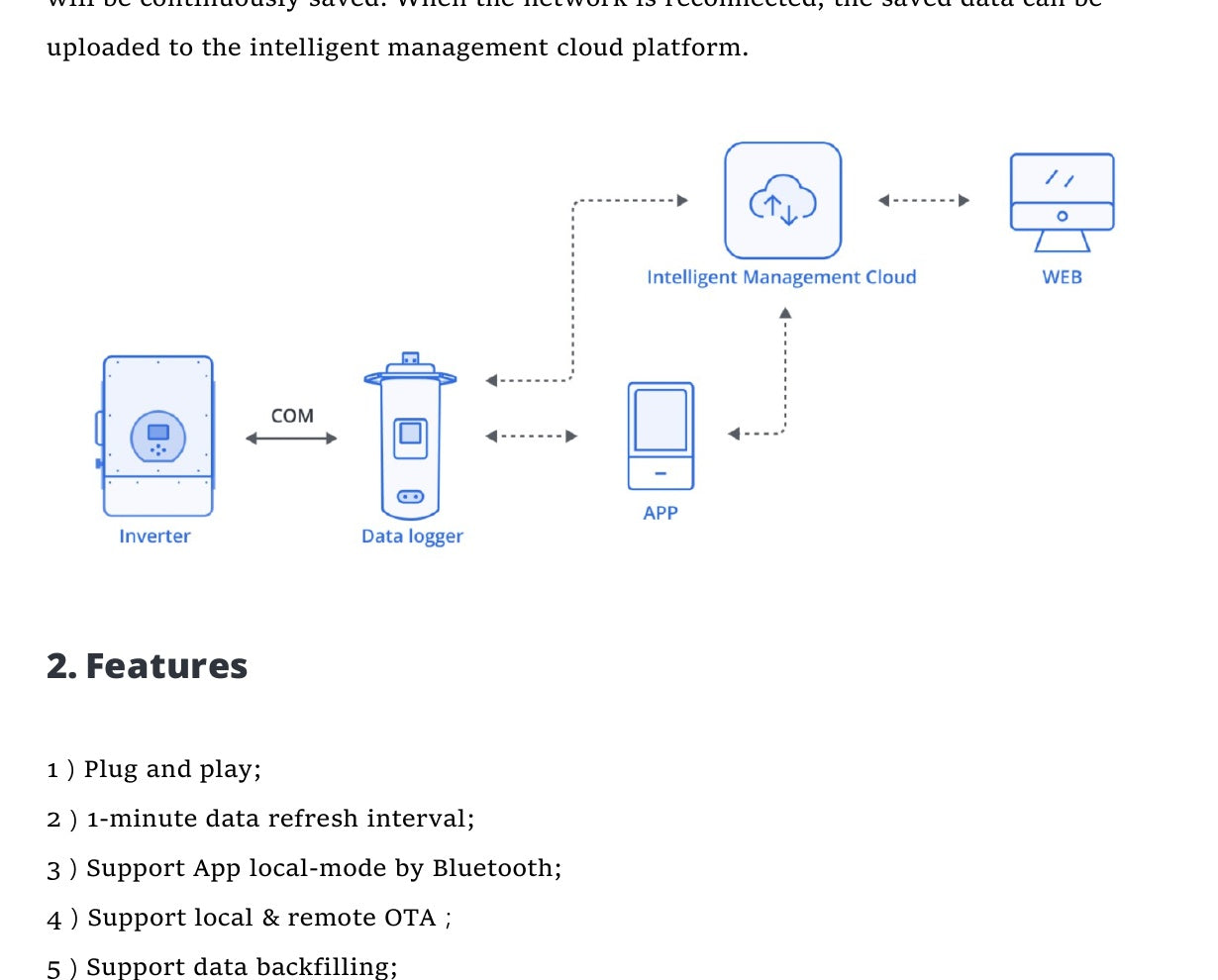

The Deye DL1000B-ETH is an Ethernet data logger for remote monitoring and management of compatible Deye inverter systems. Its plug-and-play connection, 10/100Mbps Ethernet interface and regular cloud data updates provide convenient access to system performance information.
Key Features
- ✓ Ethernet data logger for Deye inverter monitoring through Deye Cloud
- ✓ 10/100 Mbps Ethernet with up to 100 m direct communication range
- ✓ Plug-and-play connection to the inverter communication interface
- ✓ One-minute default data refresh interval
- ✓ Bluetooth BLE local mode for on-site data access and setup
- ✓ Supports Modbus command transparent transmission and custom configuration
- ✓ Local and remote OTA firmware upgrades
- ✓ Remote inverter parameter adjustment and debugging
- ✓ Automatic data backfilling after network interruption
- ✓ Encrypted transmission and IP65 protection

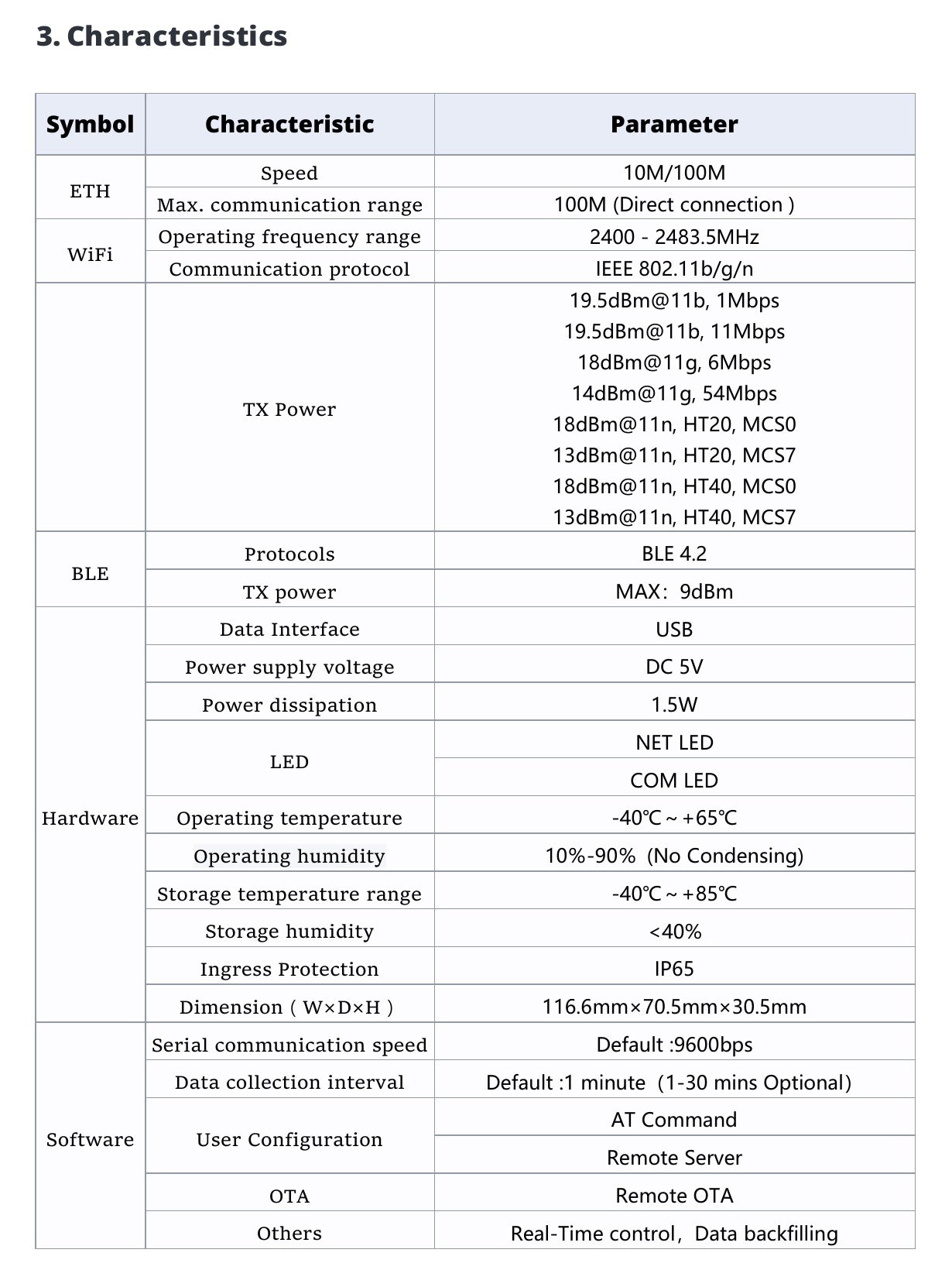

Deye DL1000B-ETH Ethernet Data: Full Specifications
| Specifications | |
| Model | DL1000B-ETH |
| Version | V1.0 |
| Ethernet speed | 10M / 100M |
| Maximum Ethernet communication range | 100 m direct connection |
| Built-in configuration ports | TCP 80 and Modbus TCP 502 |
| Bluetooth protocol | BLE 4.2 |
| Maximum BLE transmit power | 9 dBm |
| Data interface | USB |
| Power supply | DC 5 V |
| Power consumption | 1.5 W |
| Input requirement | DC 5 V, at least 2.5 W |
| Indicators | NET LED and COM LED |
| Operating temperature | 40°C to +65°C |
| Operating humidity | 10%-90%, non-condensing |
| Storage temperature | 40°C to +85°C |
| Ingress protection | IP65 |

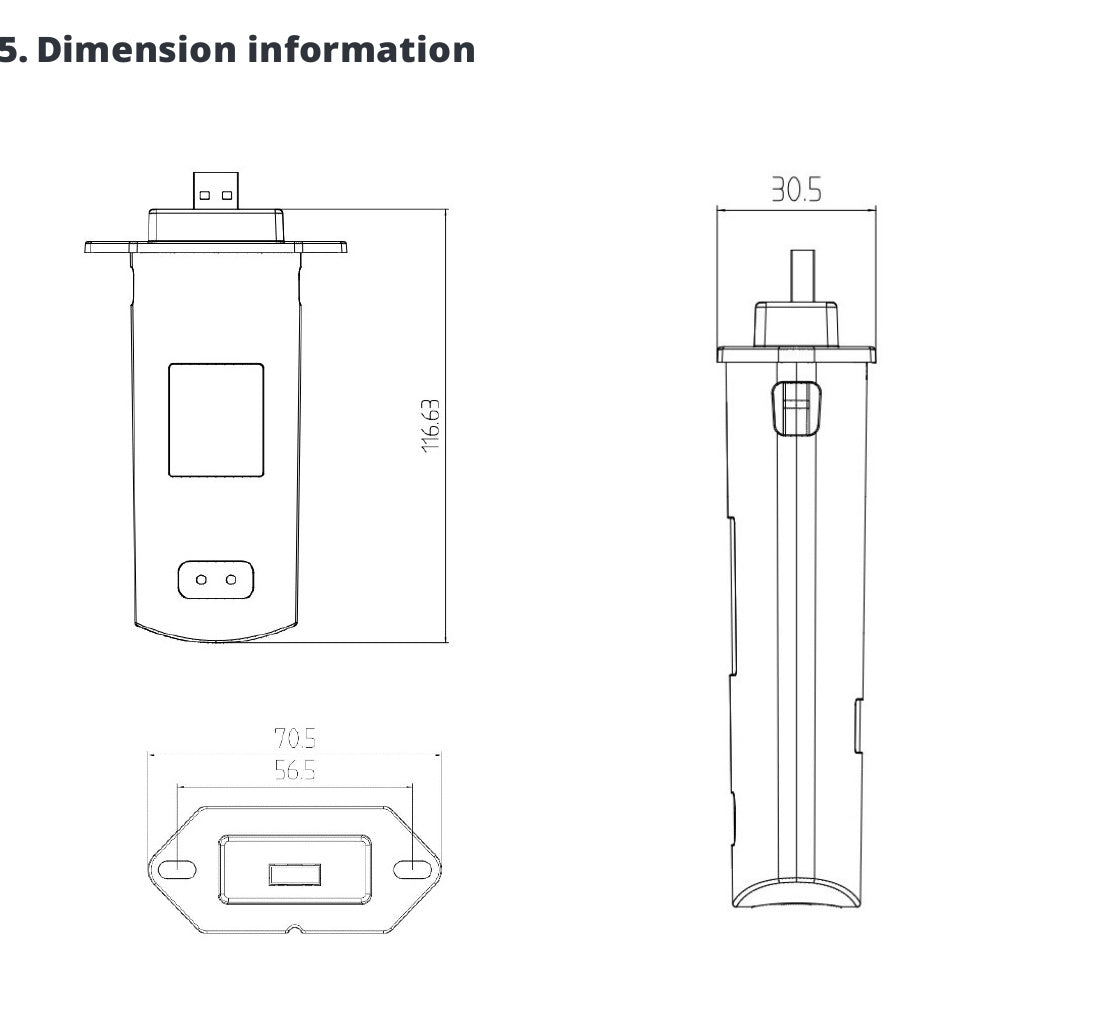

| Dimensions (W × D × H) | 116.6 × 70.5 × 30.5 mm |
| Serial communication speed | Default 9600 bps |
| Data collection interval | Default 1 minute, configurable from 1-30 minutes |
| Other functions | Real-time control, remote server configuration and data backfilling |
✔ 1-Year Manufacturer Warranty with full New Zealand support from NZ Depot. Questions? Talk to our team.
Order the Deye DL1000B-ETH Ethernet Data Logger for Remote Inverter Monitoring online today for NZ-wide delivery, or get in touch for volume pricing and expert advice on solar inverters and complete solar systems. NZ Depot ships solar equipment to Auckland, Wellington, Christchurch and everywhere in between.
Need advice or a package deal? Contact NZ Depot or browse more solar power and energy deals at NZ Depot.
Pro Tip: Ensure this DL1000B-ETH matches your installation. Sourced through official New Zealand supply channels for full compatibility and manufacturer warranty.
Downloads and Documents
Browse the full range of Solar Power available for NZ-wide trade and retail supply.
© 2026 NZ Depot Limited. All Rights Reserved. | 100% NZ Owned and Operated. | Your Solar Power Supply Specialists.
Additional information
| Weight | 18 kg |
|---|---|
| Dimensions | 30 × 116 × 70 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Series | |
| Unit Type |
