Danfoss Solenoid Valve, Ev220B, Function: Nc, G, 1/2, 1.5 Mâ³/H, Epdm: Commercial Grade Reliability

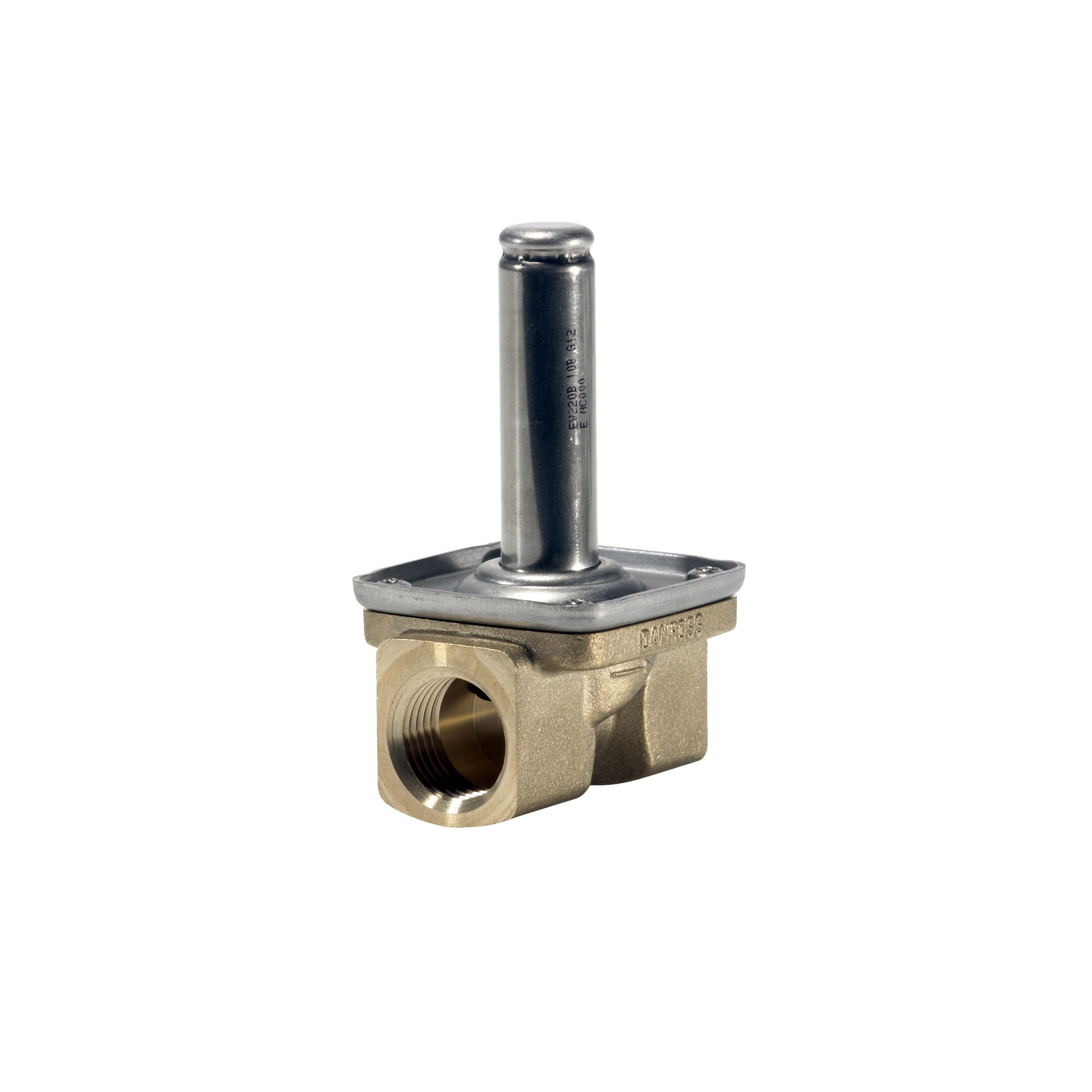

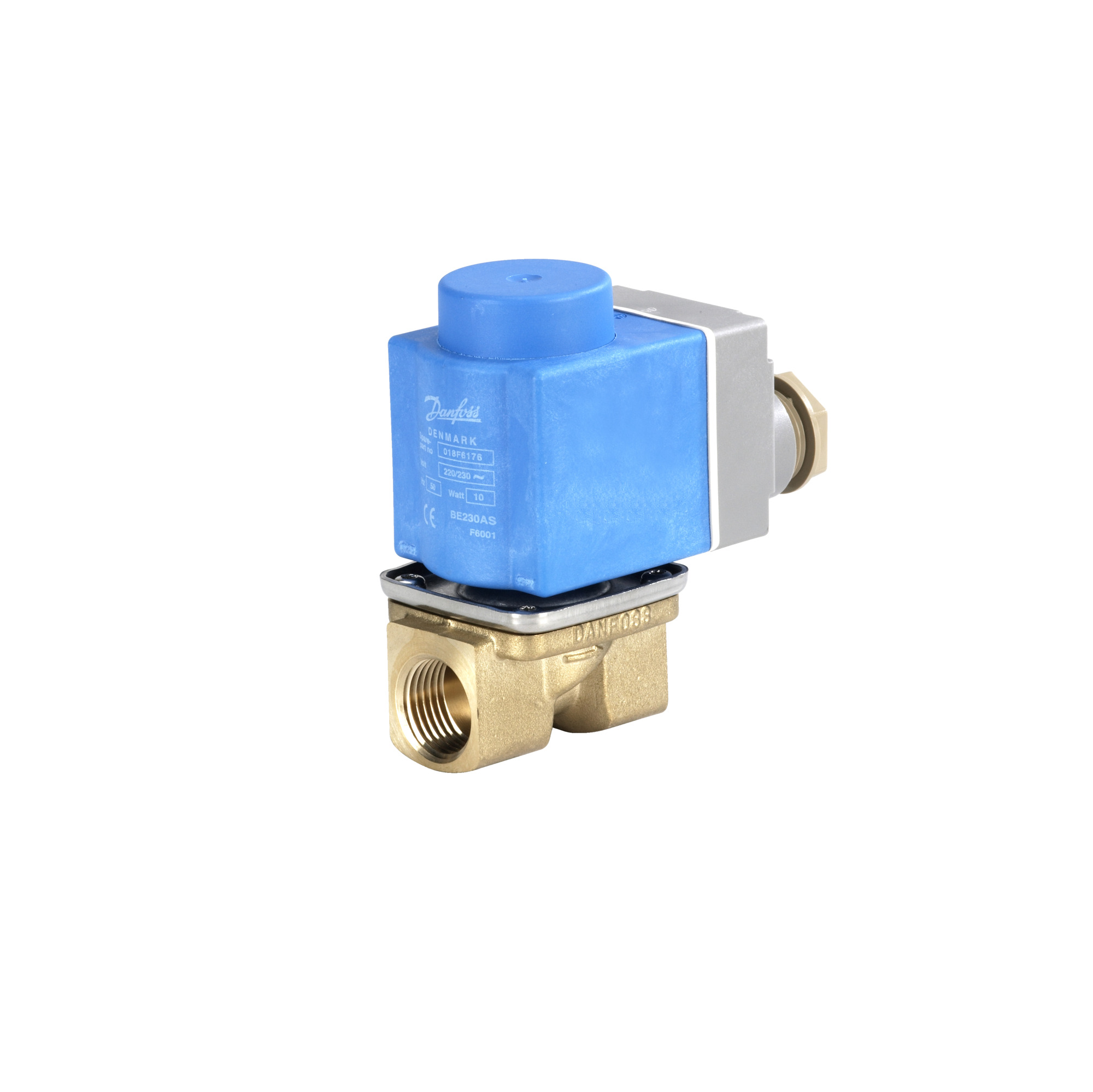

You are viewing the Danfoss Solenoid Valve, Ev220B, Function: Nc, G, 1/2, 1.5 Mâ³/H, Epdm (032U1251). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 032U1251
| General Information | |
|---|---|
| Function | NC |
| Model Number | 032U1251 |
| Product Group | Solenoid Valves |
| Specification Key | EV220B 10B G 12E NC000 |
| Type | EV220B |
| Application | |
| Application | Open |
| Connections | |
| Connection Internal/External | Internal |
| Connection Size | 1/2 in |
| Connection Type | G |
| Kv Values | |
| Kv Value | 1.500 m³/h |
| Logistical Information | |
| Commodity Code | 84818059 |
| Country Of Origin | POL |
| EAN | 5702423015740 |
| Gross Weight | 0.31 kg |
| Material | |
| Body Material | Brass |
| Connection Material | Brass |
| Measurements | |
| Net Weight | 0.29 kg |
| Weight | 0.29 kg |
| Pressure | |
| Diff Pressure Range | 0.1-20.0 Bar |
| Max Operating Pressure | 20.0 Bar |
| Test Pressure | 30 Bar |
| Standards | |
| Approval | ACS, DNVGL-CG-0339, GL, PZH |
| Temperature | |
| Max Ambient Temperature | 80 °C |
| Medium Temperature Range | -30-100 °C |
| Valves | |
| Actuator Size | 13.5 mm |
| CV Value | 1.750 gal/min |
| Flow Direction | Single-flow |
| Flow Direction Indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Orifice | 3/8 in |
| Orifice Size | 10.00 mm;3/8 in |
