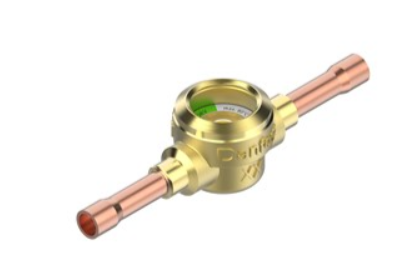

Danfoss Sgp 16S N, Sight Glass 014L0184 | Line Components
Image is for illustration only. Please go by the model number (SKU: 014L0184).
-45%Roll over image to zoom in
$98.99$179.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Sgp 16S N, Sight Glass: Commercial Grade Reliability
You are viewing the Danfoss Sgp 16S N, Sight Glass (014L0184). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 014L0184
| General Information | |
|---|---|
| Product Group | Sight Glasses |
| Type | SGP 16s N |
| Connections | |
| Connection Size | 5/8", 16 mm |
| Connection Type | Solder, ODF |
| Inlet Connection Size | 16.00 mm |
| Inlet Type | Solder, ODF |
| Outlet Connection Size | 5/8 in, 16.00 mm |
| Outlet Type | Solder,ODF |
| Features | |
| Serviceable | No |
| Logistical Information | |
| Commodity Code | 90261089 |
| Country Of Origin | IND |
| EAN | 5702428818773 |
| Gross Weight | 0.206 kg |
| Material | |
| Body Material | Brass |
| Connection Material | Copper |
| Measurements | |
| Net Weight | 0.19 kg |
| Oil | |
| Oil Type | Oilfree applications |
| Pressure | |
| Max Operating Pressure | 52.0 Bar |
| Refrigerant | |
| Refrigerant | R22, R32, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744, R1233zd(E), R1234yf, R1234ze(E), R1270 |
| Sight Glasses | |
| Green: Max Moist condition at 25 °C | R22: 30 ppm, R32: 64 ppm, R134a: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R454B: 29 ppm, R507A: 15 ppm, R513A: 22 ppm, R1270: 16 ppm |
| Green: Max Moist condition at 43 °C | R22: 50 ppm, R134a: 45 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R454B: 58 ppm, R507A: 30 ppm, R513A: 22 ppm, R1270: 29 ppm |
| Moisture Indicator | N indicator |
| Yellow: Min Moist condition at 25 °C | R22: 120 ppm, R32: 289 ppm, R134a: 100 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R407F: 168 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R507A: 60 ppm, R513A: 75 ppm, R1270: 62 ppm |
| Yellow: Min Moist condition at 43 °C | R134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R454B: 250 ppm, R507A: 110 ppm |
| Standards | |
| Approval | C UL US LISTED, EAC |
| Temperature | |
| Max Temperature | 80 °C |
| Min Temperature | -50 °C |
| Temperature Range | -50-80 °C |
| Valves | |
| Flow Direction Indicator | N indicator |
💡 Pro Tip: Ensure this 014L0184 matches your system requirements.
