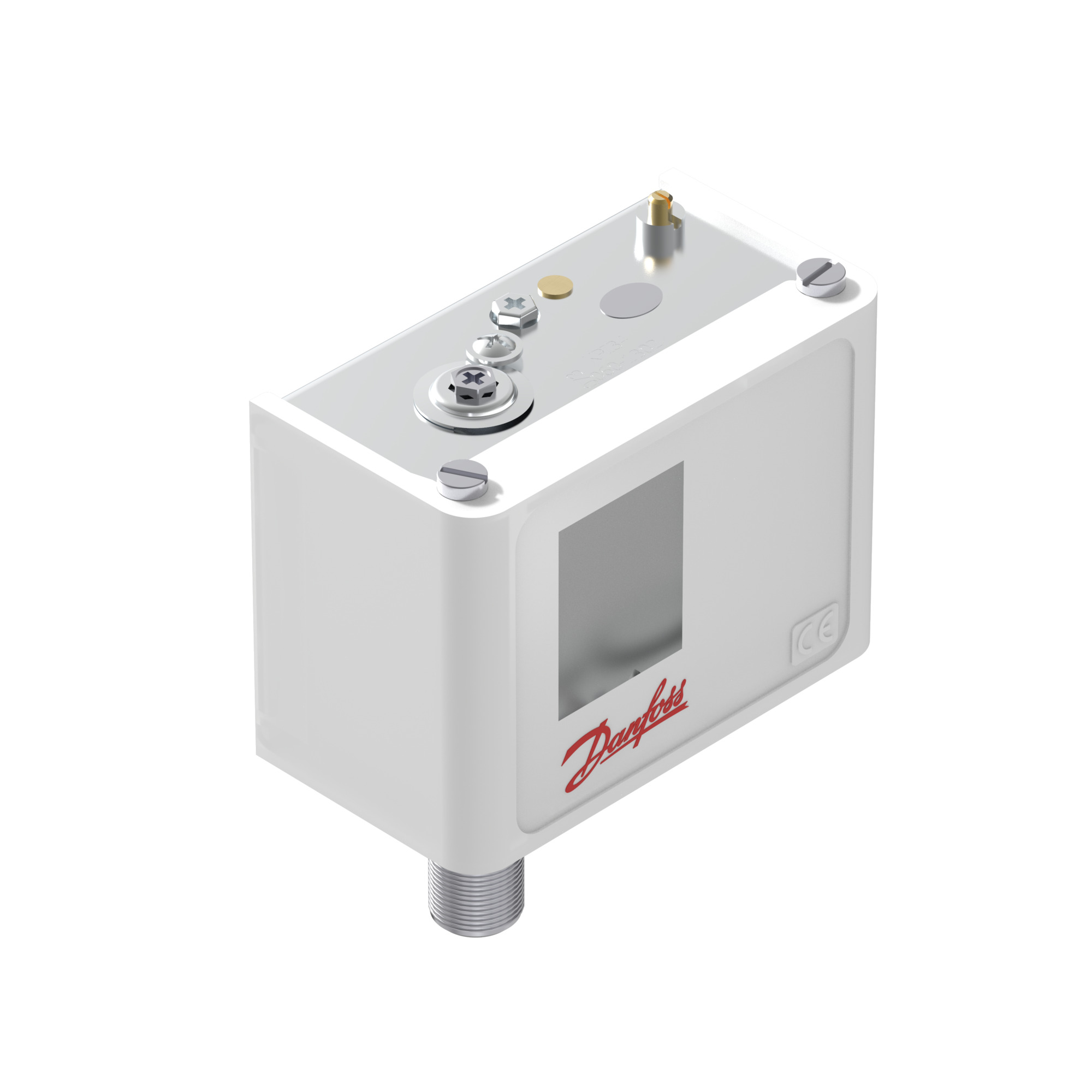

Danfoss Pressure Switch, Kpi35 060-121766 | Controls
Roll over image to zoom in
$758.99$1,379.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Pressure Switch, Kpi35: Commercial Grade Reliability
You are viewing the Danfoss Pressure Switch, Kpi35 (060-121766). This is a genuine, high-specification Controls component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 060-121766
| General Information | |
|---|---|
| Product Group | Pressure Controls Mechanical |
| Type | KPI35 |
| Additional Info | |
| Family | KPI |
| Connections | |
| Connection Size | 1/4 in |
| Pressure Connection Size | 1/4 in |
| Pressure Connection Type | G |
| Electrical | |
| Contact Function | SPDT |
| Electric Connection | Rubber cable gland |
| Electric Connection Size | 6-14 mm |
| IP Class | IP30 |
| Logistical Information | |
| Commodity Code | 90322000 |
| Country Of Origin | POL |
| EAN | 5702423146727 |
| Gross Weight | 0.346 kg |
| Measurements | |
| Weight | 0.31 kg |
| Pressure | |
| Diff | 0.4-1.5 Bar |
| Diff Pressure Range | 0.40-1.50 Bar |
| Max Operating Pressure | 18.0 Bar |
| Pressure Sensing Elements | Bellows |
| Regulating Range | -0.20-8.00 Bar |
| Standards | |
| Approval | CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, PZH, RINA, RoHS China, UKCA, c UL us UL873, CS C22.2 |
| Temperature | |
| Ambient Temperature Note | 80 °C/176 °F for max 120 min |
| Ambient Temperature Range | -40-65 °C |
💡 Pro Tip: Ensure this 060-121766 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 0.346 kg |
|---|---|
| MPN | |
| Brand | |
| Copper Pipe (mm) |
