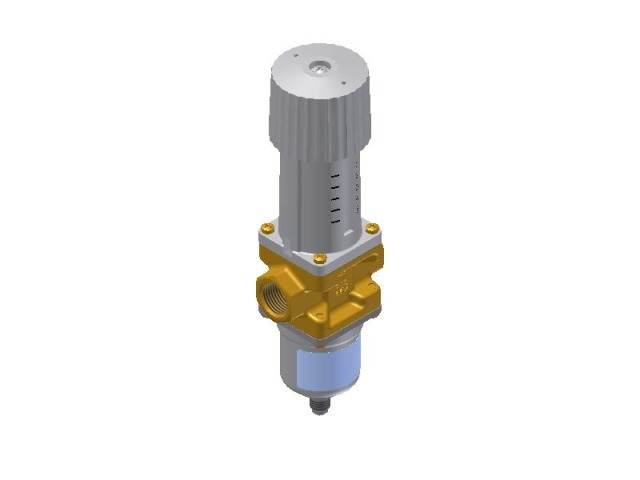

Danfoss Pressure Operated Water Valve, Wvfx 15 003N2100 | Line Components
Roll over image to zoom in
$1,308.99$2,379.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Pressure Operated Water Valve, Wvfx 15: Commercial Grade Reliability
You are viewing the Danfoss Pressure Operated Water Valve, Wvfx 15 (003N2100). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 003N2100
| General Information | |
|---|---|
| Model Number | 003N2100 |
| Product Group | Water Regulating Valves |
| Type | WVFX 15 |
| Connections | |
| Connection Internal/External | Internal |
| Connection Size | 1/2 in |
| Connection Size Refrigerant | 1/4 in, 6 mm |
| Connection Type | G |
| Connection Type Refrigerant | SAE flare |
| Outlet Connection Size | 15.00 mm |
| Kv Values | |
| Kv Value | 1.900 m³/h |
| Logistical Information | |
| Commodity Code | 84818059 |
| Country Of Origin | POL |
| EAN | 5702422024866 |
| Gross Weight | 1.37 kg |
| Material | |
| Body Material | Brass |
| Measurements | |
| Weight | 0.96 kg |
| Pressure | |
| Control Pressure Range | 3.5-16.0 Bar |
| Differential Pressure | 10.0 Bar |
| Max Operating Pressure | 16.0 Bar |
| Max Pressure Drop | 10 Bar |
| Refrigerant | |
| Refrigerant | R22, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R1234yf |
| Standards | |
| Approval | C UL US LISTED, EAC, LLC CDC TYSK, PED, RoHS, RoHS China |
| Temperature | |
| Medium Temperature Range | -25-130 °C |
| Valves | |
| CV Value | 2.200 gal/min |
| Media | Fresh water, Neutral brine |
| Opening Configuration | Opens on rising cond. pressure |
| Orifice Size | 15.00 mm;3/5 in |
💡 Pro Tip: Ensure this 003N2100 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 3.5 kg |
|---|---|
| Dimensions | 75 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Refrigerant |
