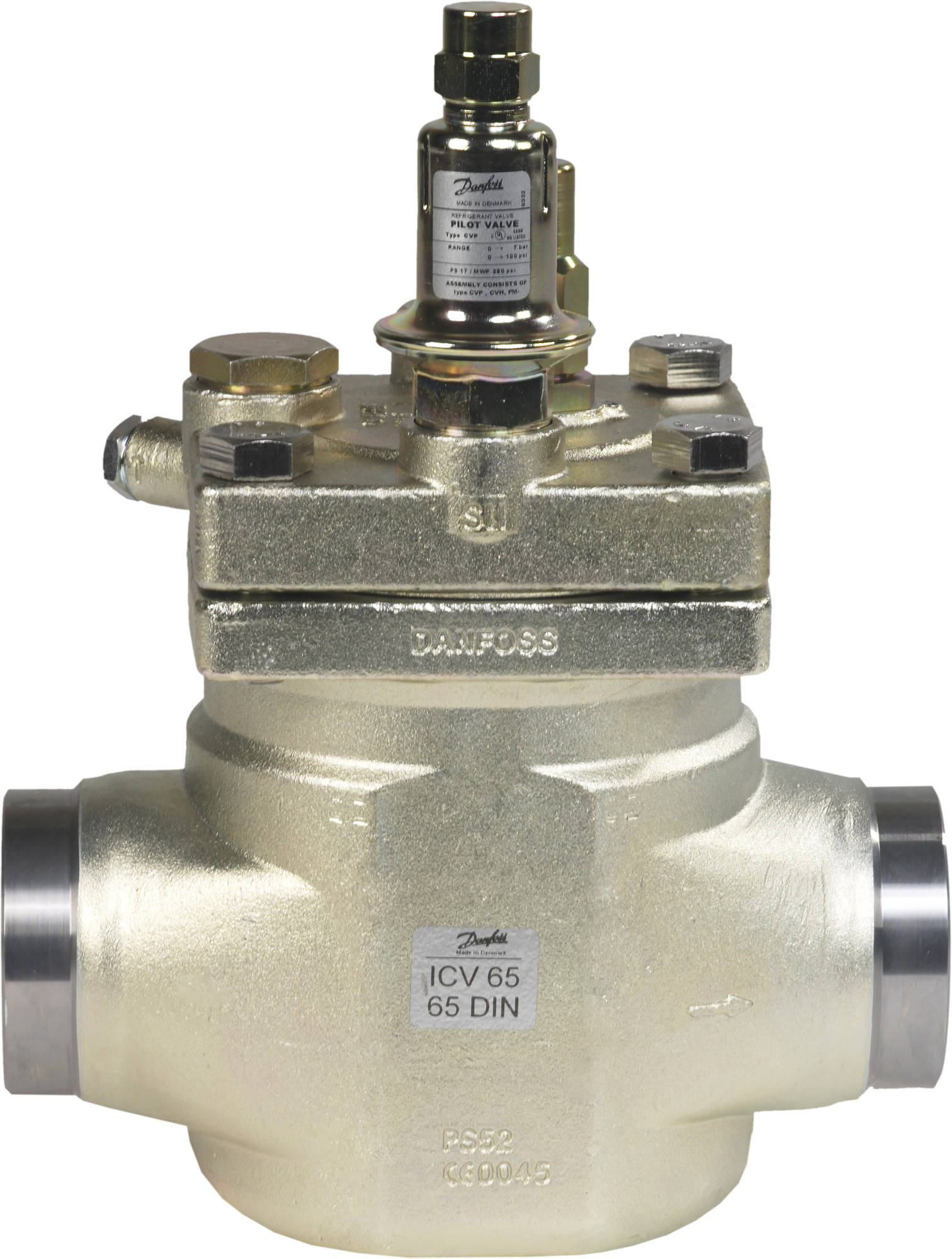

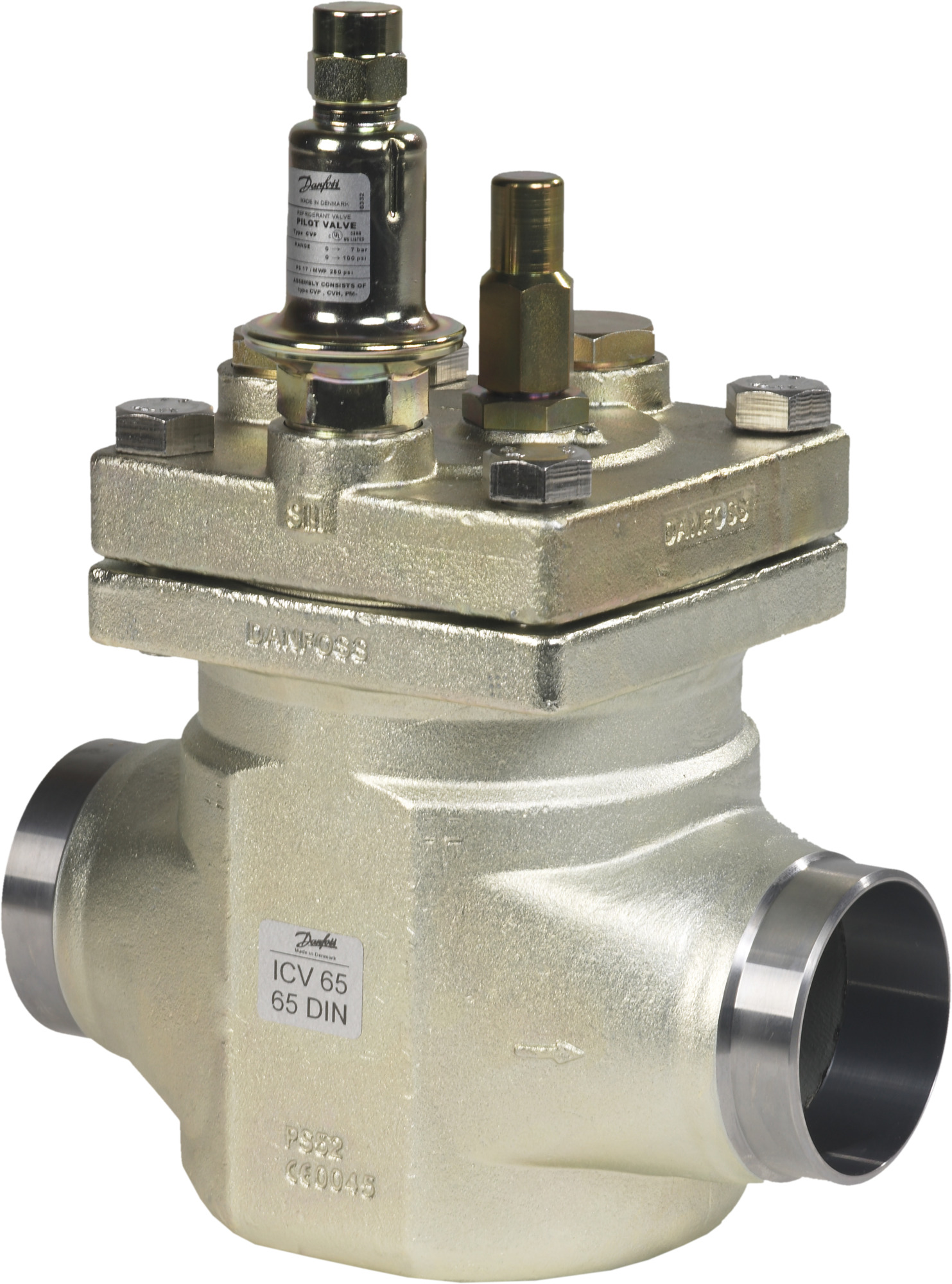

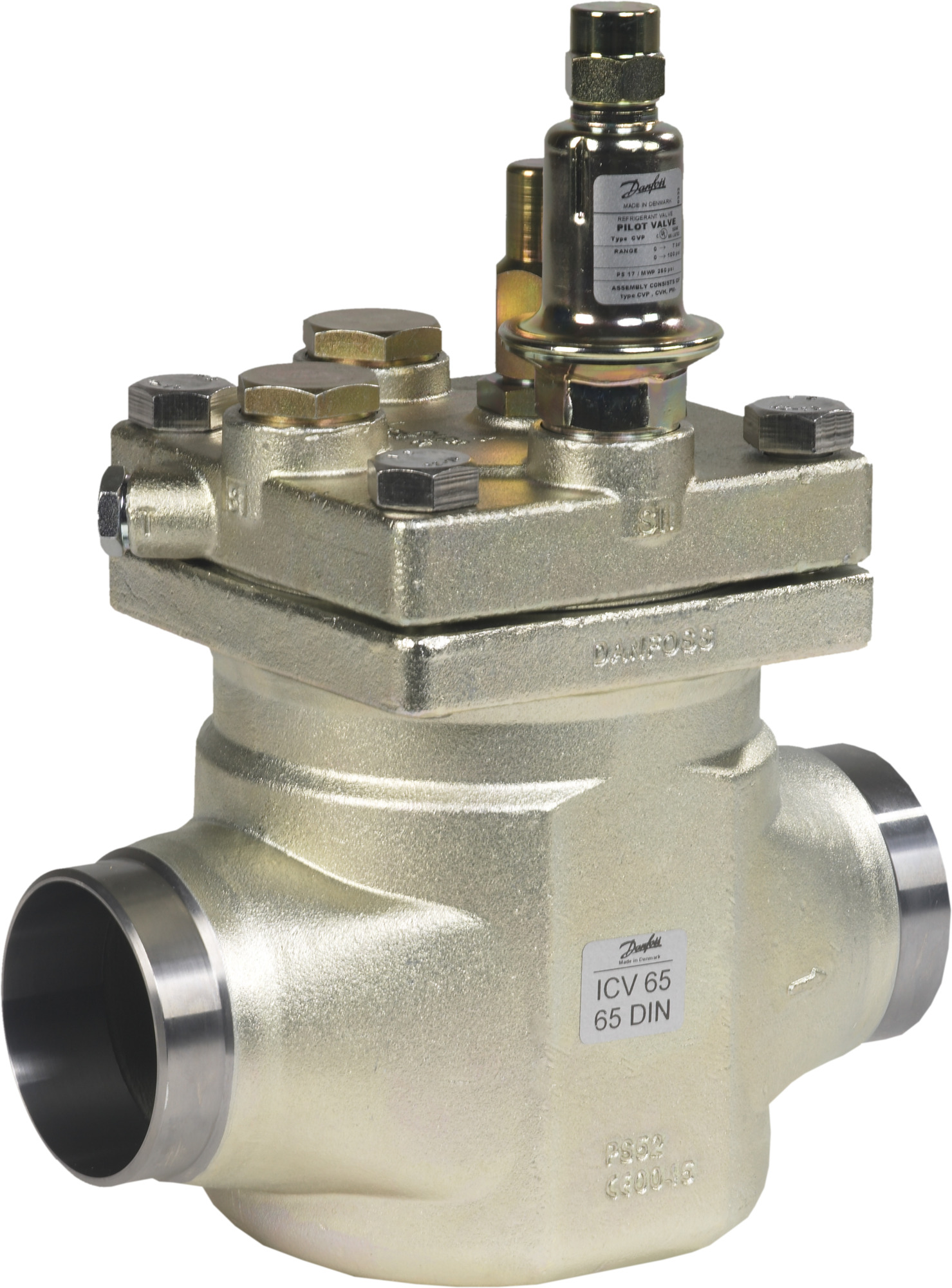

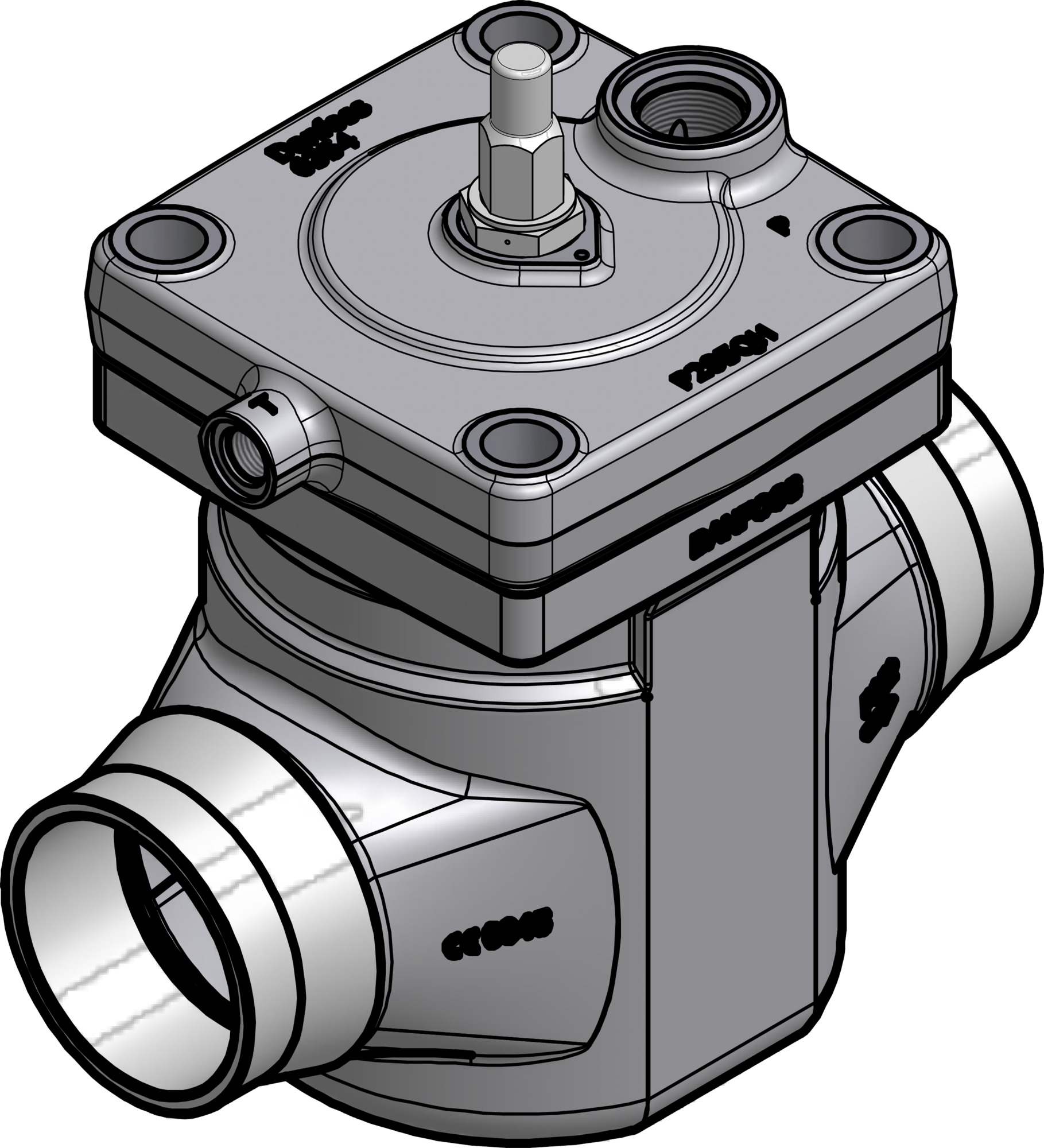

Danfoss Pilot Operated Servo Valve 027H6025 | Industrial Valves
Image is for illustration only. Please go by the model number (SKU: 027H6025).
-45%Roll over image to zoom in
$7,842.99$14,259.98 (-45%)
Price Match*
Price Match*
ICS1 65 2-5/8 SA
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Pilot Operated Servo Valve: Commercial Grade Reliability
You are viewing the Danfoss Pilot Operated Servo Valve (027H6025). This is a genuine, high-specification Industrial Valves component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 027H6025
| General Information | |
|---|---|
| Product Group | Control Valves |
| Type | ICS1 65 |
| Additional Info | |
| Additional Info | Coils not included |
| Family | ICS; ICS + CVC; ICS + CVP; ICS + CVPP; ICS + EVM; ICS ext |
| Connections | |
| Inlet Connection Size | 2 5/8 in, 67.0 mm |
| Inlet Type | Soldering |
| Outlet Connection Size | 2 5/8 in, 67.0 mm |
| Outlet Type | Solder |
| Kv Values | |
| Kv Value | 70.000 m³/h |
| Logistical Information | |
| Commodity Code | 84818073 |
| Country Of Origin | POL |
| EAN | 5702428235471 |
| Gross Weight | 15.934 kg |
| Material | |
| Body Material | Steel |
| Connection Material | Steel |
| Measurements | |
| Net Weight | 14.86 kg |
| Pressure | |
| Max Operating Pressure | 52.0 Bar |
| Refrigerant | |
| Refrigerant | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
| Standards | |
| Approval | EAC, LLC CDC TYSK, TÜV, UL |
| Temperature | |
| Temperature Range | -60-120 °C |
| Valves | |
| CV Value | 81.200 gal/min |
| Direction | Straightway |
| Flow Direction Indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Opening Configuration | Closed (delta p=0 bar); Full open (delta p≥0.2 bar); PropOpen (delta p=0.07-0.2bar) |
| Valve Operation | Pilot operated |
| Valve Version | Standard version |
💡 Pro Tip: Ensure this 027H6025 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 15.375 kg |
|---|---|
| Dimensions | 395 × 200 mm |
