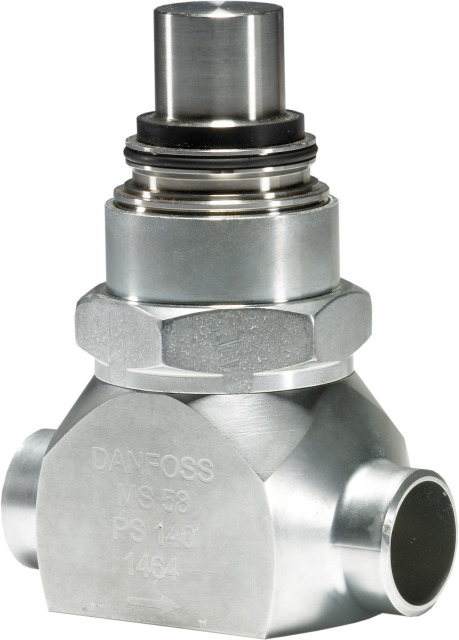

Danfoss Motor Operated Valve, Icmts 20A, Steel 027H1085 | Industrial Valves
Roll over image to zoom in
$4,894.99$8,899.98 (-45%)
Price Match*
Price Match*
ICMTS 20-A 25 DIN *CO2*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Motor Operated Valve, Icmts 20A, Steel: Commercial Grade Reliability
You are viewing the Danfoss Motor Operated Valve, Icmts 20A, Steel (027H1085). This is a genuine, high-specification Industrial Valves component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 027H1085
| General Information | |
|---|---|
| Product Group | Control Valves |
| Type | ICMTS 20A |
| Compatibility | |
| Compatible Controllers | EKC 326A |
| Connections | |
| Inlet Connection Size | 1 in, 25.0 mm |
| Inlet Type | Butt weld |
| Outlet Connection Size | 1 in, 25.0 mm |
| Outlet Type | Butt weld |
| Kv Values | |
| Kv Value | 0.600 m³/h |
| Logistical Information | |
| Commodity Code | 84818073 |
| Country Of Origin | POL |
| EAN | 5702428237215 |
| Gross Weight | 2.445 kg |
| Material | |
| Body Material | Steel |
| Connection Material | Steel |
| Measurements | |
| Net Weight | 2.31 kg |
| Weight | 2.31 kg |
| Pressure | |
| Max Operating Pressure | 140.0 Bar |
| Refrigerant | |
| Refrigerant | R744 |
| Standards | |
| Approval | CE, CRN, EAC, LLC CDC TYSK, UKCA |
| Temperature | |
| Max Temperature | 120 °C |
| Min Temperature | -60 °C |
| Temperature Range | -60-120 °C |
| Valves | |
| CV Value | 0.700 gal/min |
| Direction | Straightway |
| Flow Direction Indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| MOPD | 90.0 Bar |
| Valve Operation | DIRECT |
💡 Pro Tip: Ensure this 027H1085 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 1.092 kg |
|---|---|

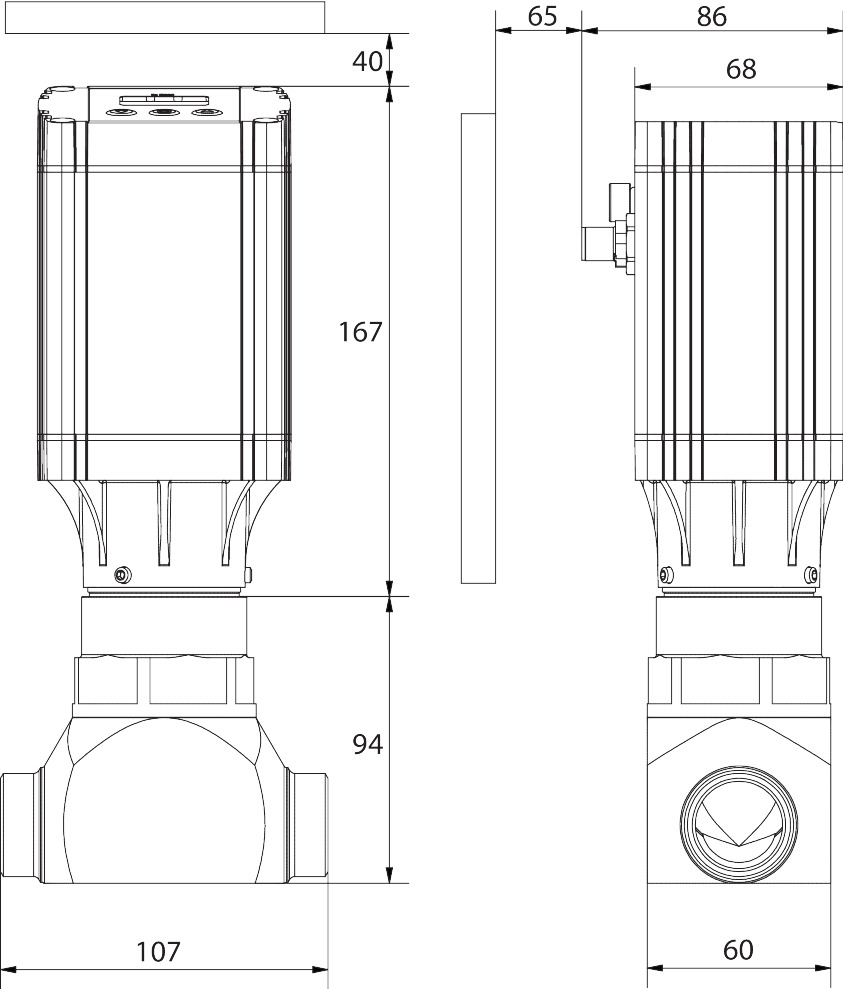

| Dimensions | 193 × 128 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Refrigerant |
