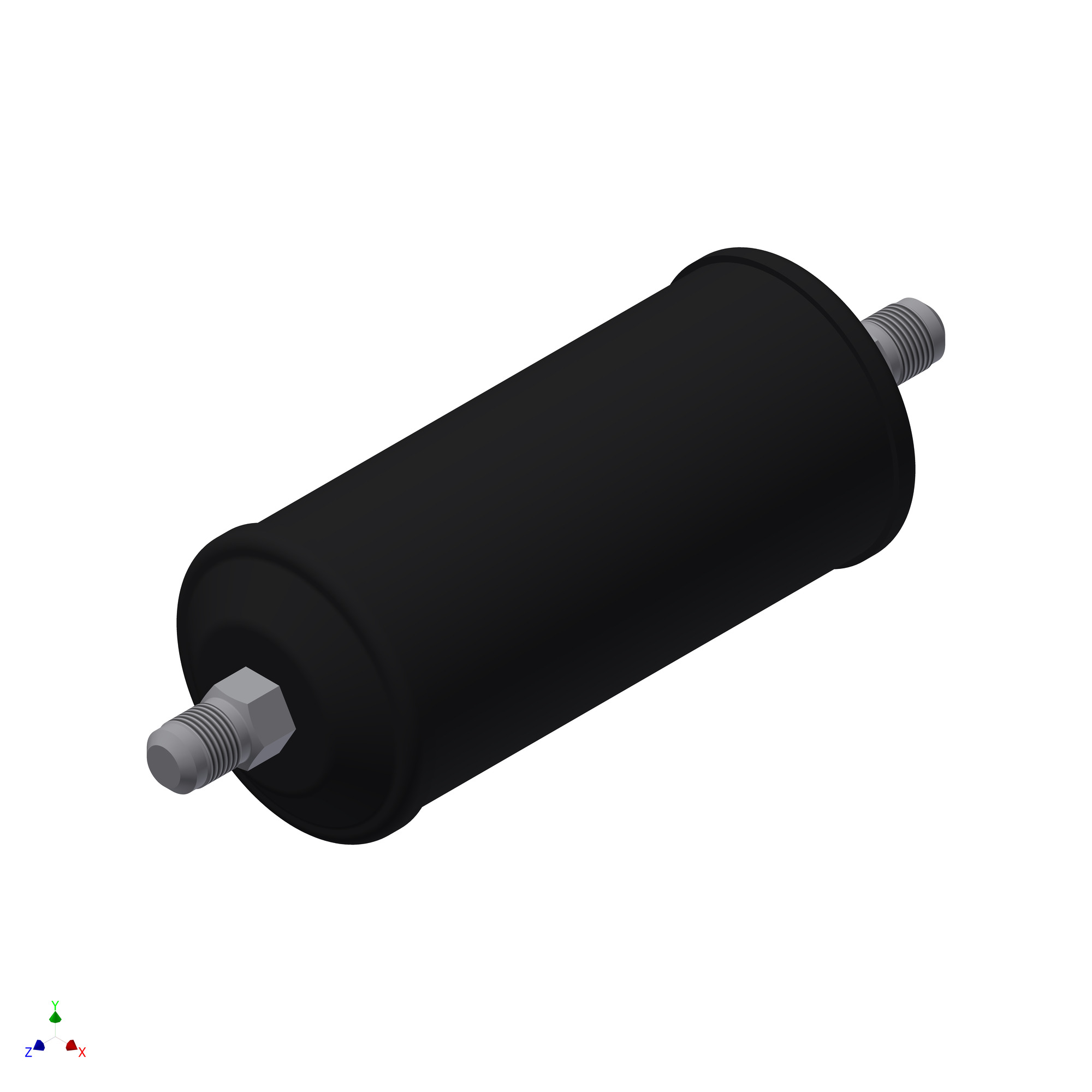

Name: Danfoss Hermetic Filter Drier, Dml, 30 023Z0050
Brand: Danfoss
SKU: 023Z0050
Price: 149.99 NZD
Availability: InStock

Danfoss Hermetic Filter Drier, Dml, 30: Commercial Grade Reliability

You are viewing the strong Danfoss Hermetic Filter Drier, Dml, 30 (023Z0050). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.

Technical Specification: Danfoss 023Z0050

### General Information ###
Activated Alumina / Molec. Sieve. : 0/100 %
Model Number : 023Z0050
Product Group : Liquid Line Driers
Specification Key : DML 304
Type : DML 304

### Capacity ###
Acid Capacity : 2.43 g
Capacity : R32: 50.1 kW, R134a: 32.9 kW, R404A: 23.1 kW, R407C: 33.7 kW, R410A: 34.2 kW, R507: 22.4 kW
Liquid Capacity Conditions (ARI 710-2009) : Delta p=0.07bar, tliq= 30°C, tvap=-15°C

### Connections ###
Connection Size : 1/2″
Connection Type : Flare
Inlet Connection Size : 1/2 in
Inlet Type : Flare
Outlet Connection Size : 1/2 in
Outlet Type : Flare

### Driers ###
Core : Solid core
Core Size : 30 cu.in.
Flow Capacity kW : R32: 50.1, R134a: 32.9, R290: –, R404A: 23.1, R407C: 33.7, R410A: 34.2, R507: 22.4
Shell Volume : 0.72 L
Solid Core Surface : 52.70 in², 340 cm²
Solid Core Volume : 15.77 in³, 258 cm³

### Drying Capacity ###
Drying Capacity 24°C (Drops of Water) : R32: 948, R134a: 1127, R290: –, R404A: 1174, R407C: 1094, R410A: 1020, R507: 1229
Drying Capacity 52°C (Drops of Water) : R32: 873, R134a: 1032, R290: –, R404A: 1112, R407C: 1009, R410A: 907, R507: 1106

### Logistical Information ###
Commodity Code : 84212980
Country Of Origin : MEX
EAN : 5702428159821
Gross Weight : 1.443 kg
HS Code : 023Z0050

### Material ###
Body Material : Steel
Connection Material : Steel

### Measurements ###
Net Weight : 1.32 kg
Volume : 0.464 L
Weight : 1.32 kg

### Pressure ###
Max Operating Pressure : 46.0 Bar

### Refrigerant ###
Refrigerant : R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E)

### Standards ###
Approval : UL

### Temperature ###
Max Temperature : 70 °C
Medium Temperature Range : -40-70 °C
Min Temperature : -40 °C
Temperature Range : -40-70 °C

### Valves ###
Flow Direction Indicator : Label printed 1-way arrow
Fluid Group : 2

💡 Pro Tip: Ensure this 023Z0050 matches your system requirements. This part is sourced directly from the Danfoss supply chain to ensure full compatibility and warranty retention.
