Danfoss Hermetic Filter Drier, Dml, 16 023Z5043 | Line Components

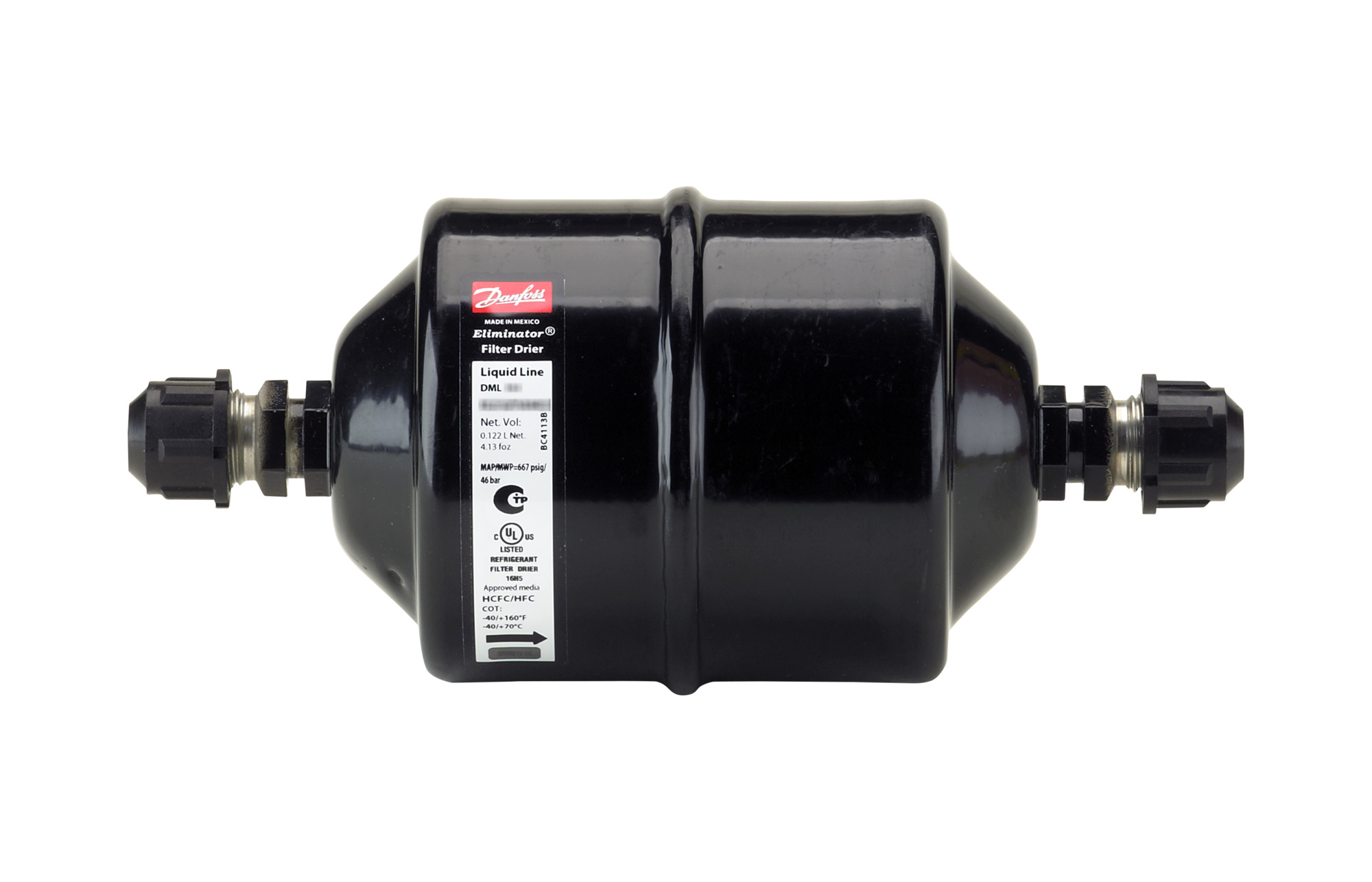

Image is for illustration only. Please go by the model number (SKU: 023Z5043).
-45%Roll over image to zoom in
$87.99$159.98 (-45%)
Price Match*
Price Match*
Filter drier DML 163 M/12
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Hermetic Filter Drier, Dml, 16: Commercial Grade Reliability
You are viewing the Danfoss Hermetic Filter Drier, Dml, 16 (023Z5043). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 023Z5043
| General Information | |
|---|---|
| Activated Alumina / Molec. Sieve. | 0/100 % |
| Model Number | 023Z5043 |
| Product Group | Liquid Line Driers |
| Specification Key | DML 163 |
| Type | DML 163 |
| Capacity | |
| Acid Capacity | 1.20 g |
| Capacity | R32: 27.6 kW, R134a: 18.1 kW, R404A: 12.7 kW, R407C: 18.6 kW, R410A: 18.9 kW, R507: 12.4 kW |
| Liquid Capacity Conditions (ARI 710-2009) | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Connections | |
| Connection Size | 3/8" |
| Connection Type | Flare |
| Inlet Connection Size | 3/8 in |
| Inlet Type | Flare |
| Outlet Connection Size | 3/8 in |
| Outlet Type | Flare |
| Driers | |
| Core | Solid core |
| Core Size | 16 cu.in. |
| Flow Capacity kW | R32: 27.6, R134a: 18.1, R290: -, R404A: 12.7, R407C: 18.6, R410A: 18.9, R507: 12.4 |
| Shell Volume | 0.35 L |
| Solid Core Surface | 28.34 in², 183 cm² |
| Solid Core Volume | 7.84 in³, 128 cm³ |
| Drying Capacity | |
| Drying Capacity 24°C (Drops of Water) | R32: 470, R134a: 559, R290: -, R404A: 582, R407C: 543, R410A: 506, R507: 610 |
| Drying Capacity 52°C (Drops of Water) | R32: 433, R134a: 512, R290: -, R404A: 551, R407C: 500, R410A: 450, R507: 548 |
| Logistical Information | |
| Commodity Code | 84212980 |
| Country Of Origin | MEX |
| EAN | 5702428155694 |
| Gross Weight | 0.708 kg |
| HS Code | 023Z5043 |
| Material | |
| Body Material | Steel |
| Connection Material | Steel |
| Measurements | |
| Net Weight | 0.68 kg |
| Volume | 0.226 L |
| Pressure | |
| Max Operating Pressure | 46.0 Bar |
| Refrigerant | |
| Refrigerant | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
| Standards | |
| Approval | UL |
| Temperature | |
| Max Temperature | 70 °C |
| Medium Temperature Range | -40-70 °C |
| Min Temperature | -40 °C |
| Temperature Range | -40-70 °C |
| Valves | |
| Flow Direction Indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
