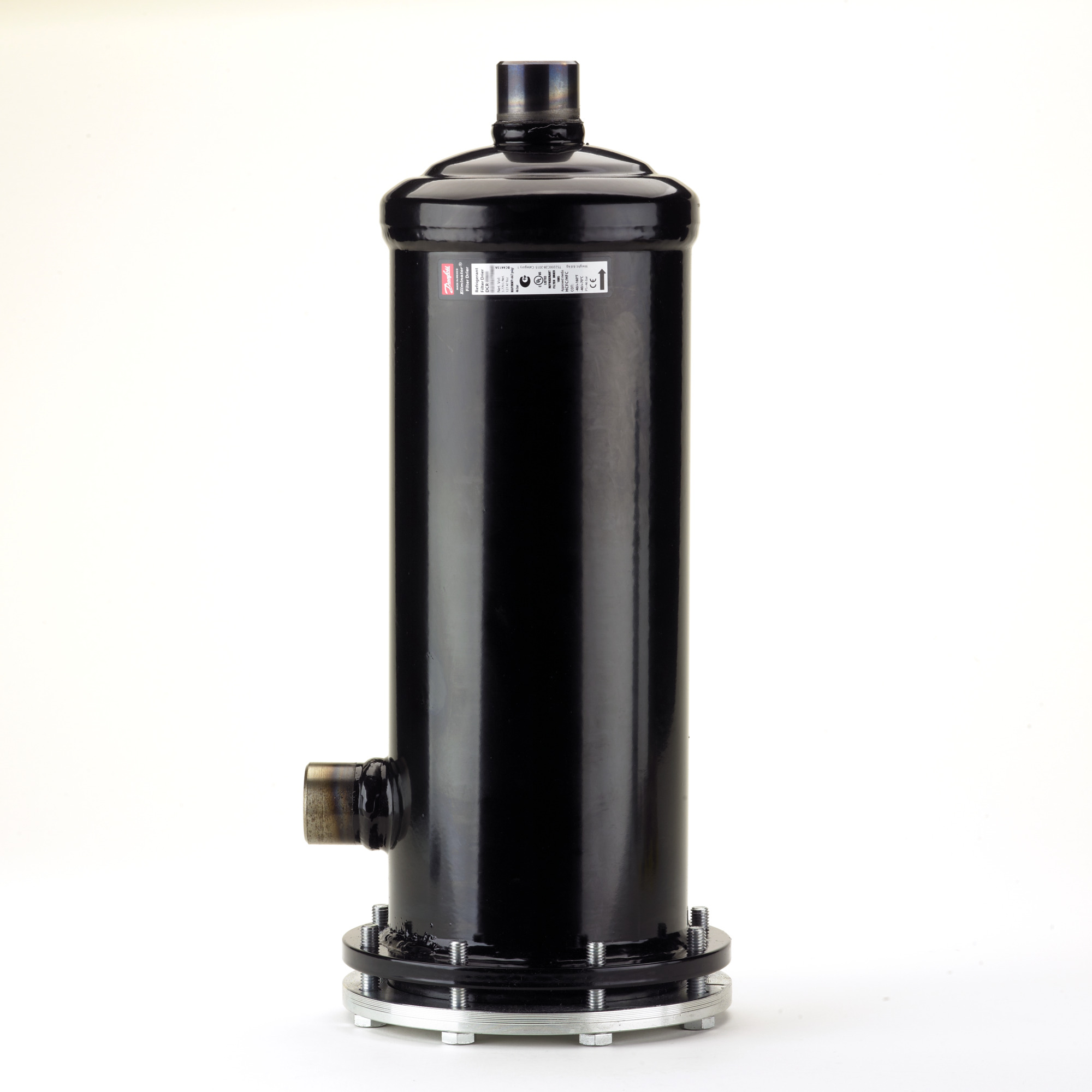

Danfoss Filter Drier, Shell, Dcr 023U7461 | Line Components
Roll over image to zoom in
$934.99$1,699.98 (-45%)
Price Match*
Price Match*
DCR Filter 09611 Assy.
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Filter Drier, Shell, Dcr: Commercial Grade Reliability
You are viewing the Danfoss Filter Drier, Shell, Dcr (023U7461). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 023U7461
| General Information | |
|---|---|
| Model Number | 023U7461 |
| Parts Included | 1 cov, 4 felt gaskets, 8 Bolts |
| Product Group | Liquid Line Driers |
| Specification Key | DCR 09611 |
| Type | DCR 09611 |
| Additional Info | |
| Family | DCR-DA; DCR-DC; DCR-DM |
| Capacity | |
| Liquid Capacity Conditions (ARI 710-2009) | Delta p=0.07Bar, tliq= 30°C, tvap=-15°C |
| Liquid Capacity kW | R134a: 294.9, R404A: 207.4, R407C: 302.2, R410A: 306.8, R452A: 210.0, R507: 201.1, R1234ze: 261.8 |
| Connections | |
| Connection Type | Butt weld/Solder, ODF |
| Solder Connection Size | 1 3/8 in |
| Weld Connection Size | 1 1/4 in |
| Driers | |
| Core Size | 96 cu.in. |
| Cover | Plug |
| Number Of Cores | 2 |
| Shell Volume | 3.38 L |
| Logistical Information | |
| Commodity Code | 84219990 |
| Country Of Origin | MEX |
| EAN | 5702428202343 |
| Gross Weight | 8.308 kg |
| Material | |
| Body Material | Steel |
| Connection Material | Steel |
| Measurements | |
| Volume | 2.515 L |
| Weight | 6.35 kg |
| Pressure | |
| Max Operating Pressure | 46.0 Bar |
| Refrigerant | |
| Refrigerant | R22/R407C, R23, R125, R134a, R404A, R407A, R407F, R410A, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R1234ze(E) |
| Standards | |
| Approval | CE, CSA, UKCA, UL |
| Temperature | |
| Max Temperature | 70 °C |
| Min Temperature | -40 °C |
| Temperature Range | -40-70 °C |
| Valves | |
| Flow Direction Indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
💡 Pro Tip: Ensure this 023U7461 matches your system requirements.
