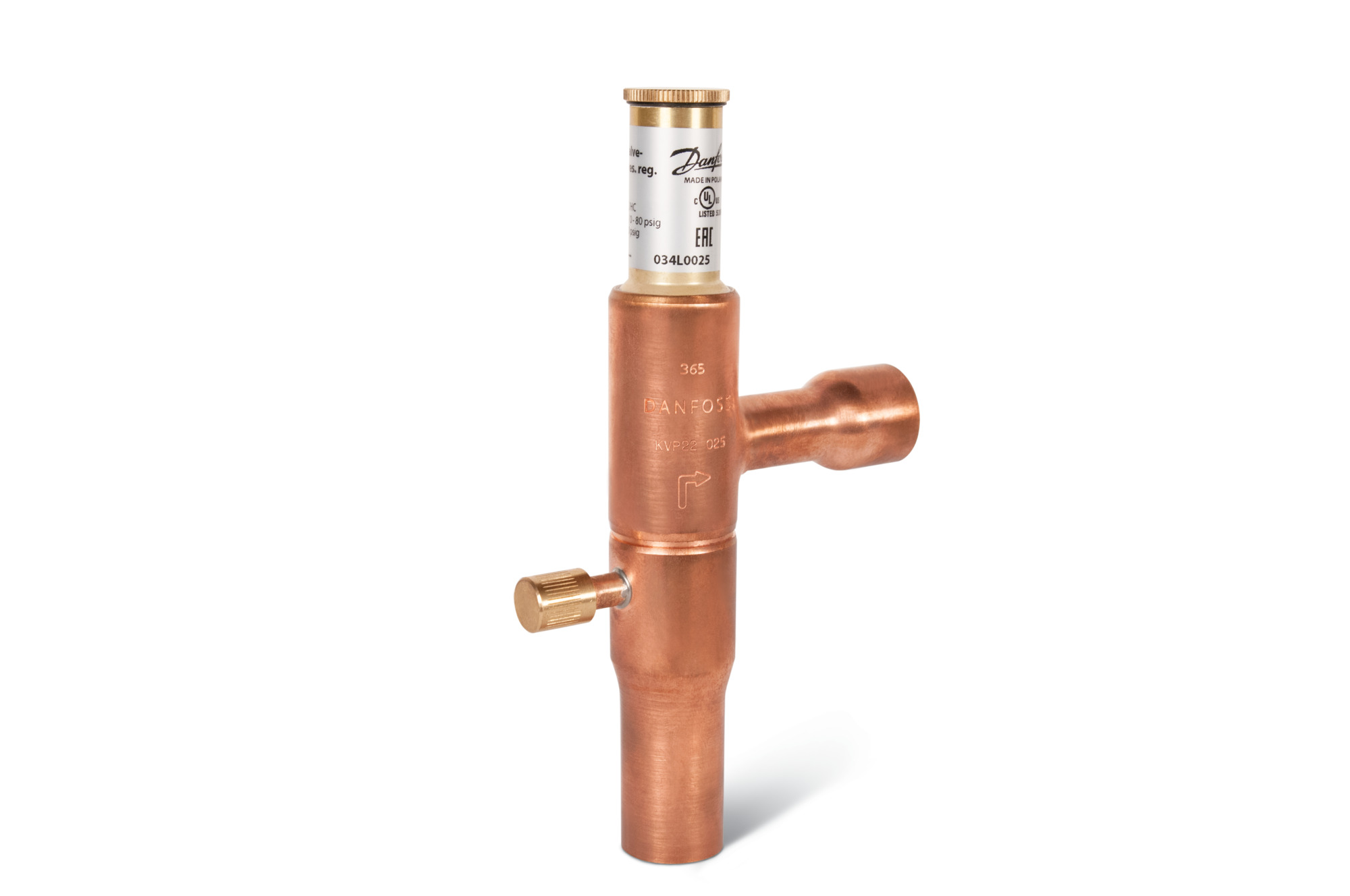

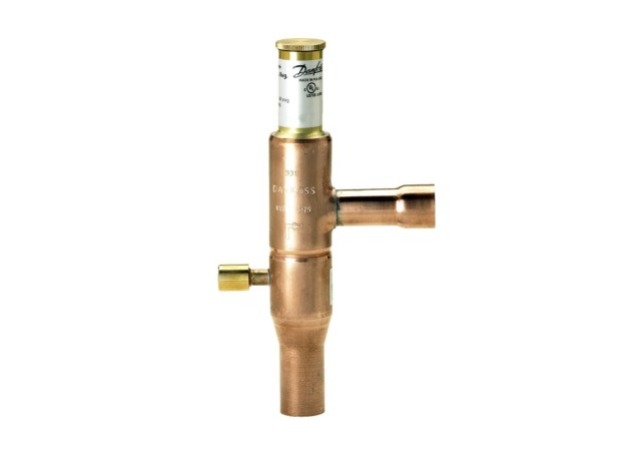

Danfoss Evaporator Pressure Regulator, Kvp 35 034L0032 | Line Components
Image is for illustration only. Please go by the model number (SKU: 034L0032).
-45%Roll over image to zoom in
$1,539.99$2,799.98 (-45%)
Price Match*
Price Match*
KVP 35 Evaporator Pres. Reg. M/7
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Evaporator Pressure Regulator, Kvp 35: Commercial Grade Reliability
You are viewing the Danfoss Evaporator Pressure Regulator, Kvp 35 (034L0032). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 034L0032
| General Information | |
|---|---|
| Equipment | Schrader valve access port |
| Product Group | Pressure Regulating Valves |
| Type | KVP 35 |
| Additional Info | |
| Additional Info | Max. extern.bellow press.25bar |
| Connections | |
| Connection Size | 1 3/8" |
| Connection Type | Solder, ODF |
| Inlet Connection Size | 1 3/8 in, 35.00 mm |
| Inlet Type | Solder, ODF |
| Outlet Connection Size | 1 3/8 in, 35.00 mm |
| Outlet Type | Solder, ODF |
| Kv Values | |
| Kv Value | 8.000 m³/h |
| Logistical Information | |
| Commodity Code | 84818059 |
| Country Of Origin | POL |
| EAN | 5702428411790 |
| Gross Weight | 1.038 kg |
| Measurements | |
| Net Weight | 0.9 kg |
| Pressure | |
| Max Operating Pressure | 18.0 Bar |
| Regulating Range | 0.0-5.5 Bar |
| Test Pressure | 19.8 Bar |
| R134A Performances | |
| R134a Capacity | 6.10 kW |
| R22 Performances | |
| R22 Capacity | 8.60 kW |
| R407C Performances | |
| R407C Capacity | 7.90 kW |
| Refrigerant | |
| Refrigerant | R22, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A |
| Standards | |
| Approval | C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China |
| Temperature | |
| Max Temperature | 130 °C |
| Medium Temperature Range | -45-130 °C |
| Min Temperature | -45 °C |
| Temperature Control & Settings | |
| Factory Setting | 2.00 Bar |
| Valves | |
| CV Value | 9.250 gal/min |
| Flow Direction Indicator | Engraved 1-way arrow |
💡 Pro Tip: Ensure this 034L0032 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 3.8 kg |
|---|---|
| Dimensions | 75 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Refrigerant |
