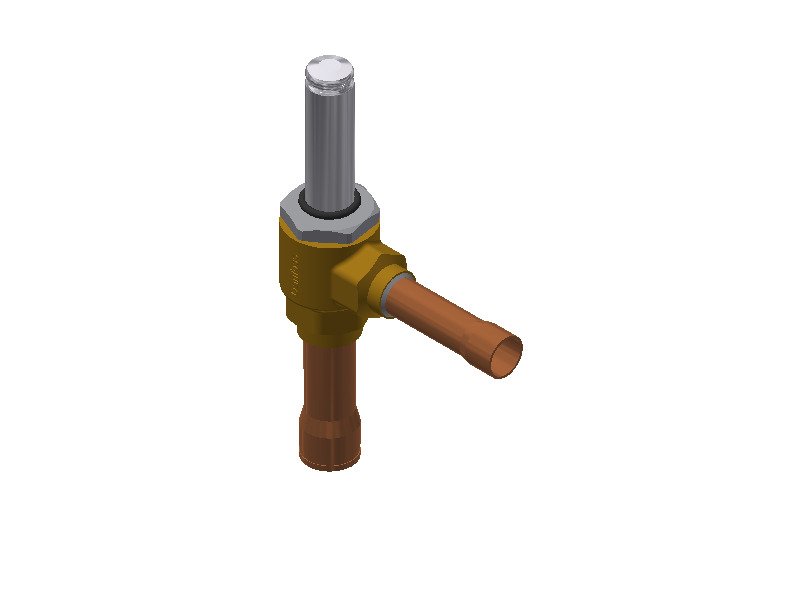

Danfoss Electric Expansion Valve, Akv 10P7 068F5217 | Line Components
Roll over image to zoom in
$1,176.99$2,139.98 (-45%)
Price Match*
Price Match*
⚠️ Important Compatibility Notice
Please double-check the required specifications with your qualified technician or installer prior to ordering. Due to the technical nature of this product, incorrect orders cannot be exchanged, replaced, or refunded. Thank you for your understanding.
Danfoss Electric Expansion Valve, Akv 10P7: Commercial Grade Reliability
You are viewing the Danfoss Electric Expansion Valve, Akv 10P7 (068F5217). This is a genuine, high-specification Line Components component designed for professional installations. Whether you are fitting out a commercial HVAC system, upgrading industrial refrigeration infrastructure, or handling a residential maintenance job, this unit delivers the engineering standard required for New Zealand conditions.
Technical Specification: Danfoss 068F5217
| General Information | |
|---|---|
| Manual Operation Option | No |
| Model Number | 068F5217 |
| Product Group | TX Valves Electronic |
| Coils | |
| Coil | No |
| Connections | |
| Connection Type | Solder, ODF |
| Inlet Connection Size | 1/2 in |
| Outlet Connection Size | 5/8 in, 16 mm |
| Kv Values | |
| Kv Value | 0.19 m³/h |
| Logistical Information | |
| Commodity Code | 84818059 |
| Country Of Origin | POL |
| EAN | 5702428669931 |
| Gross Weight | 0.352 kg |
| Measurements | |
| Net Weight | 0.31 kg |
| Pressure | |
| Max Operating Pressure | 90.0 Bar |
| Min OPD | 0.000 Bar |
| R22 Performances | |
| R22 Rated Capacity | 16.00 kW |
| Refrigerant | |
| Refrigerant | R22, R23, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R422D, R438A, R448A, R449A, R450A, R452A, R452B, R455A, R507A, R513A, R600a, R744, R1233zd, R1234yf, R1234ze, R1270 |
| UL Approved Refrigerants | R22, R23, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454A, R463A, R507A, R513A, R513B, R515A, R515B, R516A, R744, R1233zd(E) |
| Standards | |
| Approval | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
| Temperature | |
| Medium Temperature Range | -50-60 °C |
| Valves | |
| CV Value | 0.21 gal/min |
| MOPD | 18 Bar |
| Orifice Size | 2.3 mm |
💡 Pro Tip: Ensure this 068F5217 matches your system requirements.
Need more options? Explore our complete range of professional Components Supplies available for NZ-wide delivery.
Additional information
| Weight | 0.444 kg |
|---|---|
| Dimensions | 127 × 35 mm |
| MPN | |
| Brand | |
| Copper Pipe (mm) | |
| Refrigerant |
